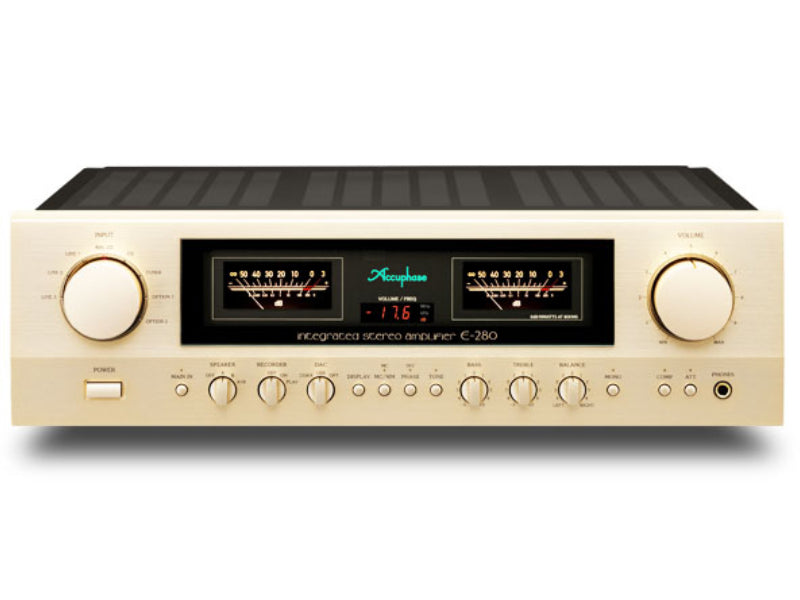

Accuphase E-280 Integrated Amplifier
Accuphase Laboratory, Inc.Japan have requested for us not to publish prices for all of their premium products.
Price and demonstration are available on request.
The New Accuphase E-280 is an integrated stereo amplifier equipped with "AAVA volume control" that achieves a high signal-to-noise ratio and low distortion ratio. The power amplifier section realizes high quality power of 120W / ch (4Ω) by parallel push-pull configuration of high power transistor and low impedance of powerful power supply section and output circuit. Furthermore, the current feedback amplifier circuit excellent in the phase characteristic of a high region is adopted, and the signal path is balanced transmission by an instrumentation amplifier. The damping factor that affects the behaviour of the speaker has been achieved to 500 by reviewing the pattern and wiring between the power amplifier and the speaker output terminal in order to reduce the output impedance. Achieves non-contact protection circuit with power MOSFET switch. Two new option boards can be added, achieving expandability equivalent to that of higher-end models. Pursuing the performance and sound quality of separate amplifiers to the utmost limit, we will open up a new stage that exceeds the class.
- Equipped with Accuphase's original "AAVA volume control"
- Rated output 90W / 8Ω, 120W / 4Ω
- "Bipolar transistor" 2 parallel push-pull power amplification stage
- Powerful power supply unit with large high-efficiency power transformer and large-capacity filter / capacitor
- Power amplifier section of instrumentation amplifier configuration
- A current feedback amplifier circuit is used in the power amplifier section.
- Logic relay control signal switching method
- "MOSFET switch" adopted for protection circuit
- "Damping factor" improved by 25% compared to E-270, achieving 500
- Equipped with an option slot into which two option boards can be inserted
Rated continuous average output (20 to 20,000 Hz) Simultaneous operation of both channels 4 ohm load 120W 8 ohm load 90W
Total harmonic strain rate (20 to 20,000Hz) Simultaneous operation of both channels 4 to 16 ohm load 0.05% IM Strain Rate 0.01%
Frequency Response BALANCED INPUT Rated Continuous Average Output 20-20,000Hz (0-u20120.5dB) LINE INPUT Rated Continuous Average Output 20-20 20,000Hz (0-u20120.5dB) MAIN IN Rated Continuous Average Output 20-20,000Hz (0-u20120.2dB) 1W Output 3-15 0,000Hz(0/u20123.0dB)
Damping Factor 500 (8 ohm load 50Hz) Input sensitivity/Input impedance Input terminal Input sensitivity Input Output EIA(1W output) Impedance BALANCED INPUT 134mV 14.2mV 40k Ohm LINE INPUT 134mV 14.2mV 20k Ohm MAIN IN 1.07V 113mV 20k Ohm Output Voltage PRE OUT PUT Rated Continuous Average Output 1.07V
Compatible impedance 8 ohms or more Power AC100V 50/60Hz
Power consumption no input 52W Electrical appliance safety method 249W 8 ohm load rated output 345W
Maximum external dimensions Width 465mm × Height 151mm × Depth 420mm Mass 20.4kg
Expected Price £5100
More Details to Follow,,,,,
Available to pre order now... Delivery expected in December..
