Luxman

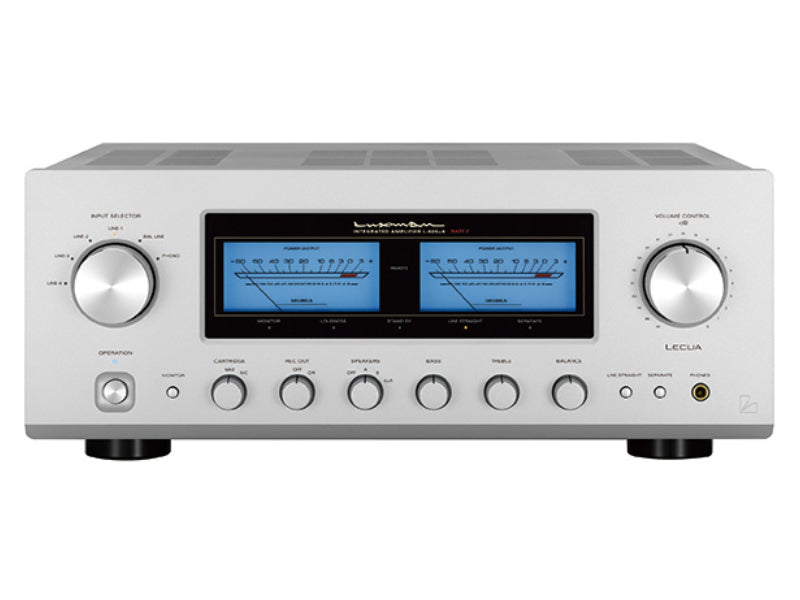

Luxman L-505uXII Integrated Amplifier

£4,299

The Luxman L-505uXII is the eagerly awaited Mark II version of the popular L-505uX that has been at the forefront of pre-amplifier design since it's launch in 2011. Incorporating an abundance of proprietary technologies, such as Luxman's Version 4.0 ODNF (Only Distortion Negative Feedback), as well as LECUA (Luxman Electronically Controlled Ultimate Attenuator), this product is a truly multifunctional integrated amplifier. As Luxman's latest high-end model, the L-505uXII continues the evolution of the L-505 series, which has attracted many fans of audio quality and earned a great reputation. As an amplifier which exudes sophistication and authenticity beyond its class, the L-505uXII represents the latest in a long line of exemplary models.

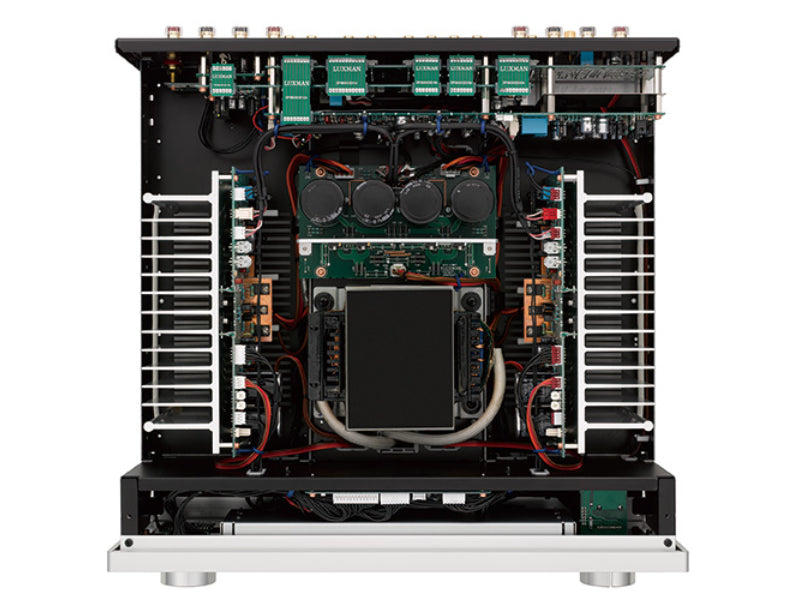

The Luxman L-505uXII consists of an EI core type power transformer, highly regulated, with four large capacity 10,000μF blocking capacitors creating a highly stable power supply. This ensures an instantaneous, constant and stable current supply.

High stability power supply

The power supply of the L-505uXII consists of an EI core type power transformer, highly regulated, with four large capacity 10,000μF blocking capacitors creating a highly stable power supply. This ensures an instantaneous, constant and stable current supply.

OFC cabling is used in the internal wiring of the L-505uXII, achieving natural signal transmission due to the spirally wrapped shielding on each non-plated wire core.

A wide variety of custom-made components for high sound quality components for high sound quality

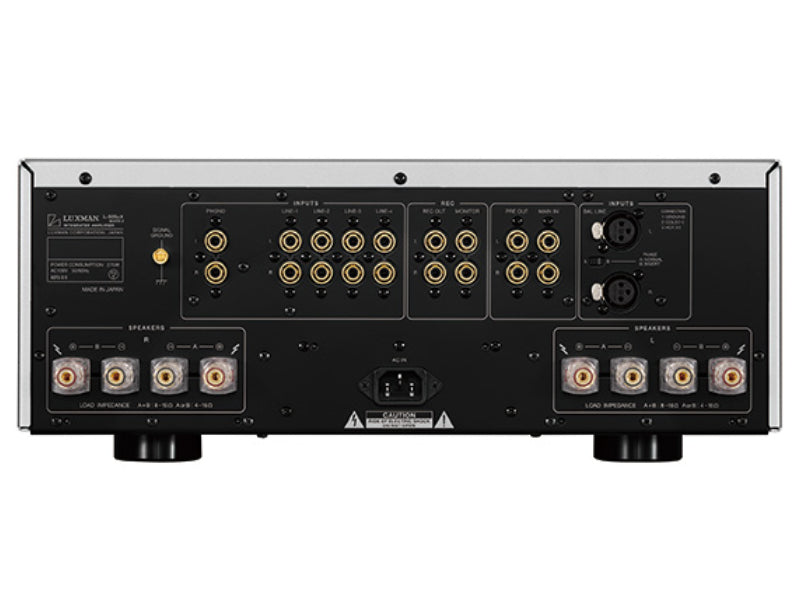

OFC cabling is used in the internal wiring of the L-505uXII, achieving natural signal transmission due to the spirally wrapped shielding on each non-plated wire core. A high quality input selector IC is employed to improve separation and eliminate crosstalk. This model is generously equipped with many custom-made parts designed to achieve high sound quality such as in-line layout speaker terminals for easier speaker cable connection.

An abundance of user-friendly functions

The L-505uXII is equipped with a high quality phono pre-amplifier that is compatible with MM and MC cartridges supporting full analog reproduction. This model offers all the functions that a high quality pre-main amplifier should offer such as bass/treble tone control, L/R balance adjustment using LECUA, pre/power separation function, volume function and headphone output to name a few.

Specifications

Rated output 100W + 100W (8Ω),
150W + 150W (4Ω)
Input sensitivity/input impedance PHONO (MM): 2.5mV/47kΩ
PHONO (MC): 0.3mV/100Ω
LINE: 180mV/47kΩ
BAL.LINE: 180mV/55kΩ
MAIN-IN: 1V/47kΩ
Output voltage REC OUT: 180mV, PRE-OUT: 1V
Frequency response PHONO: 20Hz to 20kHz (within -3dB)
LINE: 20Hz to 100kHz (within -3dB)
Total harmonic distortion 0.009% or less (8Ω, 1kHz)
0.09% or less (8Ω, 20Hz to 20kHz)
S/N ratio (IHF-A) PHONO (MM): 91dB or more
PHONO (MC): 75dB or more
LINE: 104dB or more
Volume adjustment LECUA
Amplification circuit ODNF 4.0
Output configuration Bipolar parallel push-pull
Damping factor 210
Max. amount of tone control BASS: ±8dB at 100Hz
TREBLE: ±8dB at 10kHz
Power supply 230V~(50Hz) / 115V~(60Hz)
Power consumption 270W
85W (under no signal), 0.4W (at standby)
External dimensions 440(W) x 178(H) x 454(D) mm
front side knob of 20mm and rear side terminal
of 27mm included in depth
Net weight 22.5kg (main unit)
Accessories Remote control (RA-17A)
Power cable
Speaker terminal Supported Y-lug terminal dimension Width of part a: 15mm or less
Width of part b: 8mm or more
* Connection may not be performed
depending on the shape of the
Y-lug terminal.
