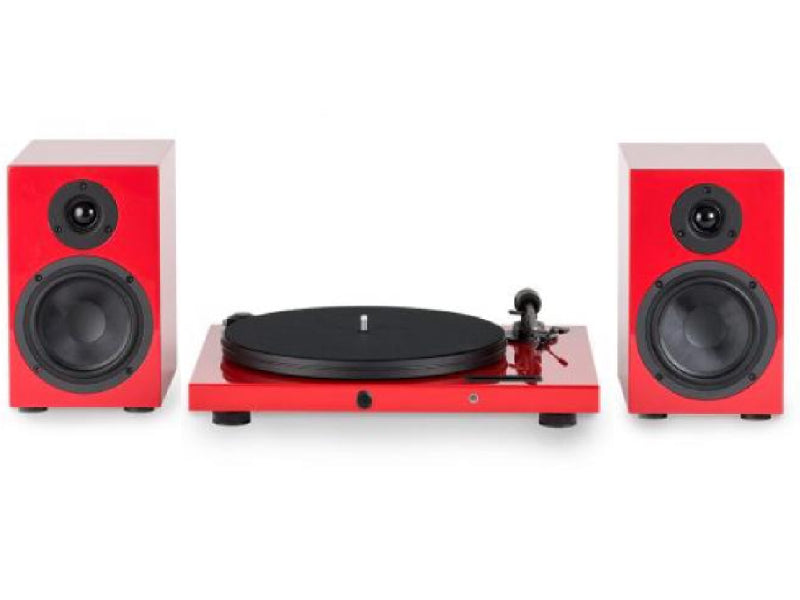

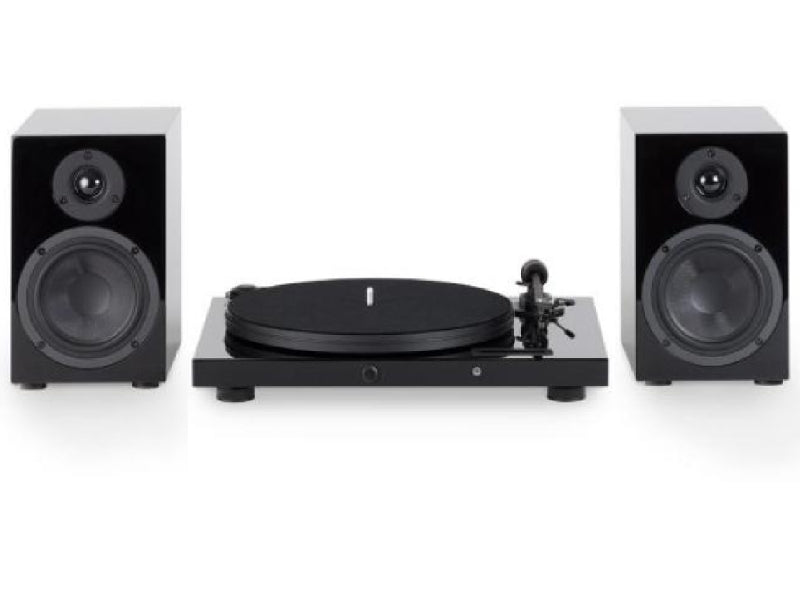

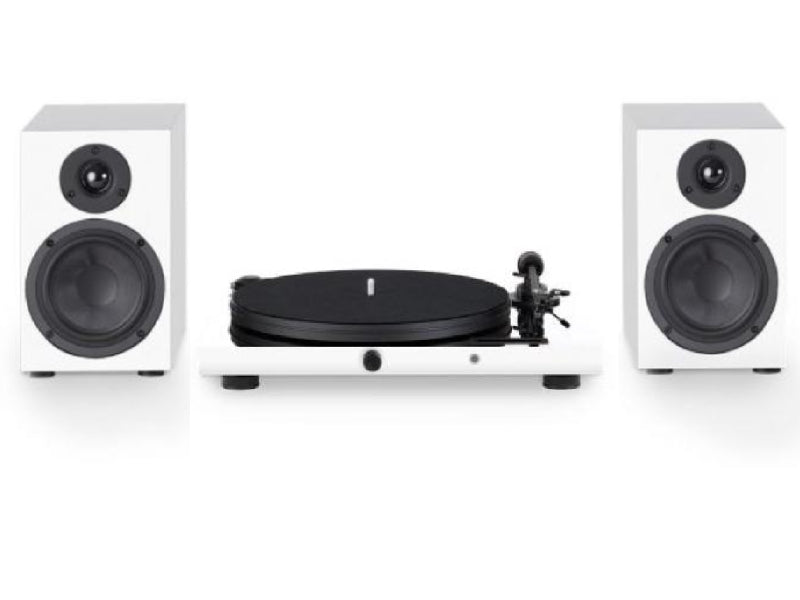

Project Juke Box E Turntable System (with Speakers)

£699
Finish:

The Juke Box E is a great turntable starter system in a box with the simplest of set-up processes. Juke Box E is a vinyl record player with integrated phono stage, a Bluetooth receiver, a pre-amplifier and a power amplifier all in one stylish, compact chassis. Requiring only a set of speakers to make a complete system, the performance and level of convenience on offer is unprecedented for the price.

The record player itself is based on a modified version of the popular Pro-Ject Primary design. While requiring no complicated set-up, the turntable design still includes premium features like an 8.6” aluminium tonearm with sapphire bearings, Ortofon OM 5E cartridge, perimeter belt-drive operation and a low-vibration synchronous motor with reliable speed stability. To set the turntable up there’s no need to adjust the anti-skate or counter-balance settings, simply install the belt and you’re ready to spin!

Built into the turntable chassis is a premium integrated amplifier with plenty of power and dynamic sound. Boasting 50W per-channel output, the amplifier has a moving-magnet phono stage built-in, based on Pro-Ject’s coveted Phono Box technology. There’s also a wireless Bluetooth input for CD-quality streaming from a compatible smart device, and an additional Line input. So any modern source can also be added to the Juke Box E system.

With gold-plated RCA connectors and isolated speaker terminals on the back panel, the Juke Box E carries with it a real sense of prestige. The same can also be said for the overall construction, thanks to the thick, heavy high-gloss plinth, luxury aluminium pulley, included removable dust cover, special decoupling feet and the intuitive display panel on the top-chassis.

Operation is simple thanks to the volume and input information shown on the display, and the 32-step digital potentiometer – with added push function for switching inputs – allows you to set playback at exactly your desired volume. For times when the Juke Box E is out of reach, the supplied remote control helps with switching inputs and adjusting volume, as well as accessing more sophisticated controls including Bass and Treble adjustment and a Loudness boost.

The Speaker Box 5 are a compact, high-fidelity loudspeaker with a 5” woofer and 1” tweeter. Finished in a matching high-gloss finish for the Juke Box E, they offer the ultimate in convenience, sound and design...

Key Features:

  • Premium turntable with integrated amplifier built-in
  • Simple set-up and operation
  • Turntable, Bluetooth and Line inputs
  • High-contrast display on top-panel
  • Control volume and input with built-in digital potentiometer
  • Control all inputs and more advanced features with supplied remote control
  • 50W per-channel output (4Ω)
  • Phono and Line outputs
  • Gold-plated sockets
  • Premium belt-drive turntable with manual speed change
  • 8.6" aluminium tonearm with sapphire bearings
  • Pre-adjusted tracking force and anti-skating force
  • Ortofon OM 5E cartridge included
  • Low-vibration synchronous motor
  • Special turntable feet for effective decoupling
  • Dust cover included
  • Available in High-Gloss Black, Red or White
  • Matching Speaker Box 5 speakers Included

Technical Data

Amplifier

Power Output: 2 x 50W (4Ω)
Outputs:


Speaker Terminals
Line Out (Fixed)
Phono Out
Inputs:

Bluetooth (2.1, EDR)
Line (RCA Pair)
Phono Input: For Moving Magnet Cartridges

Turntable

Replacement Stylus:  Ortofon Stylus 5E
Pre-Fitted Cartridge:  Ortofon OM 5E
Drive Principle: Belt Drive
Nominal Speeds:  33/45 RPM (Manual Speed Change)
Speed Variance:

33: 0.8%
45: 0.7%
Wow & Flutter:

33: 0.29%
45: 0.27%
Platter:  300mm Plywood with Felt Mat
Main Bearing:  Stainless Steel in Bronze Bushing
Effective Tonearm Length: 8.6" (218.5mm) Aluminium
Effective Tonearm Mass:  8.0g
Overhang: 22.0mm
Counterweight: For Cartridges Weighing 3 - 5.5g
Tracking Force Range:  0 - 25mN (Set at 18mN for OM 5E)
Power Consumption:  4.5W max.
Dimensions (W x H x D): 415 x 118 x 334mm
Weight: 5kg (net.)

Speakers

Sensitivity (1W / 1m): 86dB
Recommended Amplifier Power: 10 - 150W RMS
Tweeter: 25mm Ø Silk Dome Driver
Woofer: 130mm Ø Fiberglass Cone
Frequency Response: 55Hz - 20kHz
Impedance: 4 - 8Ω
Dimensions: 160 x 255 x 210mm
Weight: 4200g
