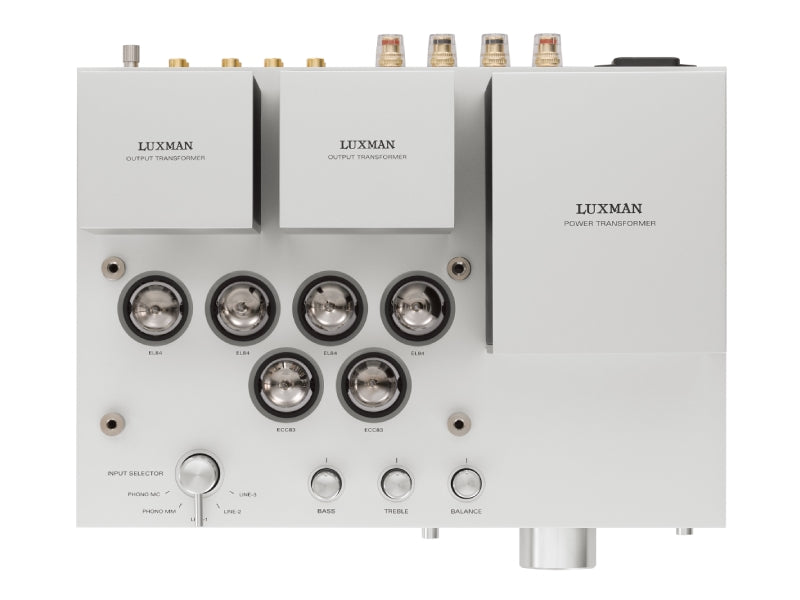

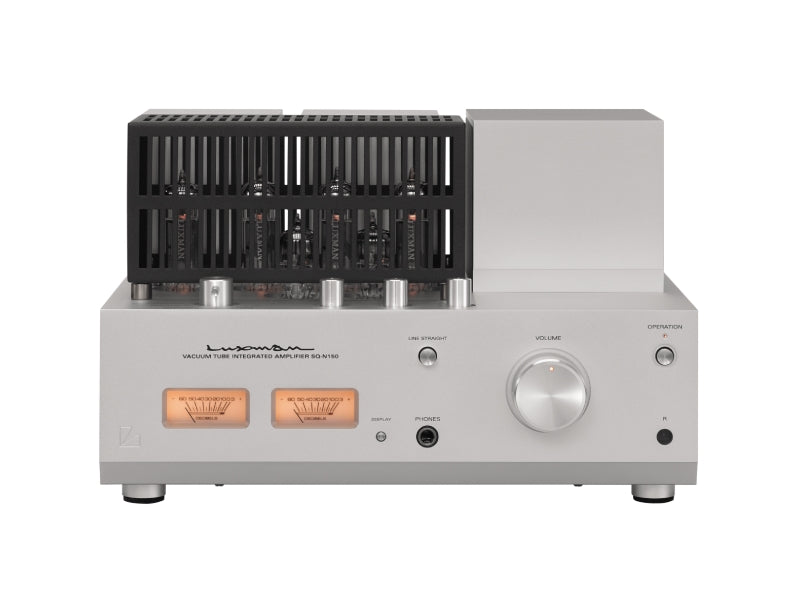

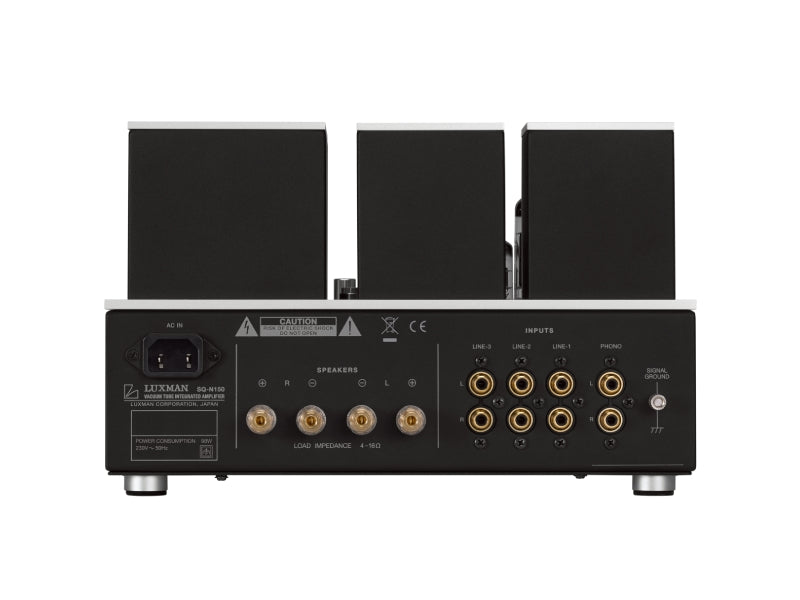

Luxman SQ-N150 Vacuum Tube Integrated Amplifier

£2,999.00

Brand Luxman

A true classic for the modern age.. this beautiful new vacuum tube amplifier brings a life to your music collection, which, until you listen to this Luxman you really didn't realise what you were missing.

Luxman's original NeoClassico Series delivered uncompromising music reproduction from a 'A4' chassis footprint. Now Luxman have updated the circuit design using audiophile parts and added innovative features the SQN150 Vacuum Tube Integrated Amplifier is part of the new NeoClassico II Series with this they also have the DN150 DAC / CD Player.

Specifications

Rated output
10W+10W(6Ω)
Input sensitivity/
input impedance
PHONO (MM): 3.0mV/47kΩ
PHONO (MC): 0.33mV/100Ω
LINE: 180mV/47kΩ
Frequency response
PHONO: 20Hz to 20kHz (±0.5dB)
LINE: 20Hz to 80kHz (within -3.0dB)
Total harmonic distortion
1% or less (1kHz, 10W/6Ω)
S/N ratio (IHF-A)
PHONO (MM): 84dB or more
PHONO (MC): 64dB or more
LINE: 95dB or more

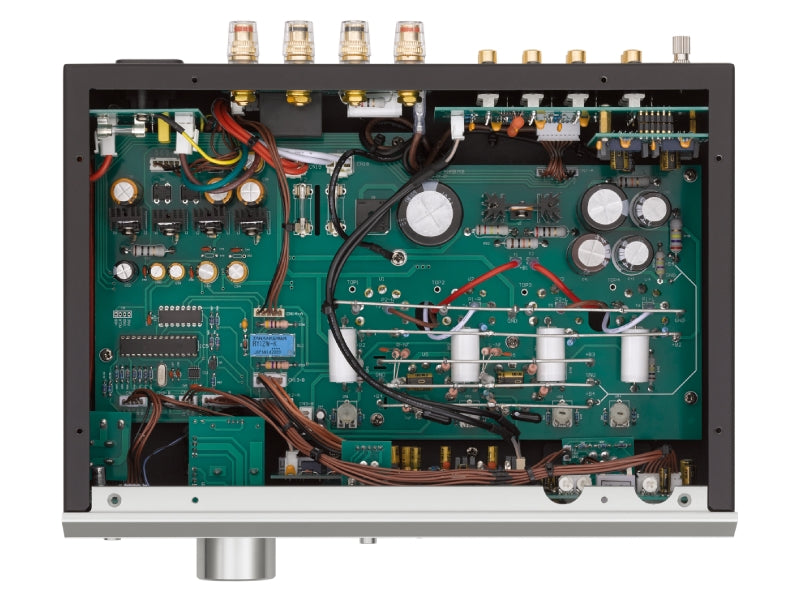

Circuit
Driver :P-K split phase inversion circuit
Output :Pentode power tubes

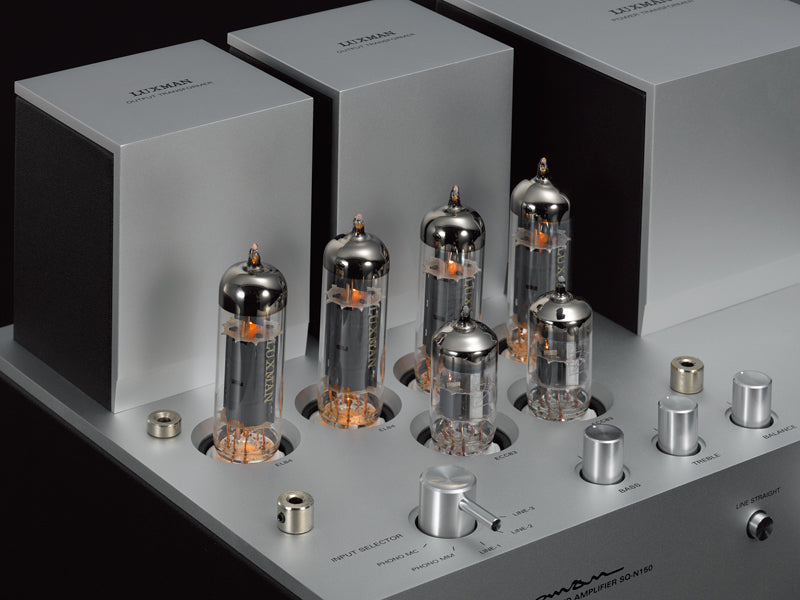

Vacuum tubes
ECC83×3, EL84×4
Power supply
230V~(50Hz) / 115V~(60Hz)
Power consumption
98W
External dimensions
297(W) x 188(H) x 251(D) mm
20mm front panel knob of and 21mm rear panel
terminals are included in the depth measurement
Net weight
12.4kg (main unit)
Accessories
Remote control (RA-25), Power cable
