The 7000N Play builds upon that legacy building introduction of wireless audio streaming to the brand with enhancements and improvements to match the step up from the established 6000 series to the new class-leading, 7000 series.
Bringing hi-resolution wireless audio streaming to any home audio system, the 7000N Play further expands on the multi-format, multi-platform, multi-source compatible DTS Play-Fi system, now with Apple AirPlay 2 compatibility.
Wi-Fi® Technology
Featuring DTS Play-Fi® Technology, music can be streamed over your wireless network in high-resolution format and can be easily expanded to a multi-room system if required. You can stream from any source on your wireless network, including smartphones, tablets or PCs as well as a NAS Drive.
DTS Play-Fi App
Besides accessing your personal music library, the DTS Play-Fi platform offers a wealth of leading online music channels from around the globe. Spotify, Tidal, HD Tracks, Deezer, Amazon Music, Napster, KKBox and Sirius XM, to name a few. Browse a radio guide with thousands of stations and podcasts, or stream from a home media server with DLNA compatibility. And thanks to the aforementioned AirPlay 2 adoption, the 7000N Play also now offers further compatibility for Apple Music users and other non-Play-Fi native platforms by way of Apple Airplay 2 connectivity, offering all of the additional convenience of the Apple platform.
Digital Screen

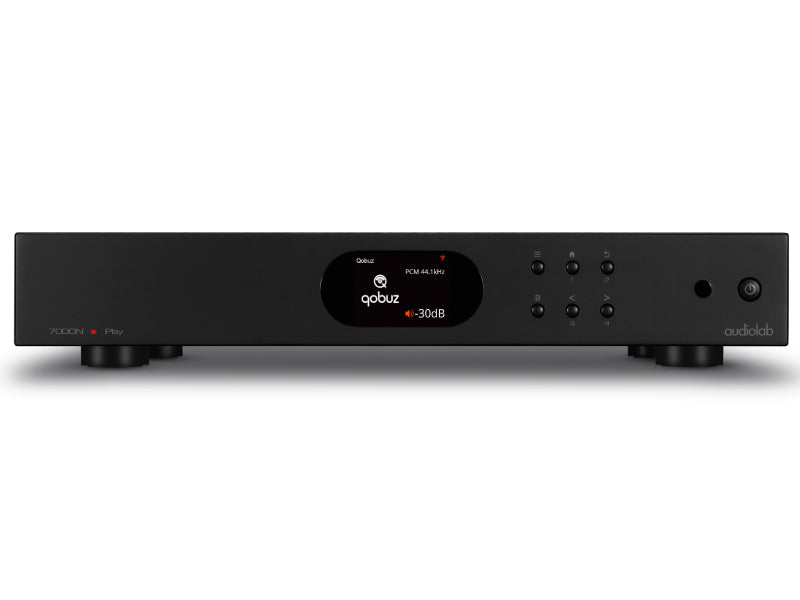

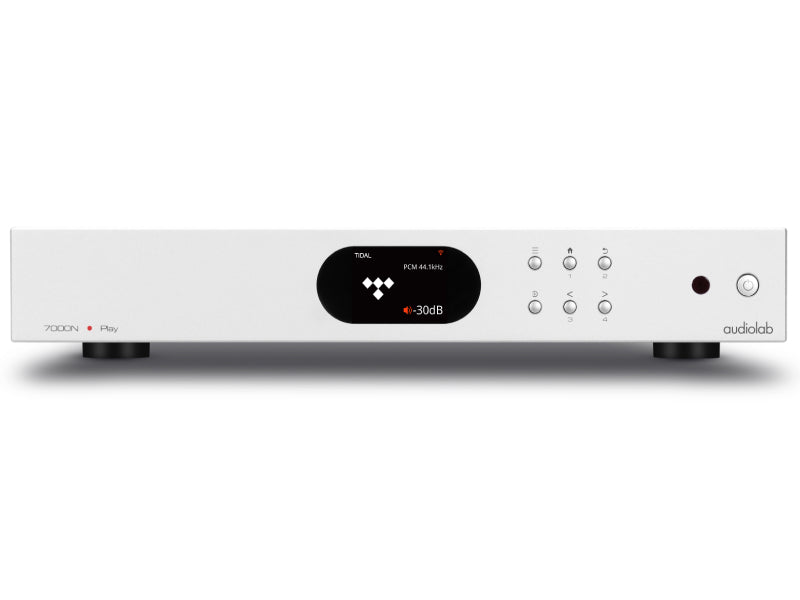

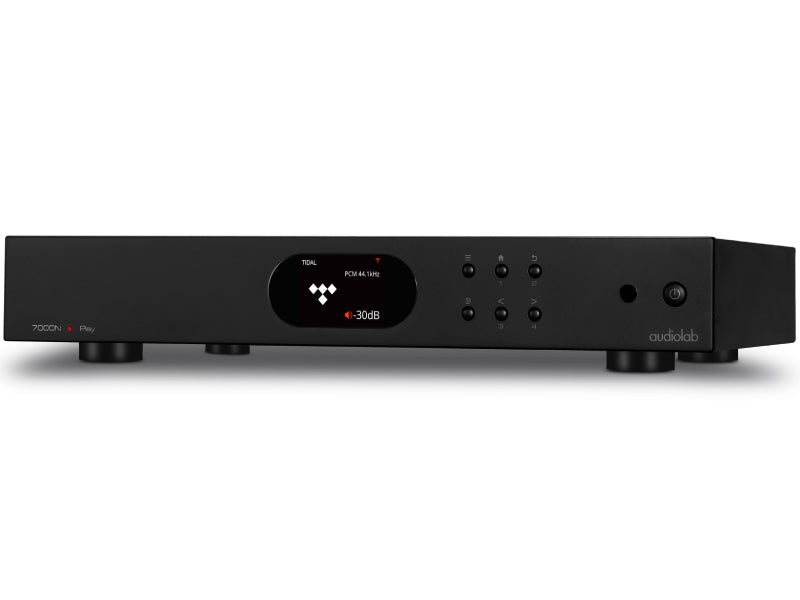

Sporting a new 2.8″ (480 x 640mm) IPS LCD screen with a detailed but simple to use GUI, the audiolab 7000N Play offers a vivid representation of information including streaming service, system settings, format, folder, track details and other data. It can even be set to display a VU meter in ‘analogue’ or ‘digital’ form, showing real-time decibel levels for the left and right channels for the analogue outputs – a satisfying graphical representation of the music as it plays.
Specifications
| General Description: | Wireless Audio Streaming Player |
| Design Philosophy and Core Technology: | ESS Sabre ES9038Q2M Reference DAC |
| - Isolated Power Supply | |
| - 2.8" (480 x 640mm) Full View IPS LCD | |
| - DTS Play-Fi Technology | |
| - Streaming Service Support includes Amazon Music, | |
| Spotify, TIDAL, KKBox, SiriusXM, Napster, Internet Radio, | |
| Deezer, iHeartRadio, PANDORA, Qobuz, QQ Music and | |
| more) | |
| - Apple Airplay 2 compatible | |
| - Multi-room / Multi Speaker Group Support | |
| - Android / iOS / Kindle Fire/ Windows PC Control Support | |
| - Automatic Equipment Activation Via 12V Trigger And Link | |
| - Wired Internet Connection For High Bandwidth Applications | |
| - USB Firmware Upgrade Input | |
| Digital Section | |
| Digital Output Intensity: | 500 +/- 50mVpp |
| Output Impedance: | 75 ohms |
| Frequency Response: | -0.01dB (20Hz-20kHz, ref.1kHz) |
| Max. Sampling Frequency: | 192kHz / 24-bit |

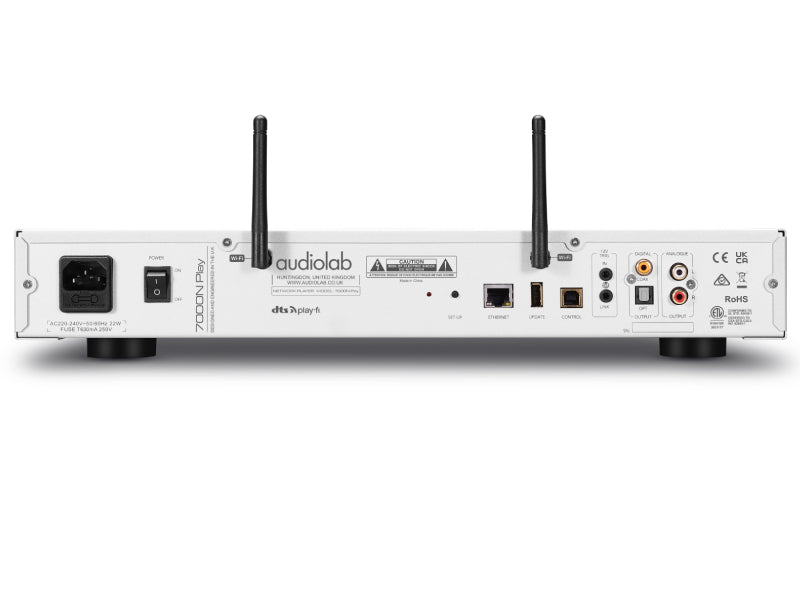

| Digital Outputs: | 1 x Coaxial, 1 x Optical, 1 x RCA Line Output |
| D to A Converter | |
| Variable Output Voltage: | 0 – 2.1V |
| DAC: | ES9038Q2M |
| Frequency Response: | +/-0.5dB (20Hz-20kHz, ref.1kHz) |
| Total Harmonic Distortion: (THD) | <0.0005% (1kHz @2.1Vrms) |
| Max. Sampling Frequency: | 192kHz / 24-bit |
| Signal-to-Noise Ratio: (S/N) | >115dB (A-weighted) |
| Output Impedance: | 100 ohms |
| General | |
| Standby Power Consumption: | <0.5W |
| Dimensions: (mm) (W x D x H) | 444 x 340 x 78 |
| Carton Size: (mm) (W x D x H) | 500 x 455 x 140 |
| Net Weight: | 5.0kg |
| Gross Weight: | 6.1kg |
| Finish: | Black / Silver |
| Power Requirements: (depending on region) | 220-240V ~ 50/60Hz |
| 100-120V ~50/60Hz | |
| Safety Regulation Conformity: | 20-600 ohms |
