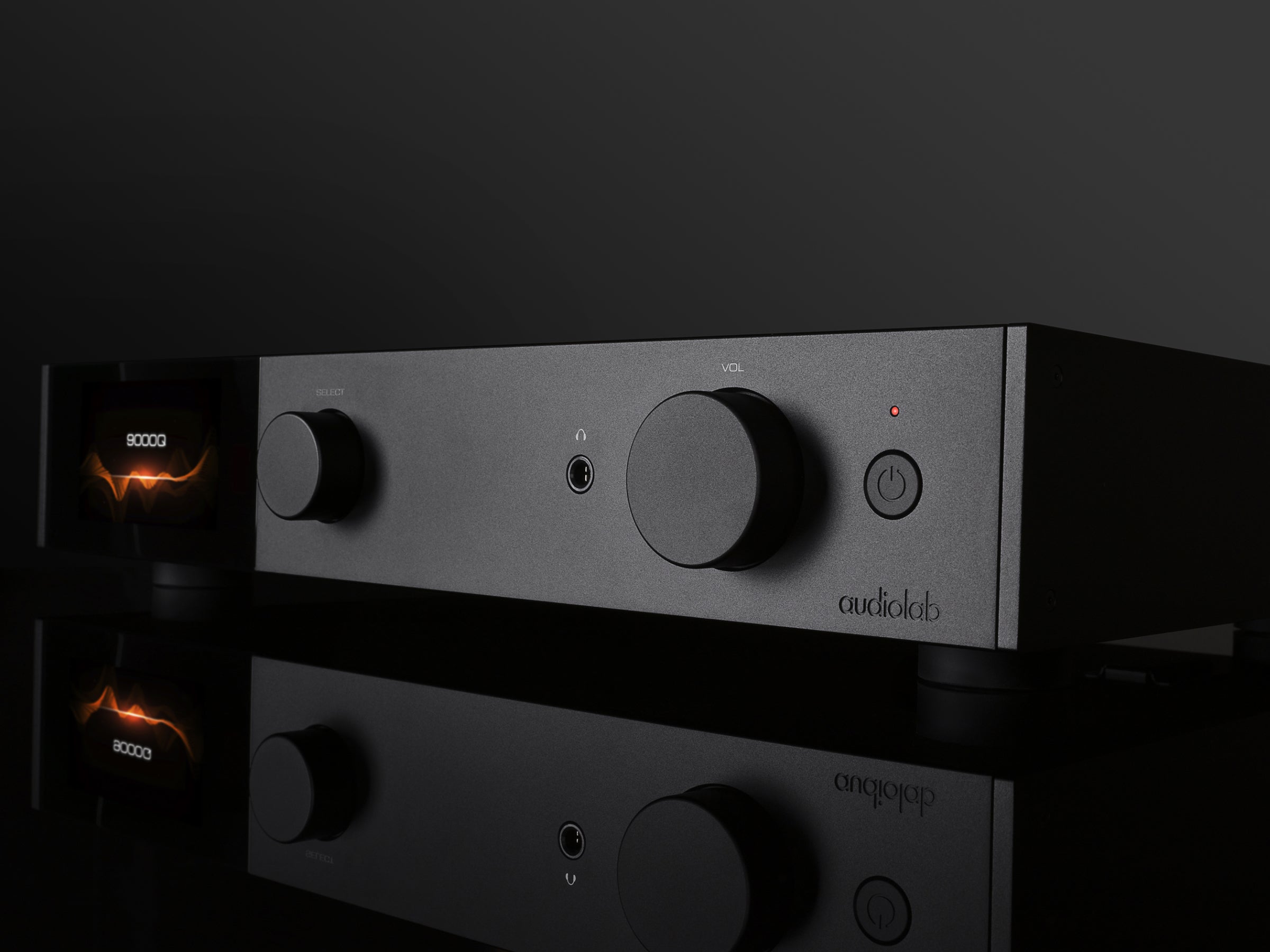

The Audiolab 9000Q with the Audiolab 9000P Power amplifier stands as a testament to the audio excellence of the flagship 9000 series, drawing inspiration from the award-winning 9000A integrated amplifier.
The 9000Q can be paired with either a single power amp, or can be paired with a second power amp which offers a richer sound, more power, control, and better stereo imaging.
The dedicated preamplifier, together with the matching power amplifier delivers an extraordinary auditory experience, blending innovative design with functional enhancements. With its fully balanced signal paths and advanced tone controls, the 9000Q offers precision and versatility for a superior listening experience. Audiolab’s signature craftsmanship ensures every note resonates with power and emotion, making this preamplifier a true masterpiece for music enthusiasts.
Cutting Edge DAC
Building on the legacy of Audiolab’s 8000, 8200, and 8300 series, the 9000Q expands the award-winning concept to a broader range of audio systems. Designed by Jan Ertner, it features an enhanced implementation of the ES9038PRO DAC chip, a high-performance component from the Sabre range. This cutting-edge DAC, combined with proprietary circuitry, delivers unprecedented dynamic range, ultra-low distortion, and impeccable sound quality. The unit's aesthetics match its technical brilliance, featuring dual rotary controllers and a vibrant 4.3” colour TFT display, which provides intuitive access to settings and functions.
It's all about Control
The 9000Q excels as a standalone preamplifier, incorporating an improved MM phono input with a single-stage Class-A circuit, setting a new benchmark in phono performance. A custom-designed transformer ensures precise power delivery, maintaining Audiolab’s sound signature with controlled, crisp detail. Its extensive tone controls allow fine-tuning for bass and treble, catering to various room acoustics and personal preferences. With support for multiple analogue and digital sources, including Bluetooth 5.1, PC USB, and S/PDIF inputs, the 9000Q seamlessly integrates into any high-resolution audio system.
A New Benchmark

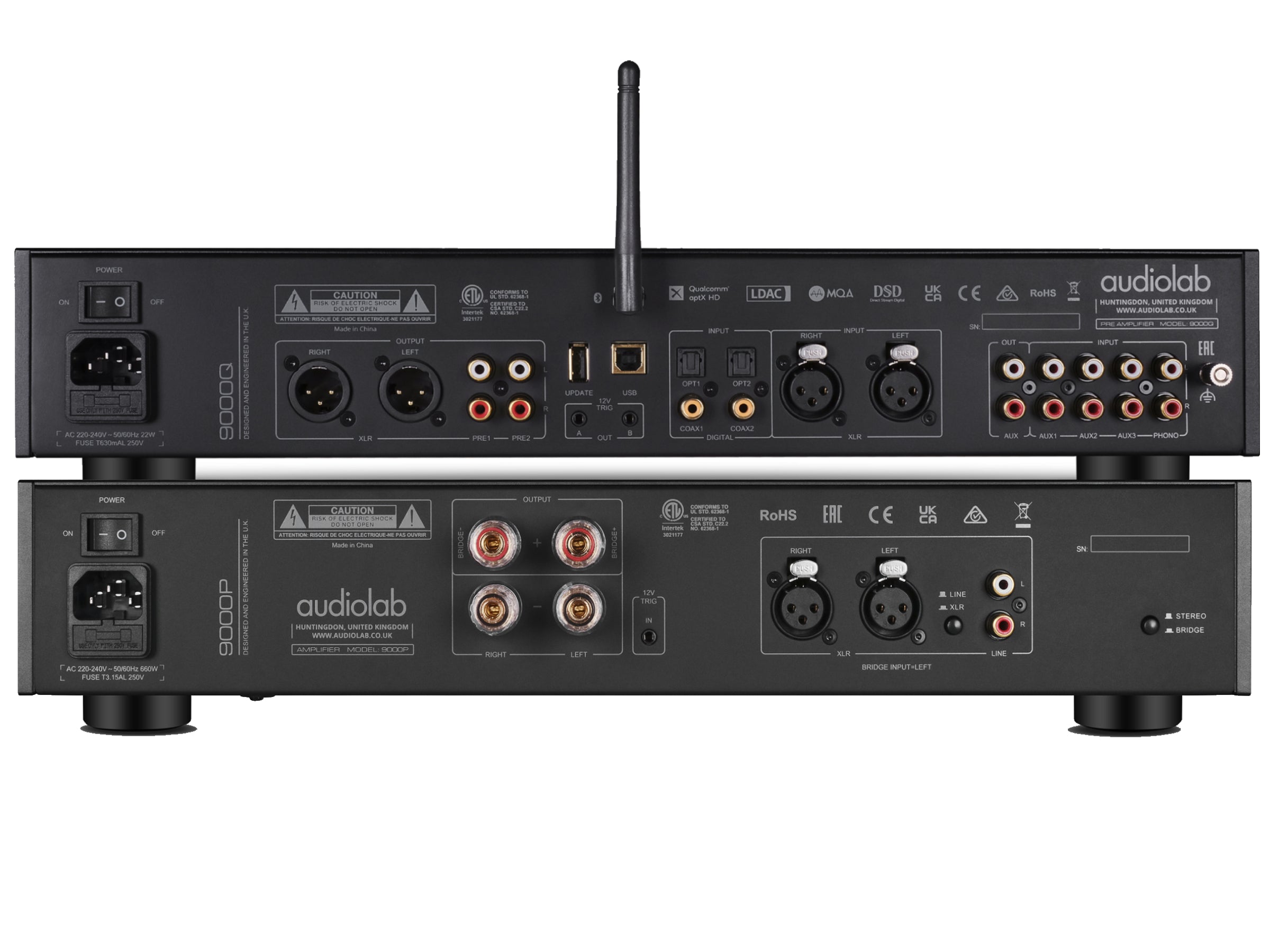

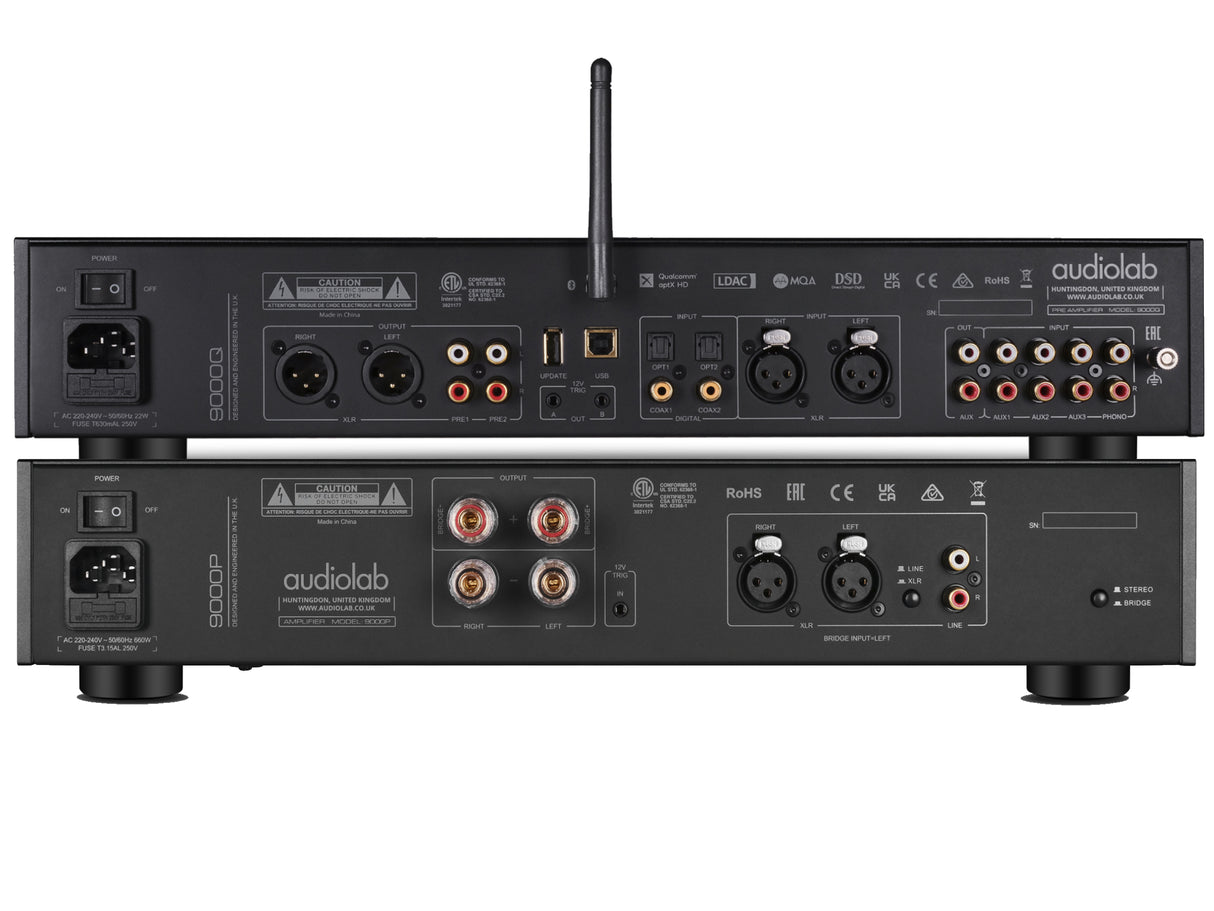

Designed to manage complex hi-fi systems, the 9000Q offers fixed and variable outputs, including RCA and XLR connections, enabling simultaneous use without performance degradation. Its dedicated headphone amplifier ensures dynamic and engaging playback across all headphone types. The preamplifier also includes advanced features such as source configuration for balanced XLR paths, AV Direct mode, and dual 12V trigger outputs for controlling external devices like the 9000CDT or 9000P power amplifier. With its innovative user interface, offering features like digital upsampling and VU meter displays, the 9000Q cements its place as a leader in its category, setting a new benchmark in performance, versatility, and value.
The Next Step for the 9000 Series
The introduction of the Audiolab 9000P power amplifier marks the logical progression of the 9000Q preamplifier, offering a dedicated power solution for the series. Designed to complement the 9000Q, the 9000P extends the functionality and performance of the range, catering to those seeking high-fidelity audio with exceptional clarity and control. This dedicated power amplifier exemplifies Audiolab’s commitment to delivering superior sound quality and system flexibility.
Exceptional Performance
Central to the 9000P’s performance is Audiolab’s signature CFB (Complementary Feedback) topology, which ensures linearity and excellent thermal stability. By maintaining idle current independently of the output transistors' temperature, this design achieves consistent and reliable operation. The amplifier is powered by a custom 320VA toroidal transformer, paired with 60,000uF of reservoir capacity, enabling it to deliver impressive dynamic range and maintain firm control over musical performance, regardless of complexity.
Single or Dual Set-up
The 9000P delivers 100W per channel into 8 ohms, perfectly matching the 9000A and providing seamless integration with the 9000Q. However, the amplifier’s versatility truly shines with its bridged-mode functionality, inspired by the success of the Audiolab 8300MB mono amplifier. When used as a monoblock, the 9000P can deliver an astounding 300W into 8 ohms, offering exceptional power for demanding audio setups. This dual functionality ensures the 9000P meets the needs of both stereo and high-power configurations.
An Outstanding Performer

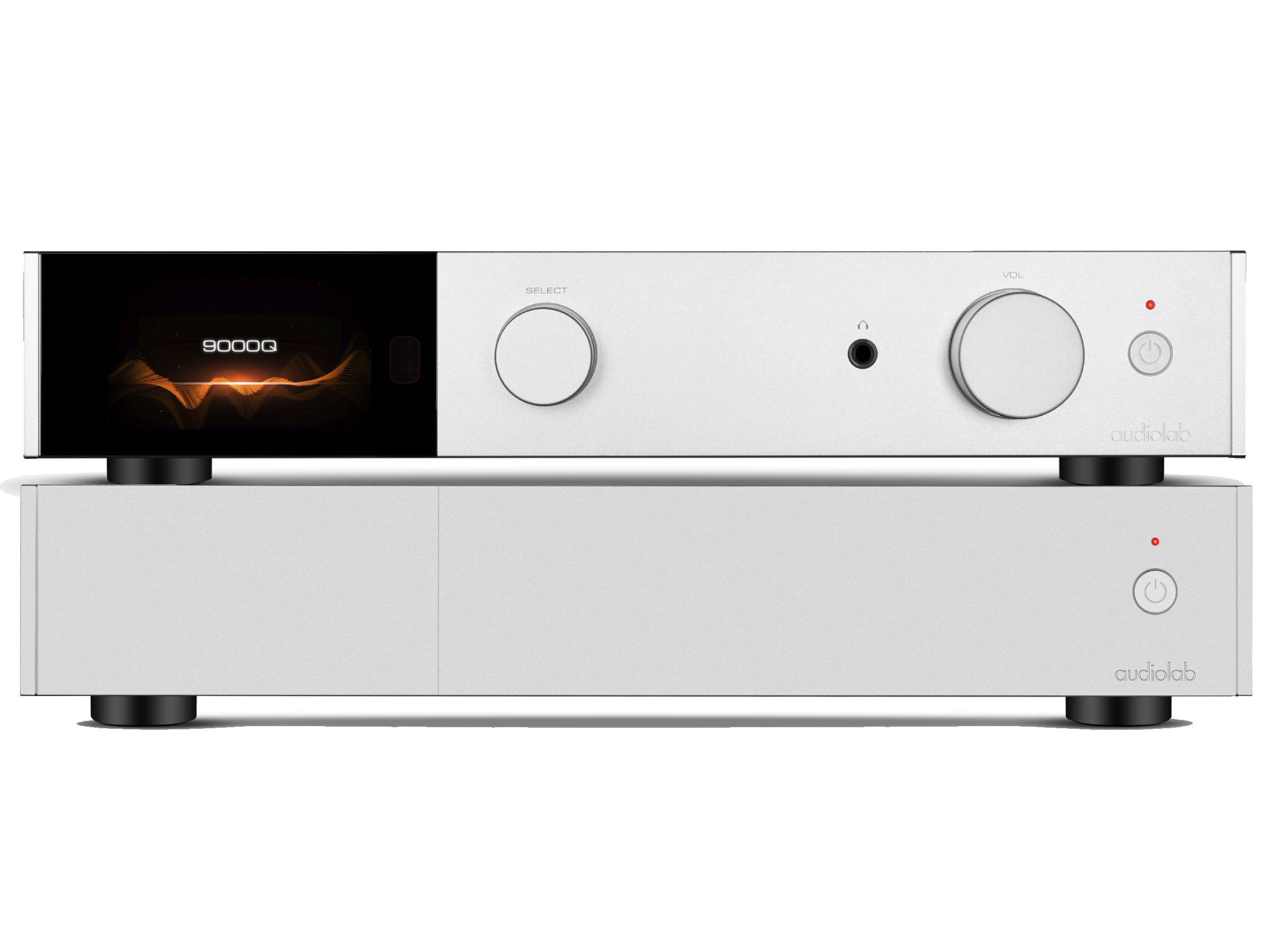

In line with the sleek design of the 9000 series, the 9000P is impeccably constructed, boasting a robust build and a refined finish. Its versatility makes it suitable for various roles, whether as a stereo amplifier, a monoblock for higher power, or an enhancement to an existing system. At its price point, the 9000P is virtually unmatched, offering a combination of exceptional specifications, outstanding performance, and elegant design. With its unparalleled versatility and capability, the 9000P sets a new benchmark in the world of high-fidelity audio.
9000Q Pre-Amplifier Specifications
| General Description | Preamplifier |
| Design Philosophy and Core Technology: | ES9038Pro 32-bit DAC MQA Full decoder (PC USB, Coax/Optical) 4.3” 800 x 480 IPS LCD Bluetooth 5.1 (aptX/aptX HD/LDAC) streaming Dedicated Current-Feedback Headphone Amp Dedicated High Performance Low Noise MM Phono stage |
| Inputs: | 3 x Analogue, 1 x XLR, 1 x Phono (MM) 2 x SPDIF (Coax), 2 x SPDIF (Optical) 1 x PC USB (USB B), 1 x Bluetooth (aptX/aptX HD/LDAC) |
| Outputs: | 2 x RCA, 1 x XLR, 1 x Headphone, 2 x 12V Trigger |
| Sampling Frequency: | Optical/Coaxial: 44.1-192kHz Sampling Frequency PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD5, DSD512 |
| Preamp / DAC | |
| D to A Converter: | ES9038Pro |
| Input Sensitivity: | 1Vrms (Line, Volume = 0dB) 2Vrms (XLR, Volume = 0dB) 4.5mV (Phono MM, Volume = 0dB) |
| Total Harmonic Distortion: (THD) | < 0.001% (1KHz @ 0dBFS) |
| Frequency Response: | 20Hz - 20kHz (+/-0.1dB) |
| Output lmpedance: | 120 ohm |
| Max.Sampling Frequency: | Optical, Coaxial: 192KHz PC USB: PCM768kHz, DSD512 |
| Signal-to-noise Ratio: (S/N) | > 113dB (A-weighted, RCA) > 117dB (A-weighted, XLR Direct) |
| Headphone Amplifier | |
| Total Harmonic Distortion: (THD) | < 0.01% (1kHz, 50mW ) |
| Output lmpedance: | 2.35 ohm |
| Load lmpedance: | 20-600 ohm |
| General | |
| Standby Power Consumption: | <0.5W |
| Net Weight: | 6.2kg |
| Gross Weight; | 8kg |
| Dimensions: (mm) (W x H x D) | 444 x 90 x 328 mm |
| Carton Size: (mm) (W x H x D) | 514 x 165 x 470 mm |
| Finish: | Silver / Black |
| Power Requirements: (depending on region) | 220-240V - 50/60Hz 100-120V - 50/60Hz |
| Standard Accessories: | Power Cord, Remote Control, User Manual, Antennas |
9000P Power Amplifier Specifications
| General Description | Power Amplifier |
| Design Philosophy and Core Technology: | Class AB power amplifier CFB (Complementary Feedback Technology) Stereo/Bridge mode |
| Inputs: | 1 x Analogue, 1 x XLR, 1 x 12V Trigger |
| Outputs: | 1 x Stereo Speaker |
| Power Amplifier Section (STEREO) | |
| Gain: | 29dB (RCA) / 23dB (XLR) |
| Rated Power Output: | Stereo: 2 x 100W (8 ohms, THD <1%) Stereo: 2 x 160W (4 ohms, THD <1%) Bridged (Mono): 300W (8 ohms, THD <1%) Bridged (Mono): 380W (4 ohms, THD <1%) |
| Frequency Response: | 20Hz - 20kHz (+/-0.3dB) |
| Total Harmonic Distortion: (THD) | <0.002% (1kHz) |
| Input Sensitivity: | 1Vrms (RCA) 2Vrms (XLR) |
| Input Impedance: | 10k ohms |
| Signal-to-Noise Ratio: (S/N) | > 112dB (A-weighted) |
| Max. Output Current: | 15A |
| General | |
| Standby Power Consumption: | <0.5W |
| Net Weight; | 9.2kg |
| Gross Weight: | 10.6kg |
| Dimensions: (mm) (W x H x D) | 444 x 90 x 327 mm |
| Carton Size: (mm) (W x H x D) | 514 x 165 x 470 mm |
| Finish: | Black/Silver |
| Power Requirements: (depending on region) | 220-240V - 50/60Hz 100-120V - 50/60Hz |
| Standard Accessories: | Power Cord, User Manual |
