Atoll CD100 Signature
Tax included. Stock information
Pickup also available at Doug Brady HiFi (Warehouse)
Usually ready in 2-4 days
Atoll CD100 Signature
Black anodized brushed aluminum
Doug Brady HiFi (Warehouse)
Kingsway Studios - Warehouse
Kingsway North
Warrington WA1 3NU
United Kingdom

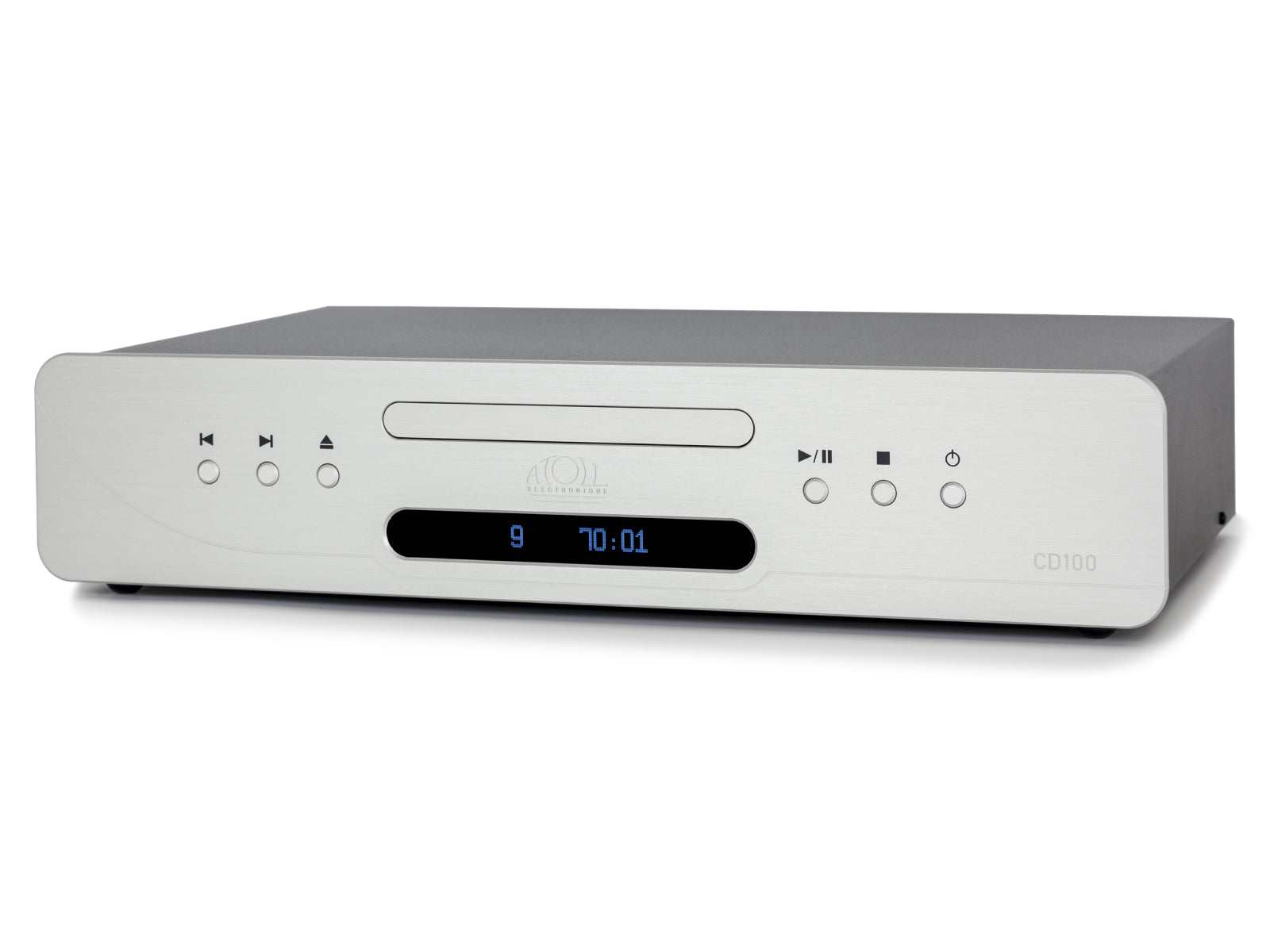

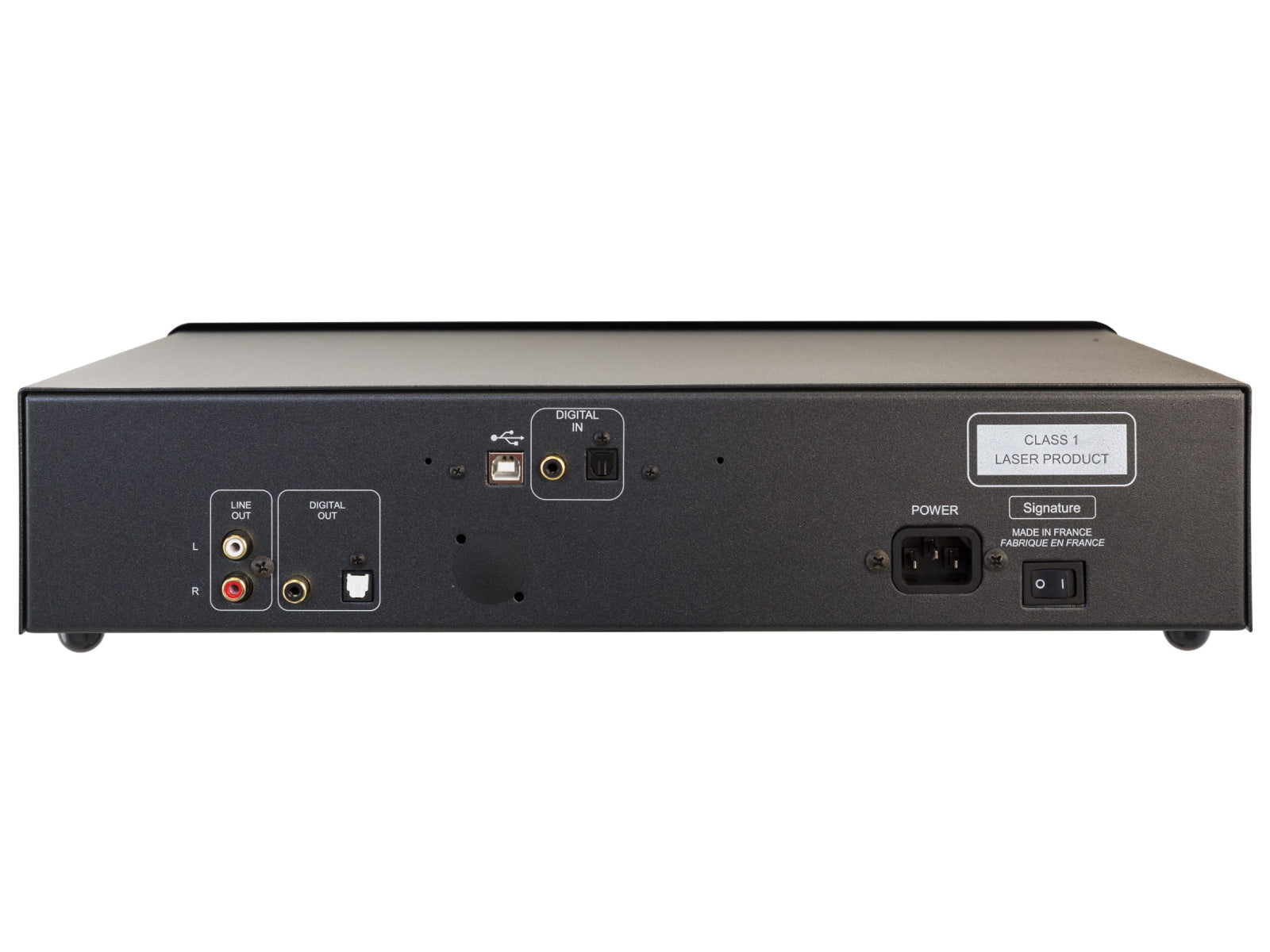

The Atoll CD100 Signature CD player comes in a new metal case with a superb 4mm brushed-aluminium front panel (silver or black)! Of course, this front panel takes the new design of Atoll products. The back panel provides an asymmetrical stereo analogue output, a digital output in S/PDIF coaxial format and a Toslink optical output.
The CD100 Signature player accepts CDs, CD-Rs, CD-RWs in MP3, WMA and AAC formats. It is also compatible with the CD Text if the CD has one.
This CD player features Teac Pure Audio CD mechanics optimized to reduce jitter to a minimum. It is mounted on a central anti-resonant chassis to avoid any vibration that would damage the playback.
The digital part uses a Burr-Brown conversion chip different from the Atoll CD50 Signature and CD80 Signature CD players. Atoll opted for the Burr-Brown PCM1793 for the CD100 Signature. It offers a resolution of 24 bit/192 kHz and changes the signal-to-noise ratio from 113 to 123 dB!
- 4 mm brushed aluminium front.
- 8 regulated power supplies including a specific low-noise one for the converter.
- Separate 10 VA transformers for the audio stages.
- Current-voltage conversion stages designed by Atoll using bipolar transistors.
- BURR-BROWN PCM1796 converter:
– 24 bit/192 kHz.
– Dynamic: 124 dB.
– Signal/Noise ratio: 124 dB. - Original TEAC central CD mechanics.
- Pure audio CD player compatible: CD, CD-R, CD-RW, MP3, WMA-AAC.
- Linear power supply for digital stages with a specific 30 VA transformer.
- Separate linear power supply for the audio stages.
- Double-sided circuit boards with nickel/gold finish.
- Low consumption OLED display.
- Reading the CD-Text.
- Class A biased discrete component differential audio output stages.
- ATOLL global remote control.
TECHNICAL DATA
Power supply: 30+10 VA
Total of capacitors: 13 032 µF
Output level: 2,10 Vrms
Output impedance: 5,6 Ω
Converter (D/A): PCM1796
Digital Output: Coaxial & Optical
Digital input: 24 bits/192 kHz
USB input: 24 bits/192 kHz
Signal/Noise ratio: 123 dB
Distortion at 1 kHz: 0,0005%
Bandwidth: 5 Hz – 20 kHz
Rising time: 2,0 µs
Dimensions (mm): 440×280×95
Weight: 6 Kg
