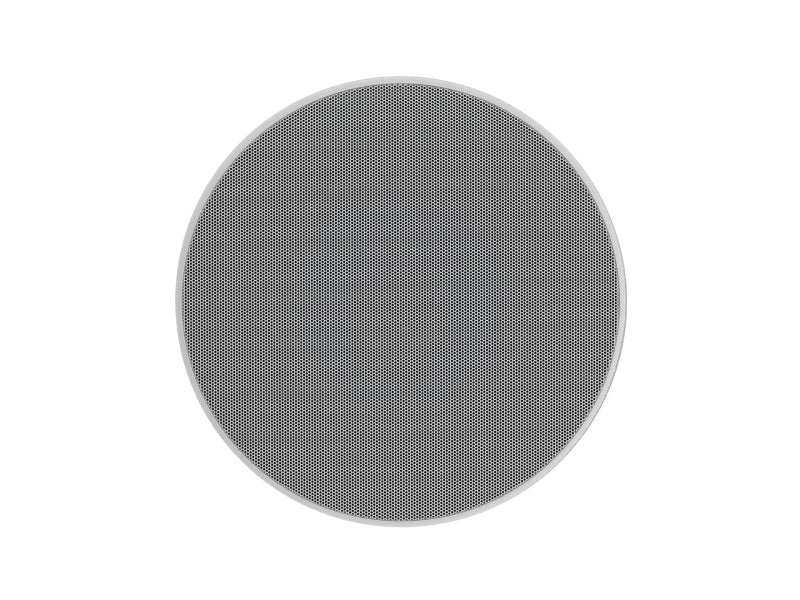

B&W CCM684 In-Ceiling Speakers (pair)

£465.00

The Bowers & Wilkins CCM684 is a high performance ceiling speaker that’s simplicity itself to install and use. A two-way design, featuring a 200mm (8in) woven glass fibre cone bass/midrange driver and a soft dome tweeter in a neat circular ceiling mount chassis. The tweeter housing pivots for adjustable off-axis treble response and the speaker also features a three-position EQ switch for a better off-axis response. Incorporating QuickDogsTM and a plug-and-play functionality it is quick and easy to install.

Technical Specifications

Description

2-way in-ceiling system

Drive Units

1x ø25mm (1in) soft dome tweeter
1x ø200mm (8in) black glassfibre cone bass/midrange

Frequency Range (-6dB)

35Hz – 35kHz

Recommended Amp Power

25 – 130w

Sensitivity SPL (2.83V, 1m)

88dB

Impedance Nominal (min)

8Ω (4.5Ω)

Frame diameter

290mm (11.4in)

Cut-out diameter

250mm (9.8in)

Depth behind surface

133mm (5.2in)

Protrusion

4mm (0.2in)

Pre-mount Kit

C8

Back Box

C6
