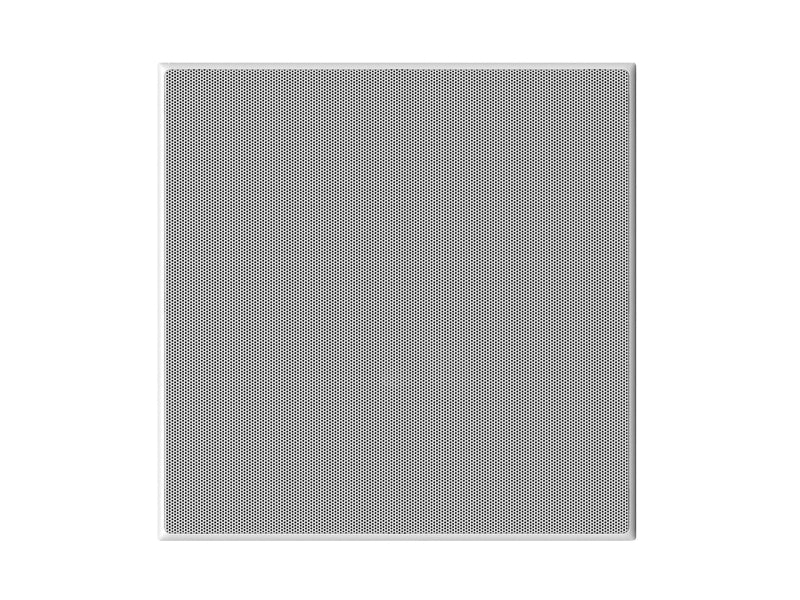

B&W CCM8.5 D In-Ceiling Speaker (Single)


The Bowers & Wilkins CCM8.5 D is a two-way in-ceiling loudspeaker which offers the highest quality acoustics in an incredibly discreet package. This is simply the best in ceiling speaker availible today.

It features a decoupled Diamond dome tweeter and a single 7inch bass/midrange Continuum driver with anti-resonance plug. All the drive units are located in a rotatable mini-baffle which allows the user to ‘toe in’ the drive units of the loudspeaker for the best performance.

For optimum discretion when installed, the Continuum cone is given a dark finish

Technical Specifications


2-way in-wall system

Technical features

Aluminium Tweeter ‘wing’ Rotatable aluminium mini-baffle allows ‘toe-in’ Diamond Dome, NautilusTM tube-loaded tweeter Anti-resonance plug FlowportTM

Drive units

1x ø25mm (1in) Diamond Dome, NautilusTM tube-loaded tweeter
1x ø180mm (7in) Continuum cone bass/ midrange driver with anti-resonance plug

Frequency Range (-6dB)

35Hz - 35kHz

Maximum Amp Power




Impedance Nominal (min)

8Ω (4.5Ω)

Frame (width/height)

351mm (13.8in)

Cut-out (width/height)

331mm (13in)


8mm (0.3in)

Back Box
