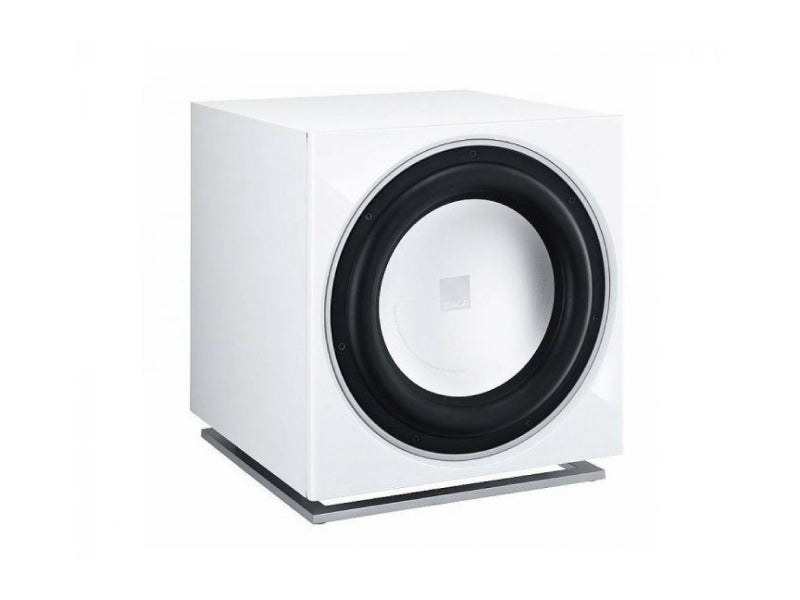

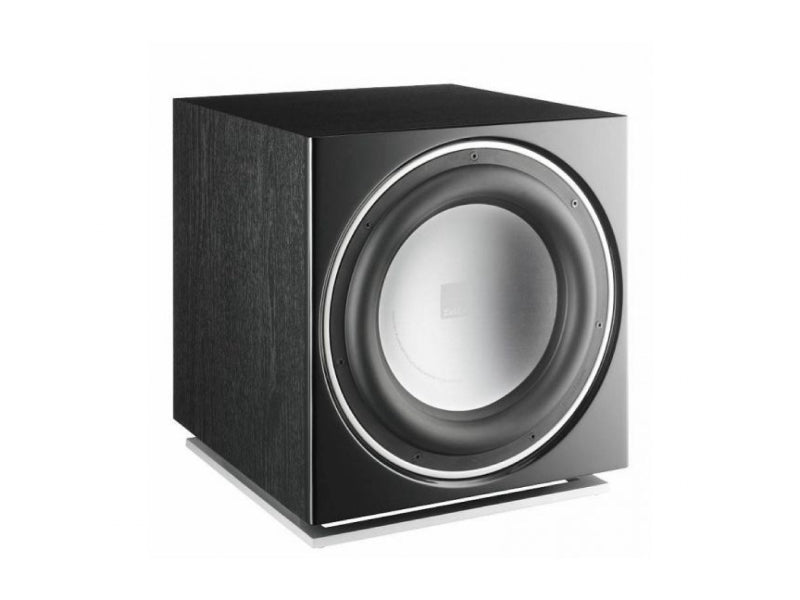

Dali E-12 F Subwoofer
The DALI SUB E-12F is an elegant subwoofer strong enough for most purposes, whether there is music or movies on the program.
The SUB E12F features a 12” woofer, capable of moving plenty of air with power and precision. The cone is made from pure aluminium for maximum stiffness and a becoming exterior. Furthermore, the heavy magnet system wields a massive 4-layer, long-stroke voice coil. All in all, the heavy-duty abilities of this “motor system” ensure that the woofer always follows the signal from the amplifier!
The heart of this subwoofer is the 170W RMS Class D amplifier with a highly linear response. Embracing a classic DALI trademark, it simply acts as a total low frequency extension of your AV system. The result is a powerful, well-balanced bass reproduction and flawless integration with your speakers. In addition, the integrated limiter helps protecting your subwoofer against overloading.
The back plate of SUB E-12 F features controls for volume adjustment, phase, and upper cut-off frequency, while the power on/off function works automatically via signal detection. And with the options for LFE or LINE inputs, this subwoofer easily accompanies any AV set up.
E-12 F - Technical Specifications
|Frequency Range [+/-3] dB [Hz]||28 - 190|
|Maximum SPL [dB]||112|
|Crossover Frequency [Hz]||40 - 120|
|Low frequency driver, Quantity||1 x 12" long stroke|
|Low frequency driver, Diaphragm type||Polymer Aluminium|
|Enclosure Type||Bass Reflex|
|Bass Reflex Tuning Frequency [Hz]||36|
|Max. Amplifier Power Output [RMS watt]||220|
|Continuous IEC Power Output [RMS watt]||170|
|Input Impedance [ohms]||25k|
|Connection Input||Mono Line Level (LFE)
Stereo Line Level (low pass filtered)
|Recommended Distance From Wall [cm]||> 5|
Standby (Auto Power) On/Off Switch
|Max. Power Consumption [W]||250|
|Dimensions (H x W x D) [mm]||370 x 340 x 380|
