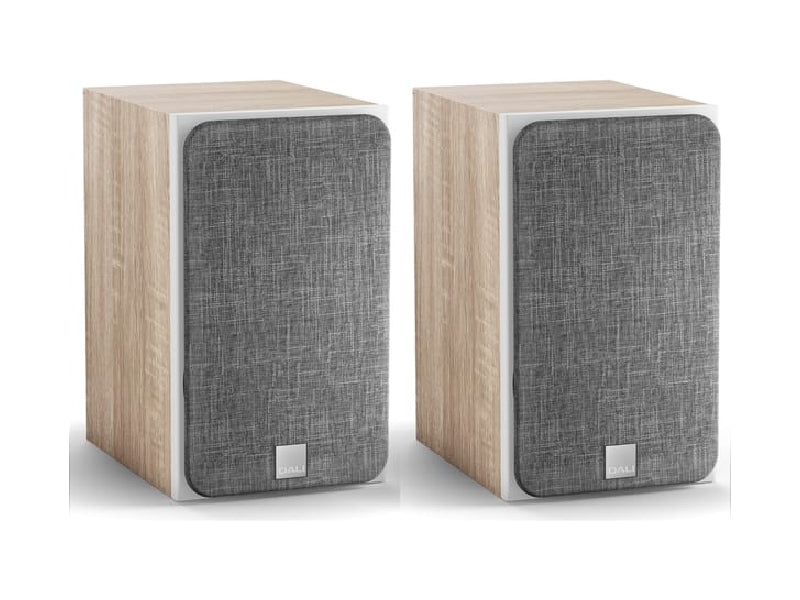

The Oberon 1C is a compact wireless bookshelf speaker. Sporting a 29mm ultra-lightweight soft dome tweeter and a 5.25” wood fibre cone SMC bass/midrange driver, its rear reflex loaded cabinet offers an optimal balance between internal volume for bass performance and compact dimensions for small rooms. The Oberon 1 C can be installed within furniture units or on shelves, or wall mounted directly via rear panel keyhole slots or placed on speaker stands for optimal sound.
OBERON 1 C speakers incorporate wireless interface, digital signal processing (DSP) and Class D power amplification electronics in a module located on their rear panels. The two-channel amplification in each OBERON model provides 50 Watts each for the bass/mid and high frequency drivers. Crossover functions within the OBERON C electronics are implemented through DSP running at 24 bit/96 kHz resolution.
There is a small separate connection box called 'sound hubs' which enables you to easily connect your wired equipment such as TVs or Turntables whist also incorporating the Bluetooth receiver. There are two sound hub options to choose from.
SOUND HUB COMPACT Option (Bluetooth)

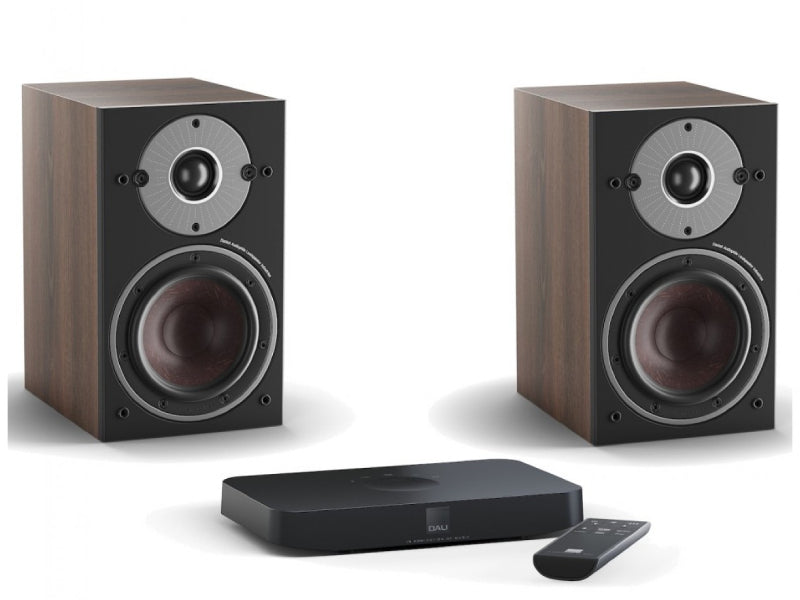

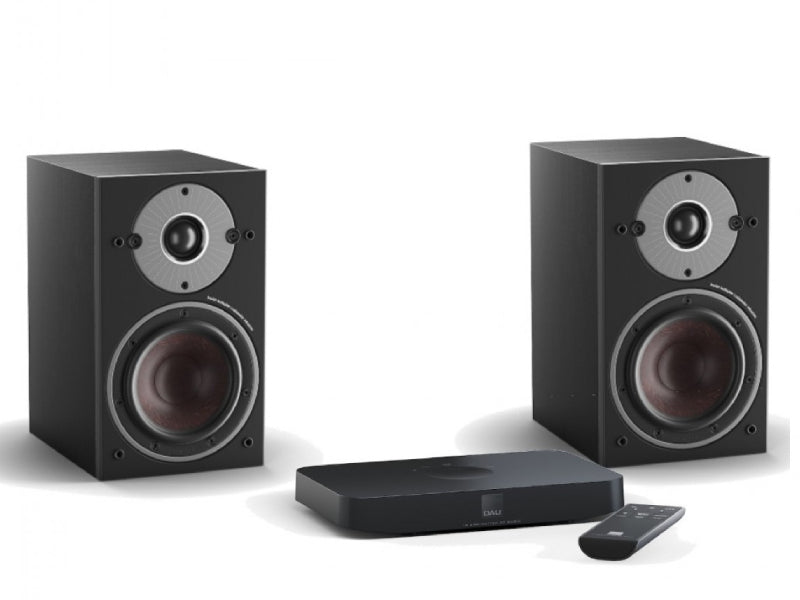

The SOUND HUB COMPACT plays the central role in an active wireless Hi-Fi system along with a stereo pair of OBERON 1 C speakers the sound hub compact receives wired or wireless (Bluetooth) audio sources and transmits them wirelessly to the speakers. It's compact dimensions mean is slim enough that it can even be located out-of-sight behind a wall-mounted TV.
With five discrete audio inputs available, the SOUND HUB COMPACT can connect to almost any audio device. For example, there are no less than four ways to connect a TV and transmit its audio to OBERON C speakers, but there are also ample possibilities to connect music streaming or conventional audio devices.
DALI SOUND HUB Option (WiFi & Bluetooth)
OBERON C series speakers are additionally compatible with the DALI SOUND HUB wireless audio preamplifier originally introduced with CALLISTO C series. In addition to providing Bluetooth and a variety of wired audio inputs, the SOUND HUB can be equipped with a Bluesound NPM-1 BluOS module which can provide MQA certified high resolution music streaming and multiroom functionality, as well as supporting Spotify Connect.
DALI OBERON 1 C SPECS
| Product series | OBERON C |
|---|---|
| Frequency Range (+/-3 dB) [Hz] | 39 - 26,000 |
| Maximum SPL [dB] | 106 |
| Crossover Frequency [Hz] | 2,350 |
| Crossover Principle | Full active 24 Bit DSP |
| High frequency driver, Quantity | 1 x 29 mm |
| High frequency driver, Diaphragm type | Soft Textile Dome |
| Low frequency driver, Quantity | 1 X 5.25" |
| Low frequency driver, Diaphragm type | Wood Fibre Cone |
| Enclosure type | Bass Reflex |
| Bass Reflex Tuning Frequency [Hz] | 52.0 |
| Max. Amplifier Power Output [RMS watt] | 2 x 50 W |
| Amplifier Type | Class-D |
| Connection Input | Universal mains 100-240 VAC |
| Wireless Input(s) | Full 24 Bit / 96 kHz (not compressed) |
| Wireless Audio RF Band [MHz] | 5150-5250 MHz / 5725-5875 MHz (excluding Japan) |
| Recommended Placement | Shelf or stand |
| Recommended Distance From Wall [cm] | 1 - 50 |
| Max. Power Consumption [W] | 62 |
| Standby Power Consumption [W] | 1 |
| Idle Power Consumption[W] | 1.25 |
| Dimensions With Base (HxWxD) [mm] | 274 x 162 x 234 |
| Accessories Included | Quick Start Guide Mains Cable Front Grille Rubber Feet Rubber Bumpers Manual |
| Weight [kg] | 4.4 |
SOUND HUB COMPACT SPECS
| Product series | OBERON C |
|---|---|
| Connection Input | 2 x Optical (TosLink) RCA (Analouge Stereo) HDMI ARC IR Sensor input Chromecast ready |
| Connection Output | SUB Out (RCA) USB Charge Output (5V/1.5A) |
| Wireless Input(s) | Bluetooth 5.0 (AAC, aptX, aptX HD) |
| Wireless Output | Full 24 Bit / 96 kHz (No bit-loss attenuated) |
| Wireless Audio RF Band [MHz] | 5150-5250 MHz / 5725-5875 MHz (excluding Japan) |
| Max. Digital Resolution [bits/KHz] | 24 / 192 |
| Max. Power Consumption [W] | 2.8 |
| Standby Power Consumption [W] | 1.7 |
| Dimensions (HxWxD) [mm] | 30 x 212 x 132 |
| Accessories Included | Quick Setup Guide Rubber Feet Manual Power Cord Remote Control IR Receiver |
| Weight [kg] | 0.5 |
| Input Impedance RCA [Ω] | 7.2 k |
| Input Sensitivity RCA [V] | 3.0 Vp |
| Output Voltage Max. Sub-Out [V] | 1.7 V RMS |
| Input Mains Voltage [Volts] | 9V DC power supply (universal 100-240 VAC) |
DALI Sound Hub SPECS
| Product series | Oberoan C |
|---|---|
| Connection Input | 2 x Optical (TosLink) Coax (S/PDIF) RCA (Analouge Stereo) 3.5 mm Mini Jack 2 x Plug-In Module Chromecast ready |
| Connection Output | Stereo Line Level (RCA) SUB Out (RCA) USB Charge Output (5V/1A) |
| Wireless Input(s) | Bluetooth 4.2 (AAC, Apt-X, Apt-X HD) |
| Wireless Output | Full 24 Bit / 96 kHz (No bit-loss attenuated) |
| Wireless Audio RF Band [MHz] | 5725-5875 MHz |
| Max. Digital Resolution [bits/KHz] | 24 / 96 |
| Max. Power Consumption [W] | 4.5 |
| Standby Power Consumption [W] | 2.5 |
| Dimensions (HxWxD) [mm] | 76 x 300 x 213 |
| Accessories Included | Quick Setup Guide |
| Weight [kg] | 1.6 |
| Input Impedance RCA [Ω] | 10k |
| Input Sensitivity RCA [V] | 2.3 |
| Input Impedance 3.5mm Mini-jack [Ω] | 10k |
| Input Sensitivity 3.5mm Mini-jack [V] | 1.2 |
| Input Impedance S/PDIF [Ω] | 75 |
| Output Voltage Max. Line Level [V] | 1.9 |
| Output Voltage Max. Sub-Out [V] | 0.9 |
| Input Mains Voltage [Volts] | Universal AC Mains Adapter (1.75 m wire length) |
