Dali Oberon On-Wall C Wireless On Wall Speakers
Pickup available at Doug Brady HiFi
Usually ready in 1 hour
Dali Oberon On-Wall C Wireless On Wall Speakers
Black Ash / Sound Hub Compact
Doug Brady HiFi
Kingsway Studios
Kingsway North
Warrington WA1 3NU
United Kingdom

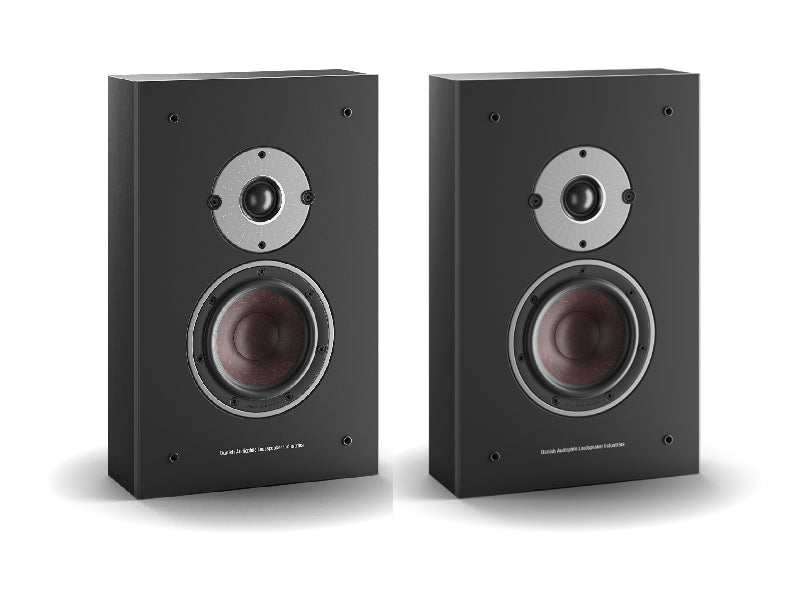

The slim and discreet OBERON ON-WALL C wireless speakers has a compact, low profile, rear reflex loaded cabinet fitted with a 5.25” DALI wood fibre cone SMC bass/mid driver, and a DALI ultra lightweight 29mm soft dome tweeter. The OBERON ON-WALL C was designed with TV audio very much in mind and despite its compact dimensions, the combination of DALI technologies employed endow it with performance comparable to significantly larger speakers. The OBERON ON-WALL C is designed specifically for direct wall mounting via rear panel keyhole slots. Portrait and landscape orientations are both accommodated.
Dali Oberon On-Wall C speakers incorporate wireless interface, digital signal processing (DSP) and Class D power amplification electronics in a module located on their rear panels. The two-channel amplification in each OBERON model provides 50 Watts each for the bass/mid and high frequency drivers. Crossover functions within the OBERON C electronics are implemented through DSP running at 24 bit/96 kHz resolution.
There is a small separate connection box called the sound hub which enables you to easily connect your wired equipment such as TVs or Turntables whist also incorporating the Bluetooth receiver.
There are two sound hub options to choose from.
SOUND HUB COMPACT (Option 1) (Bluetooth)
The SOUND HUB COMPACT plays the central role in an active wireless Hi-Fi system along with a stereo pair of Dali Oberon On-Wall C speakers the sound hub compact receives wired or wireless Bluetooth audio sources and transmits them wirelessly to the speakers. It's compact dimensions mean is slim enough that it can even be located out-of-sight behind a wall-mounted TV.
With five discrete audio inputs available, the SOUND HUB COMPACT can connect to almost any audio device. For example, there are no less than four ways to connect a TV and transmit its audio to OBERON C speakers, but there are also ample possibilities to connect music streaming or conventional audio devices.
DALI SOUND HUB (Option 2) (WiFi & Bluetooth)
OBERON C series speakers are additionally compatible with the DALI SOUND HUB wireless audio preamplifier originally introduced with CALLISTO C series. In addition to providing Bluetooth and a variety of wired audio inputs, the SOUND HUB can be equipped with a Bluesound NPM-1 BluOS module which can provide MQA certified high resolution music streaming and multiroom functionality, as well as supporting Spotify Connect. This can be purchased as an optional extra or as a upgrade later.
DALI OBERON 1 C SPEC
| Product series | OBERON C |
|---|---|
| Frequency Range (+/-3 dB) [Hz] | 51 - 26,000 |
| Maximum SPL [dB] | 107 |
| Crossover Frequency [Hz] | 2,700 |
| Crossover Principle | Full active 24 Bit DSP |
| High frequency driver, Quantity | 1 x 29 mm |
| High frequency driver, Diaphragm type | Soft Textile Dome |
| Low frequency driver, Quantity | 1 X 5.25" |
| Low frequency driver, Diaphragm type | Wood Fibre Cone |
| Enclosure type | Bass Reflex |
| Bass Reflex Tuning Frequency [Hz] | 52.0 |
| Max. Amplifier Power Output [RMS watt] | 2 x 50 W |
| Amplifier Type | Class-D |
| Connection Input | Universal mains 100-240 VAC |
| Wireless Input(s) | Full 24 Bit / 96 kHz (not compressed) |
| Wireless Audio RF Band [MHz] | 5150-5250 MHz / 5725-5875 MHz (excluding Japan) |
| Recommended Placement | On-Wall |
| Recommended Distance From Wall [cm] | On wall |
| Max. Power Consumption [W] | 62 |
| Standby Power Consumption [W] | 1 |
| Idle Power Consumption[W] | 1.25 |
| Dimensions With Base (HxWxD) [mm] | 385 x 245 x 120 |
| Accessories Included | Quick Start Guide Mains Cable Front Grille Rubber Feet Rubber Bumpers Cable clips Manual |
| Weight [kg] | 5.0 |
SOUND HUB COMPACT SPECS
| Product series | OBERON C |
|---|---|
| Connection Input | 2 x Optical (TosLink) RCA (Analouge Stereo) HDMI ARC IR Sensor input Chromecast ready |
| Connection Output | SUB Out (RCA) USB Charge Output (5V/1.5A) |
| Wireless Input(s) | Bluetooth 5.0 (AAC, aptX, aptX HD) |
| Wireless Output | Full 24 Bit / 96 kHz (No bit-loss attenuated) |
| Wireless Audio RF Band [MHz] | 5150-5250 MHz / 5725-5875 MHz (excluding Japan) |
| Max. Digital Resolution [bits/KHz] | 24 / 192 |
| Max. Power Consumption [W] | 2.8 |
| Standby Power Consumption [W] | 1.7 |
| Dimensions (HxWxD) [mm] | 30 x 212 x 132 |
| Accessories Included | Quick Setup Guide Rubber Feet Manual Power Cord Remote Control IR Receiver |
| Weight [kg] | 0.5 |
| Input Impedance RCA [Ω] | 7.2 k |
| Input Sensitivity RCA [V] | 3.0 Vp |
| Output Voltage Max. Sub-Out [V] | 1.7 V RMS |
| Input Mains Voltage [Volts] | 9V DC power supply (universal 100-240 VAC) |
DALI Sound Hub SPECS
| Product series | CALLISTO C |
|---|---|
| Connection Input | 2 x Optical (TosLink) Coax (S/PDIF) RCA (Analouge Stereo) 3.5 mm Mini Jack 2 x Plug-In Module Chromecast ready |
| Connection Output | Stereo Line Level (RCA) SUB Out (RCA) USB Charge Output (5V/1A) |
| Wireless Input(s) | Bluetooth 4.2 (AAC, Apt-X, Apt-X HD) |
| Wireless Output | Full 24 Bit / 96 kHz (No bit-loss attenuated) |
| Wireless Audio RF Band [MHz] | 5725-5875 MHz |
| Max. Digital Resolution [bits/KHz] | 24 / 96 |
| Max. Power Consumption [W] | 4.5 |
| Standby Power Consumption [W] | 2.5 |
| Dimensions (HxWxD) [mm] | 76 x 300 x 213 |
| Accessories Included | Quick Setup Guide |
| Weight [kg] | 1.6 |
| Input Impedance RCA [Ω] | 10k |
| Input Sensitivity RCA [V] | 2.3 |
| Input Impedance 3.5mm Mini-jack [Ω] | 10k |
| Input Sensitivity 3.5mm Mini-jack [V] | 1.2 |
| Input Impedance S/PDIF [Ω] | 75 |
| Output Voltage Max. Line Level [V] | 1.9 |
| Output Voltage Max. Sub-Out [V] | 0.9 |
| Input Mains Voltage [Volts] | Universal AC Mains Adapter (1.75 m wire length) |
