Dali Sound Hub
Pickup available at Doug Brady HiFi
Usually ready in 1 hour
Dali Sound Hub
Doug Brady HiFi
Warrington WA1 3NU

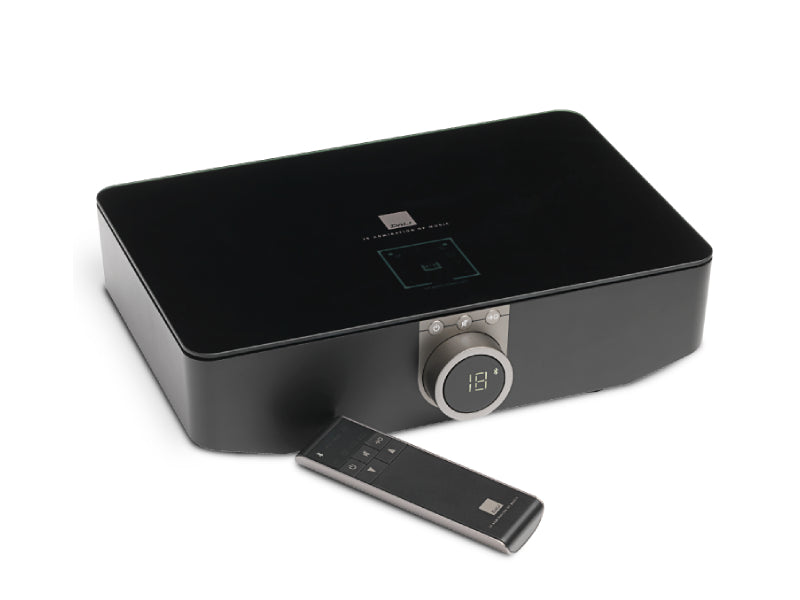

The DALI Sound Hub is the wireless transmiter for the Dali CALLISTO C, RUBICON C and OBERON C speaker systems, streaming Hi-Res audio to your speakers and automatically switching between multiple sources. The Sound Hub brings true no-compromise convenience to music and movie lovers who demand more.
The DALI Sound Hub features an extended range of digital and analogue inputs combined with an auto source sensing system. The Sound Hub automatically activates the right input the moment you start playing music or turn on your TV – so you can just sit back and enjoy exquisite audio.
The front-facing volume knob embeds an LED display, which combines Hi-Fi tradition with convenience. The LED display shows the current audio source as well as the volume level, and you can even adjust the light intensity of the display. This is supported by a light display on top of the Sound Hub, which indicates the location of the speakers in the pairing process.
We have made the setup simple, so you only have to worry about adjusting the volume, which can be done via a multitude of options. E.g. on the Sound Hub, by using the included Bluetooth remote, via your smart device (depends on the brand) or directly via the touch panels built atop of the CALLISTO C range.
The DALI CALLISTO C, RUBICON C and OBERON C systems are MQA Certified. By adding the DALI BluOS NPM-2 module to your Sound Hub, you can now take advantage of the ever-growing catalogue of studio master recordings that have been encoded into MQA and streamed on services like Tidal.
DALI Sound Hub SPECS

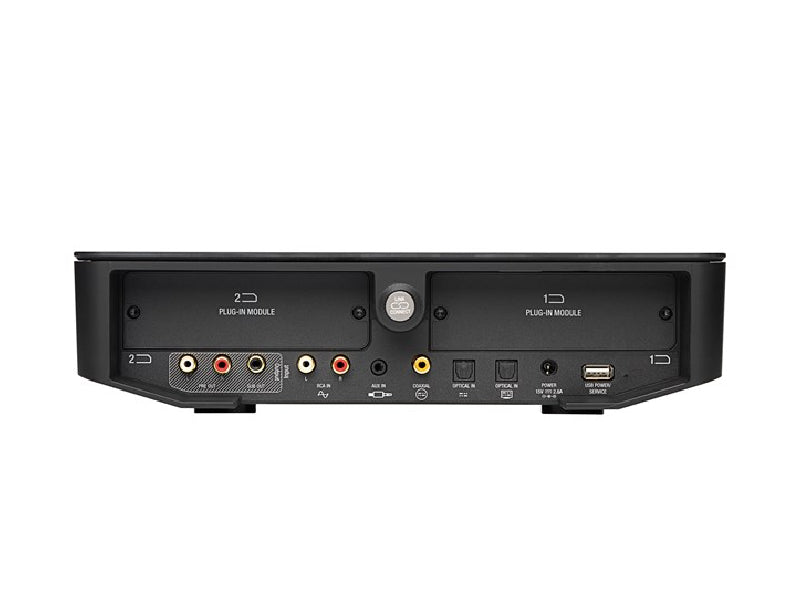

|Connection Input||2 x Optical (TosLink)
RCA (Analouge Stereo)
3.5 mm Mini Jack
2 x Plug-In Module
|Connection Output||Stereo Line Level (RCA)
SUB Out (RCA)
USB Charge Output (5V/1A)
|Wireless Input(s)||Bluetooth 4.2 (AAC, Apt-X, Apt-X HD)|
|Wireless Output||Full 24 Bit / 96 kHz (No bit-loss attenuated)|
|Wireless Audio RF Band [MHz]||5725-5875 MHz|
|Max. Digital Resolution [bits/KHz]||24 / 96|
|Max. Power Consumption [W]||4.5|
|Standby Power Consumption [W]||2.5|
|Dimensions (HxWxD) [mm]||76 x 300 x 213|
|Accessories Included||Quick Setup Guide
|Input Impedance RCA [Ω]||10k|
|Input Sensitivity RCA [V]||2.3|
|Input Impedance 3.5mm Mini-jack [Ω]||10k|
|Input Sensitivity 3.5mm Mini-jack [V]||1.2|
|Input Impedance S/PDIF [Ω]||75|
|Output Voltage Max. Line Level [V]||1.9|
|Output Voltage Max. Sub-Out [V]||0.9|
|Input Mains Voltage [Volts]||Universal AC Mains Adapter (1.75 m wire length)|
