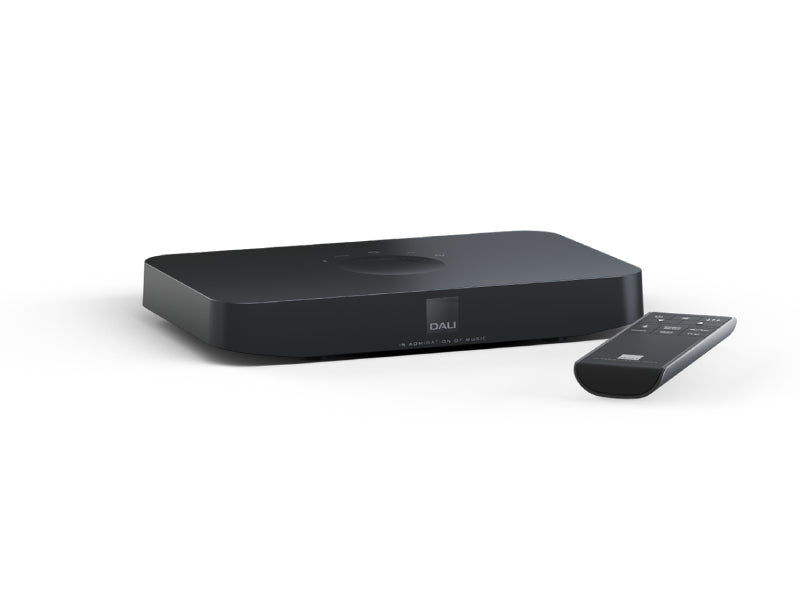

The DALI SOUND HUB COMPACT transmits your audio sources to the wireless DALI eco system, which includes OBERON C, CALLISTO C and RUBICON C speakers. The SOUND HUB COMPACT was designed with compact dimensions and is slim enough to fit behind a wall-mounted TV.
Designed specifically with seamless TV integration and Bluetooth audio in mind, the SOUND HUB COMPACT wireless audio preamplifier combines all the functions and interface facilities needed to play the central role in a complete wireless active Hi-Fi system. It can handle a variety of wired digital and analogue sources, including HDMI ARC, and also pair with Bluetooth audio devices such as smartphones, tablets, laptop and desktop computers to enable entirely wireless audio playback. The SOUND HUB COMPACT can be installed on a table, shelf or furniture unit or be direct wall-mounted using its keyhole slot features.
The system will even automatically switch on when a previously paired Bluetooth device is connected and playback initiated. There’s no complex control app to learn, just automatic input switching and intuitive source based volume control.
SOUND HUB COMPACT SPECS
Product series | OBERON C |
---|---|

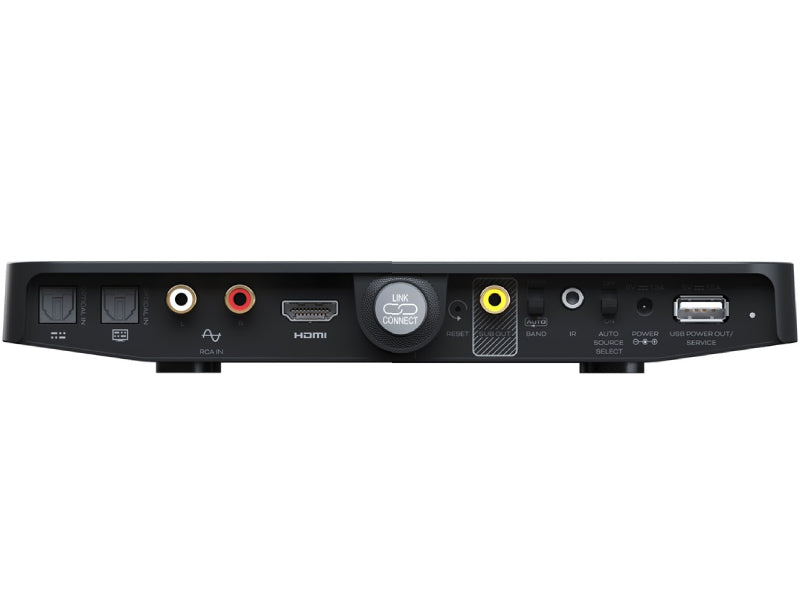

Connection Input | 2 x Optical (TosLink) RCA (Analouge Stereo) HDMI ARC IR Sensor input Chromecast ready |
Connection Output | SUB Out (RCA) USB Charge Output (5V/1.5A) |
Wireless Input(s) | Bluetooth 5.0 (AAC, aptX, aptX HD) |
Wireless Output | Full 24 Bit / 96 kHz (No bit-loss attenuated) |
Wireless Audio RF Band [MHz] | 5150-5250 MHz / 5725-5875 MHz (excluding Japan) |
Max. Digital Resolution [bits/KHz] | 24 / 192 |
Max. Power Consumption [W] | 2.8 |
Standby Power Consumption [W] | 1.7 |
Dimensions (HxWxD) [mm] | 30 x 212 x 132 |
Accessories Included | Quick Setup Guide Rubber Feet Manual Power Cord Remote Control IR Receiver |
Weight [kg] | 0.5 |
Input Impedance RCA [Ω] | 7.2 k |
Input Sensitivity RCA [V] | 3.0 Vp |
Output Voltage Max. Sub-Out [V] | 1.7 V RMS |
Input Mains Voltage [Volts] | 9V DC power supply (universal 100-240 VAC) |
