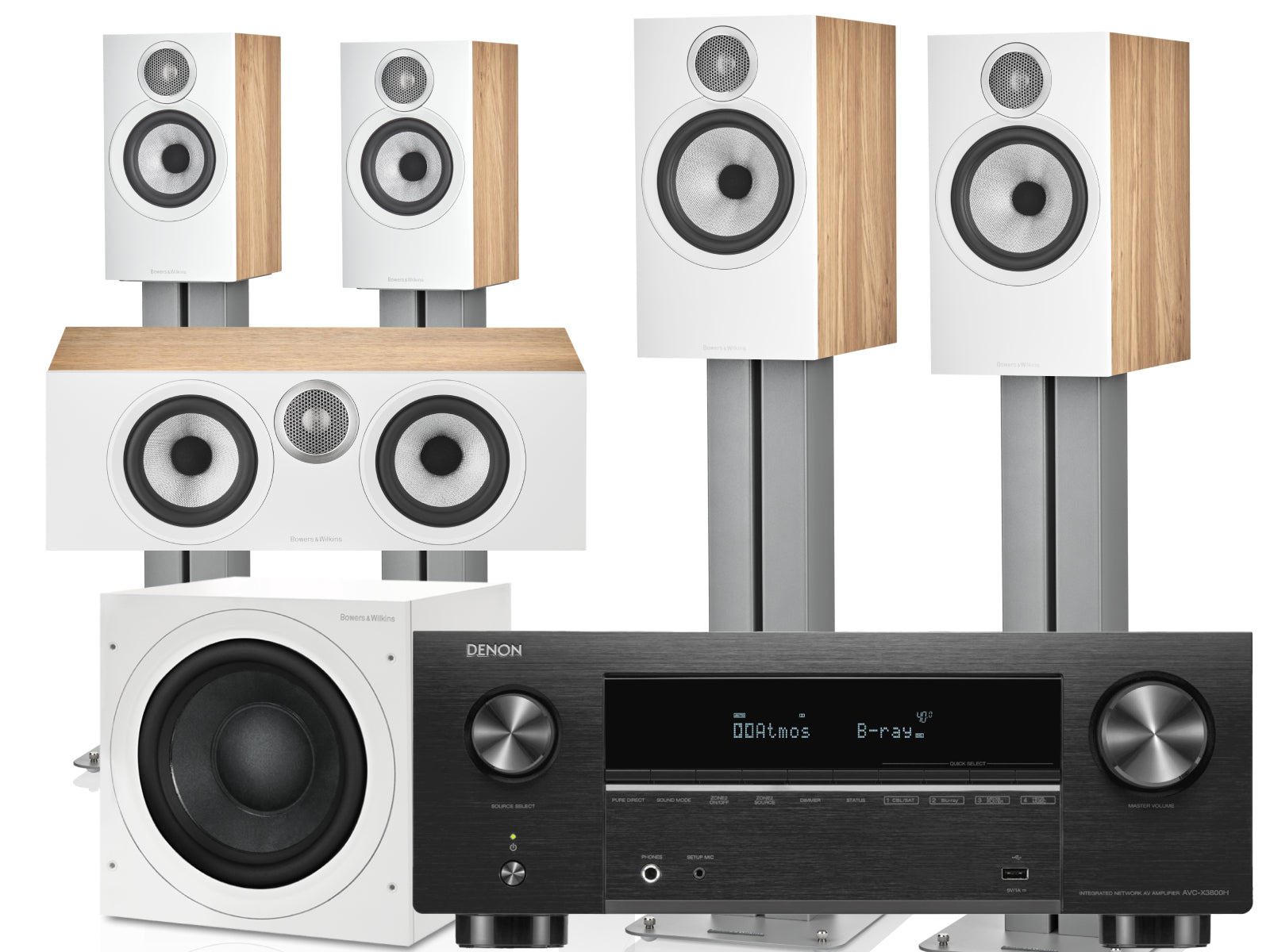

Denon AVC-X3800H AV Amplifier + Bowers & Wilkins 606 S3 5.1 Home Cinema Speakers
Couldn't load pickup availability
Denon AVC-X3800H AV Amplifier + Bowers & Wilkins 606 S3 5.1 Hom...
Denon AVC-X3800H AV Amplifier partnered with the Bowers & Wilkins 606 S3 5.1 Home Cinema Speakers brings 8K visuals and refined sound to small and medium-sized rooms. The new Bowers & Wilkins 600 S3 5.1 Home Cinema Speakers Series, transforms your home with pristine, beautiful, Bowers & Wilkins sound. Enjoy the pure soundscape, created by the Continuum™ cone technology, in glorious 5.1 surround sound with 606 S3 front speakers, 607 S3 rear speakers, HTM6 S3 centre speaker, and ASW610 subwoofer. The ideal combination of size and power, it blends its advanced Continuum™ cone with an improved crossover and new Titanium Dome tweeter for even more insight in your music and movies. 25 years on, it remains the standard for attainable performance loudspeakers.
Powering up to 180W per channel, the Denon AVC-X3800H 9.4 channel 8K AV amplifier with the Bowers & Wilkins 606 S3 5.1 Home Cinema Speakers delivers an enveloping 3D audio experience and amazing picture quality thanks to Dolby Atmos®, DTS:X®, and the latest HDMI technology featuring HDR10+, Dolby Vision™, and 8K video. Powered by HEOS® with built-in, access streaming music services and share with HEOS-enabled speakers in other rooms. With flexibility to set up the best speaker arrangement for your space and Audyssey MultEQ XT32 room correction technology to optimise the sound, Denon made this AV amplifier to meet the demands of home theatre enthusiasts, like you.
Specification
|
AVC-X3800H Technical Information |
|
|
Number of Power Amps |
9 |
|
Power Output |
105 watts per channel (8 ohm, 20Hz-20Khz, 0.08%, 2ch drive) 135 watts per channel (6 ohm, 1 khz, 0.7%, 2ch drive) 180 watts per channel (6 ohm, 1 kHz, 1%, 1ch drive) |
|
General |
|
|
System Remote Control |
RC-1253 |
|
Power Consumption |
660W |
|
Power Consumption (No Sound) |
60W/100W |
|
Standby Consumption in W |
0.1 |
|
CEC Standby Consumption in W |
0.5 |
|
Dimensions (WxDxH) |
Antenna Horizontal (mm): 434 x 389 x 167 Antenna Vertical (mm): 434 x 389 x 236 w/o Antenna (mm): 434 x 379 x 167 |
|
Weight (kg) |
12.5 |
|
Ports |
|
|
Video |
HDMI In/Out: 6/3 Multi-Room Video Out: Video, HDMI: -,Yes |
|
Audio |
Analogue In/Out: 6/- Phono (MM) In: Yes Digital in: Optical/Coaxial: 2/2 Multi-Room Out: Analogue, Digital: 1,- Multichannel Pre-Out: Yes (11.4) Subwoofer Out: 4 (independent) |
|
Other |
Number of speaker terminals: 11 |
|
Other |
|
|
Compatible with Remote APP for smart phones |
Denon 2016 AVR Remote |
|
Auto Speaker Setup by Microphone |
Audyssey MultEQ XT32 Dirac Live (upgrade) |
|
Front Display |
1-Line FLD |
|
GUI Languages |
9 |
Bowers & Wilkins 606 S3 (front speakers)
|
Features |
Decoupled Double Dome Titanium tweeter Continuum™ cone bass / midrange Flowport™ |
|
Description |
2-way vented-box system |
|
Drive Units |
1x ø25mm (1 in) Titanium Dome high-frequency 1x ø165mm (6.5 in) Continuum cone bass / midrange |
|
Frequency range |
-6dB 40Hz - 33kHz |
|
Frequency response (+/-3dB from reference axis) |
52Hz - 28kHz ±3dB |
|
Sensitivity (on axis at 2.83Vrms at 1m) |
88dB |
|
Harmonic distortion |
2nd and 3rd harmonics (90dB, 1m on axis) <1% 100Hz - 22kHz <0.5% 350Hz - 12kHz |
|
Nominal impedance |
8Ω (minimum 3.7Ω) |
|
Recommended amplifier power |
30W - 120W into 8Ω on unclipped programme |
|
Max recommended cable impedance |
0.1Ω |
|
Cabinet finishes |
Black White Oak |
|
Grille finishes |
Black (Black) Grey (White and Oak) |
|
Dimensions |
Height: 344 mm (13.6 in) cabinet only Width: 189 mm (7.4 in) cabinet only Depth: 300 mm (11.8 in) cabinet only, 328 mm (12.9 in) including grille and terminals |
|
Net weight |
7.05kg (15.5 lb) |
Bowers & Wilkins 607 S3 (rear surround speaker)
|
Features |
Decoupled Double Dome Titanium tweeter Continuum™ cone bass / midrange Flowport™ |
|
Description |
2-way vented-box system |
|
Drive Units |
1x ø25mm (1 in) Titanium Dome high-frequency 1x ø130mm (5 in) Continuum cone bass / midrange |
|
Frequency range |
-6dB 40Hz - 33kHz |
|
Frequency response (+/-3dB from reference axis) |
52Hz - 28kHz ±3dB |
|
Sensitivity (on axis at 2.83Vrms at 1m) |
84dB |
|
Harmonic distortion |
2nd and 3rd harmonics (90dB, 1m on axis) <1% 100Hz - 22kHz <0.5% 500Hz - 10kHz |
|
Nominal impedance |
8Ω (minimum 3.0Ω) |
|
Recommended amplifier power |
30W - 100W into 8Ω on unclipped programme |
|
Max recommended cable impedance |
0.1Ω |
|
Cabinet finishes |
Black White Oak |
|
Grille finishes |
Black (Black) Grey (White and Oak) |
|
Dimensions |
Height: 300 mm (11.8 in) cabinet only Width: 165 mm (6.5 in) cabinet only Depth: 207 mm (8.2 in) cabinet only, 235 mm (9.3 in) including grille and terminals |
|
Net weight |
4.65kg (10.3 lb) |
Bowers & Wilkins HTM6 S3 (centre speaker)
|
Features |
Decoupled Double Dome Titanium tweeter Continuum™ cone bass / midrange Flowport™ |
|
Description |
2-way vented-box system |
|
Drive Units |
1x ø25mm (1 in) Titanium Dome high-frequency 2x ø130mm (5 in) Continuum cone bass / midrange |
|
Frequency range |
-6dB 42Hz - 33kHz |
|
Frequency response |
72Hz - 28kHz ±3dB |
|
Sensitivity (on axis at 2.83Vrms at 1m) |
87dB spl (on axis at 2.83Vrms at 1m) |
|
Harmonic distortion |
2nd and 3rd harmonics (90dB, 1m on axis) <1% 100Hz - 22kHz <0.5% 120Hz - 12kHz |
|
Nominal impedance |
8Ω (minimum 4.3Ω) |
|
Recommended amplifier power |
30W - 120W into 8Ω on unclipped programme |
|
Max recommended cable impedance |
0.1Ω |
|
Cabinet finishes |
Black White Oak |
|
Grille finishes |
Black (Black) Grey (White and Oak) |
|
Dimensions |
Height: 160 mm (6.3 in) Cabinet only Width: 480 mm (18.9 in) Cabinet only Depth: 255 mm (10 in) Cabinet only, 283 mm (11.2 in) including grille and terminals |
|
Net weight |
7.7kg (17lb) |
Bowers & Wilkins ASW610 (subwoofer)
ASW610 |
|
|
Features |
Input level (line in) Input level (speaker in) Low-pass filter bypass Bass extension Bass roll-off alignment Auto sense on / standby Phase switch |
|
Drive unit |
ø250mm (10 in) paper / Aramid fibre cone long-throw |
|
Frequency range |
-6dB at 20Hz and 25 / 140Hz adjustable (EQ at A) |
|
Frequency response |
±3dB 27Hz – 40 / 140Hz adjustable (EQ at A) |
|
Bass extension |
-6dB at 20Hz (position A) -6dB at 25Hz (position B) -6dB at 30Hz (position C) |
|
Power output |
200W |
|
Rated power consumption |
40W / 0.5W standby |
|
Input impedance |
33kΩ |
|
Signal / noise |
>90dB |
|
Inputs |
Line in (RCA Phono) Speaker in (Binding post) 12v trigger (3.5mm jack) Low-pass filter Active 4th-order, variable cut-off frequency |
|
Dimensions |
Height: 310mm (12.2 in) not including feet or spikes 322mm (12.7in) including feet 338mm (13.3in) including spikes Width: 310mm (12.2 in) Depth: 347mm (13.66in) not including grilles 375mm (14.8 in) including grilles and controls |
|
Net weight |
12.5kg (27.6 lb) |
