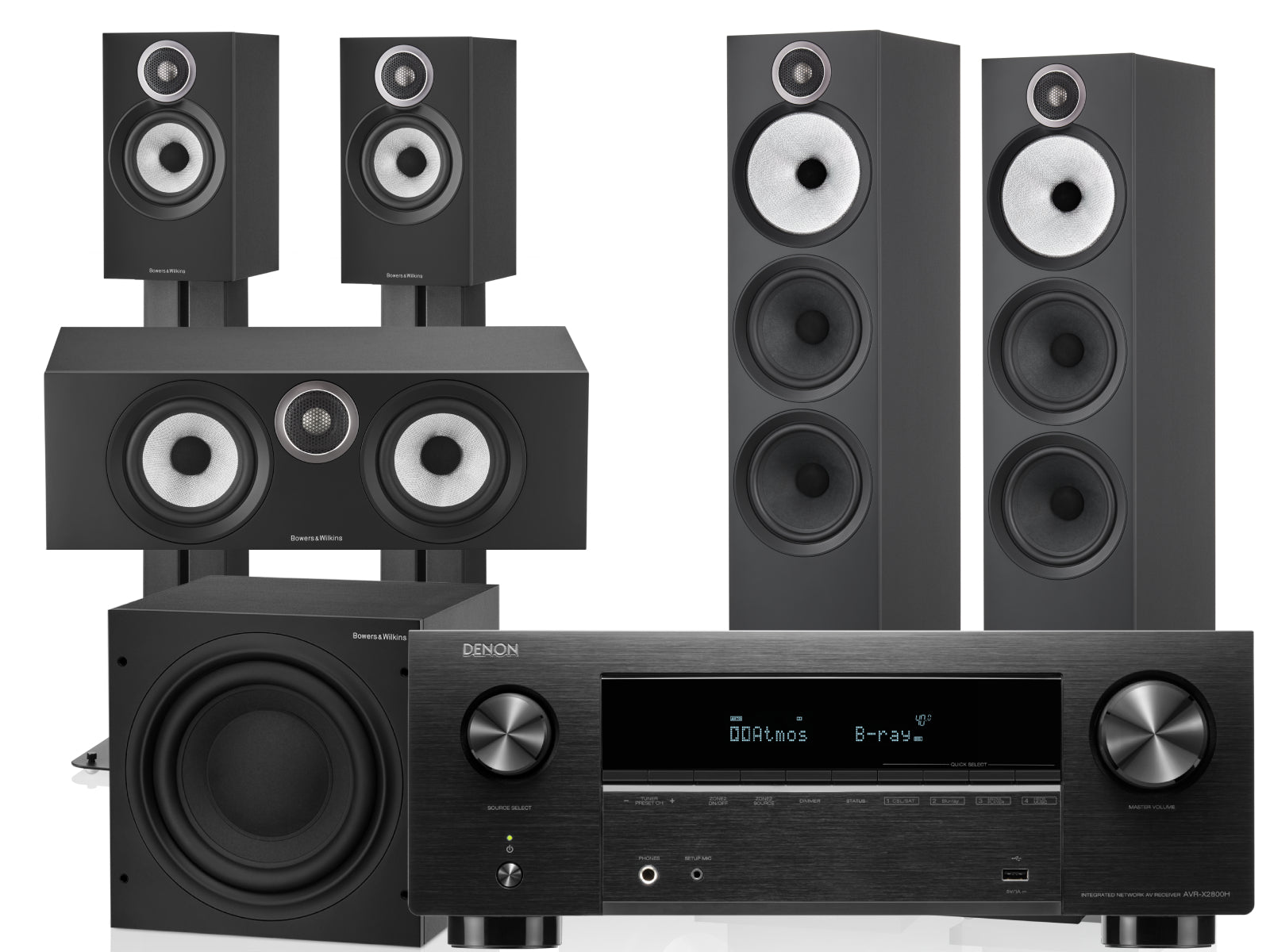

Denon AVR-X2800H AV Amplifier + Bowers & Wilkins 603 S3 5.1 Home Cinema Speakers
Tax included. Stock information
Pickup also available at Doug Brady HiFi
Usually ready in 1 hour
Denon AVR-X2800H AV Amplifier + Bowers & Wilkins 603 S3 5.1 Home Cinema Speakers
Black
Doug Brady HiFi
Kingsway Studios
Kingsway North
Warrington WA1 3NU
United Kingdom
The Denon AVR-X2800H AV Amplifier partnered with the Bowers & Wilkins 603 S3 5.1 Home Cinema Speakers brings 8K visuals and refined sound to medium- larger sized rooms. The new Bowers & Wilkins 603 S3 5.1 Home Cinema Speakers Series, transforms your home with pristine, beautiful, Bowers & Wilkins sound. Enjoy the pure soundscape, created by the Continuum™ cone technology, in glorious 5.1 surround sound with 603 S3 front speakers, 607 S3 rear speakers, HTM6 S3 centre speaker, and ASW610 subwoofer. The ideal combination of size and power, it blends its advanced Continuum™ cone with an improved crossover and new Titanium Dome tweeter for even more insight in your music and movies. 25 years on, it remains the standard for attainable performance loudspeakers.
The Denon AVR-X2800H AV receiver is host to an array of inputs and outputs which ensure higher video resolution and refresh rates. Featuring several atmospheric formats including Dolby Atmos and IMAX Enhanced, you're sure of an absolute immersive experience. Music, movies and gaming are taken to a whole new level. Powering 150W per channel, the Denon AVR-X2800H 7.2 channel 8K AV receiver delivers a fully enveloping 3D audio experience, amazing picture quality, and lag-free gaming experience thanks to Dolby Atmos®, DTS:X®, and the latest HDMI technology featuring HDR10+, Dolby Vision™, 8K/60 and 4K/120 passthrough.
Specification
|
Denon AVR-X2800H Technical Information |
|
|---|---|
| Number of Power Amps | 7 |
| Power Output | 195 watts per channel (8 ohm, 20Hz-20Khz, 0.08%, 2ch drive) 125 watts per channel (6 ohm, 1 khz, 0.7%, 2ch drive) 185 watts per channel (6 ohm, 1 kHz, 1%, 1ch drive) |
|
General |
|
| System Remote Control | RC-1253 |
| Power Consumption | 500W |
| Power Consumption No-Sound (ECO on/off) | 35W/75W |
| Standby Consumption in W | 0.1 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | Less than 2.0 |
| Dimensions (WxDxH) | Antenna Horizontal (mm): 434 x 341 x 167 Antenna Vertical (mm): 434 x 341 x 237 w/o Antenna (mm): 434 x 330 x 167 |
| Weight (lbs) | 9.5 |
|
Inputs/Outputs |
|
| Video | HDMI In/Out: 6/2 |
| Audio | Analogue In/Out: 4/- Phono (MM) In: Yes Digital in: Optical/Coaxial: 2/- Multi-Room Out: Analogue, Digital: 1,- Multichannel Pre-Out: Yes (0.2) Subwoofer Out: 2 |
| Other | Number of speaker terminals: 7 Speaker A/B: Assignable Bi-Amp Drive: Assignable Multi-Room Speaker Terminal: Assignable |
|
Other |
|
| Auto Speaker Setup by Microphone | Audyssey MultEQ XT |
| Front Display | 1-Line FLD |
| GUI Languages | 9 |
Bowers & Wilkins 603 S3 (front floorstanding speakers)
Specification
| Features | Decoupled Double Dome Titanium tweeter Continuum™ cone FST™ midrange Paper bass cones Flowport™ |
| Description | 3-way vented-box system |
| Drive Units | 1x ø25mm (1 in) Titanium Dome high-frequency 1x ø150mm (6 in) Continuum cone FST midrange 2x ø165mm (6.5 in) Paper bass cone |
| Frequency range | -6dB 29Hz - 33kHz |
| Frequency response (+/-3dB from reference axis) | 46Hz - 28kHz ±3dB |
| Sensitivity (on axis at 2.83Vrms at 1m) | 90dB |
| Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m on axis) <1% 100Hz - 22kHz <0.5% 350Hz - 12kHz |
| Nominal impedance | 8Ω (minimum 3.0Ω) |
| Recommended amplifier power | 30W - 200W into 8Ω on unclipped programme |
| Max recommended cable impedance | 0.1Ω |
| Cabinet finishes | Black White Oak |
| Grille finishes | Black (Black) Grey (White and Oak) |
| Dimensions | Height: 985 mm (38.8 in) cabinet only, 1,020 mm (40.2 in) including plinth Width: 190 mm (7.5 in) cabinet only, 260 mm (10.2 in) including plinth Depth: 340 mm (13.4 in) cabinet only, 368 mm (14.5 in) including grille and terminals, 402 mm (15.8 in) including plinth |
| Net weight | 27.5kg (60.6 lb) |
Bowers & Wilkins 607 S3 (rear surround speaker)
| Features | Decoupled Double Dome Titanium tweeter Continuum™ cone bass / midrange Flowport™ |
| Description | 2-way vented-box system |
| Drive Units | 1x ø25mm (1 in) Titanium Dome high-frequency 1x ø130mm (5 in) Continuum cone bass / midrange |
| Frequency range | -6dB 40Hz - 33kHz |
| Frequency response (+/-3dB from reference axis) | 52Hz - 28kHz ±3dB |
| Sensitivity (on axis at 2.83Vrms at 1m) | 84dB |
| Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m on axis) <1% 100Hz - 22kHz <0.5% 500Hz - 10kHz |
| Nominal impedance | 8Ω (minimum 3.0Ω) |
| Recommended amplifier power | 30W - 100W into 8Ω on unclipped programme |
| Max recommended cable impedance | 0.1Ω |
| Cabinet finishes | Black White Oak |
| Grille finishes | Black (Black) Grey (White and Oak) |
| Dimensions | Height: 300 mm (11.8 in) cabinet only Width: 165 mm (6.5 in) cabinet only Depth: 207 mm (8.2 in) cabinet only, 235 mm (9.3 in) including grille and terminals |
| Net weight | 4.65kg (10.3 lb) |
Bowers & Wilkins HTM6 S3 (centre speaker)
| Features | Decoupled Double Dome Titanium tweeter Continuum™ cone bass / midrange Flowport™ |
| Description | 2-way vented-box system |
| Drive Units | 1x ø25mm (1 in) Titanium Dome high-frequency 2x ø130mm (5 in) Continuum cone bass / midrange |
| Frequency range | -6dB 42Hz - 33kHz |
| Frequency response | 72Hz - 28kHz ±3dB |
| Sensitivity (on axis at 2.83Vrms at 1m) | 87dB spl (on axis at 2.83Vrms at 1m) |
| Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m on axis) <1% 100Hz - 22kHz <0.5% 120Hz - 12kHz |
| Nominal impedance | 8Ω (minimum 4.3Ω) |
| Recommended amplifier power | 30W - 120W into 8Ω on unclipped programme |
| Max recommended cable impedance | 0.1Ω |
| Cabinet finishes | Black White Oak |
| Grille finishes | Black (Black) Grey (White and Oak) |
| Dimensions | Height: 160 mm (6.3 in) Cabinet only Width: 480 mm (18.9 in) Cabinet only Depth: 255 mm (10 in) Cabinet only, 283 mm (11.2 in) including grille and terminals |
| Net weight | 7.7kg (17lb) |
Bowers & Wilkins ASW610 (subwoofer)
ASW610 |
|
|---|---|
| Features | Input level (line in) Input level (speaker in) Low-pass filter bypass Bass extension Bass roll-off alignment Auto sense on / standby Phase switch |
| Drive unit | ø250mm (10 in) paper / Aramid fibre cone long-throw |
| Frequency range | -6dB at 20Hz and 25 / 140Hz adjustable (EQ at A) |
| Frequency response | ±3dB 27Hz – 40 / 140Hz adjustable (EQ at A) |
| Bass extension | -6dB at 20Hz (position A) -6dB at 25Hz (position B) -6dB at 30Hz (position C) |
| Power output | 200W |
| Rated power consumption | 40W / 0.5W standby |
| Input impedance | 33kΩ |
| Signal / noise | >90dB |
| Inputs | Line in (RCA Phono) Speaker in (Binding post) 12v trigger (3.5mm jack) Low-pass filter Active 4th-order, variable cut-off frequency |
| Dimensions | Height: 310mm (12.2 in) not including feet or spikes 322mm (12.7in) including feet 338mm (13.3in) including spikes Width: 310mm (12.2 in) Depth: 347mm (13.66in) not including grilles 375mm (14.8 in) including grilles and controls |
| Net weight | 12.5kg (27.6 lb) |
