Luxman D-03X CD Player / DAC
The New Luxman D-03X CD Player inherits the basic configuration of the D-05u CD player, which has been warmly received as a best-selling model since it’s release. It is our latest digital media player that supports MQA (MQA-CD/MQA files), a format which has seen an increasing number of titles released in recent years.
The most important features of the CD playback system are our latest design and specifications, with a new steel top plate and a highly reliable, dedicated CD transport mechanism, consisting of an extremely thick aluminum mechanical base and a shielded box chassis, with a loopless structure, to improve accuracy and reduce noise when reading discs.
The D/A converter circuitry features dual Texas Instruments PCM1795 chips to handle high resolution files. The D-03X represents LUXMAN’s ideal digital disc player, maintaining accuracy when converting digital signals to high quality analog signals, using independent left and right monaural mode DACs and high-quality output amplification via fully balanced output circuitry
Specifications
| Supported discs | CD (CD-R, CD-RW, MQA-CD) |
|---|---|
| Supported sampling frequencies |
USB input (PCM) : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz (16, 24, 32-bit) USB input (DSD) : 2.8 MHz, 5.6 MHz, 11.2 MHz (1-bit) Coaxial / Optical input : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 20, 24-bit) |
| Analog output voltage / impedance |
Unbalanced : 2.4 V / 300 Ω, Balanced : 2.4 V / 600 Ω, DSD : 1.7 V |
| Frequency response | CD : 5 Hz to 20 kHz (+0, -1.0 dB) Coaxial / Optical : 5 Hz to 47 kHz (+0, -3.0 dB) USB : 5 Hz to 47 kHz (+0, -3.0 dB) |
| Total harmonic distortion | CD : 0.003 %, Coaxial / Optical : 0.002 %, USB : 0.002 % |
| S/N ratio (IHF-A) | CD : 101 dB, Coaxial / Optical : 114 dB, USB : 113 dB |
| D/A converter | Texas Instruments PCM1795 (monaural mode) x 2 |
| Power supply | 230 V～(50 Hz) / 115 V～ (60 Hz) |
| Power consumption | 18W |
| Dimensions | 440(W) x 133(H) x 410(D) mm front side knob of 2 mm and rear side terminal of 8 mm included in depth |
| Net weight | 13.2 kg |

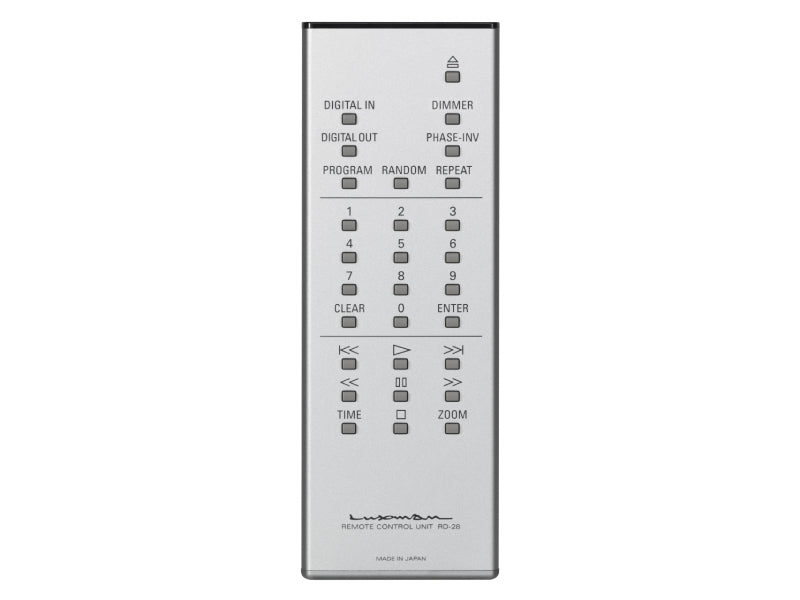

| Accessories | Remote control (RD-28), Power cable |
