Luxman

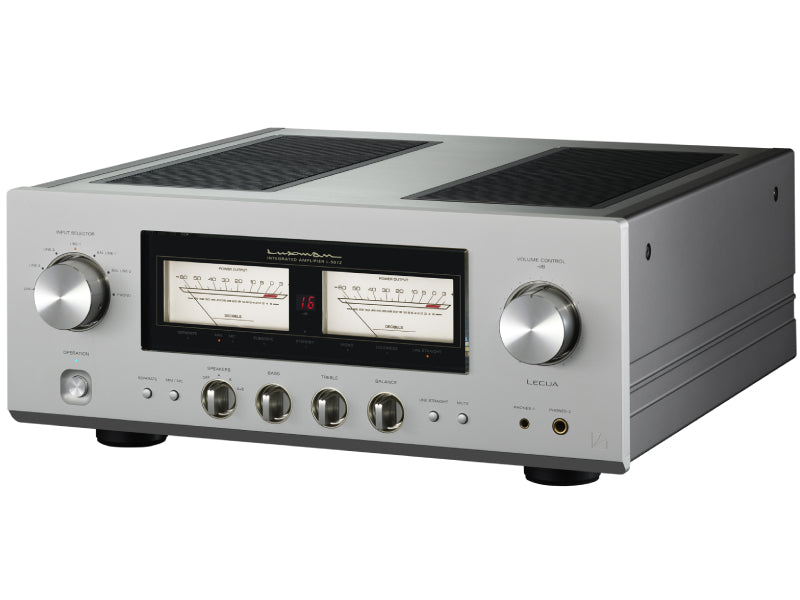

Luxman L-507Z Integrated Amplifier

£8,000

Luxman will celebrate their 100th anniversary in 2025 so we are proud to announce the New Luxman L-507Z featuring the successor to their ODNF* feedback circuitry, which has contributed to the audio quality of our amplifier products since 1999. The L-507Z is designed to replace both the L-590AX-II and the L-507UX-II. This new amp builds on the design of the hugely successful L-509X and is tuned to have the signature Luxman sound signature. Offering 110 Watts per channel into 8 ohms.

Luxman have developed a new amplifier feedback circuit, LIFES*, which has acquired realistic, fresh and rich musicality and overwhelming audio performance. LIFES is based on the technical concept of our epoch-making ODNF circuit and realizes excellent, dynamic characteristics without feeding back any of the original audio input signal to the main amplifier, achieving a remarkably natural sound quality, almost if it were a non-feedback equipped circuit. The design has been conceived and expanded upon from first principles using simulation technology and painstaking research.

Luxman latest amplification feedback engine brings music to life with LIFES Version 1.0



By repeatedly auditioning, rigorously scrutinizing and combining specially selected components, we have achieved supreme performance characteristics and a level of quality suitable for use in Luxman’s next-generation products. In producing LIFES Version 1.0, by carefully reimagining the entire circuit, we succeeded in reducing the number of paralleled elements while improving performance. The distortion in the amplification stage has been reduced to less than half of our previous system. The output stage features a 3-stage Darlington triple-paralleled push-pull configuration and achieves a class AB power output of 110W+110W (8Ω) and 210W+210W (4Ω). The high output power, comparable to that of a separate power amplifier, effortlessly realizes a natural soundstage, full of energy, to confidently drive any compatible speaker system, and bring out the best of its characteristics.

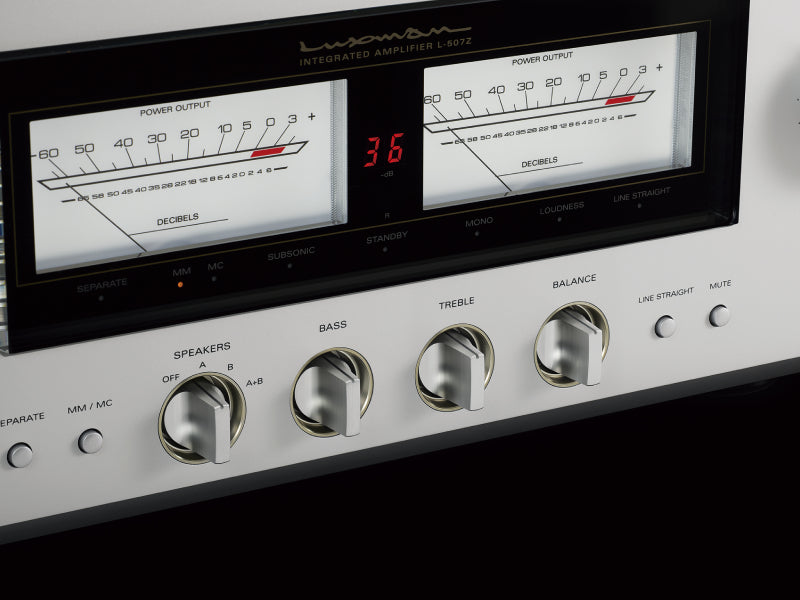

The Luxman L-507Z is equipped with a Large needle VU level meter and 7-segment LED

Large needle VU level meter and 7-segment LED

Needle-type analog VU meters are a symbolic design statement of Luxman’s solid state integrated amplifiers. The L-507Z is equipped with a large dual meter with bright LED back-lighting and high response characteristics. We have adopted such a display so the movement of the needles synchronizes with the dynamics of your music. In addition, newly included 7-segment LEDs display the attenuation level in between the left and right level meters so that the current attenuation amount can be easily seen from the listening position. The level meter back-lighting and LED display can be turned on and off using the remote control.

The Luxman L-507Z Precision hairline finished aluminum top panel

Precision hairline finished aluminum top panel

The rectangular chassis housing design features an ultra-thick front panel with a high-quality, blasted white finish. This has become a brand identifier of current Luxman products, with a delicate hairline finished aluminum top panel, a luxurious exterior design adopted for our high-grade amplifiers. The large ventilation slots on the top panel provide sufficient air flow and the entire chassis housing is fabricated from aluminum panels, providing excellent heat dissipation, ensuring the stable operation of this product.

Luxman’s New LECUA1000 88-step, electronically controlled attenuator

NEW CUA1000

New LECUA1000 88-step, electronically controlled attenuator is integrated into the amplifier circuit minimizing sound quality degradation over the full range of volume control. The output section of the preamplifier is equipped with discrete buffer circuitry that confidently drives the subsequent power amplifier stage.

Luxman Highly regulated power supply circuit

Highly regulated power supply circuit

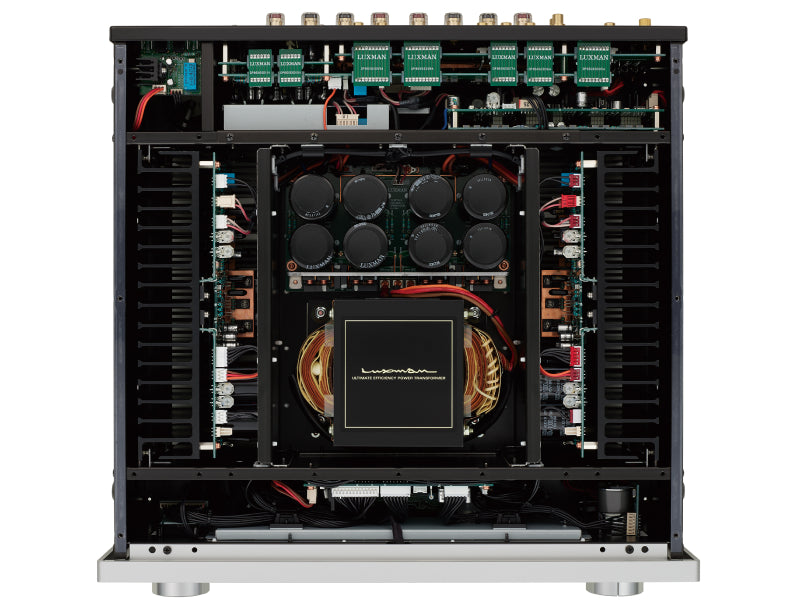

A highly stable, custom made EI-type power transformer and newly developed, large-capacity filter capacitors (10,000μFx 8) are combined in the power supply unit, which provides instantaneous current supply and voltage stability, easily meeting the demands of dynamic music reproduced through capable speakers.

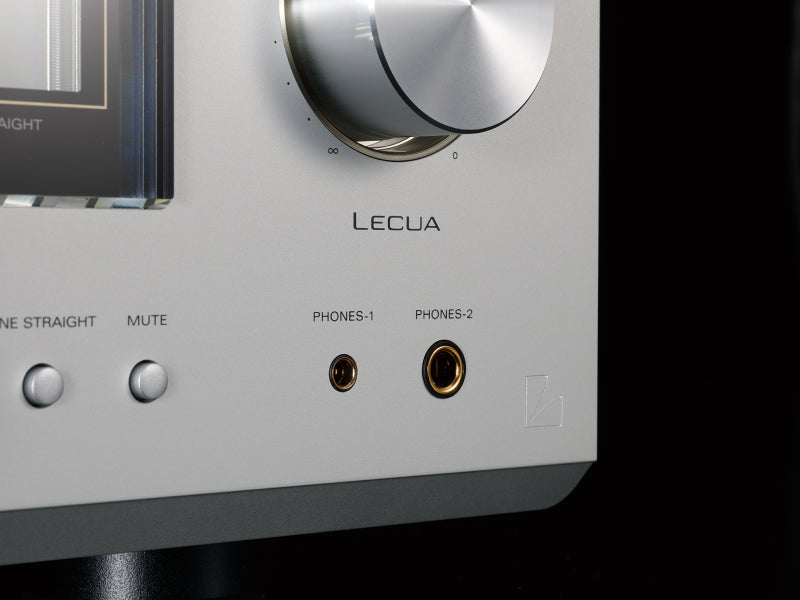

Luxman L-507Z has a  Newly designed parallel headphone output

Newly designed parallel headphone outputs

In addition to the standard φ6.3mm output, a new φ4.4mm output has been added, with independent left and right ground wiring that greatly improves L-R separation for the listener who wants to enjoy truly three-dimensional sound.

Specifications

Rated output 110W+110W(8Ω)
220W+220W(4Ω)
Input sensitivity/
input impedance
PHONO(MM): 2.5mV / 47kΩ
PHONO(MC ): 0.3mV / 100Ω
LINE: 180mV / 47kΩ
BAL.LINE: 180mV / 79kΩ
MAIN IN: 1.05V / 47kΩ
Output voltage PRE OUT: 1V
Frequency response PHONO: 20Hz to 20kHz (±0.5dB)
LINE: 20Hz to 100kHz (within -3dB)
Total harmonic distortion 0.007% or less (8Ω, 1kHz)
0.03% or less (8Ω, 20Hz to 20kHz)
S/N ratio (IHF-A) PHONO (MM): 91dB or more
PHONO (MC): 75dB or more
LINE: 105dB or more
Volume adjustment New LECUA1000
Amplification feedback circuit LIFES 1.0
Output configuration Bipolar 3-parallel push-pull
Damping factor 300
Max. amount of tone control BASS: ±8dB at 100Hz
TREBLE: ±8dB at 10kHz
Power supply 230V~(50Hz) / 115V~(60Hz)
Power consumption 350W
886W (under no signal), 0.4W (at standby)
External dimensions 440(W) x 178(H) x 454(D) mm
front side knob of 20mm and rear side terminal
of 27mm included in depth
Net weight 25.4kg (main unit)

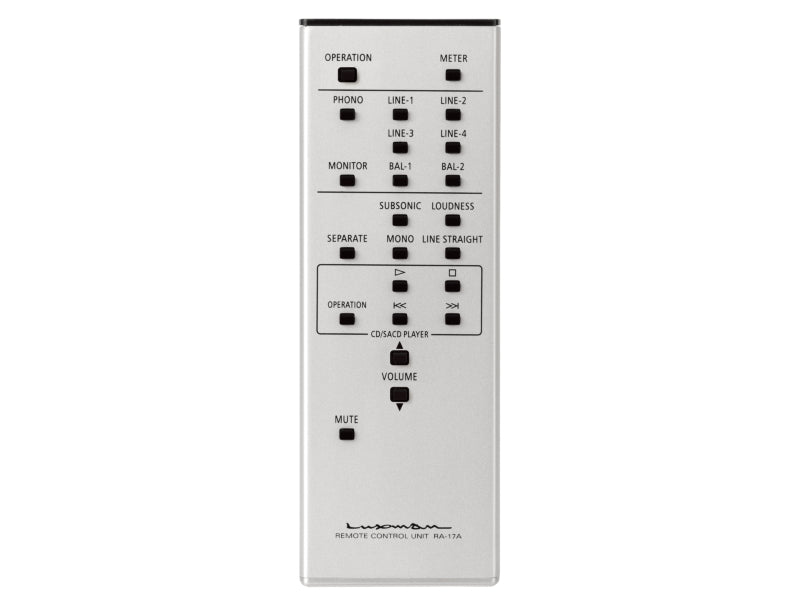

Accessories Remote control (RA-17A)
Power cable
Speaker terminal
Supported Y-lug terminal
dimension
Width of part a: 15mm or less
Width of part b: 8mm or more
* Connection may not be performed
depending on the shape of the
Y-lug terminal.
