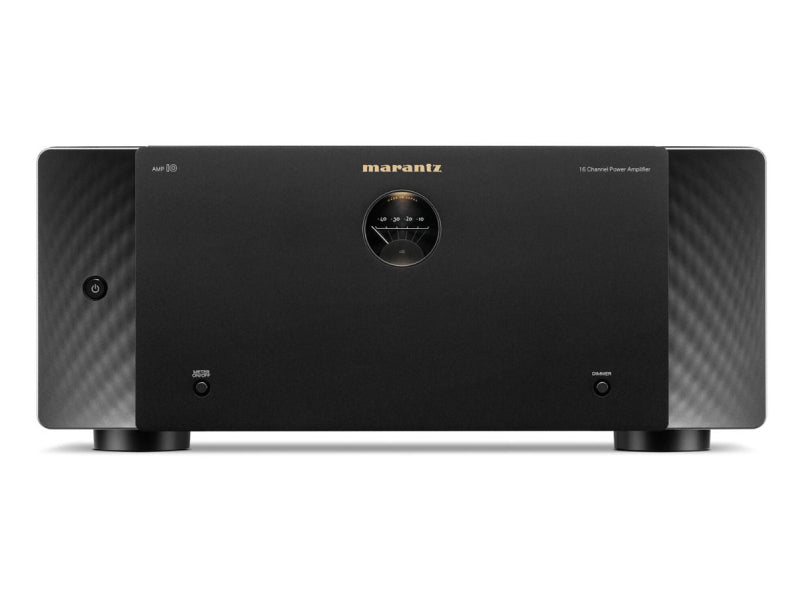

Marantz AMP 10 reference 16 channel Power Amplifier

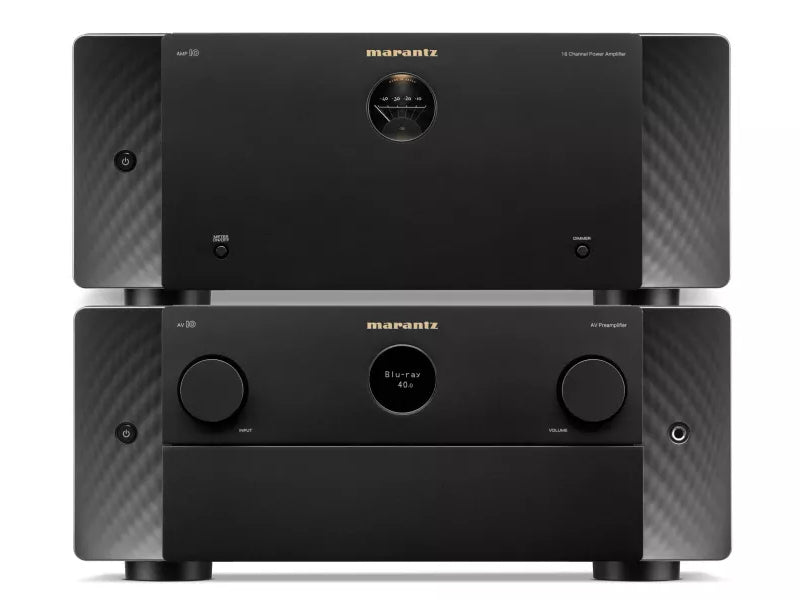

Marantz AMP 10 is a reference 16-channel 200-watt-per-channel power amplifier. Pair the Marantz AMP 10 with the new Marantz AV 10 reference 15.4 channel balanced pre-amplifier processor to create a reference-level home theatre set up.
Reference Performance
Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theaters. The AMP 10 is engineered using best-in class technologies to enable extraordinary power output; high channel count; and the dynamic, rich, warm sound for which Marantz is highly renowned. Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of Marantz sound.
Technology Simplified
The AMP 10 has custom Class D amplifiers and refined HDAM-SA2 technology to create the most incredible theatrical experience possible in your home.
Exquisite Design
A modern expression of timeless design principles, AMP 10 features the iconic Marantz porthole level meter, premium materials, and subtle sidelights that illuminate the front panel. The AMP 10 is meticulously crafted with authentic materials in a modern style befitting its rich heritage and stunning performance.
Specifications
|
AMP 10 MULTI-ROOM / CI |
|
|---|---|
| IP Control / RS232 Control / Web Control / App Control | No / Yes / No / No |
| IR Flasher In | Yes |
| Marantz Remote Bus | Yes |
| DC Trigger Input/Output | 1/1 |
|
OTHERS |
|
| Front Display | Level Meter |
| Firmware Update by Network / USB / RS232C | No / No / Yes |
| Auto Power off | Yes |
|
INPUTS / OUTPUTS |
|
| Main Amplifier in | Balanced & Unbalanced: 16ch (Exclusive use by a selector switch.) |
| Speaker Terminal: Gold plated screw / regular screw | Brass type (same as MODEL 40n) |
| Number of Speaker Terminals | 16 |
| Bi-Amp Drive/BTL Drive | Yes / Yes |
| Level Meter | Yes |
| Chassis | Copper Plated |
|
SPECIFICATIONS |
|
| Number of poweramps | 16 |
| Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL | 200W / 400W |
| Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal | 400W |
| Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal | 200W |
| 70% Guarantee (Normal/Bi-Amp/BTL) | Yes (w/Yes JP) |
| 100% Guarantee(Normal/Bi-Amp) | Yes |
|
GENERAL |
|
| Metal Front Panel | Yes |
| Pre-Programmed / Learnable / LCD Display | No / No / No |
| Power Consumption in W | 500W |
| Power Consumption No-Sound (ECO on/off) in W | No / 140W |
| Standby Consumption in W | 0.2 |
| Maximum Dimensions | W/o Antenna (W x D x H) in mm: 17.4 x 19.2 x 7.4 |
| Weight in lbs. | 43.7 |
| What's in the box | Main unit, quick start guide, AC cord, Amp control cable, Remote control cable, SP terminal wrench |
