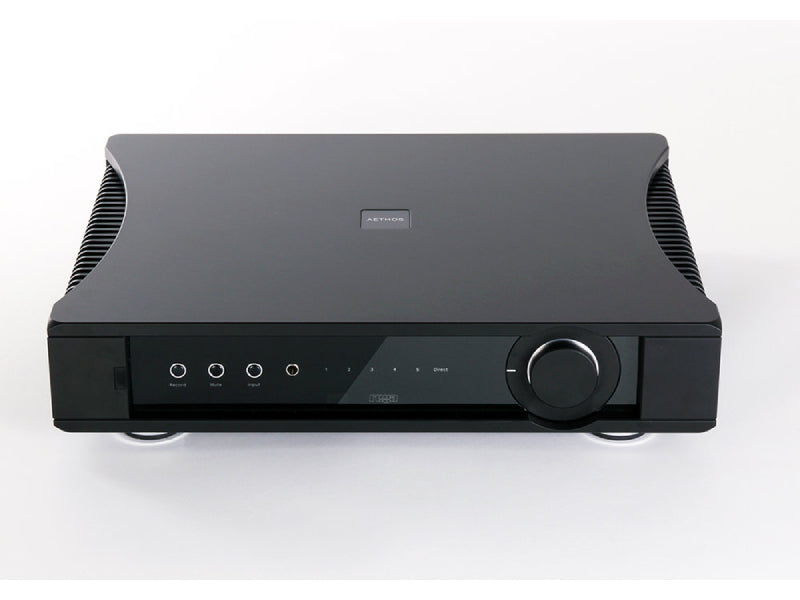

Rega Aethos Integrated Amplifier

£2,999.00

Brand Rega

A last the new Rega Aethos Amplifier is here.. taken all what they have learn from amplifier design when making the Osiris they have now designed this the AETHOS.

SPECIFICATIONS

Power outputs at rated 230/115 V supply voltage:
125 W RMS both channels driven into the rated load of 8 Ω
156 W RMS both channels driven into 6 Ω
Note: Continued high level use into 6 Ω may cause the case to exceed 40 °C above the ambient temperature and activate the thermal shutdown.

Headphone output:
No load
12.5 V
32 Ω 2.7 V
54 Ω 4 V
300 Ω 9 V
Source impedance 109 Ω

Record output:
Record output level (with rated input levels) 219 mV
Record output impedance 560 Ω

Pre-amp output:
Pre-amp output level (with rated input levels) 840 mV
Pre-amp output impedance 100 Ω

Input sensitivities for rated output level:
Input 1-5 and record input sensitivity 224 mV @ 17 kΩ
Maximum input level 11.5 V (record output amplifier overload point)
Direct input sensitivity 840 mV @ 50 kΩ
Power amplifier gain 31.6 dB

Frequency response @ 100 W into 8 Ω:
Line input 1-5 and record 10 Hz (-0.8 dB point) to 30 kHz (-0.5 dB point)
Direct input 10 Hz (-0.8 dB point) to 50 kHz (-0.5 dB point)

THD+Noise @ 100 W into 8 Ω:
Direct input (Power amplifier only)Typically 0.007% @ 1kHz (measurement bandwidth 22 Hz to 30 kHz)

Line input Typically 0.007% @ 1kHz (measurement bandwidth 22Hz to 30KHz)
Power consumption Maximum output: 415 W @ 230 V / 220 V / 115 V / 100 V into the rated load of 124 W RMS into 8 Ω

Fuse ratings T3.15 AL 250 V - 230 V/ 50 Hz and 220 V / 60 Hz
T6.3 AL 250 V - 115 V / 60 Hz and 100 V 50/60 Hz

Dimensions W 433 mm x H 95 mm x D 360 mm (including speaker terminals)

Weight 17.5 kg
