REL Acoustics Carbon Special Subwoofer


Sale price£3,799.00

Tax included. Stock information

1 in stock

Pickup also available at Doug Brady HiFi

Usually ready in 1 hour

REL Acoustics Carbon Special Subwoofer

REL Acoustics Carbon Special Subwoofer

Doug Brady HiFi

Pickup also available, usually ready in 1 hour

Kingsway Studios
Kingsway North
Warrington WA1 3NU
United Kingdom

+441925828009
✓ Free UK Delivery
✓ 3 Year manufactures warranty
✓ Authorised UK Premium Dealer

✓ Est. Independent Since 1960

Carbon Special is a new limited availability model that combines REl's latest engineering with cutting edge components from their reference line, all housed in a moderately sized chassis. It features our third-generation carbon fibre 12” driver with a new, bespoke CSP passive driver that delivers 50% longer stroke, powered by a 1,000 watt amplifier, itself guided by there CS PerfectFilter™. An all new cabinet with highly polished metal and carbon fibre touches appears only in this model.

The key to the Carbon Special’s amazing performance is its new BlackWidow 12”(350mm) forward firing active carbon fibre driver, powering this is the 1,000 watt amplifier from the flagship No.25 subwoofer, so with 1,000 watts at it's disposal, it has the current reserves to easily keep up with the demands placed upon it by even the most rigorous user.  REL's PerfectFilters elevates the low bass performance while subtle tweaks to its upper range performance allow for an airier, more transparent soundstage and improved clarity throughout the entire system’s performance. It is impossible to overstate its benefit to a fine audio system and all the benefits that accrue to its musical performance. It delivers airy, delicate highs with greater reach into the nether regions within a soundstage, as well as truer, more powerful ultra-low bass delivery. If it sounds too good to be true, it almost is.

The cabinet extends deeper than previous mid-chassis designs to optimize performance for this new driver complement. And its looks are delivered in a refined, mature manner with subtle use of carbon fibre details sprinkled among chrome and polished stainless accents. We predict Carbon Special will become one of the highest demand ultra-high performance subwoofers of all time.

REL’s signature gift to the art of sub bass performance is undoubtedly our Reference Line Arrays, wherein three units per side are stacked vertically. This arrangement was practically invented for subs with the deportment of Carbon Special. For those who always dreamed of owning a REL Reference Line Array but were denied it because of their size, your ship has arrived.

Specifications

TYPE

Front-firing active driver, down-firing passive

ACTIVE DRIVER SIZE & MATERIAL

12 in., 300mm long-throw, carbon fibre cone with inverted carbon fibre centre cap

PASSIVE RADIATOR SIZE & MATERIAL

12 in., 300mm Carbon, carbon flat cone structure, steel chassis

LOW FREQUENCY EXTENTION

-6 dB at 19Hz (in Room)

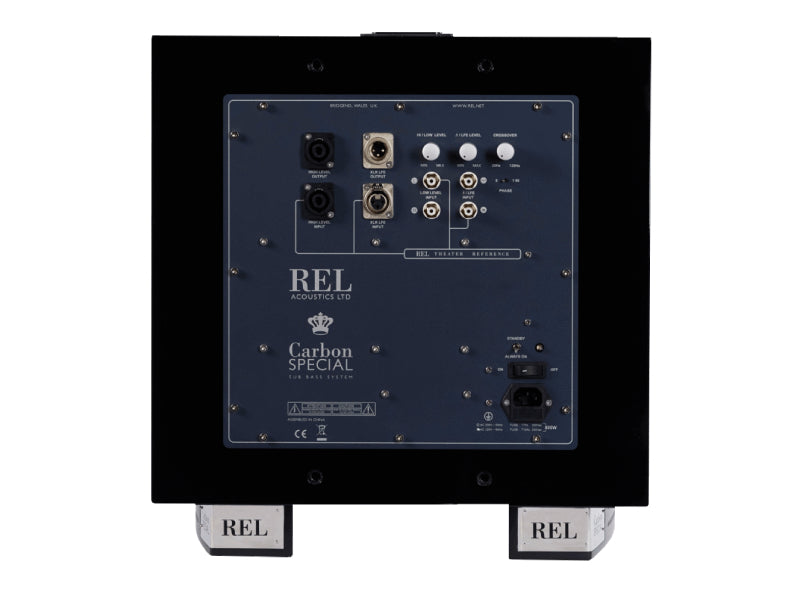

INPUT CONNECTORS

High Level Neutrik Speakon, Low Level stereo RCA, LFE RCA, and LFE XLR

OUTPUT CONNECTORS

High Level Neutrik Speakon, LFE RCA, and LFE XLR

POWER OUTPUT

1000 watts (RMS)

AMPLIFIER TYPE

NextGen5 Class D

WIRELESS CAPABILITY

Airship Wireless Required (sold separately)

Protection System

FULLY ELECTRONIC SET SAFE

Yes

D.C. FAULT

Yes

OUTPUT SHORT

Yes

MAINS INPUT VOLTAGE

220-240 volts, 110-120 volts for certain markets

FUSES

5 Amp 220 volts operation, 9 Amp 120 volts operation

Dimensions

W X H X D

17 x 18 x 21.25 in. (430 x 455 x 539 mm)

NET WEIGHT

85.3 lbs. (38.7 kg)

FINISH

Piano Black Lacquer, 8 coats

Supplied Accessories

MAINS LEAD

Yes

NEUTRIK SPEAKON

Yes (10 Meters Nominal)

INTERCONNECT
USERS MANUAL

Yes
