REL Acoustics S/510 Subwoofer

✓ Free UK Delivery
✓ 3 Year warranty
✓ Authorised UK Premium Dealer

✓ Est. Independent Since 1960

S510 takes REL’s compact-medium chassis concept to reference-like levels of performance and does so with style, power and incredible speed. It delivers incredible levels of all ‘round performance. S/510 allows those with less space, or when pairing with high end speakers that are slightly less robust to have a perfect dance partner when the S/812 is simply too much of a great thing.

Our requirements were for far stronger deep bass output between 20-35 Hz, vastly improved theatre dynamics, and an even more open and spacious soundfield which benefits both music and film. We turned to our NextGen3 amplifier, tuned to 500 watts with substantial reserves of power, added a light film of carbon fibre to the rear of the driver to handle the extra power, and developed two new sets of custom filters to extract the utmost in brute force and spaciousness. Finally, we imbued S/510 with the ability to be stacked in 4- or 6-unit line arrays, just like our reference models.

S/510’S BASS ENGINE

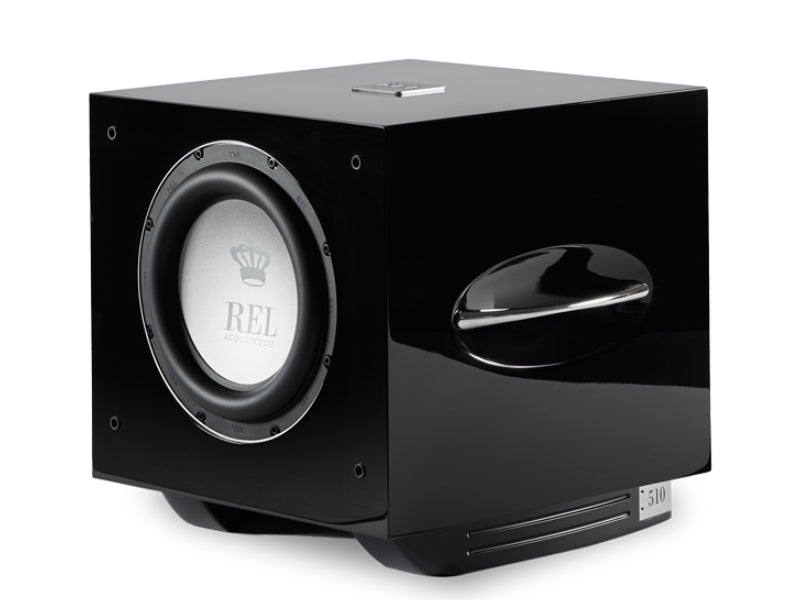

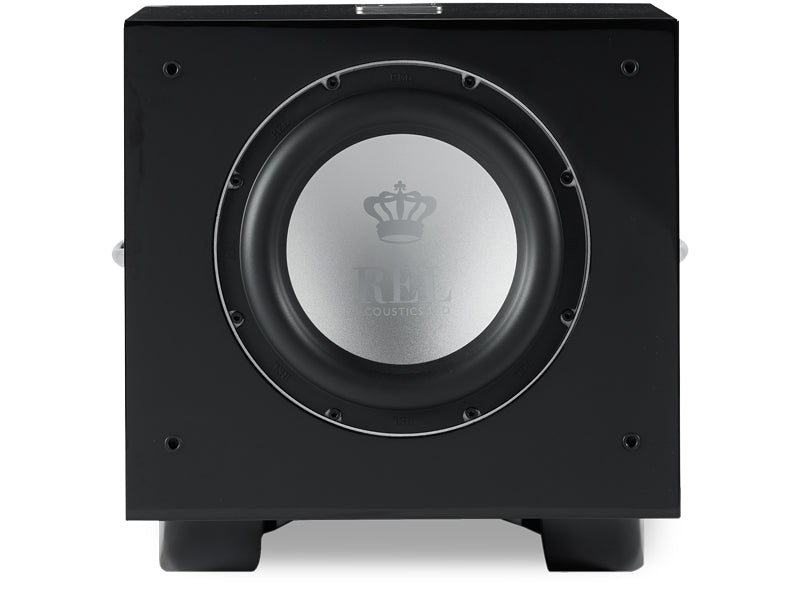

S 510 required upgrades to its ContinuousCast™ Alloy Cone to allow it to survive its massive power upgrades. To permit its thin, aluminum cone to survive 500 watts and incredibly long stroke, we added an ultra-lightweight backing of pure carbon fibre strategically placed over portions of the rear surface of the cone. This produces two benefits; it strengthens and stiffens the cone and also eliminates reversion, wherein the backwave inside the cabinet is now prevented from interfering with the main launch of bass into the room. The result is more accurate and far louder deep bass.

SUPERPROGRESSIVE™ PASSIVE RADIATOR

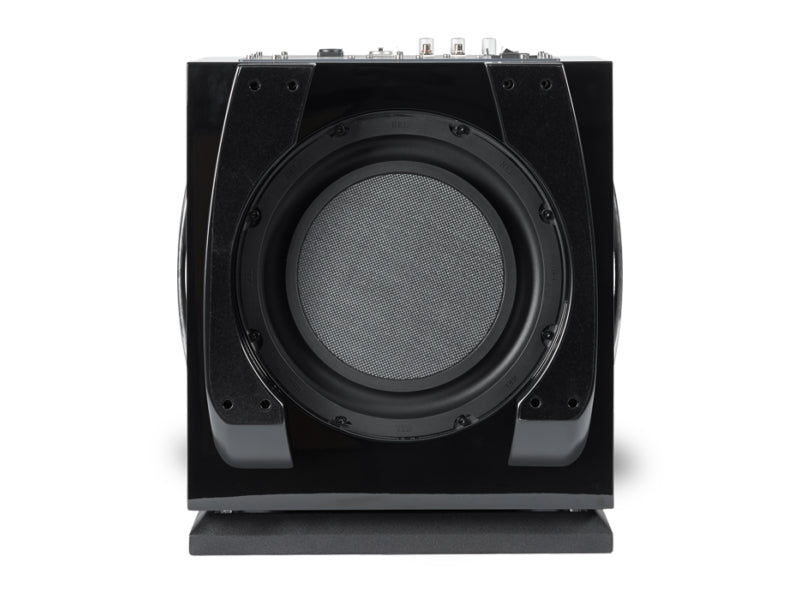

Our uniquely tuned passive radiators use special suspensions, now with an additional 8mm of linear travel, to produce performance unlike conventional subwoofers. Our new SuperProgressive™ passive radiator produces extremely long travel allowing for very loud output while retaining the variable stiffness of its suspension. This allows it to act like a sealed box compact 12” design at low volumes and a high output 14” design at its limit.

NEXTGEN3 AMPLIFIER

At 500 watts the NextGen3 amplifier is borrowed from our former flagship model and produces huge reservoirs of power and current. The 20%+ increase in power (previous version was 400 watts) is needed to deliver the high output levels needed for modern theatre, as well as to produce the extremely deep bass in a high end 2-channel system. This increase in power is necessitated by our development on the musical front of an all-new circuit termed PerfectFilter™ that balance both frequency extremes.

PerfectFilter performs two seemingly disparate qualities; extending the strong, even response of the extreme low end of bass frequencies while simultaneously opening up air and delicacy in the middle and high frequencies of one’s system. Additionally, we applied customized PureTheatre™ filters to allow S/510 to keep up with modern theatre effects without breaking a sweat.

SERIE S LINE ARRAYS

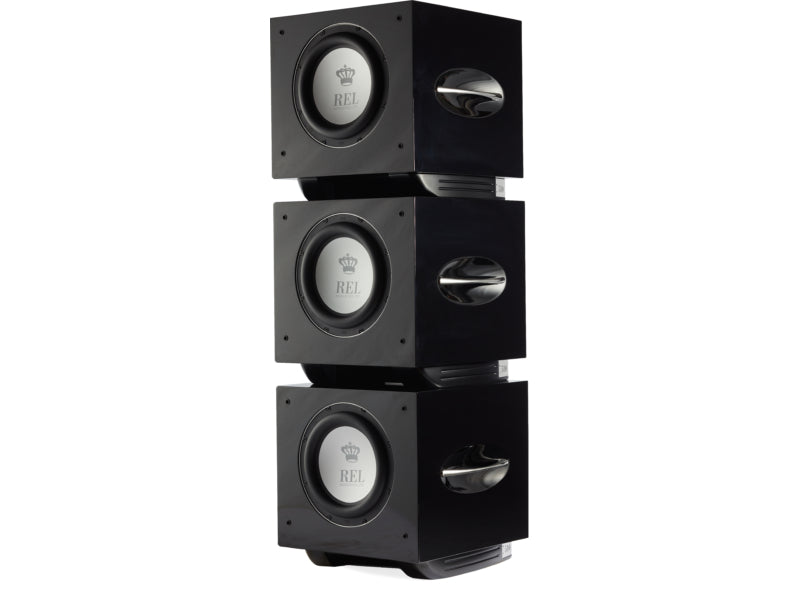

In the real world, bass occurs with width, depth and height. By stacking up to three units per side (stereo or theatre main L-R speakers) the proper perspective and height of sonic events are illuminated. This elevates reproduction from conventional stereo or theatre to a floor to ceiling panoramic, full scale perspective of each sonic event. Reviewers are lining up to marvel at the transformation of music and film into the full-scale representation that REL Line Arrays uniquely deliver.

Specifications
TYPE
Front-firing active woofer, down-firing passive radiator

ACTIVE DRIVER SIZE & MATERIAL
10 in., 250mm long-throw, die cast aluminium chassis

PASSIVE RADIATOR SIZE & MATERIAL
12 in., 300mm

LOW FREQUENCY EXTENTION
-6 dB at 20hz

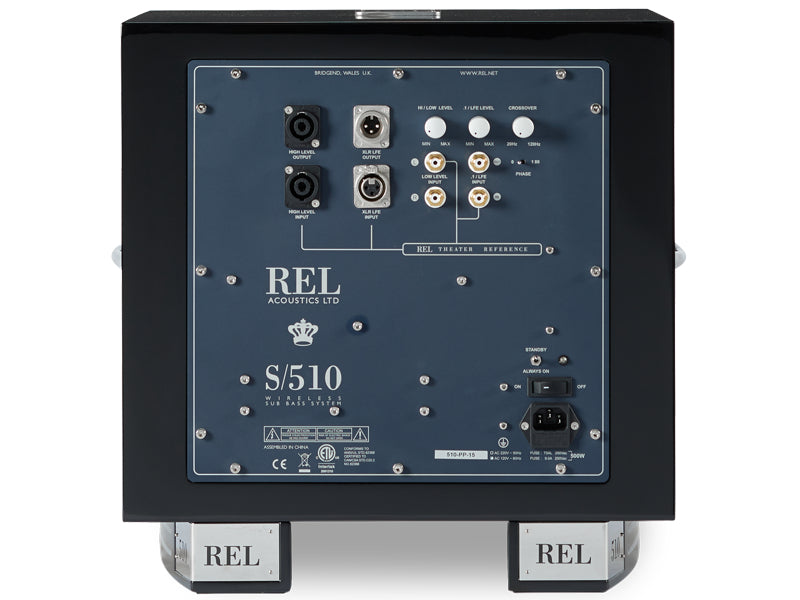

INPUT CONNECTORS
High Level Neutrik Speakon, Low Level stereo RCA, LFE RCA, LFE XLR

OUTPUT CONNECTORS
Hi Level Neutrik Speakon, LFE RCA, LFE XLR

POWER OUTPUT
500 watts (RMS)

AMPLIFIER TYPE
NextGen3 Class D

WIRELESS CAPABILITY
Yes- REL AirShip system [required]. Sold separately.

Protection System
FULLY ELECTRONIC SET SAFE
Yes

D.C. FAULT
Yes

OUTPUT SHORT
Yes

MAINS INPUT VOLTAGE
220-240 volts, 110-120 volts for certain markets

FUSES
5 Amp semi delay 220 volts operation 9 Amp semi delay 120 volts operation

Dimensions
W X H X D
15.7 x 16 x 18.25 in., (400 x 410 x 464 mm) Add 1.75in (44.5mm) in depth when using Hi Level connector

NET WEIGHT
70 lbs. (31.7 kg)

FINISH

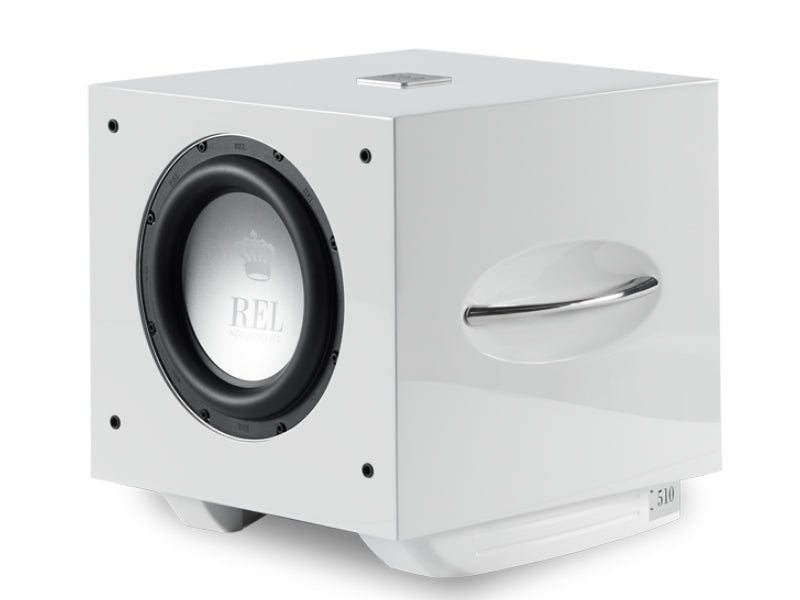

Piano Black Lacquer, White Lacquer, 10 coats

Supplied Accessories
MAINS LEAD
Yes

NEUTRIK SPEAKON
Yes

INTERCONNECT
USERS MANUAL
Yes

In the interest of product development, REL Acoustics Limited reserve the right to vary these specifications without notice.
