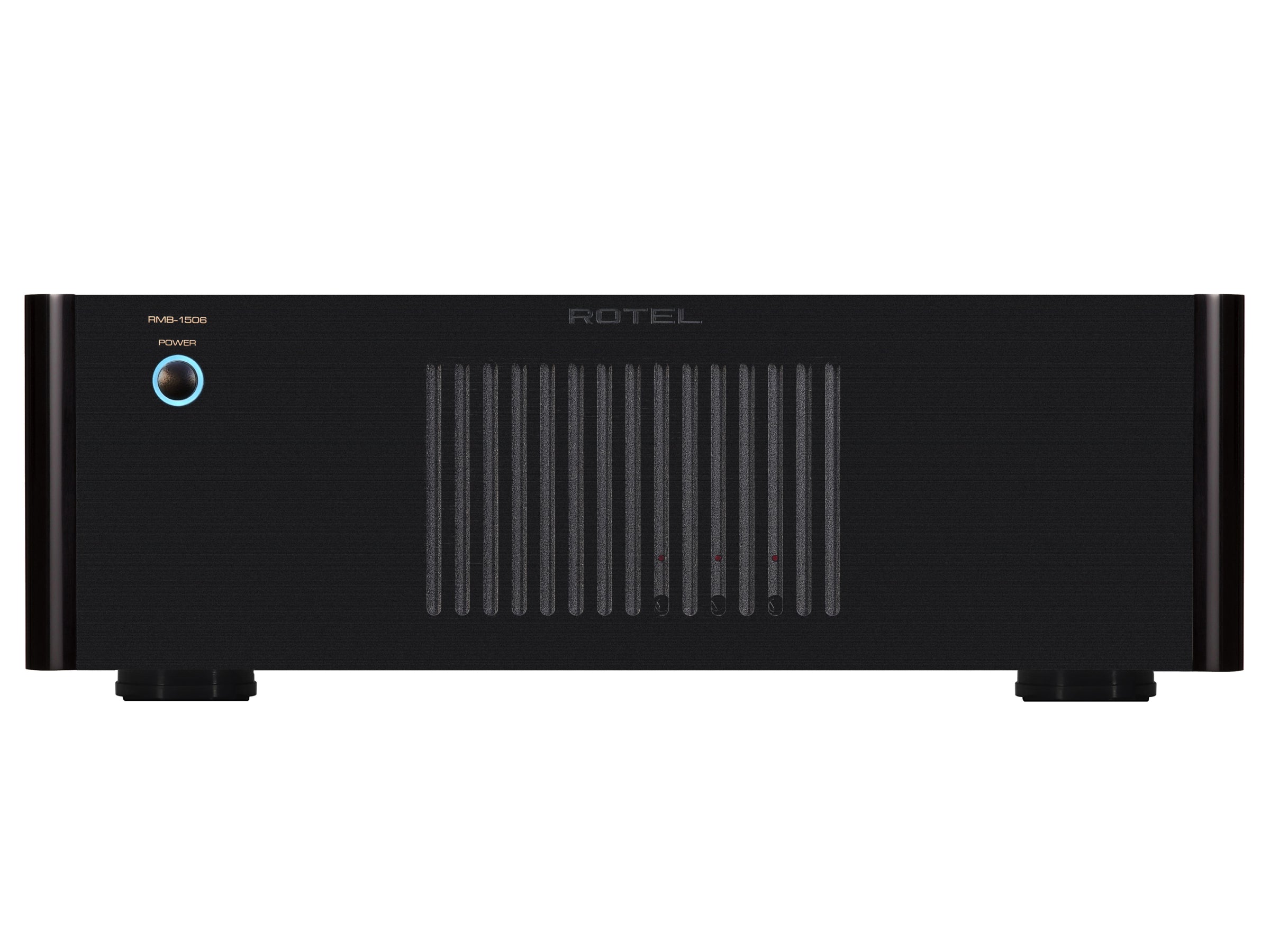

Rotel RMB-1506 Distribution Amplifier

£1,199.00

Tax included Shipping calculated at checkout.

Finish

Product variants

The Rotel RMB-1506 Distribution Amplifier Feature 6 x 50 watts per channel. The RMB-1506 is a rugged, sophisticated, multichannel amplifier for those with a limited number of zones to fill with music.

The RMB-1506 is perfect for multizone audio systems and can be mated with any surround receiver or preamp/processors to add music throughout three additional living areas or “zones” of your home. A buffered link output allows you to link additional amplifiers for larger multizone applications.

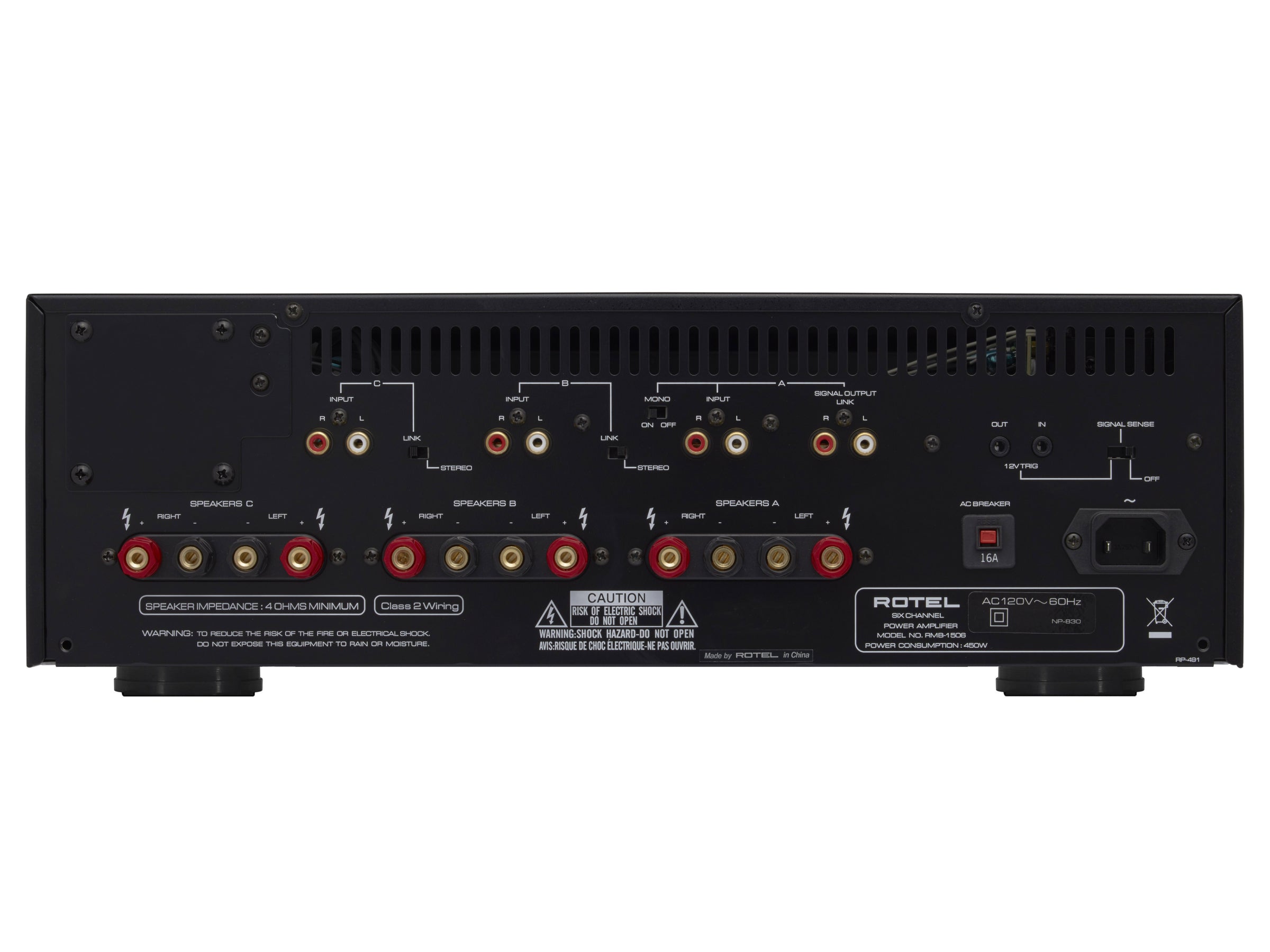

As with all Rotel custom amplifiers it includes the most wanted custom installation features such as front panel attenuation control, input linking, 12-volt trigger, buffered link output, five-way binding posts and an IEC detachable power cord.

Specifications

Dimensions: (W × H × D)	431 × 144 × 424mm 17" × 5.7" × 16.7
Front Panel Height:	3U / 132.6mm (5.25")
Power Requirements:	230V, 50Hz
Power Consumption:	450W
Standby Power Consumption:	2.6W
Net Weight:	15.3kg (34lbs.)
BTU Rating: (4Ω, 1/8th power)	1680 BTU/h
Continuous Power Output:	50W/Ch (All channels driven, 8Ω)80W/Ch (All channels driven, 4Ω)
Total Harmonic Distortion: (THD)	(20Hz–20kHz) <0.03%
Frequency Response:	10Hz - 100kHz ±1dB
S/N Ratio: (IHF "A" Weighted)	115dB
Gain:	26dB
Intermodulation Distortion: (60Hz:7kHz, 4:1)	<0.03%
Damping Factor:	>200
Speaker Impedance:	4Ω minimum
Input Sensitivity:	1V
Input Impedance:	20kΩ
