Technics SU-GX70 Network Amplifier


Sale price£1,449.00 Regular price£1,699.00

Tax included. Stock information

4 in stock
Finish:

Finish

Pickup also available at Doug Brady HiFi

Usually ready in 1 hour

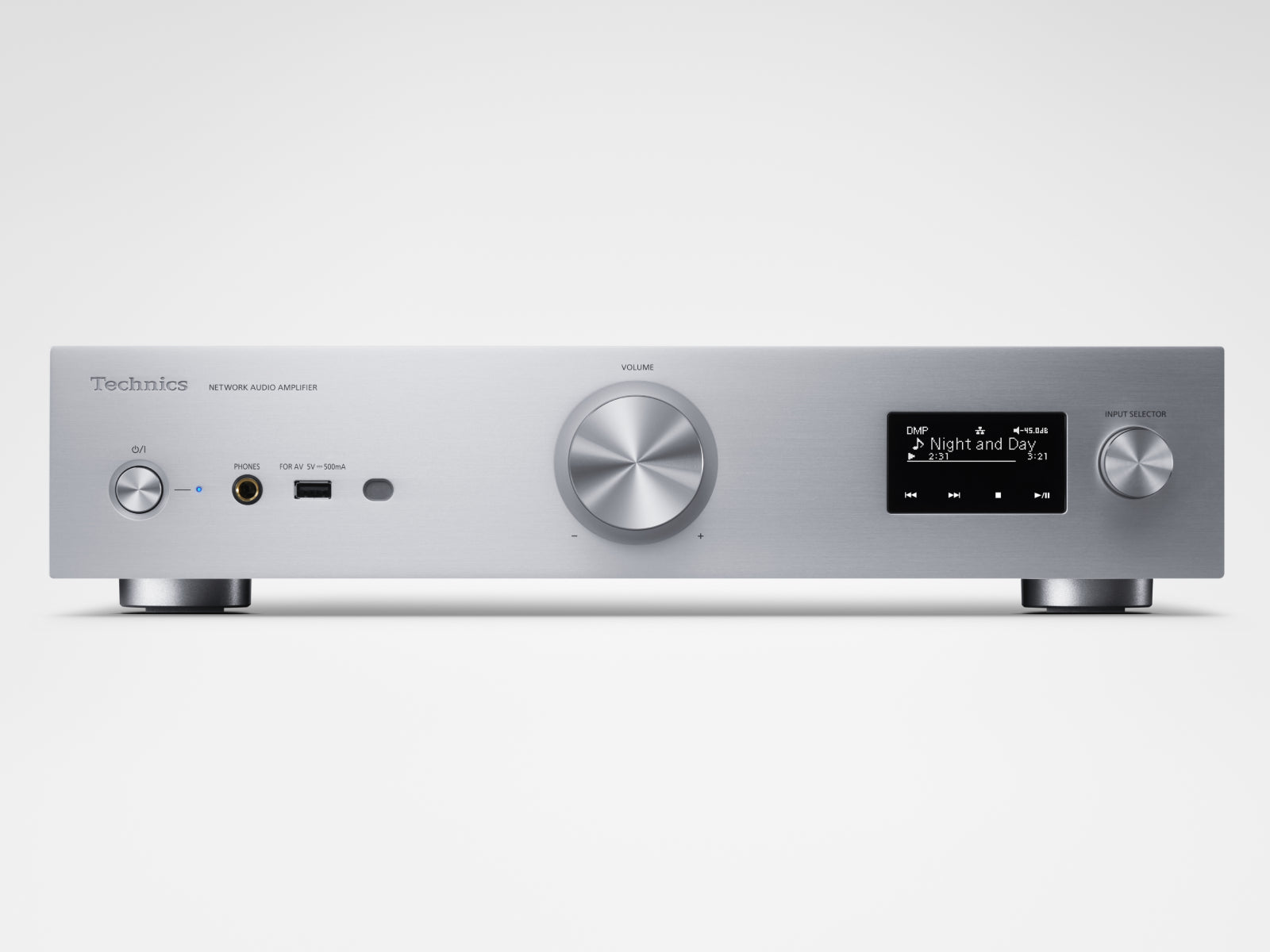

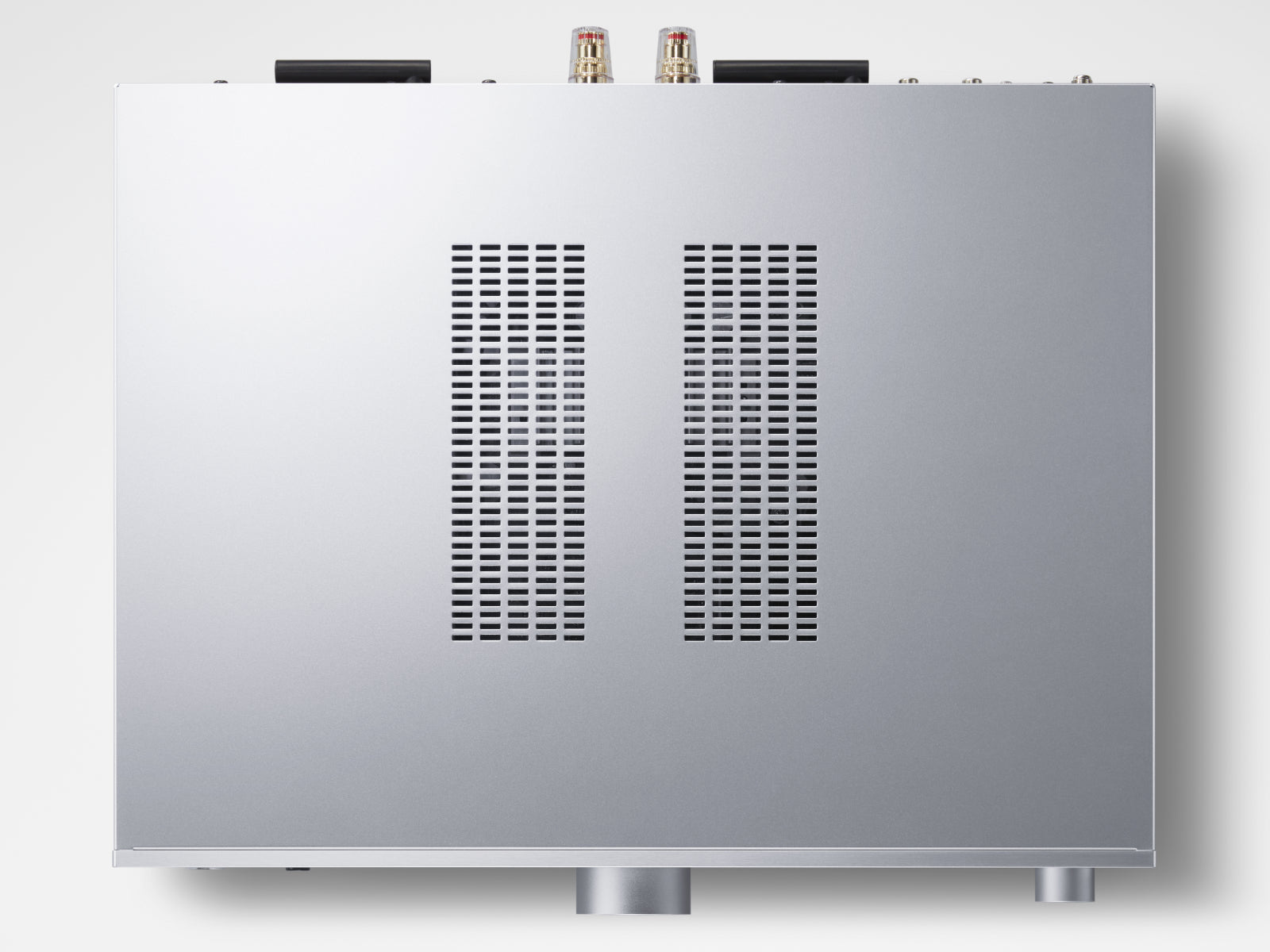

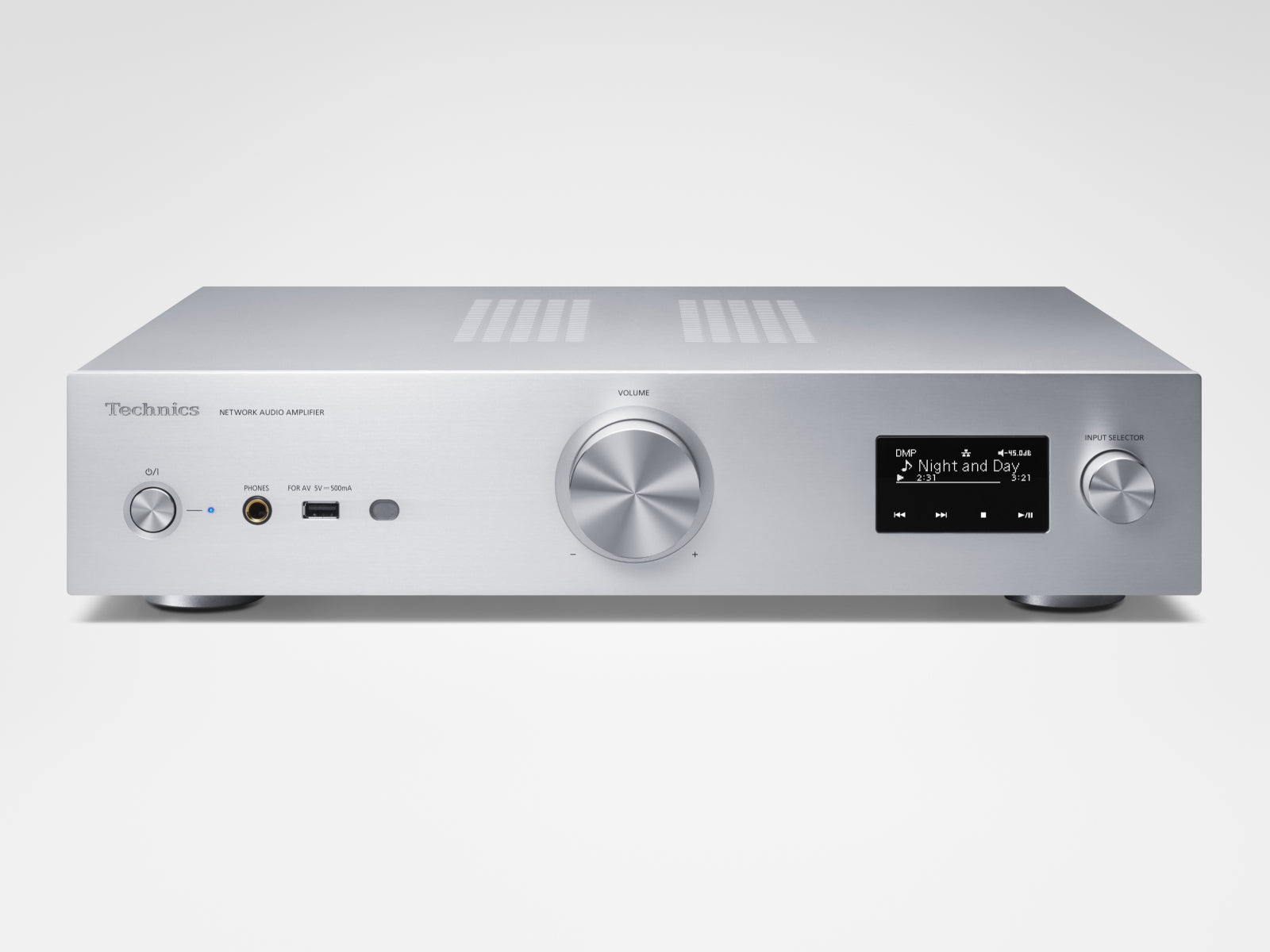

Technics SU-GX70 Network Amplifier

Technics SU-GX70 Network Amplifier

Black

Doug Brady HiFi

Pickup also available, usually ready in 1 hour

Kingsway Studios
Kingsway North
Warrington WA1 3NU
United Kingdom

+441925828009

The new Technics SU-GX70 Network Amplifier Inherits the reference-class audio technology concept Technics employed in the reference SU-R1000 amplifier, the JENO Engine (Jitter Elimination and Noise-shaping Optimization) transmits and processes audio signals in full digital and with minimal jitter from the input stage to the power stage for highest signal purity.

Supreme Audio Performance

Designed to deliver reliably crisp, clear, and sparkling audio, the new Twin Power Supply means the SU-GX70 delivers a high signal-to-noise ratio for superbly detailed sound, while the Clean Power Clock Generator technology taken from Technics’ Reference Class components enables high-precision digital signal processing for supreme audio accuracy.

Streaming Services

For a truly flexible music listening experience, the SU-GX70 is designed around the Chromecast platform for Spotify, TIDAL, Deezer, Qobuz, and Amazon Music HD integration, with support for MQA hi-res audio streaming services built in. It will also be Roon ready (via OTA update) in the near future.

Wireless Connectivity

Wi-Fi, AirPlay 2, Chromecast and Bluetooth connectivity allow for seamless wireless network communication, while FM, DAB+, and Internet radio support means you can tune into your favourite shows, hassle-free.

Wired connectivity

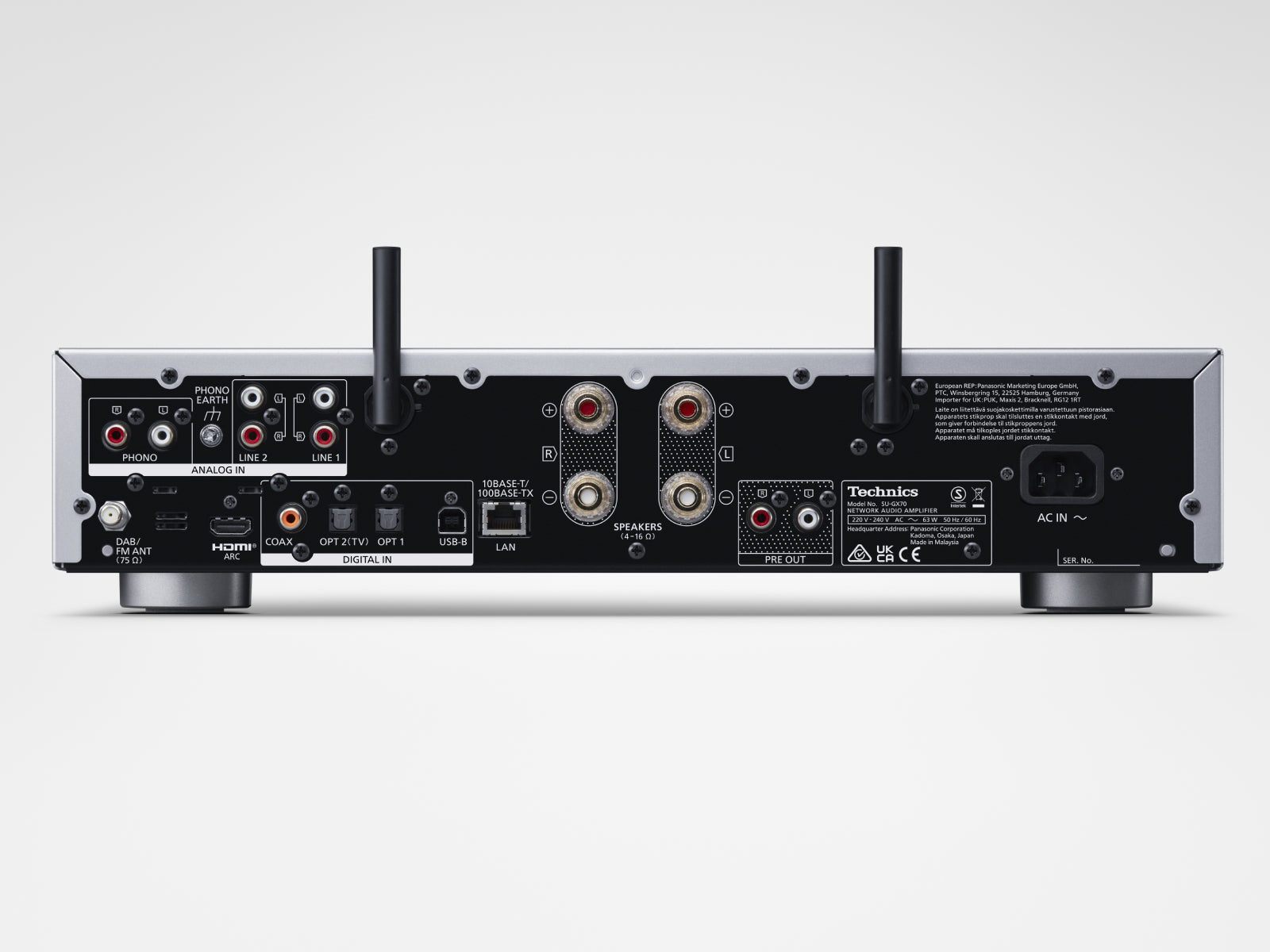

Physical connectivity options include two line inputs, three digital inputs, USB-A, USB-B and HDMI (ARC).  And – as to be expected from a company at the forefront of turntable
performance – a high-grade low-noise phono EQ allows you to hook up a record player
with a moving magnet pickup cartridge for a sublime audiophile performance with all
the authentic warmth of vinyl.

Built to look beautiful in any home, the SU-GX70 comes in an elegant, minimalist design in both silver and black finishes.

Specifications

SU-GX70 Specs
        European model
  Output Power   40W+40W(1kHz,T.H.D.1.0%,8Ω,20kHz LPF)
80W+80W(1kHz,T.H.D.1.0%,4Ω,20kHz LPF)
  FTC Output Power

  Load Impedance   4Ω-16Ω

  Frequency Response
    PHONO (MM)   20Hz - 20kHz ( RIAA DEVIATION ±1dB, 4Ω )
    LINE   20Hz - 40kHz ( -3dB, 4Ω )
    DIGITAL   20Hz - 80kHz ( -3dB, 4Ω )

  Input Sensitivity / Input Impedance
    PHONO (MM)   2.0 mV / 47 kΩ
    LINE   200 mV / 23 kΩ

  Analogue Input Terminal   LINE x 2
PHONO (MM) x1

  Digital Input Terminal   Optical digital x2
Coaxial digital x1
USB-A x1
USB-B x1

  Analogue Output Terminal   PRE OUT x1

  Digital Output Terminal   HDMI ARC

  Headphone Output   Yes, Stereo Φ6.3 mm

  Disc Compatibility

  USB-A   USB 2.0 High-speed
USB Mass Storage class
    iPod/iPhone/iPad   No
    Support Codec WAV Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
      FLAC Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
      DSD Yes (2.8 MHz, 5.6 MHz, 11.2 MHz)
      AIFF Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
      ALAC Yes(32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
      AAC Yes (32, 44.1, 48, 88.2, 96 kHz/16-320kbps)
      MP3 Yes (32, 44.1, 48 kHz / 16-320 kbps)

  PC(USB-B)   USB 2.0 High-speed
USB Audio Class 2.0, Asynchronous mode
    Support Codec LPCM Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 352.8, 384 kHz / 16, 24, 32 bit)
      DSD Yes (2.8 MHz, 5.6 MHz, 11.2 MHz)
    DSD contol mode   ASIO Native mode, DoP mode

  MQA Decorder     Yes

  LAN(DMR)
      WAV Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
      FLAC Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
      DSD Yes (2.8 MHz, 5.6 MHz, 11.2 MHz)
      AIFF Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
      ALAC Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
      AAC Yes (32, 44.1, 48, 88.2, 96 kHz/16-320kbps)
      MP3 Yes (32, 44.1, 48 kHz / 16-320 kbps)

  Ethernet Interface   LAN (100BASE-TX/10BASE-T)

  Wi-Fi     IEEE 802.11a/b/g/n/ac/ax
2.4 GHz band / 5 GHz band

  Chromecast built-in   Yes

  AirPlay 2   Yes

  Bluetooth® (Support codec)   Yes (AAC, SBC)

  Tuner     DAB/DAB+/FM

  Power Supply   AC 220 V - 240 V,50/60 Hz

  Power Consumption   63W

  Dimensions (W x H x D)   430 mm × 98 mm × 368 mm

  Weight   Approx. 6.6 kg

  Accessories   AC Cord, DAB Indoor Antena, Remote Control, Batteries for Remote Control, Owner's Manual
Technics SU-GX70 Network Amplifier
Technics SU-GX70 Network Amplifier Sale price£1,449.00 Regular price£1,699.00
