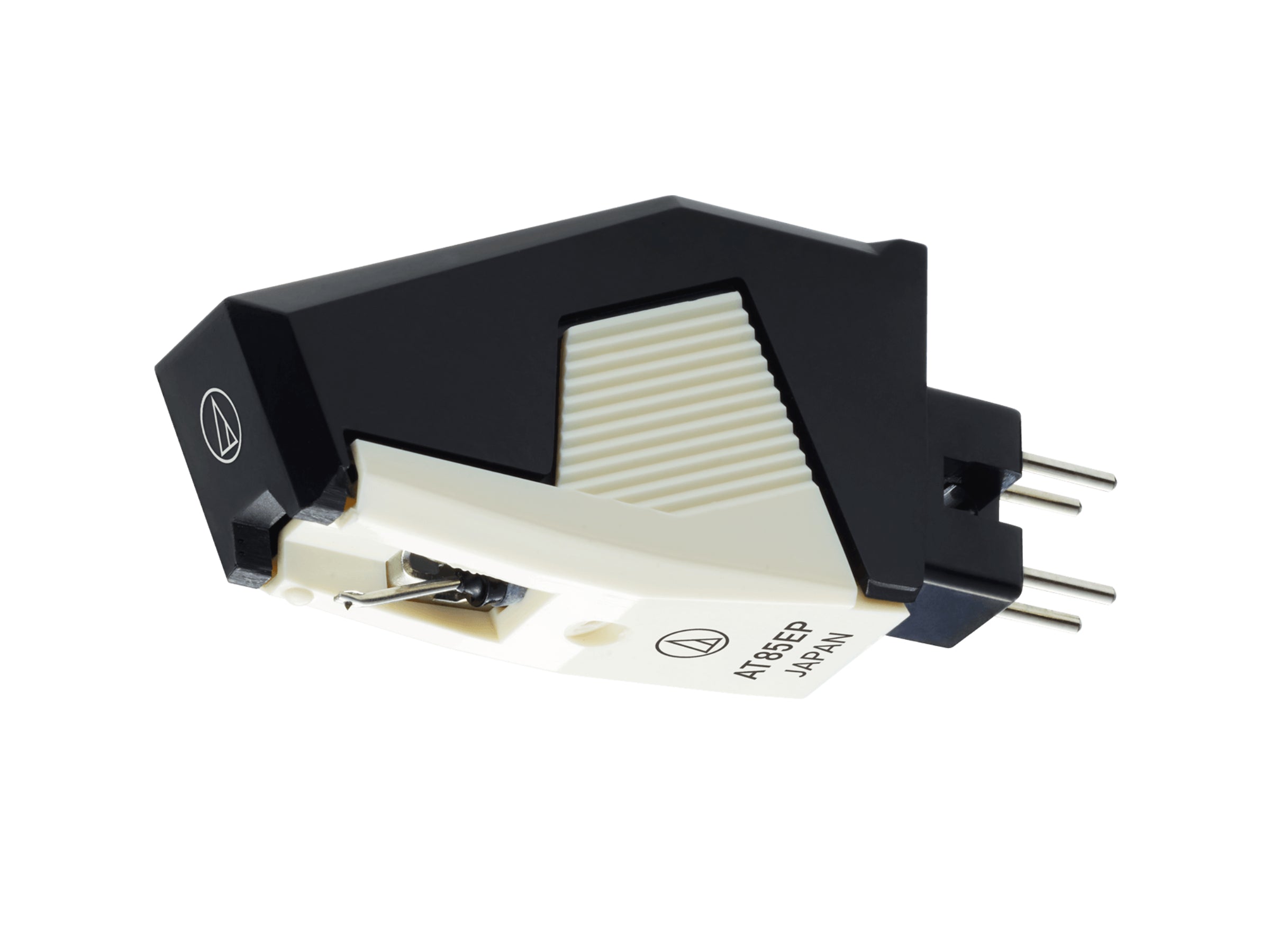

Audio Technica AT85EP P-mount Moving Magnet Cartridge
Designed specifically for the linear format, the AT85EP features Audio-Technica’s unique dual moving magnet construction. The dual magnet system is combined with the para-toroidal coil construction to assure an excellent sonic clarity and wide channel separation.
Specifications
|
Frequency Response: |
20 - 20,000 Hz |
|---|---|
|
Channel Separation: |
20 dB at 1kHz |
|
Vertical Tracking Angle: |
20° |
|
Stylus Construction: |
Bonded Round Shank |
|
Recommended Load Impedance: |
47,000 ohms |
|
Coil Inductance: |
400mH (1 kHz) |
|
Output Voltage: |
3.5 mV (mV at 1 kHz, 5 cm/sec) |
|
Output Channel Balance: |
2.0 dB |
|
Stylus Shape: |
Elliptical |
|
Cantilever: |
Aluminium Pipe |
|
Mounting: |
P-mount |
|
Dimensions: |
H10.0×W15.3×D35.1 mm |
|
Recommended Load Capacitance: |
100-200 pF |
|
Replacement Stylus: |
ATN85EP |
|
Stylus Size: |
0.3 x 0.7 mil |
|
Type: |
Dual Magnet |
|
Weight: |
6.0g |
