TEAC

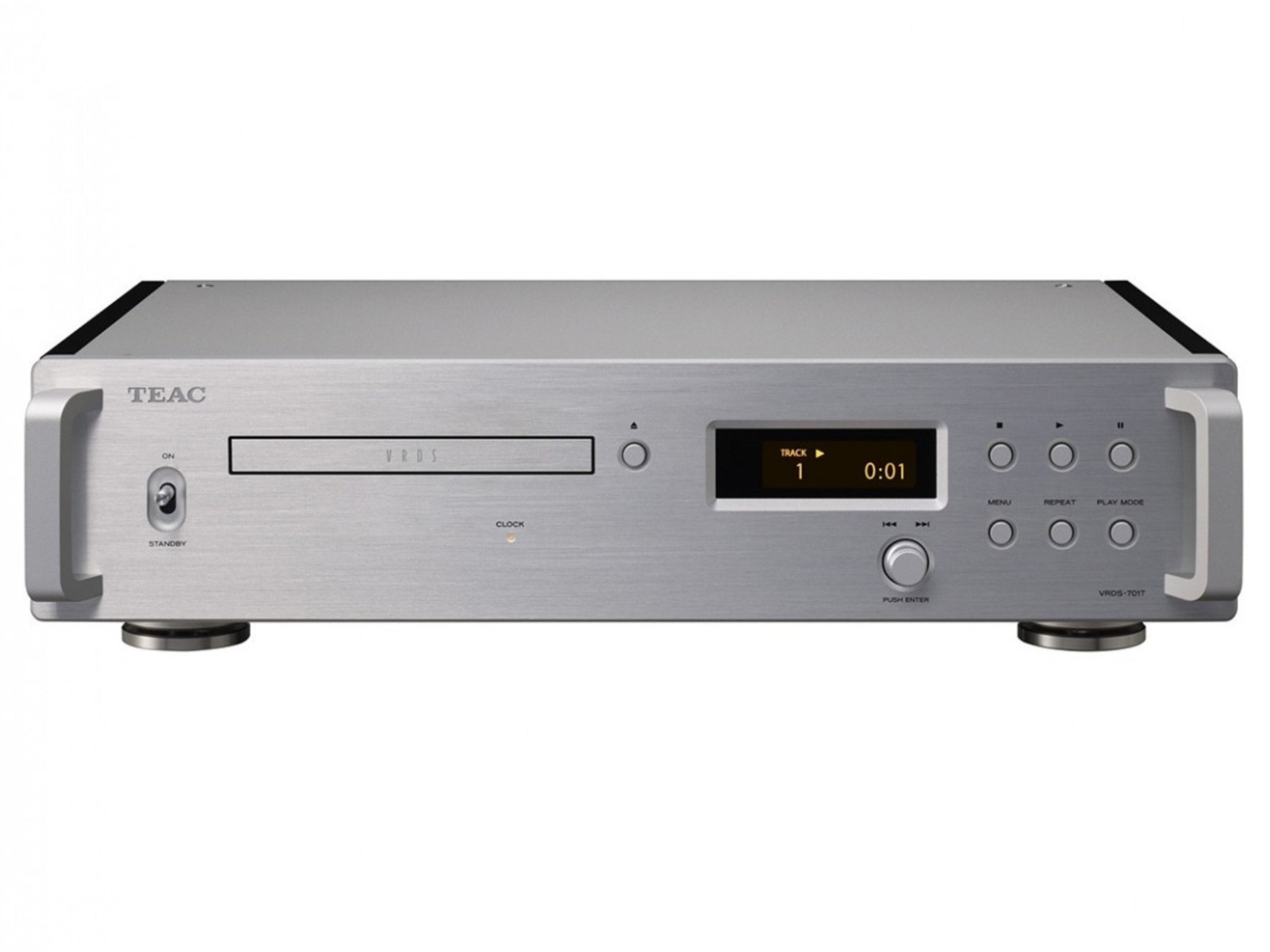

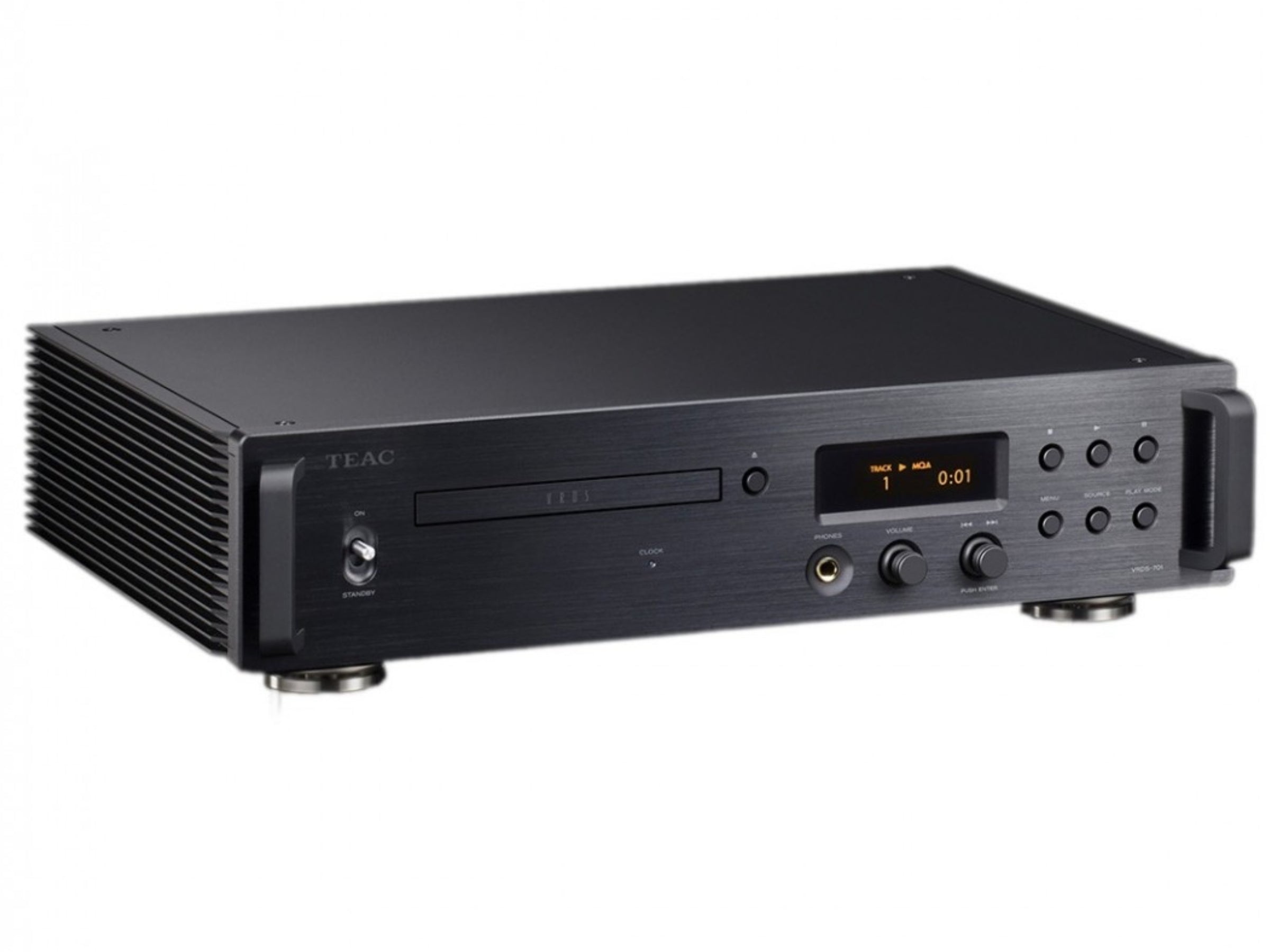

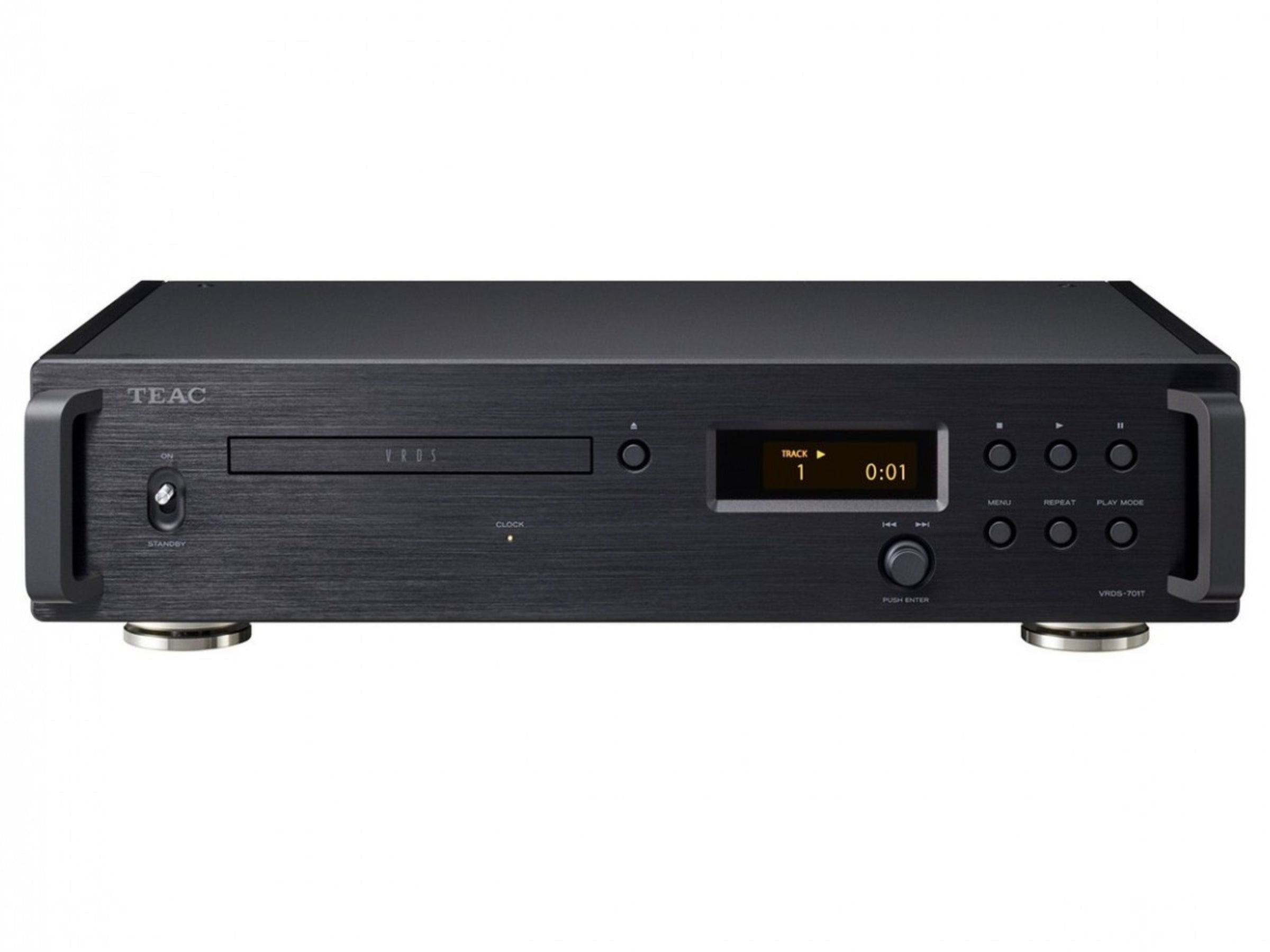

TEAC VRDS-701T CD Transport

£1,849.00 £1,999.00
Tax included Shipping calculated at checkout.

The TEAC VRDS-701T CD transport uses a vibration-reducing VRDS mechanism, semi-floating mount, and dedicated toroidal transformers for precise digital output. It supports MQA playback, 10 MHz clock sync, and pairs with any DAC for high-quality, natural audio.

The VRDS-701T is a commemorative CD transport model that celebrates TEAC’s 70th anniversary. Utilizing the newly-developed VRDS mechanism, it can maximize the true capabilities of a system when used in combination with a DAC.

Features

  • CD transport for use in combination with an external DAC that has a digital input
  • A newly-developed VRDS mechanism is used for the CD drive
  • MQA core decoding function
  • S/PDIF (optical/coaxial) digital outputs
  • 10MHz external clock input
  • Dedicated toroidal core transformers for the digital output and CD drive circuits

The VRDS-701T CD transport utilizes the newly-developed VRDS mechanism.
The VRDS is a TEAC-original CD drive mechanism that reduces rotation vibration and other unwanted vibration by clamping the CD to an aluminum turntable with the same diameter in order to maximize inertial mass.

Used in combination with a UD-701N, which is part of the same series, playback is possible
using the discrete DAC in the UD-701N as well as with MQA full decoding.
Of course, you can also use it together with a DAC of your choosing, and build a system as you like. The inclusion of a 10MHz clock input enables flexible integration
with systems that are synchronized using an external clock.

Newly-developed VRDS mechanism

Starting with a drive TEAC developed that has a long record of use in professional applications, they added VRDS technologies, which are part of TEAC's legacy.

VRDS-701T

Vibration-Free Rigid Disc-Clamping System (VRDS)

This TEAC-original CD drive mechanism reduces rotation vibration of the disc itself as well as unwanted mechanism vibration by clamping the CD to an aluminum turntable with the same diameter and maximizing inertial mass in order to stabilize rotation. Servo current is reduced with the turntable by correcting disc warping and distortion and improving the relative optical axis precision of the pickup and disc pit side. This realizes reduced disc reading errors and outstanding audio quality.
VRDS-701T

Bridge section supports the VRDS

For the bridge that supports the turntable, TEAC carefully selected lightweight materials that are very rigid and do not transmit vibration. By naturally settling vibrations quickly, TEAC have realized a wide, dynamic sound. The bridge, which has a torus structure made of resin, is only fixed on one side, and propagation of vibration from the CD mechanism to the opposite side through the bridge is suppressed, so the entire mechanism minimizes unwanted sympathetic vibrations.

Semi-floating mounting

The entire CD mechanism is mounted on the sub-chassis in a semi-floating state. By controlling the transmission of vibrations between the CD mechanism and the chassis, the impact of sympathetic vibrations is abated, and natural playback sound is realized throughout the frequency range. By isolating motor vibrations from the main chassis, sympathetic vibrations within the chassis are prevented. At the same time, the CD mechanism is also isolated from external vibrations. Reading precision is also increased by isolating the CD mechanism from external vibrations.

Enhanced digital output

By eliminating the DAC function, the internal circuitry has been optimized for digital output. TEAC have pursued higher audio quality by, for example, using larger components that did not fit in more limited space.

VRDS-701T

MQA CDs can be played back using the built-in MQA core decoder

The VRDS-701T has a built-in MQA core decoder and can digitally output MQA CDs at 88.2 kHz . Moreover, when used together with a DAC that has an MQA rendering function, playback using MQA full decoding is also possible.
VRDS-701T
VRDS-701T

10MHz external clock input

The 10MHz clock input allows synchronization with an external clock. In addition to improving audio quality during playback with the VRDS-701T, this also enables synchronization of the entire system with a clock generator.
VRDS-701T
VRDS-701T

Power supply enhanced using 2 high-capacity toroidal core transformers

Independent high-capacity toroidal core transformers are dedicated to the digital control section and the CD mechanism. These 2 high-capacity toroidal core transformers enable current to be supplied with greater stability.

Thorough design for vibration control

Power transformers, which tend to generate vibration, are mounted on a floating structure, separating and isolating them from the bottom panel. The side fins for heat dissipation have been tailored so that each one has a different length in order to eliminate sympathetic vibrations.

Three supporting pinpoint feet made of machined steel with a unique structure

The circuit board attachment screws have been kept to a minimum. Furthermore, steel pinpoint feet that use an original TEAC design with a new structure to provide a suitable amount of play in the connection between them and the bottom panel, are employed to thoroughly control vibrations that could affect audio quality.

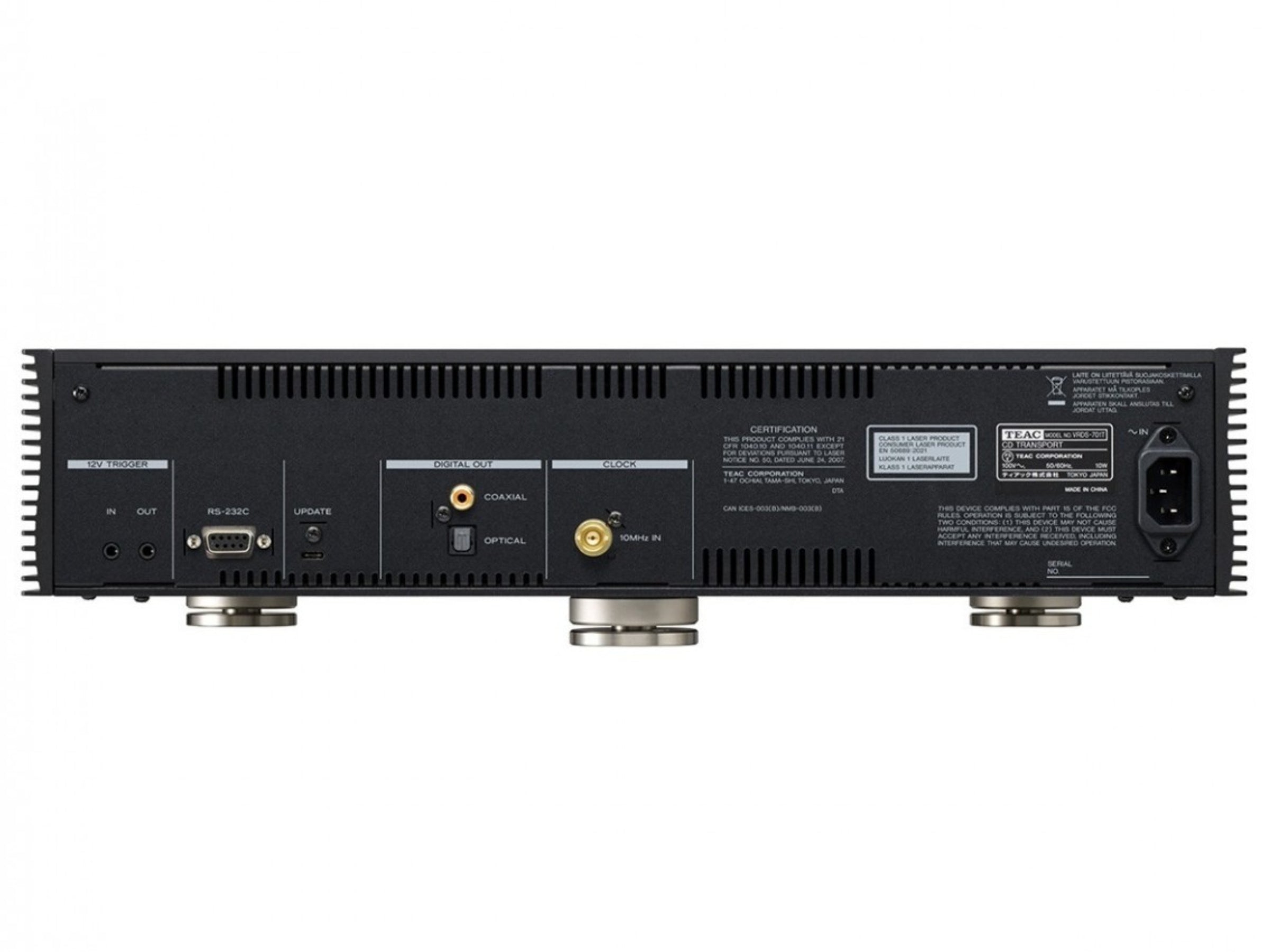

Control connectors enable coordinated use with other devices

RS-232C is present for integration with popular control systems, and trigger input and output connectors enable power coordination with other devices.

Specifications

CD section: Supported media: Audio CD, CD (CD-R/CD-RW). 8 cm CDs not supported.
Digital audio outputs – Coaxial: Connector: RCA × 1Output level: 0.5 Vp-pOutput impedance: 75 Ω
Digital audio outputs – Optical: Connector: TOS (JEITA RC5720C) × 1
Clock sync input: Connector: BNC × 1Input frequency: 10 MHzInput impedance: 50 Ω
Input level: Rectangle wave: Equivalent to TTL levelSine wave: 0.5 to 1.0 Vrms
External control – Trigger in (12 V trigger in): Connector: 3.5 mm mono mini jack × 1Input level: 12 V, 1 mA
External control – Trigger out (12 V trigger thru): Connector: 3.5 mm mono mini jack × 1Output level: 12 VMaximum current supply: 100 mA
Power: AC 120 V, 60 Hz / AC 220–240 V, 50/60 Hz
Power consumption: 10 W
Standby power: 0.4 W
Overall dimensions: 444 (W) × 111 (H) × 333 (D) mm (including protrusions)
Weight: 10.1 kg
Operating temperature: +5 ℃ to +35 ℃
Operating humidity: 5% to 85% (no condensation)
Storage temperature range: −20 ℃ to +55 ℃
Included accessories: AC cord, Remote control (RC-1338), Foot pads × 3, Owner’s manual
