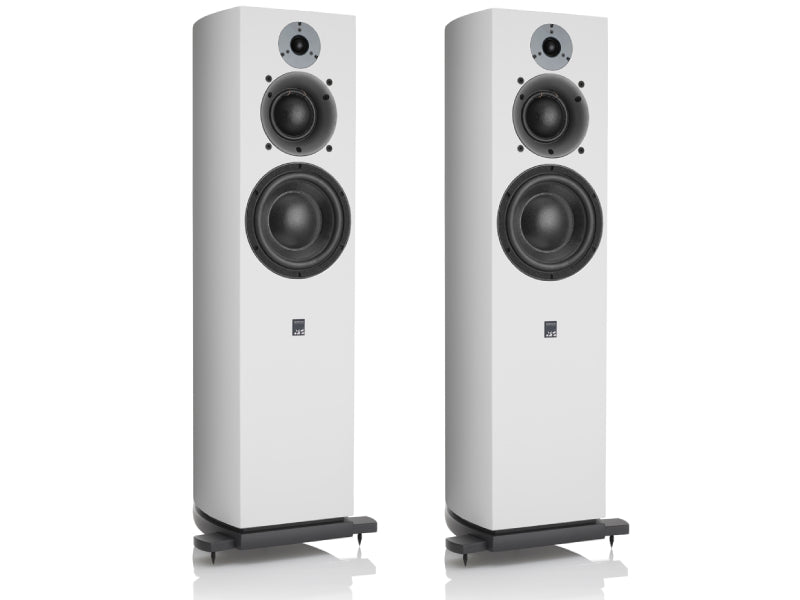

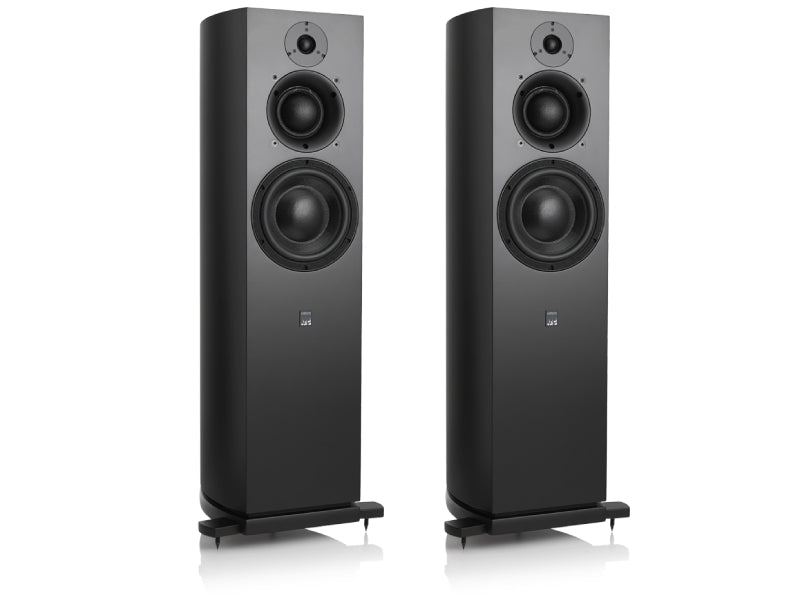

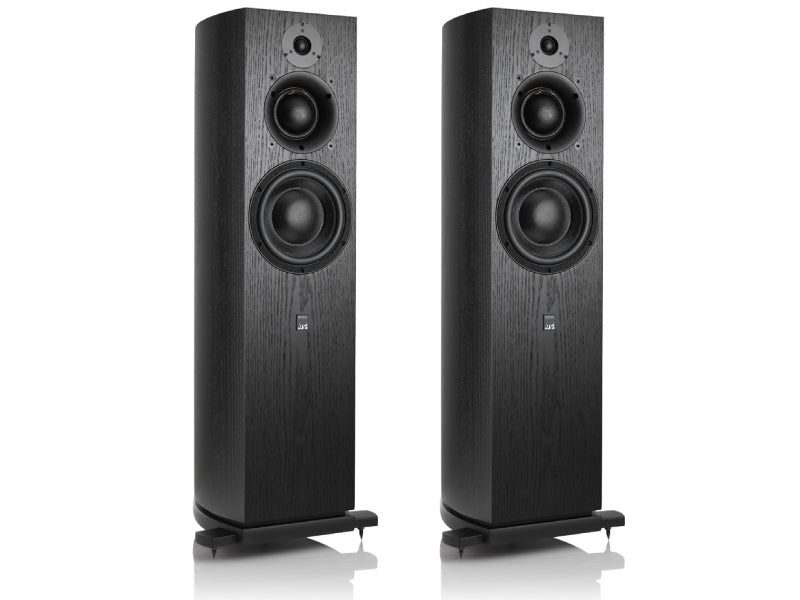

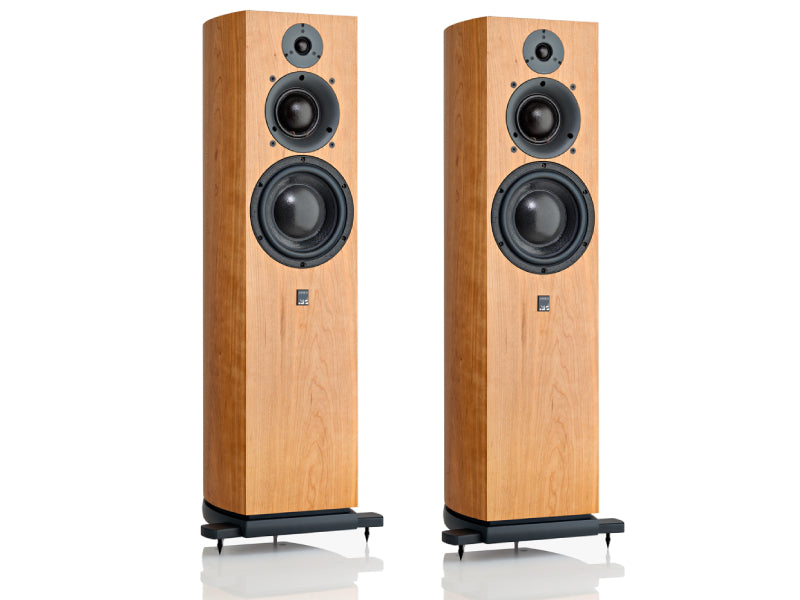

ATC SCM40 Floorstanding Loudspeakers (PSL)
ATC, Acoustic Transducer Company, is a specialist British manufacturer of loudspeaker drive units and complete sound reproduction systems, including the relevant electronic equipment. ATC designs and manufactures loudspeaker drive units and systems to achieve levels of performance far in excess of the industry norm. This is achieved by adopting a thoroughly professional engineering approach to the issue of basic design, materials science and production technology.
Features

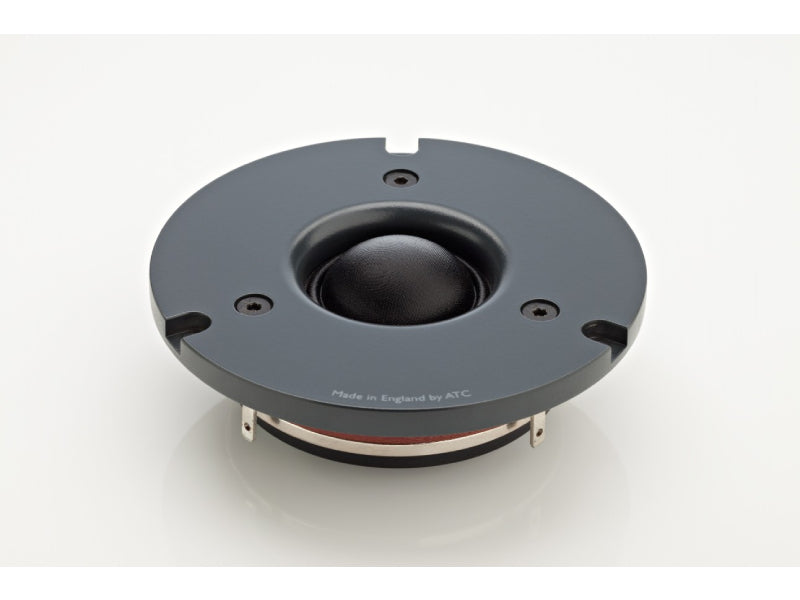

- New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide

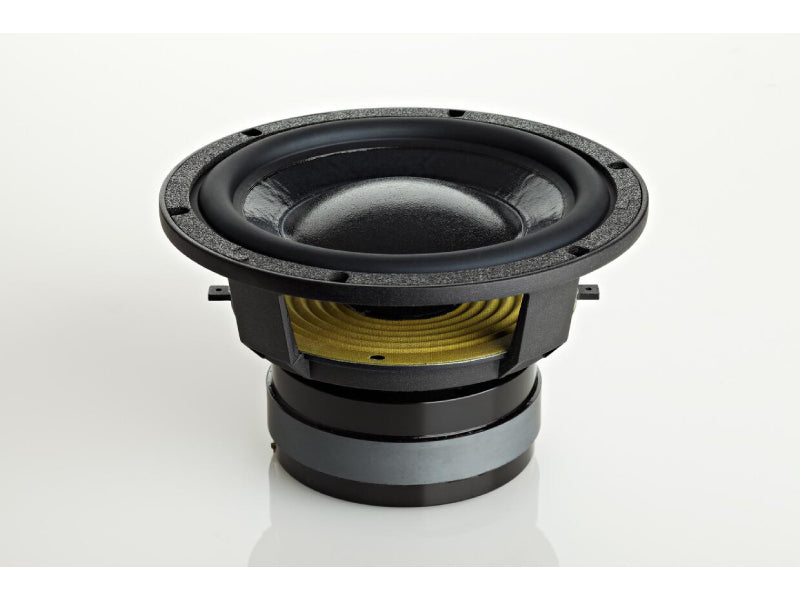

- ATC 164mm bass driver
- Massive optimised motor assembly

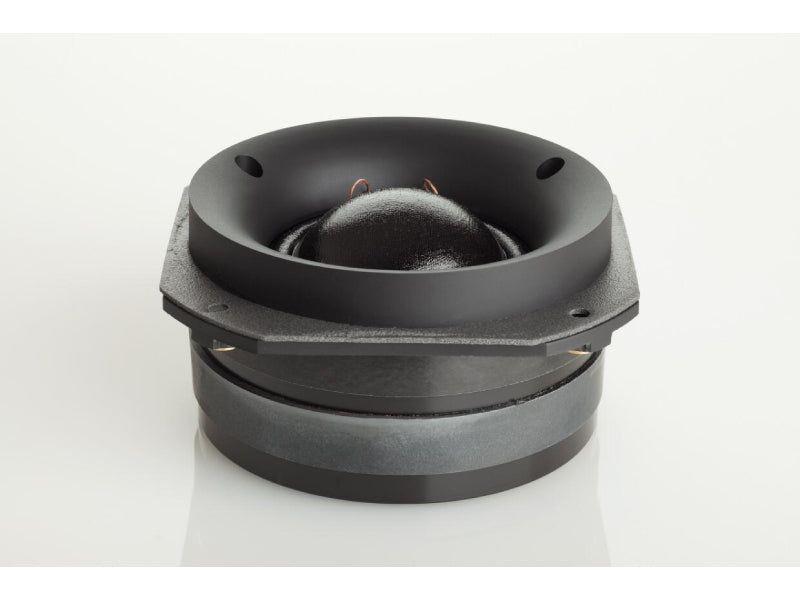

- ATC Soft Dome mid-range driver
- Flat impedance curve allowing easy load for amplifiers
- 6 year warranty
The ATC SCM40 passive Loudspeakers the largest most powerful speakers in their entry range of speakers. Typically, amplifiers with power outputs of 75W+ (continuous output) will give the best results with these speakers.
(The SCM40 are also available as a Active Loudspeaker the SCM40ASL)
Specifications
| Drivers: | HF ATC 25mm Neodymium, Mid 75mm ATC Soft Dome, LF ATC 164mm SC |
| Matched Response: | ±0.5dB |
| Frequency Response (-6dB): | 48Hz-22kHz |
| Dispersion: | ±80° Coherent Horizontal, ±10° Coherent Vertical |
| Sensitivity: | 85dB @ 1W @ 1 metre |
| Max SPL: | 112dB |
| Recommended Power Amplifier: | 75 to 300 Watts |
| Nominal Impedance: | 8 Ohm |
| Crossover Frequencies: | 380Hz & 3.5kHz |
| Connectors: | Binding Posts/4mm Plugs, tri-wire |
| Dimensions (HxWxD): | 980 x 370 x 305mm (inc. foot plinth, spikes add 25mm to height, grill adds 34mm to depth) |
| Weight: | 31kg |
