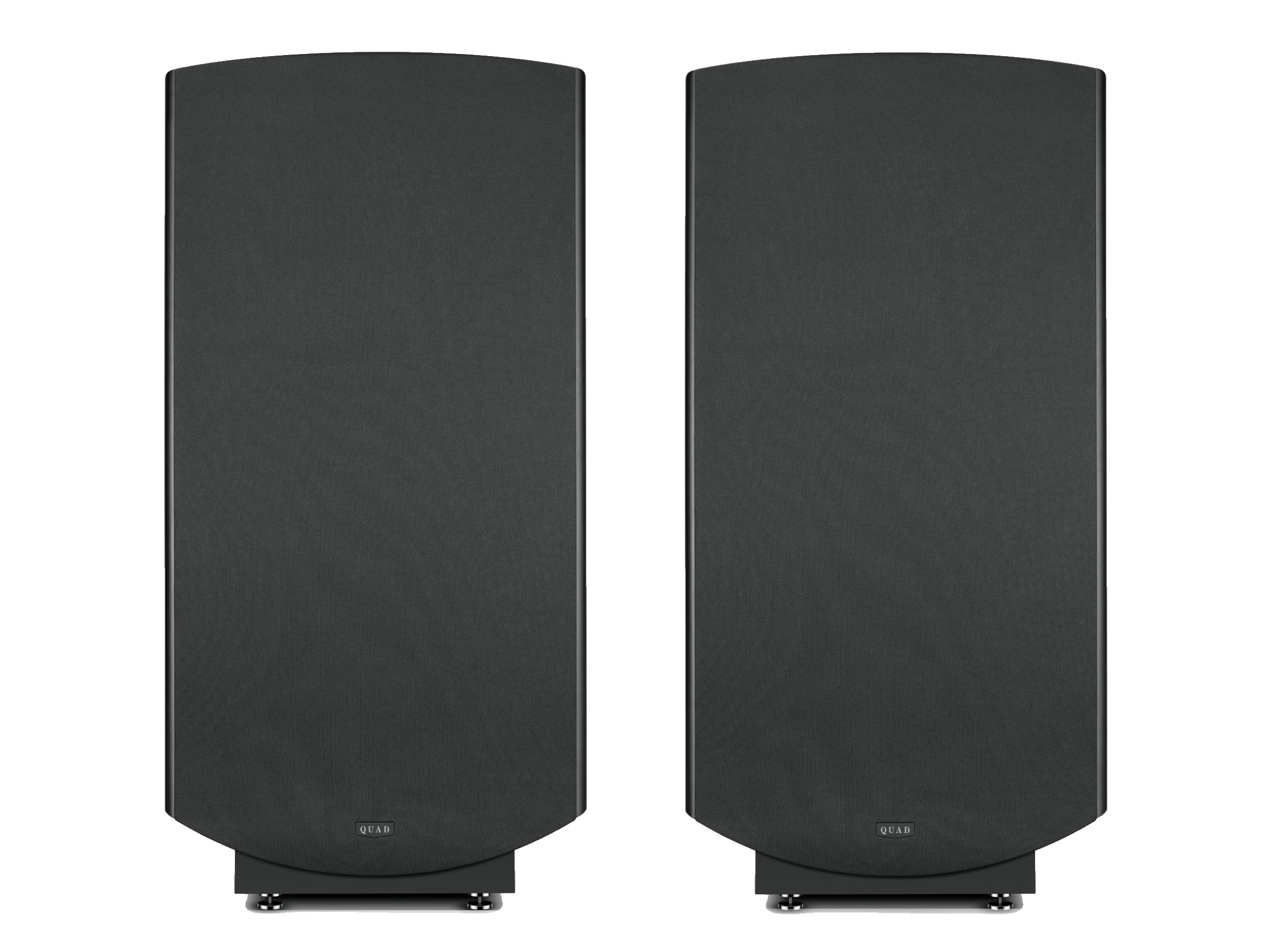

Quad ESL 2912X Electrostatic Speakers

This latest evolution of the QUAD ESL represents a meticulous re-evaluation of every aspect involved in the loudspeaker’s construction. Every process, technique, material, tool, and jig used in assembling a QUAD electrostatic speaker has undergone rigorous scrutiny, all with the goal of elevating precision and quality. By applying advanced laser-precision metrology, QUAD engineers conducted a thorough reassessment of the ESL’s foundational design. Systematic improvements were introduced in key areas such as spraying, etching, diaphragm tensioning, and assembly, culminating in notable performance enhancements. These refinements extended to both passive and active components, reinforcing the overall integrity of the ESL 2912 and 2812 models.

The Emergence of the ESL X

As a result of this extensive, time-intensive internal audit, the QUAD engineering team concluded that the improvements warranted more than just an update—they merited a new model designation. While innovation in electrostatic loudspeaker design typically builds upon incremental advancements rather than revolutionary change, the cumulative effect of these upgrades marked a significant leap. Thus, the ESL 2912 and 2812 have now been transformed into the ESL X, a new chapter in QUAD’s storied ESL legacy. This model embodies a refined approach, maintaining the essential characteristics of its predecessors while offering superior performance across all parameters.

A Legacy of Clarity and Innovation

The ESL X continues a lineage that began in 1957, when QUAD founder Peter Walker introduced the world’s first full-range electrostatic loudspeaker. Breaking with the conventions of the time, it achieved transient response and clarity previously thought unattainable. Subsequent models, from the ESL-63 through to the ESL 2912, have each built upon this legacy with gradual but meaningful improvements. These speakers have earned critical acclaim for their open, effortless midrange and natural, box-free sound presentation. At the heart of this performance is the Mylar diaphragm—remarkably lightweight and thus extraordinarily responsive to signal transients, resulting in clean, accurate, and distortion-free sound reproduction.

Advanced Electrostatic Design Principles

The diaphragm’s responsiveness stems from its ultra-lightweight construction and uniform drive across the entire surface. Charged to over 5.2kV DC, it is set between two stators through which an alternating audio signal is applied. This causes the diaphragm to move back and forth in perfect sync with the music signal, resulting in the unmistakable clarity associated with QUAD ESLs. The ESL X utilises the iconic "point source" design developed for the ESL-63, where a concentric ring electrode layout—combined with an innovative delay line system—creates a singular, highly focused origin point for sound. The effect is a three-dimensional, highly immersive stereo image with pinpoint precision.

The Return of British-Built Audio Transformers

In a significant development for the ESL X, QUAD has reintroduced UK-manufactured audio transformers. These bespoke components have been carefully engineered and supervised under the direction of QUAD’s renowned service team, led by Rob Flain. Designed to enhance mid- and high-frequency dynamics, the transformers deliver exceptional linearity and an extended frequency response beyond 18 kHz. They ensure an airy, open presentation with sharply defined transients and deep, articulate imaging. Moreover, their robust design effectively mitigates flux modulation artefacts at high SPLs, further enhancing sonic clarity and detail retrieval across all listening levels.

Next-Level Electronic Architecture

Internally, the ESL X benefits from a complete overhaul of its electronic layout. The once monolithic PCB has been divided into three distinct modules: the High-Voltage Multiplier Module, the Control and Protection Module, and the Low-Voltage Signal Module. This separation significantly reduces interference, with the high-voltage stage physically isolated from the more sensitive low-voltage circuits. As a result, electromagnetic interference and crosstalk are drastically minimised, leading to a lower noise floor and superior audio fidelity. These measures, combined with a refined high-voltage regulation system, ensure that even the most dynamic musical passages are rendered with precision, stability, and nuance—defining the ESL X as a truly high-performance electrostatic loudspeaker.
