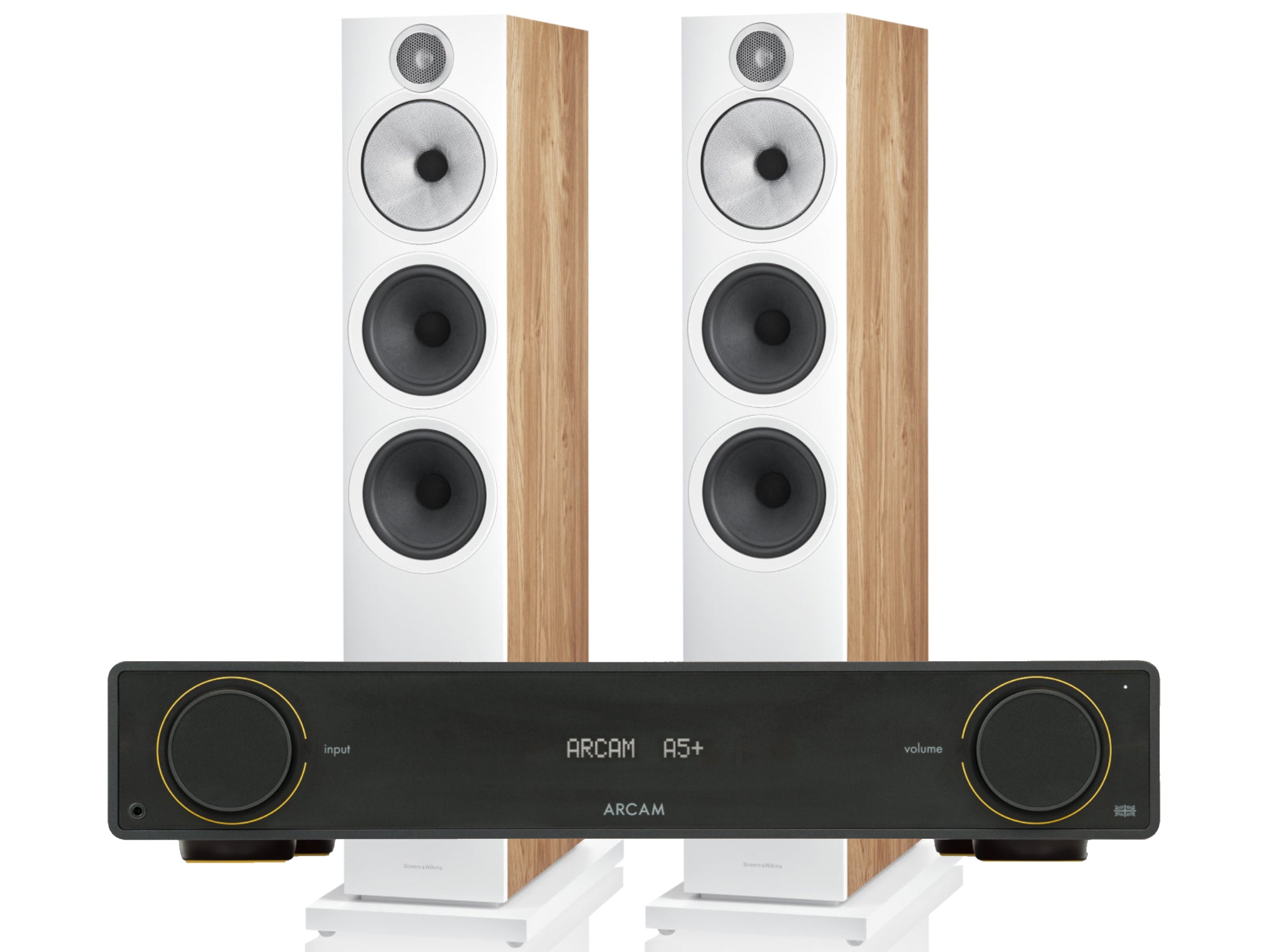

Arcam A5+ with Bowers & Wilkins 603 S3 (2025 Model)
Couldn't load pickup availability

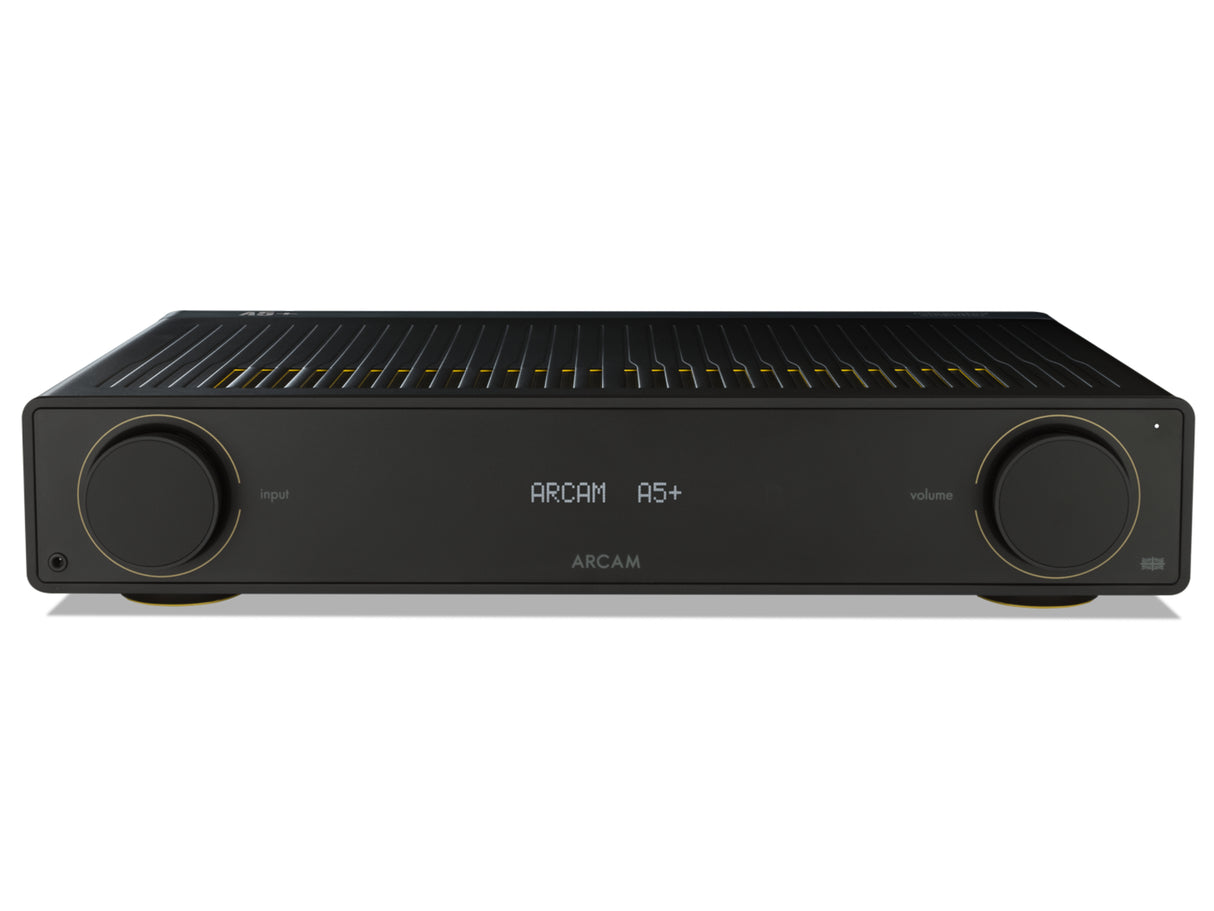

Arcam A5+ with Bowers & Wilkins 603 S3 (2025 Model)
It was back in the mid-1970s when Doug Brady introduced the very first amplifier from Arcam – then known as A&R Cambridge – the A60. This iconic model featured prominently in many of our magazine advertisements at the time. The Arcam A5 continued that legacy with great success, earning a reputation for performance and reliability. Naturally, expectations are high for its successor, the Arcam A5+, which is set to carry the torch forward.
Features
- Wireless audio with Bluetooth 5.4
- Featuring Snapdragon Sound for wireless lossless audio
- Featuring Auracast for connecting wireless headphones or speakers to play music in multiple spaces
- Hi-res audio digital inputs
- ESS ES9018 DAC
- Meticulously tuned phono stage#
- Class AB amplification
- 2x 50 Watts (8Ω) power output
- Compact remote control

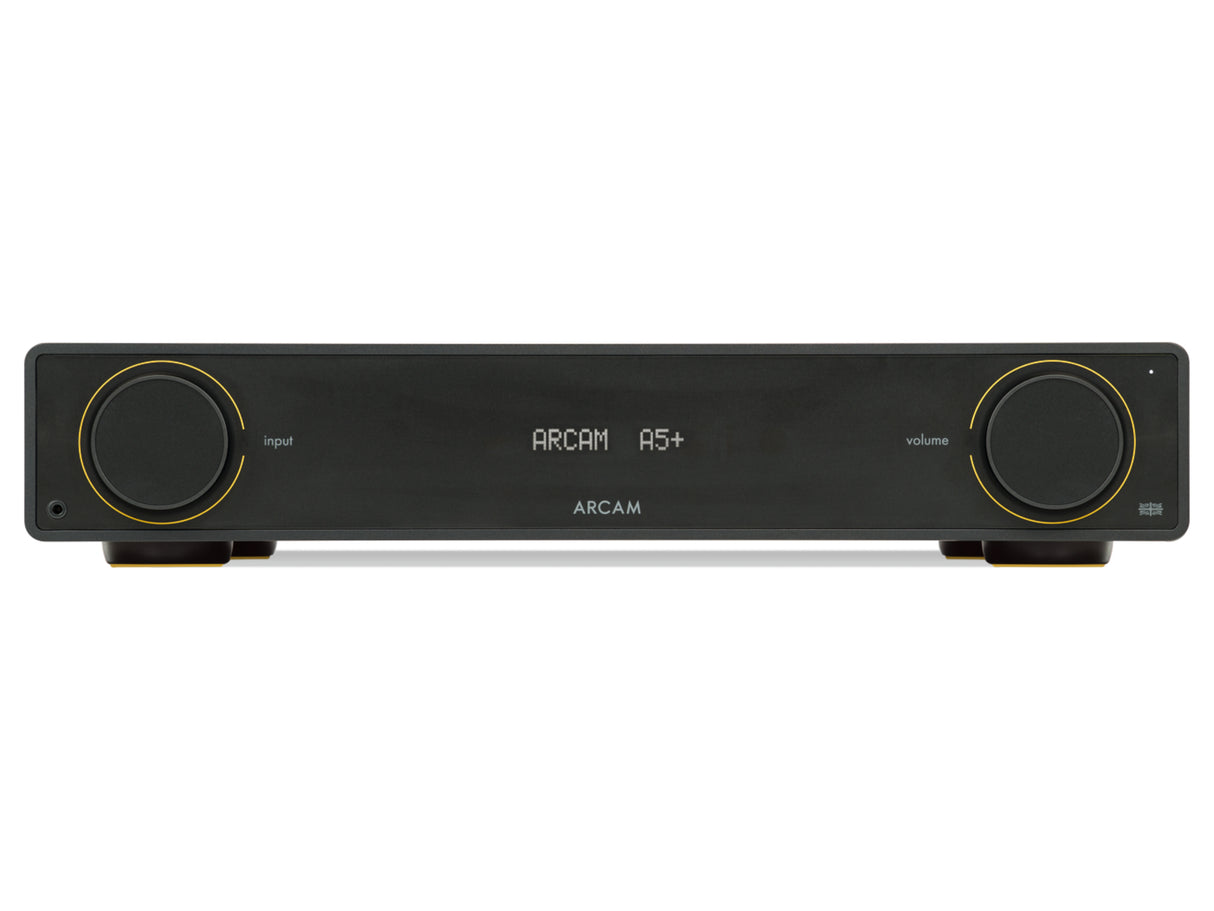

- Solid aluminium dials

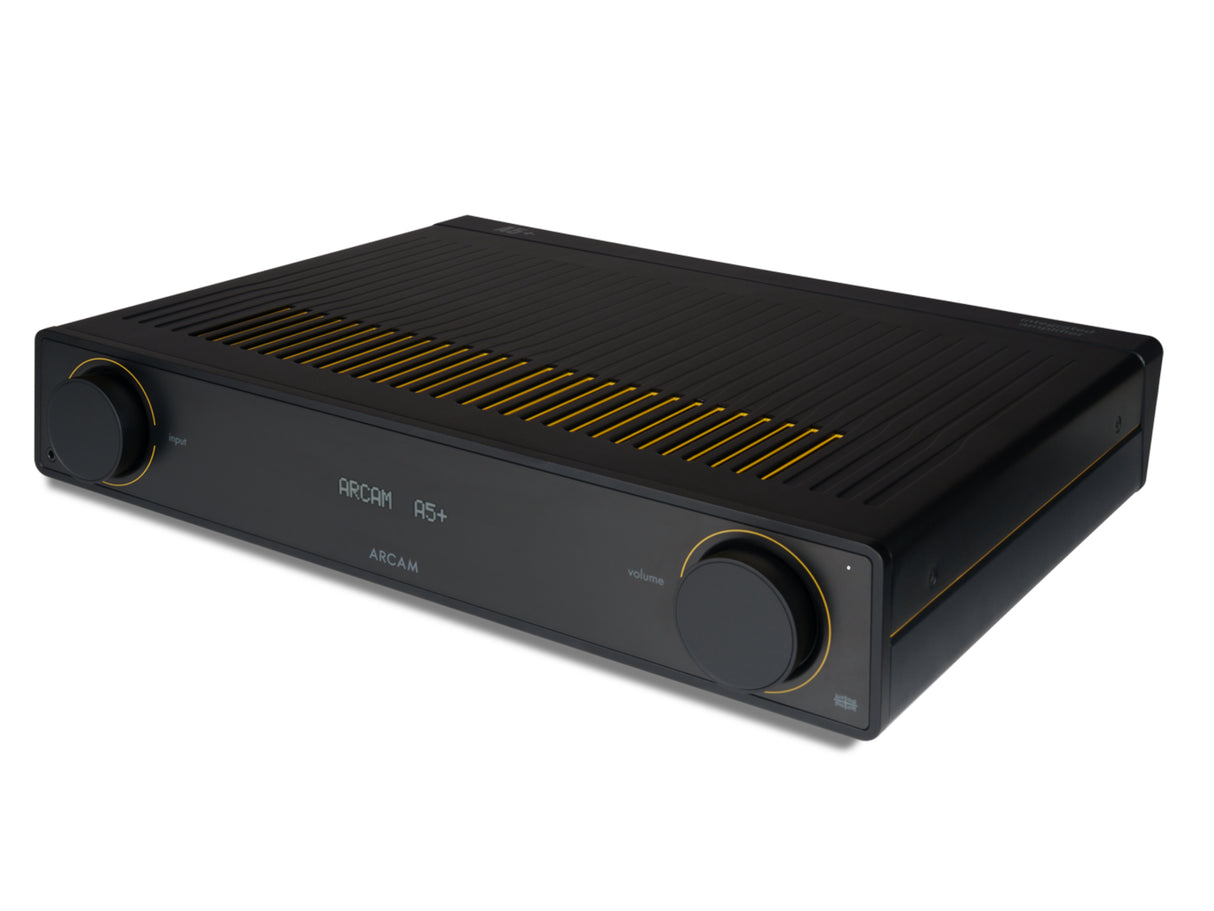

- Aluminium front, top, sides and rear panels
- Plastic free packaging
Nearly 50 Years of Amplification Expertise
The ARCAM A5+ is designed to bring people together through shared listening experiences with family and friends. The “A” in ARCAM stands for amplification – the foundation of everything we do. This latest model represents the culmination of almost five decades of amplifier innovation, dating back to our very first product in 1976: the A&R Cambridge A60. Building on the award-winning ARCAM Radia A5, our engineers have continued to push the boundaries, resulting in an amplifier that’s even more capable and refined.
Engineered for Today’s Listener

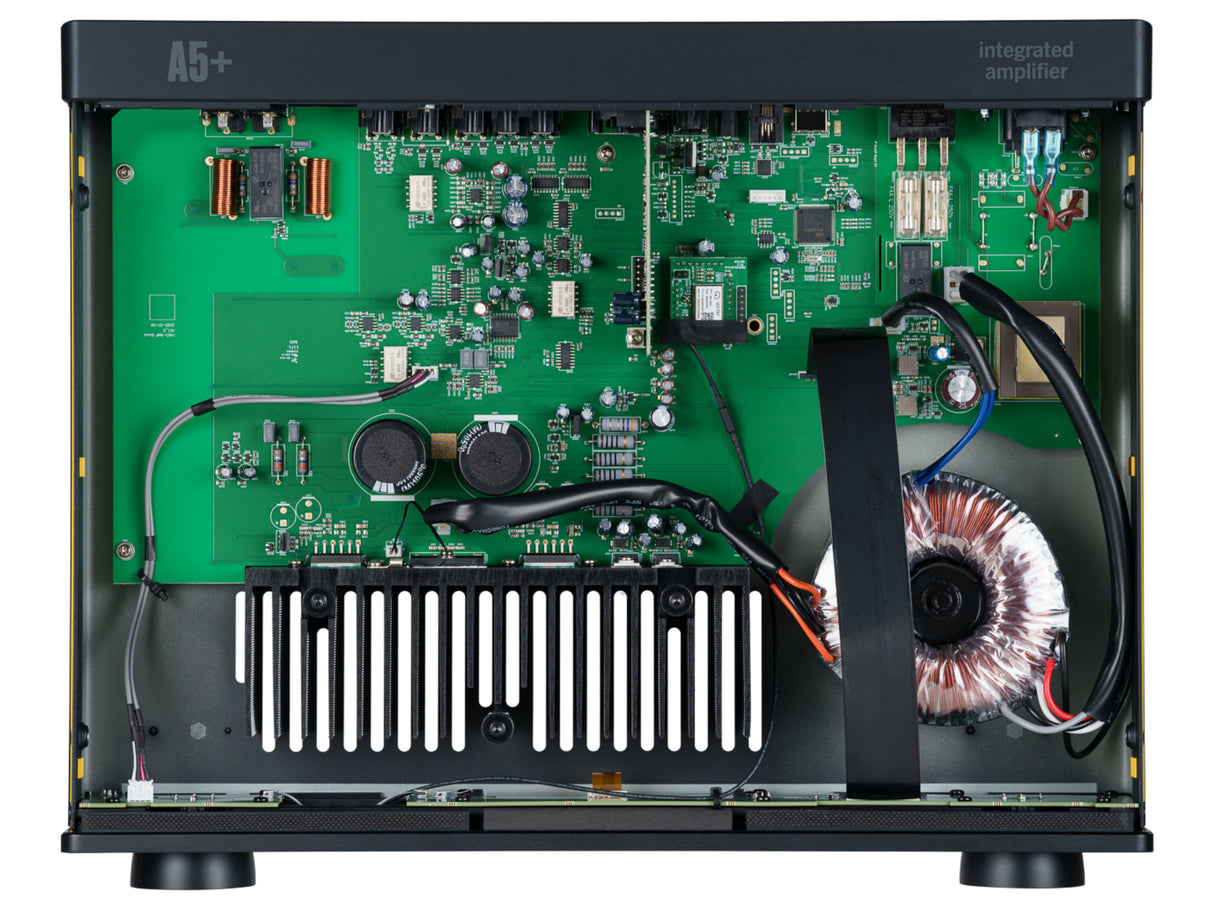

At the heart of the A5+ is a newly enhanced power supply and state-of-the-art wireless functionality. With Snapdragon Sound, it delivers lossless digital audio via Bluetooth, while Auracast allows multiple compatible headphones or speakers to stream audio simultaneously – no pairing required. This forward-thinking technology ensures effortless connectivity, whether you're enjoying a personal session or sharing your music with others.
Versatility Meets Precision
The A5+ offers a wide selection of digital and analogue inputs, including a meticulously tuned phono stage for vinyl enthusiasts. Whether you're streaming music, spinning records, or connecting traditional hi-fi components, the A5+ guarantees superb sound quality across all sources. It's a modern integrated amplifier that stays true to Arcam’s longstanding dedication to precision audio and elegant design.

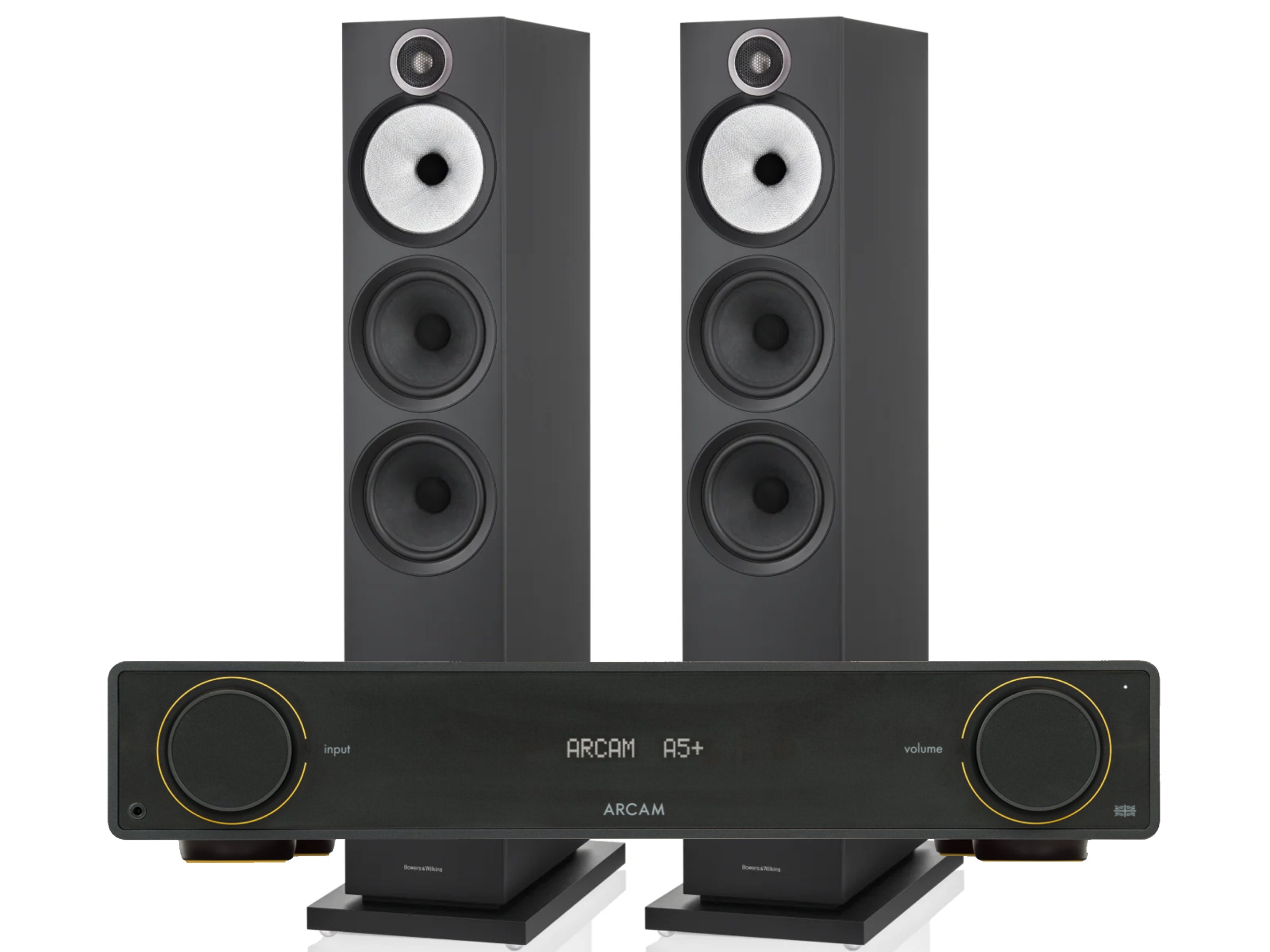

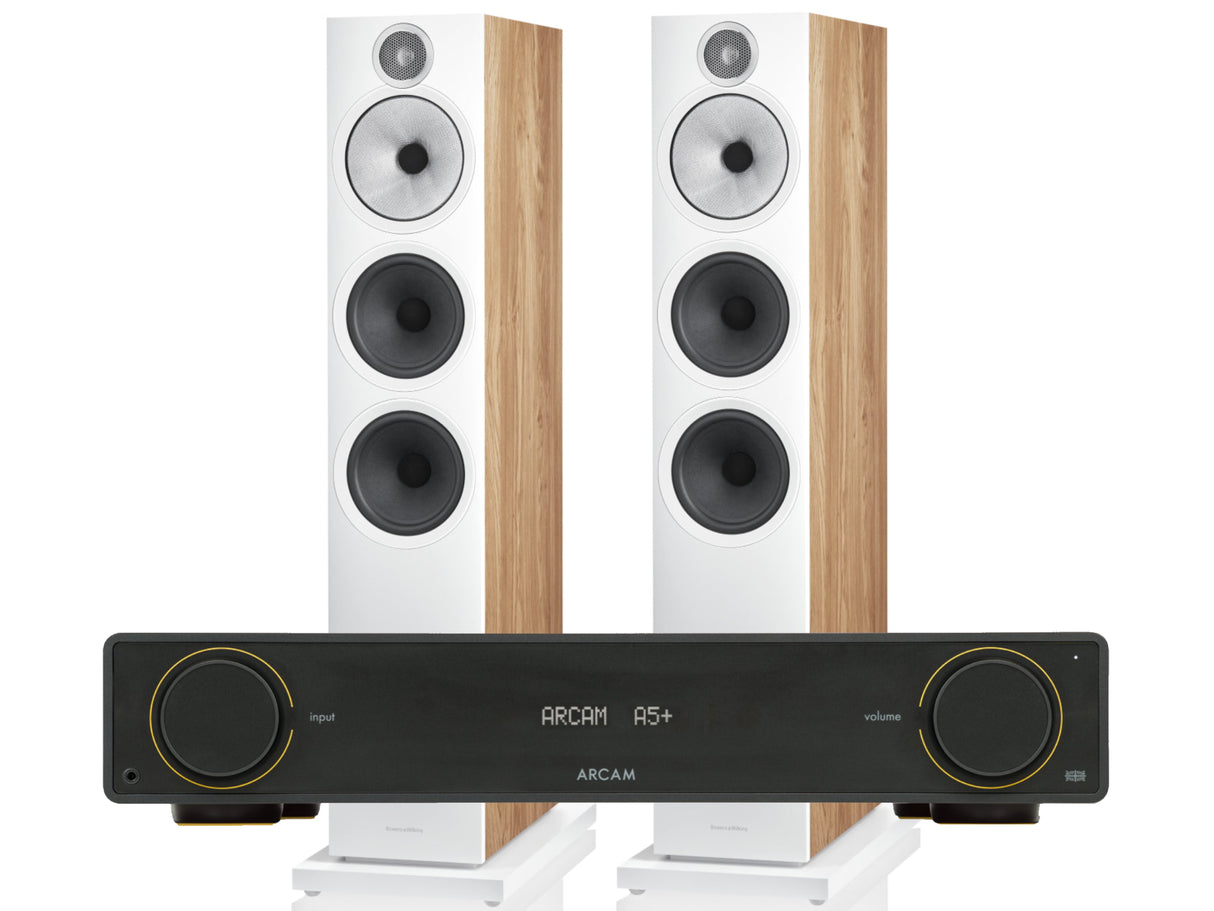

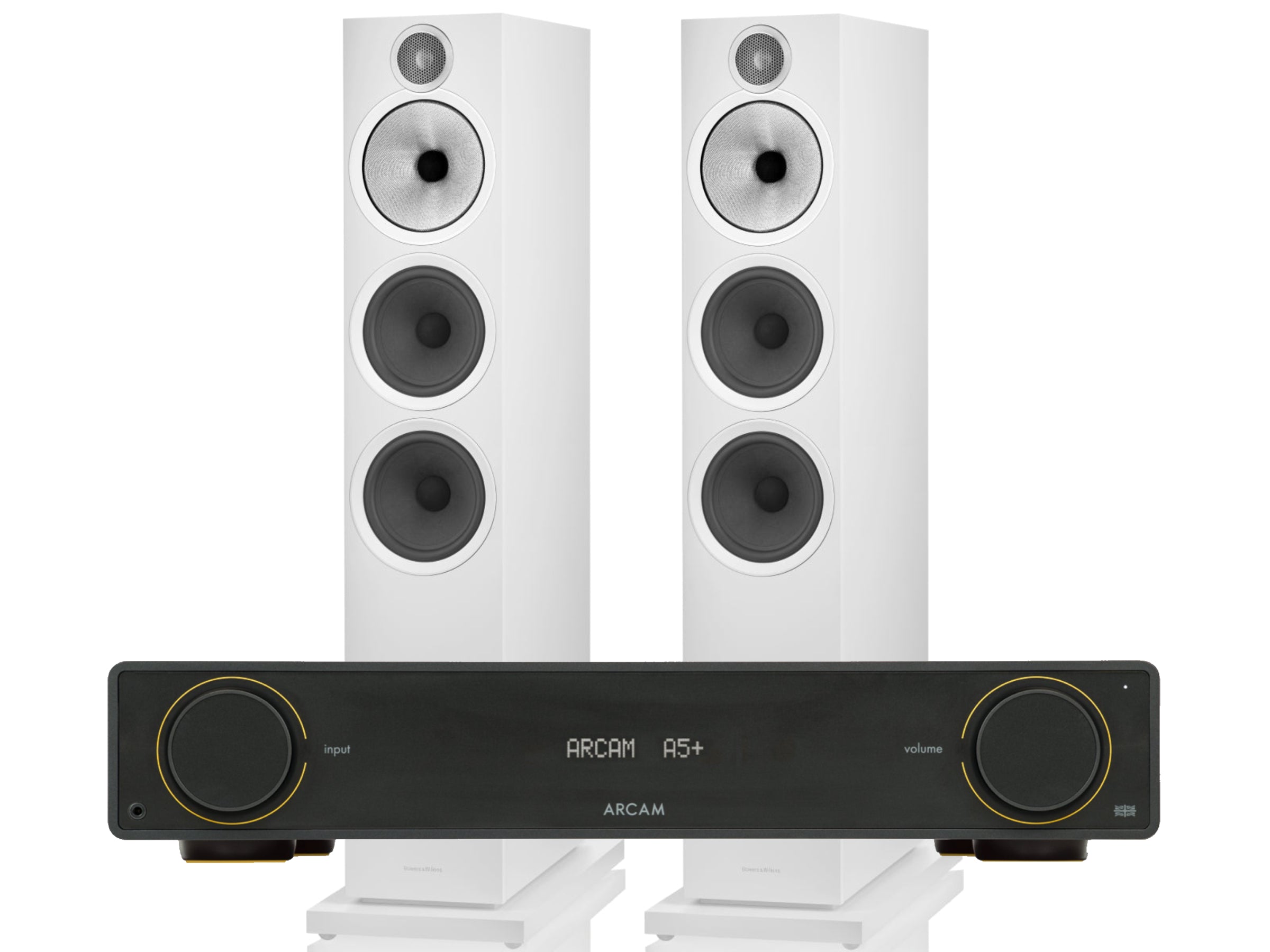

603 S3 Floorstanding Speakers
The Bowers & Wilkins 603 S3 is the largest loudspeaker in the 600 Series and is ideal for larger rooms and home theatres. It combines their new Titanium Dome™ tweeter—which offers both clarity of sound, as well as excellent high frequency dispersion—with Continuum cone technology for a truly audiophile experience.
Layered, beautiful details
The 603 S3's Titanium Dome tweeter delivers smooth and refined high-frequency reproduction, providing an accurate and immersive insight into your favourite music. 603 S3 boasts a new design that dramatically improves the materials used in its tweeter grille mesh, first developed for our revered Signature models. The Titanium Dome tweeters provide exceptional resolution and realism.
Precision and transparency
The Continuum cone avoids the abrupt vocal transitions that can impair conventional drive units. With 603 S3, experience a more open and neutral performance—voices are delivered with precision and transparency.
Upgraded Performance
Based on the set of speaker terminals we introduced in our 700 Series, the 603 S3's improved design offers a cleaner signal-path between your amplifier and loudspeakers.
A5+ Integrated Amplifier Specifications
| Continuous Power Output: | (0.5% THD) 2 channels driven |
| 8Ω, 20Hz ‐ 20kHz: | 50W |
| 4Ω, 1kHz: | 75W |
| Harmonic Distortion: | 80% power, 8Ω at 1kHz: 0.003% |

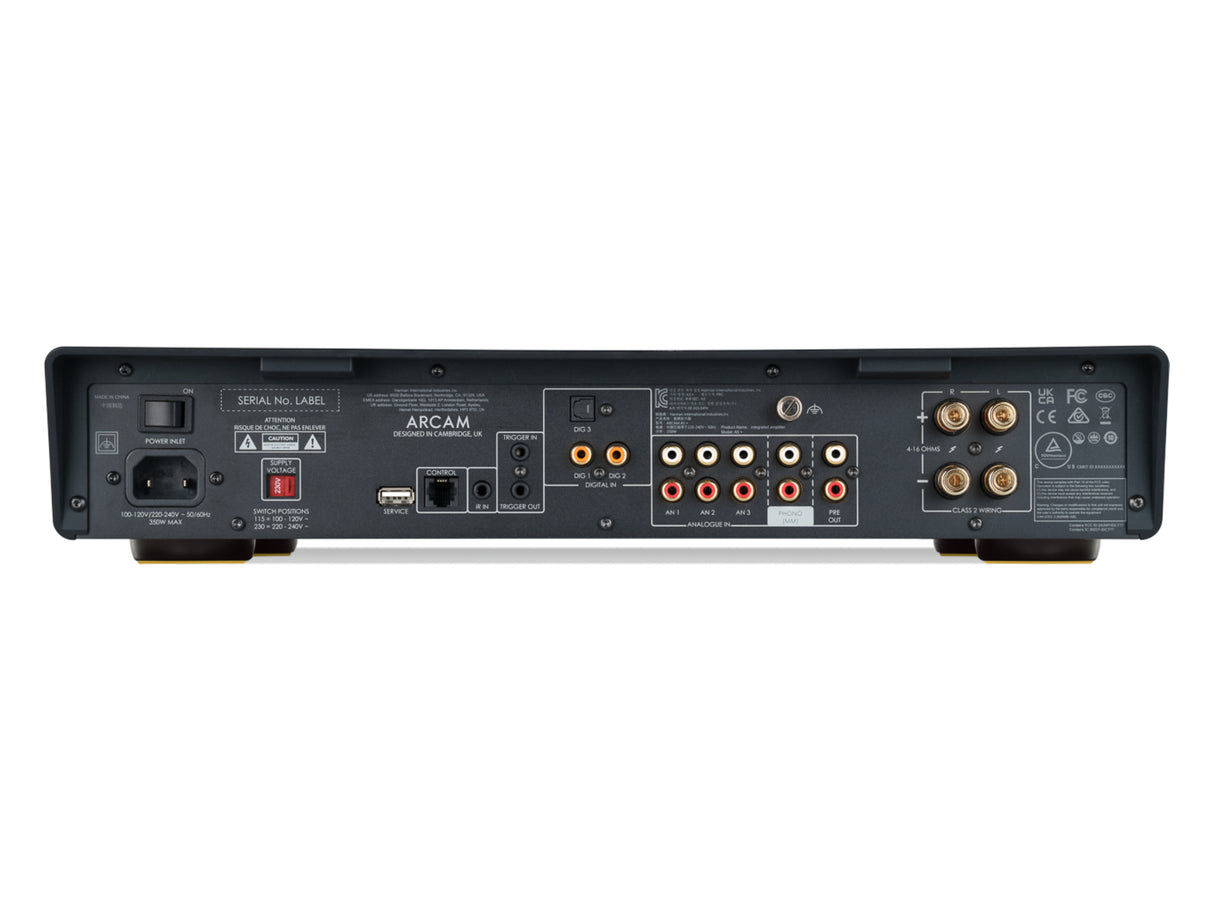

| Analogue Inputs – Number Of Inputs: | 3 (RCA pairs) |
| Analogue Inputs – Signal/Noise Ratio: | (A-weighted, ref. 50W, 1V input): 106dB |
| Analogue Inputs – Frequency Response: | 20Hz—20kHz ± 0.2dB |
| Phono (MM) Input – Input Impedance: | 47kΩ + 100pF |
| Phono (MM) Input – Frequency Response: | (ref. RIAA curve): 20Hz—20kHz ± 1dB |
| Digital Inputs – Supported Sample Rates: | 192, 176.4, 96, 88.2, 48, 44.1 kHz |
| Digital Inputs – Bit Depths: | 24-bit, 16-bit |
| Digital Inputs – Frequency Response: | (Filter 1): 20Hz—20kHz ± 0.2dB |
| Digital Inputs – Signal/Noise Ratio: | (A-weighted, ref. 50W, 0dBFS): 109dB |
| Headphone Output – Maximum Output Level: | (RMS) into 32Ω / 300Ω: 2.5V / 5V |
| Headphone Output – Load Range: | 16Ω – 2kΩ |
| Wireless Specifications – Bluetooth Version: | 5.4; A2DP Sink/Source, AVRCP, BLE, Snapdragon Sound, AAC, LE Audio, Auracast |
| Wireless Specifications – Bluetooth Transmitter Frequency And Power: | 2,400 MHz to 2,483.5 MHz: <20dBm |
| General – Mains Voltage: | 100V or 110–120V or 220–240V, 50–60Hz |
| General – Power Consumption (Maximum): | 350W |
| General – Power Consumption (Standby): | <0.5W |
| General – Dimensions (W x D x H): | Including speaker terminals and feet: 431 x 344 x 83mm |
| General – Weight (Net): | 8.14 kg |
| General – Weight (Packed): | 11.36 kg |
| Supplied Accessories: | Mains lead(s), Remote control with 2 x AAA batteries, Quick Start Guide, Important Safety Instructions |
603 S3 Floorstanding Speaker Specifications
| Size & Weight: | |
| Dimensions: | Height: 985 mm (38.8 in) cabinet only; 1,020 mm (40.2 in) including plinth |
| Width: 190 mm (7.5 in) cabinet only; 260 mm (10.2 in) including plinth | |
| Depth: 340 mm (13.4 in) cabinet only; 368 mm (14.5 in) including grille and terminals; | |
| 402 mm (15.8 in) including plinth | |
| Net Weight: | 27.5kg (60.6 lb) |
| Technical Details: | |
| Technical Features: | Decoupled Double Dome Titanium tweeter; Continuum™ cone FST™ midrange; Paper bass cones; |
| Flowport™ | |
| Description: | 3-way vented-box system |
| Drive Units: | 1x ø25mm (1 in) Titanium Dome high-frequency; 1x ø150mm (6 in) Continuum cone FST midrange; |
| 2x ø165mm (6.5 in) Paper bass cone | |
| Frequency Range: | -6dB 29Hz - 33kHz |
| Frequency Response: | 46Hz - 28kHz ±3dB |
| Sensitivity: | 90dB (on axis at 2.83Vrms at 1m) |
| Harmonic Distortion: | 2nd and 3rd harmonics (90dB, 1m on axis): |
| <1% 100Hz - 22kHz; <0.5% 350Hz - 12kHz | |
| Nominal Impedance: | 8Ω (minimum 3.0Ω) |
| Recommended Amplifier Power: | 30W - 200W into 8Ω on unclipped programme |
| Max Recommended Cable Impedance: | 0.1Ω |
| Finishes: | |
| Cabinet Finishes: | Black; White; Oak |
| Grille Finishes: | Black (Black); Grey (White and Oak) |
