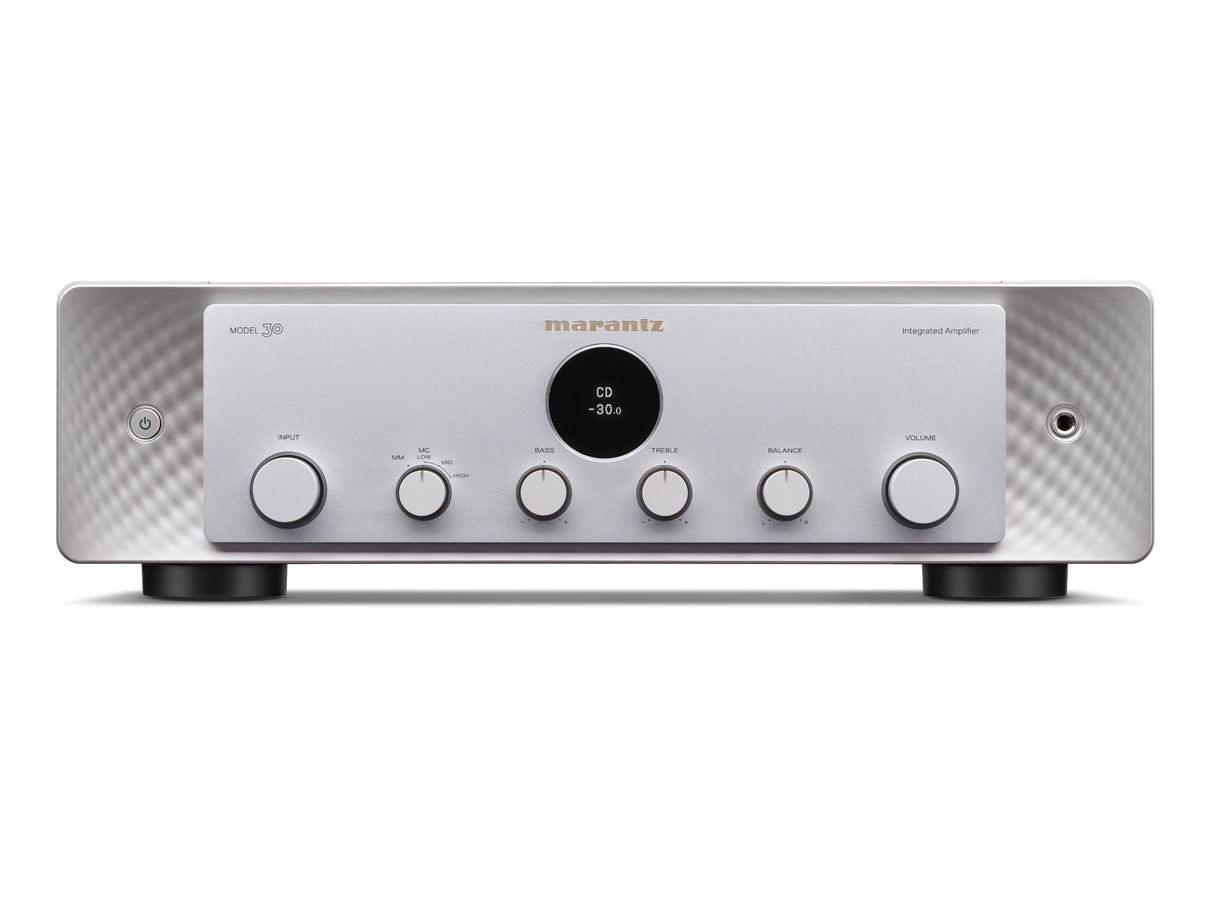

Marantz Model 30 Integrated Amplifier

£1,849.00 ~~£2,899.00~~

Tax included Shipping calculated at checkout.

Finish

Product variants

Get the most musical sound possible from this beautiful, integrated amplifier. Exquisitely tuned by the Marantz Sound Master, the Marantz MODEL 30 integrated amplifier features a master-curated Marantz HDAM and a fully discrete design for luxurious Hi-Fi purity. Designed to last the test of time and make all your music unforgettable

Key Features

• Integrated Amplifier tuned with passion by the Marantz Sound Master.

• Independent pre-amplifier and power amplifier section.

• Toroidal transformer feed power supply dedicated to pre-amplifier.

• Current feedback pre-amplifier design for clarity and details.

• Marantz HDAM technology for low noise and extended frequency range.

• Linear volume control with new electric volume system for best linearity.

• Switching mode power amplifier with dedicated SMPS power supply.

• Solid output of 100W + 100W (8ohm), 200W + 200W (4ohm) to drive any speaker.

• Amplifier design inherited from our flagship models.

• Flat frequency response independent to connected speaker load.

• MM/MC Phono input with selectable MC input resistance.

• Extra high quality, low resistant input terminals for CD and Phono.

• Marantz original high-quality/high-purity copper speaker terminals.

• Available in Black and Silver Gold

Technical Specifications

Features

Aluminium extrusion heat sink	o (Separate)
Balance / Bass / Treble / Loudness	o / o / o / -
Channels	2
Current Feedback Topology	o
Customised Components	o
Digital in: USB-B / optical / coaxial / USB-A	- / - / - / -
HDAM version	SA3, SA2
High Grade Audio Components	o
Phono EQ: Standard / Marantz Musical / Marantz Musical Premium	- / - / o
Power Transformer: Toroidal / El	SMPS
Symmetric PCB Layout	o

General

Auto power off	o
Carton Maximum Dimensions (W x D x H) in mm	534 x 522 x 255
Carton Weight (inc. product) in kg	17.6
Detachable Power Cable	o
Maximum Dimensions (W x D x H) in mm	443 x 431 x 130
Metal Front Panel	o
Power Consumption in W	130
Remote Control	RC002PMND
Standby Consumption in W	0.2
System Remote Function	o
Weight in kg	14.8

Inputs/Outputs

Audio Inputs	6
Audio Outputs	1
Balanced In / Out	- / -
D-Bus	o
Digital in: USB-B / optical / coaxial / USB-A	- / - / - / -
Floating Control Bus (3.5 mm mono jack x 2)	-
Gold Plated Cinch	o
HDMI: inputs / outputs	-
Headphone Gain Control (low / mid / high)	-
Headphone Out	o
Number of terminals	2
Phono Input: MM / MC	o / o
Power Amp Direct IN	o
Pre-out / Main-in	o / -
Speaker A / B	-
Speaker Terminals	Marantz SPKT-100+

Others

5mm aluminium top plate	-
BI-AMP and Multichannel option	-
Double Layer Bottom Plate	o
Input buffer amp (all inputs / CD only)	- / -
Linear Drive Power Supply	o (pre-amplifier stage)
Liniear volume control	o
Low noise LCD display	-
Low Noise OELD display	o
Marantz Musical Digital Filtering	-
Power Amp direct	-
Shottky diodes	o
Source Direct	-
System block shielding: copper / metal / none	o / - / -

Specifications

Damping Factor	500
Frequency Response	5 Hz - 50kHz
Input Sensitivity: Balanced High level	-
Input Sensitivity: High level	220 mV / 13 kohm
Input Sensitivity: MC	250
Input Sensitivity: MM	2.3 mV / 39 kohm
Input Sensitivity: Power Amp Direct IN	-
Power Output (8 / 4 Ohm RMS)	100 W / 200 W
Signal to Noise Ratio: High level	107 dB(2V input/Rated output)
Signal to Noise Ratio: MM / MC	88 / 75 dB
Signal to Noise Ratio: Power Amp Direct IN	-
Total Harmonic Distortion	0.005%
