Rotel A11MKII Integrated Amplifier

£699.00

Tax included Shipping calculated at checkout.

The Rotel A11MKII Integrated Amplifier offers an ideal combination of power form factor. Though small this amp is able to power the most challenging speakers.

Includes Rotel Manufacturer Warranty

Finish

Product variants

Free Next Day Delivery*

Free next weekday delivery

When you spend over £75, we will send you a tracking number where DPD will give a one hour delivery window. Services available Monday to Friday (excluding public holidays) to most mainland UK addresses for in stock items ordered before our cut-off time at 3:30pm. Terms apply.

Free Saturday delivery

When you spend over £299. We will send you a tracking number where DPD will give a one hour delivery window. Services available to most mainland UK addresses for in stock items ordered before our cut-off time on Friday 3pm. Terms apply.

Free Sunday delivery

Free next-day delivery with DPD is available when you spend over £299. Orders must be placed before 3:30pm on Friday to qualify. You will receive a tracking number, and DPD will provide a one-hour delivery window on the day of delivery. This service is available to most mainland UK addresses for in-stock items ordered before our daily cut-off time. During peak holiday periods, cut off time is Saturday 2:00pm. Sunday delivery is available in selected locations. Terms and conditions apply.

Reserve for Collection

Some of our manufacturers request for their items not to be sold online. For these items please call to order 01925 828009

Remote locations

Standard next day delivery is free for all orders to most UK mainland addresses. All other delivery prices are determined by the destination, the service chosen and the value and weight of your order. Addresses in the Scottish Highlands, offshore, Northern Ireland & Ireland may incur additional delivery costs, depending on the items ordered.

Returns Policy

If for any reason you’re not completely satisfied with your purchase, we’re happy to offer a refund within 30 days, provided you inform us of your intention within 14 days of receiving your item and return it to us within the 30-day period.

For our full returns policy, click here.

The Rotel A11MKII Integrated Amplifier offers an ideal combination of power and connectivity for the music lover seeking to elevate their listening experience. Constructed around a linear power supply featuring a massive Rotel-built toroidal power transformer, the A11 MKII delivers an authoritative 50 Watts per channel of Class A/B power into 8 ohms, and even higher power into demanding loudspeakers.

Exclusive Rotel power supply innovations and critical circuit layout provide physical and electrical separation to lower the noise floor and increase musical dynamics. The A11MKII’s multi-tap transformer delivers power to sensitive low-voltage circuits and the high current amplifier output stage independently, isolating the signal path from noise and reducing unwanted distortion. This sound-first design supports fast transients and delivers an expressive, open musical performance.

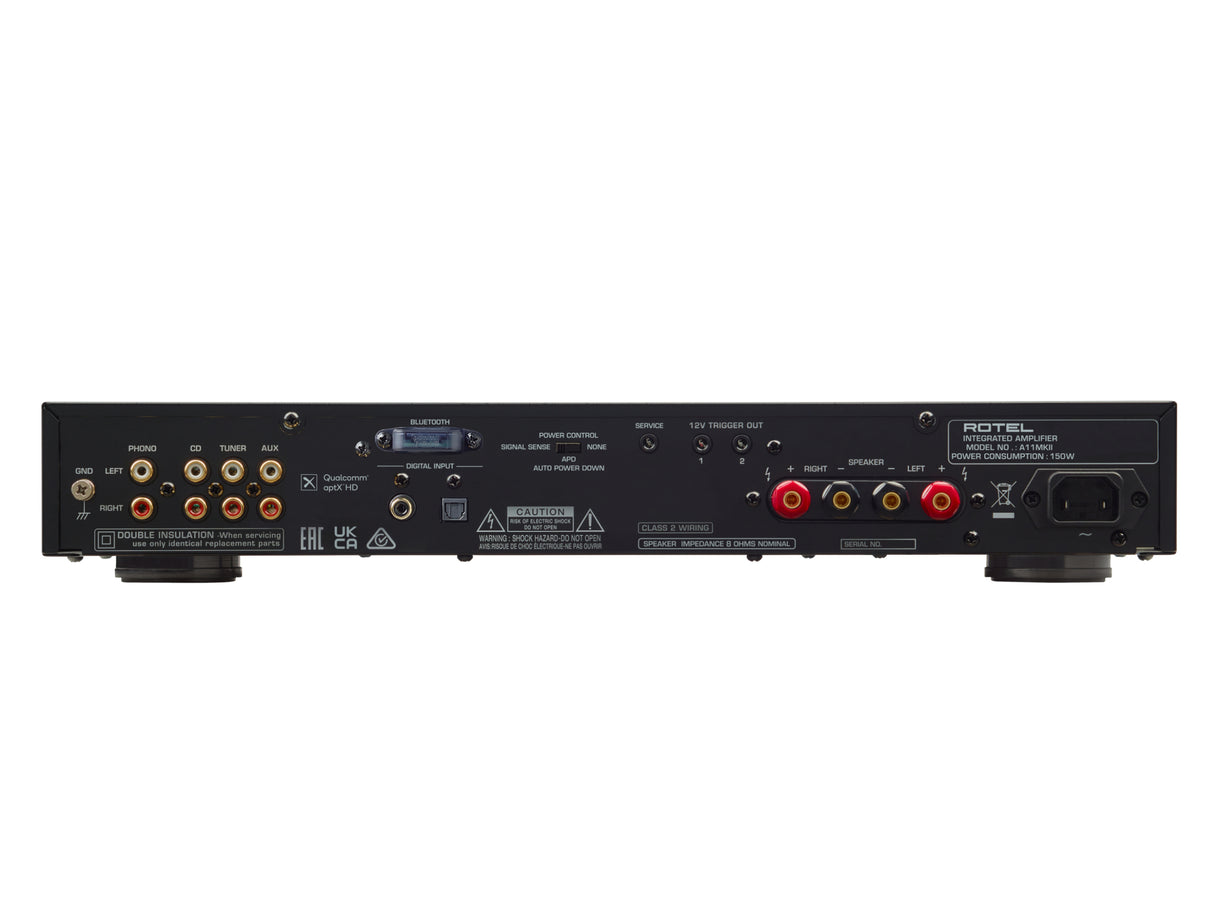

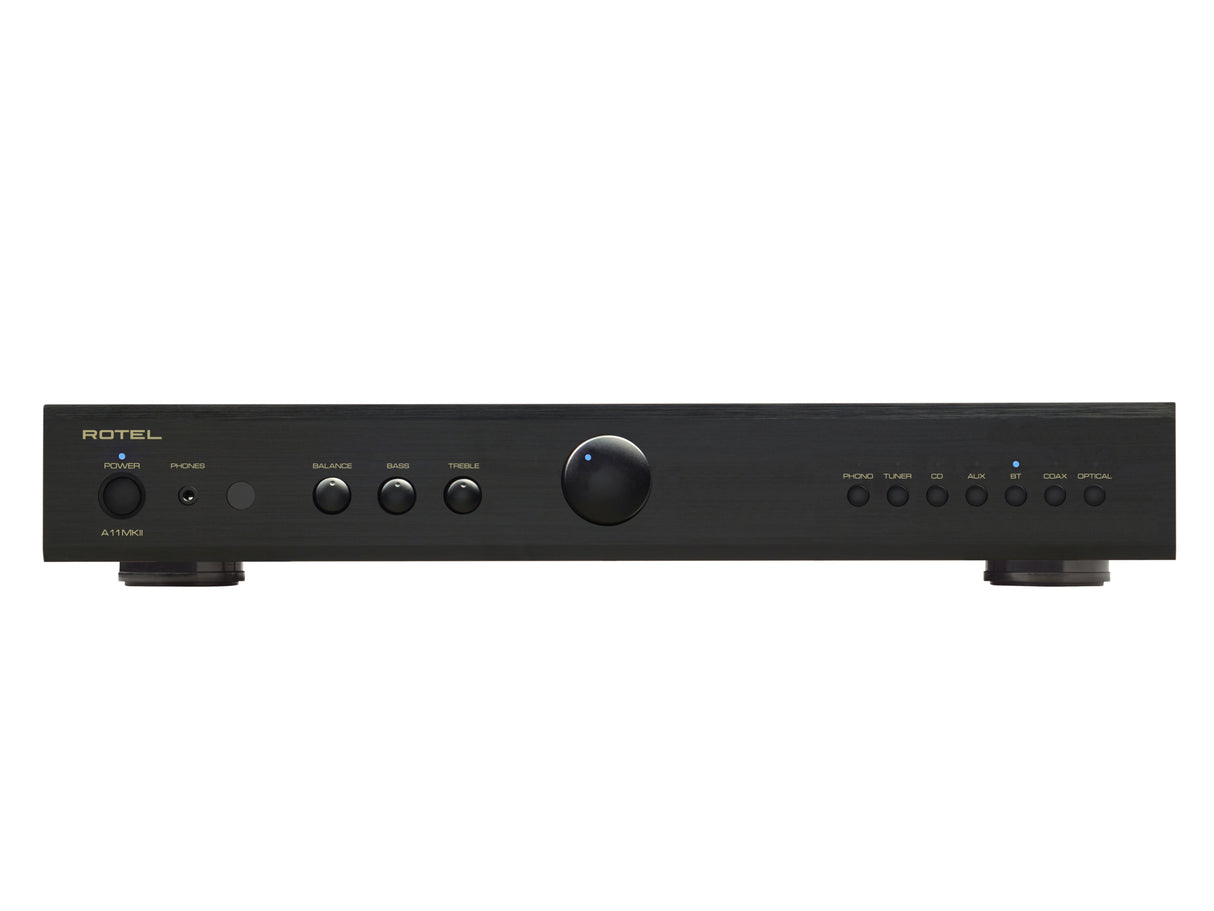

Both analogue and digital sources are welcome, with three line-level RCA inputs, coaxial and optical digital inputs, a Moving Magnet Phono stage, and aptXTM HD Bluetooth. An 1/8” headphone jack with dedicated headphone amplifier circuit is provided on the front panel for private listening sessions. The intuitive front panel layout includes Bass, Treble, and Balance rotary controls and source input selection ensuring the A11MKII is personal and a pleasure to operate up close.

The included IR remote drives a motorized analogue volume controller for ease of use at the listening position. User friendly features such as a detachable IEC power cord, two 12V trigger outputs, heavy 5-way speaker binding posts, and signal sensing auto power on/off functions ensure compatibility with any installation.

The A11MKII is available in both black and silver colours.

Specifications

Power Output:	50 Watts per channel (8 Ohms), 62 Watts per channel (4 Ohms)
Total Harmonic Distortion:	<0.03%
Intermodulation Distortion:	<0.03% (60 Hz : 7 kHz, 4:1)
Frequency Response – Phono Input:	20 Hz – 20 kHz (-0.5 dB, +0.3 dB)
Frequency Response – Line Inputs:	10 Hz – 100 kHz (-0.5 dB, +0.05 dB)
Damping Factor:	120 (20 Hz – 20 kHz, 8 Ohms)
Input Sensitivity / Impedance – Phono:	1.6 mV / 43 Ohms
Input Sensitivity / Impedance – Line:	130 mV / 45 kOhms
Input Overload – Phono:	50 mV
Input Overload – Line:	4 V
Tone Controls – Bass / Treble:	±6 dB at 100 Hz / 10 kHz
Signal-to-Noise Ratio – Phono:	85 dB (IHF “A” weighted)
Signal-to-Noise Ratio – Line:	90 dB (IHF “A” weighted)
Digital Frequency Response:	20 Hz – 20 kHz (-0.15 dB, +0 dB)
Digital Input Sensitivity / Impedance:	-20 dBFS / 75 Ohms
Digital Inputs:	SPDIF LPCM (up to 24-bit / 192 kHz)
Power Requirements – USA:	120 V, 60 Hz
Power Requirements – Europe:	230 V, 50 Hz
Power Consumption:	150 W
Standby Power Consumption:	<0.5 W
BTU Rating (4 Ohms, 1/8 power):	450 BTU/h
Dimensions (W × H × D):	430 × 73 × 347 mm (17 × 2 7/8 × 13 5/8 in)
Front Panel Height:	60 mm (2 3/8 in)
Weight (Net):	6.8 kg (15 lb)
Finish:	Black and Silver
