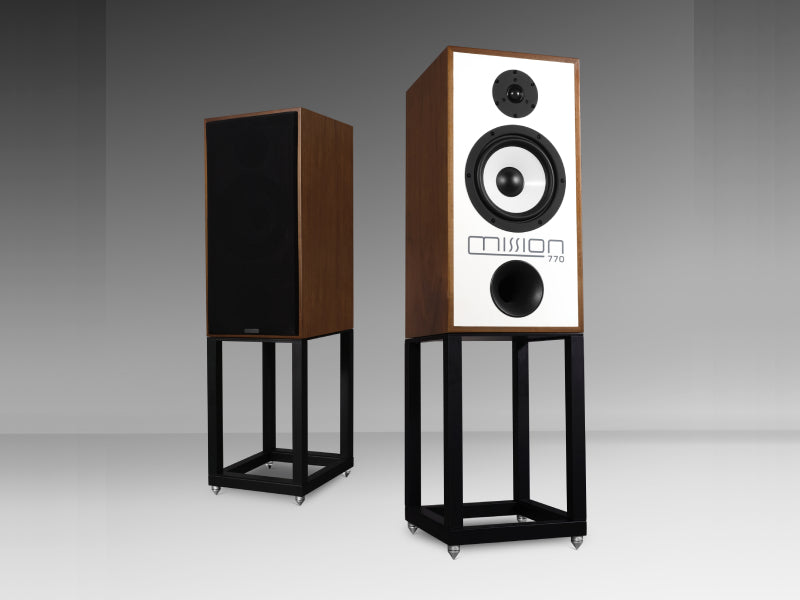

Mission 770

Mission 770

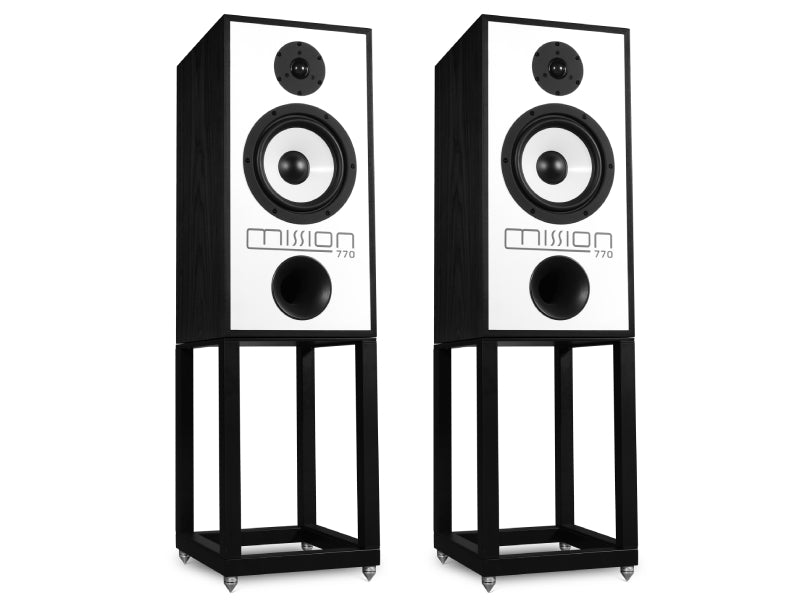

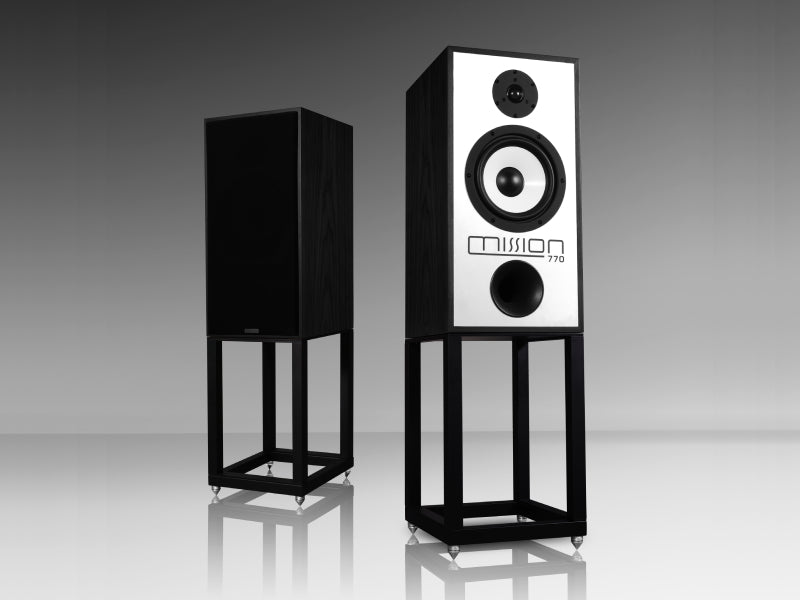

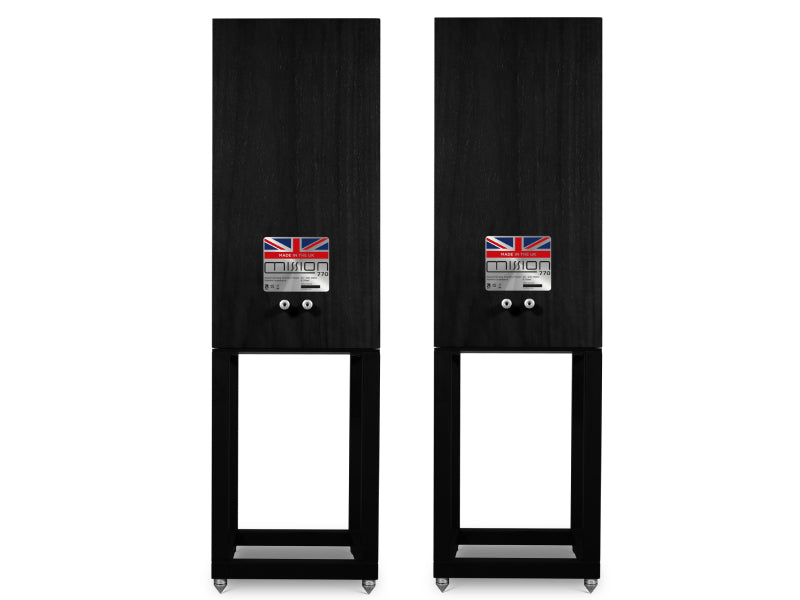

Black / Speakers with Stands (pair)

Doug Brady HiFi

Pickup also available, usually ready in 1 hour

Kingsway Studios
Kingsway North
Warrington WA1 3NU
United Kingdom

+441925828009

Doug Brady HiFi (Warehouse)

Pickup also available, usually ready in 2-4 days

Kingsway Studios - Warehouse
Kingsway North
Warrington WA1 3NU
United Kingdom

+441925828009

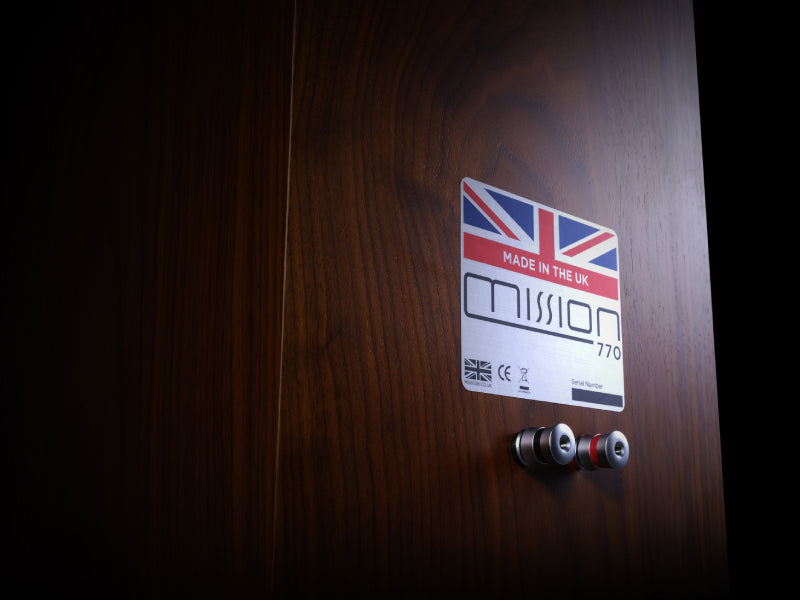

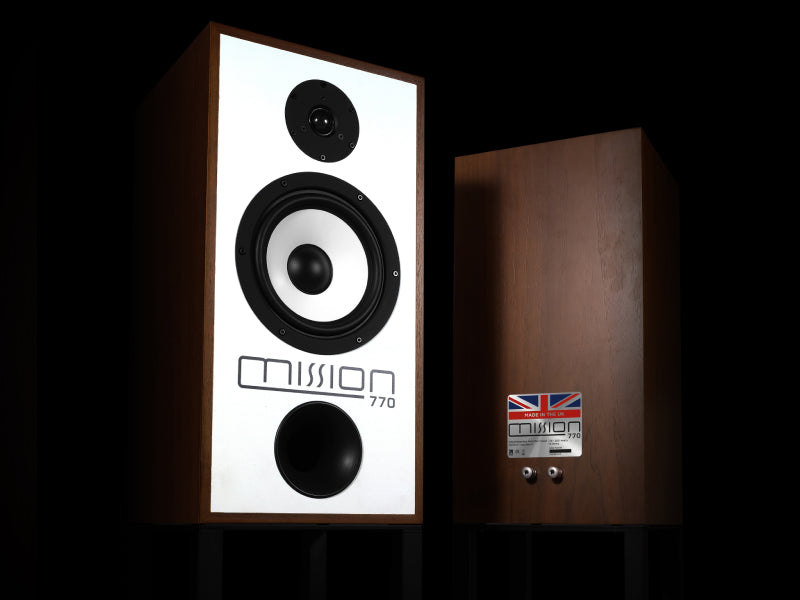

The new Mission 770 is not only designed and engineered in the UK; it is made here too.

The Mission 770 represents one of the most iconic models in the long history of Mission loudspeakers. A model that embodied the Mission pioneering research through the late 70s and 80s, with a bloodline dating back to 1977. The original Mission 770 debuted in 1978. It quickly became Mission’s best-selling speaker, and gravitated naturally into MK2 and MK3 alterations with improvements to sensitivity and power handling. After that, the design eventually migrated to Freedom and other variations, but none of them made the sales impact or notoriety that the original 770 received.

The original Mission 770 debuted in 1978. It quickly became Mission’s best-selling speaker

The new Mission 770 heralds the return of UK-based manufacturing for the Mission brand, where the new Mission 770 is not only designed and engineered in the UK; it is made here too. Mission has expanded its facilities in Huntingdon, Cambridgeshire – the traditional home of Mission – to incorporate key manufacturing, assembly and finishing processes for specially selected products, in addition to the R&D function already located here. A 9,000ft2 production facility has been added to the existing building in Huntingdon, including a new anechoic chamber, making a total of 25,000ft2 of office, lab and manufacturing space.

The Mission 770 has always been manufactured according to the Mission principles of quality and value for money. New Mission 770 further exemplifies these two edicts; balancing fine craftsmanship, natural sound quality, and affordability inside a beautifully proportioned loudspeaker that has been bought in its millions right across the globe through its various incarnations.

The original 770 was well known for its warm, rich and natural sounding character and the new Mission 770 retains that standing but imbues it with an open, detailed performance that will entice you to explore your whole music collection, once more.

The project’s design and engineering team was led by Peter Comeau, Mission’s current Director of Acoustic Design. Peter was a young reviewer for Hi-Fi Answers when the original 770 launched and well remembers its impact (he subsequently co-founded loudspeaker maker Heybrook in 1979). For Peter, the new Mission 770 is a labour of love; just as it was for Farad Azima all those years ago.

A new 20cm polypropylene mid/bass driver was developed for the re-engineered 770, mimicking the extended response and low coloration of the original, while upgrading the motor system to take account of modern power handling and dynamic requirements.

Like the original, the driver is built onto a die-cast chassis with large rear ‘windows’ to reduce early reflections back through the cone. Special care has been taken to marry a low-density nitrile surround to the cone, to match its impedance and reduce reflections from the cone edge.

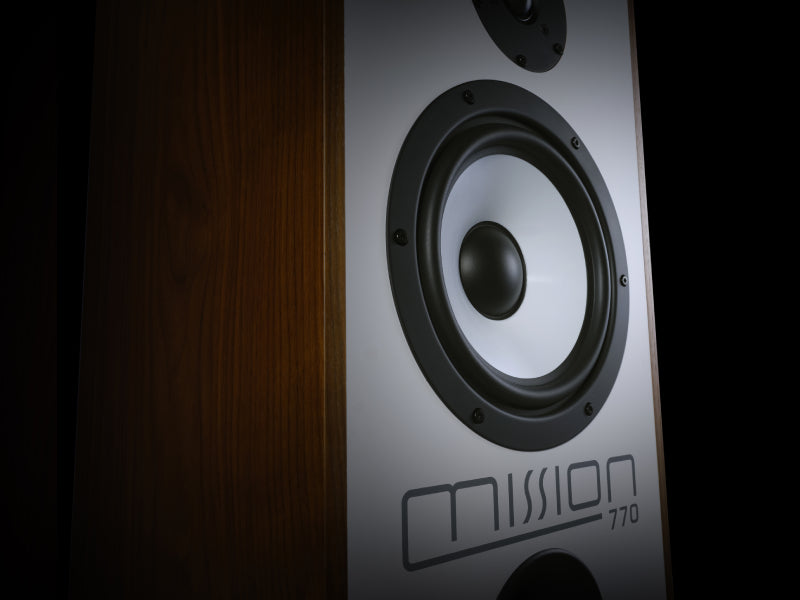

A new 20cm polypropylene mid/bass driver was developed for the re-engineered for the Mission 770

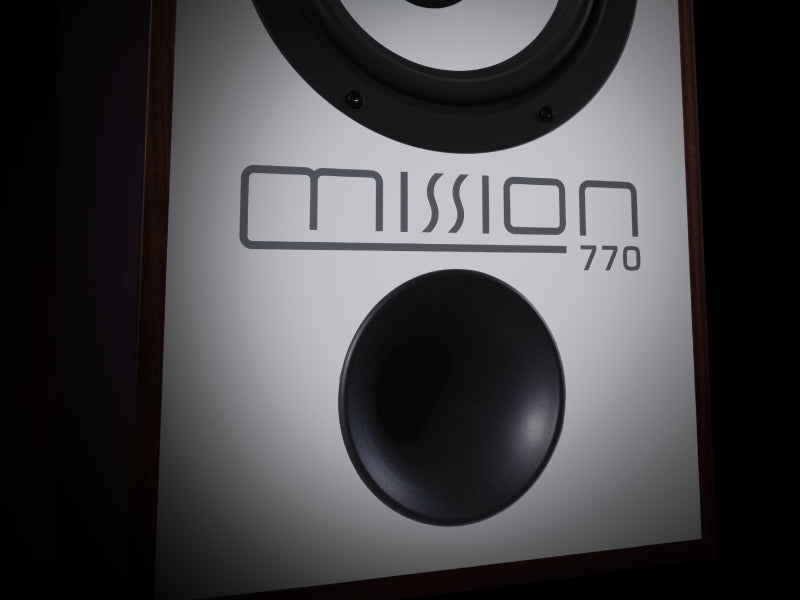

The new polypropylene cone is loaded with minerals to make it stiffer than the original, yielding fast, tight bass that enables the listener to hear exactly how bass instruments are being played. This is balanced by tuning the cabinet and reflex port to a very low frequency, avoiding the ‘one note bass’ that is typical of a lot of bass reflex systems. In addition, the port is strongly flared at both inlet and outlet to smooth airflow and eradicate distortion. Bass extends powerfully and cleanly to below 30Hz in room, which is remarkable for this size of speaker.

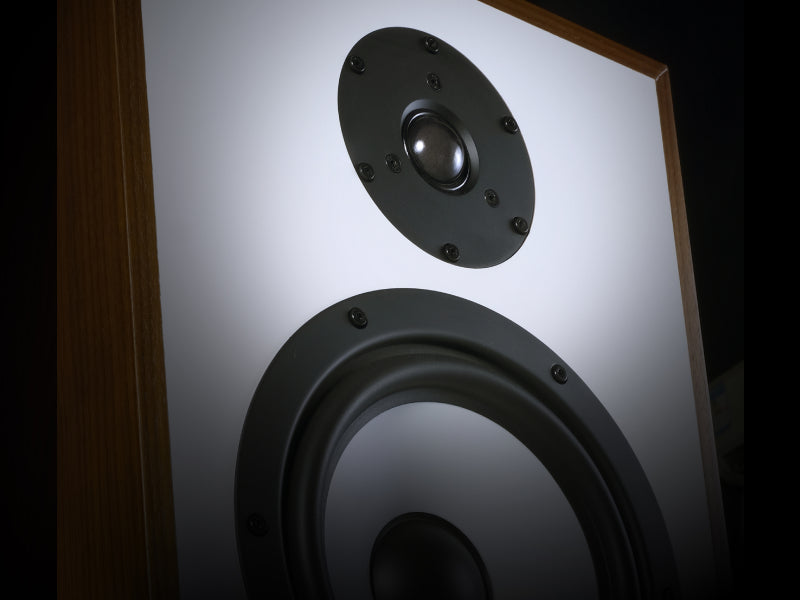

The Woven textile soft dome treble unit of the Mission 770 is true to form, with a high flux ferrite magnet, is engineered for smooth, detailed HF extension

The Woven textile soft dome treble unit – true to form, with a high flux ferrite magnet, is engineered for smooth, detailed HF extension. This new treble unit uses a lightweight, damped microfibre dome with an ultra-smooth response, backed by a damped rear chamber that pushes the fundamental resonance well below the crossover region. The quality of this 28mm dome marries perfectly with the mid/bass driver to ensure evenness of character throughout the range of the whole speaker.

Mission 770 Cabinet

The highly researched crossover – 1000s of hours of listening tests perfect the coherent, seamless musical output that is both thrilling and natural in its rendition of any source material.
IAG’s Director of Acoustic Design, Peter Comeau, has worked tirelessly to ensure a seamless integration between the drive units, so the speaker behaves as one music-making system.

Today’s advanced software crossover mapping and measuring techniques allow Mission to perfect the balance between bass and midrange and adjust the crossover to the treble unit by mapping the acoustic crossover slopes with extreme accuracy. Even so, the choice of EQ and crossover for the new 770 involved hundreds of hours of listening sessions using a wide variety of music, and over 170 circuit iterations were tried before the final crossover was settled upon.

The circuit was then mapped out onto separate bass and treble PCBs using very short signa paths and accommodating high-quality components such as super-transparent polypropylene capacitors and air core inductors, maintaining the simplicity and elegance of the original whilst improving critical elements. The resulting transparency to musical detail ensures the thrilling emotion of music is fully conveyed, whilst maintaining a seamless transition between the mid/bass and treble units.

Specifications



General Description 2-way vented-box / standmount
Enclosure Type Bass reflex
Transducer Complement 2-way
Bass Driver 8" (200mm) mineral loaded polypropylene cone
Treble Driver 1.25" (28mm) soft dome
AV Shield No
Sensitivity (2.83V @1m) 88dB
Recommended Amplifier Power 25-200W
Peak SPL 117dB
Nominal Impedance 8
Minimum Impedance 6
Frequency Response (+/-3dB) 42Hz ~ 20kHz
Bass Extension (-6dB) 30Hz
Crossover Frequency 2.9kHz
Cabinet Volume (in litres) 38.5L
Dimensions (mm)
Height (on plinth) 590mm
Width 300mm
Depth (with terminals) (300+22)mm
Carton Size 440 x 430 x 725mm
Net Weight 19.2kg/pcs
