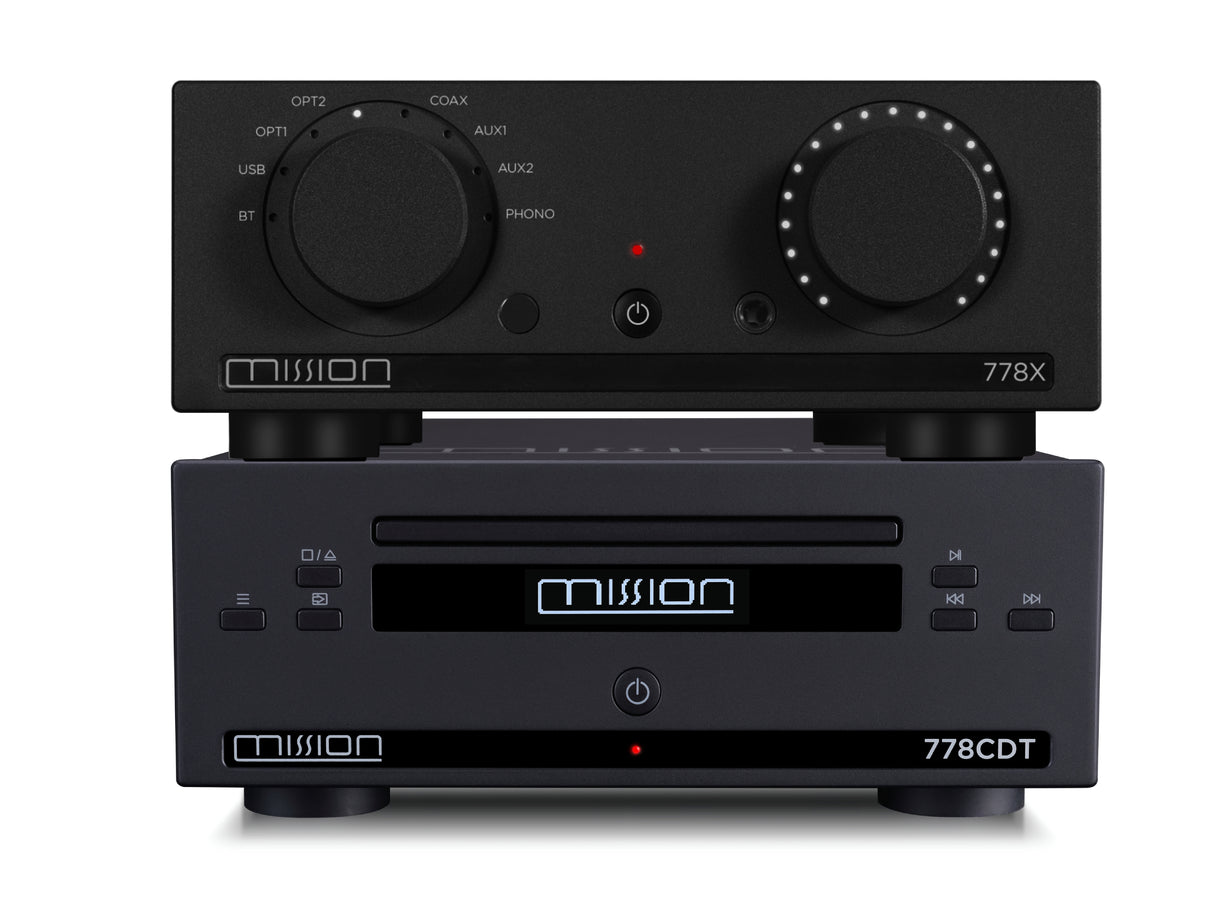

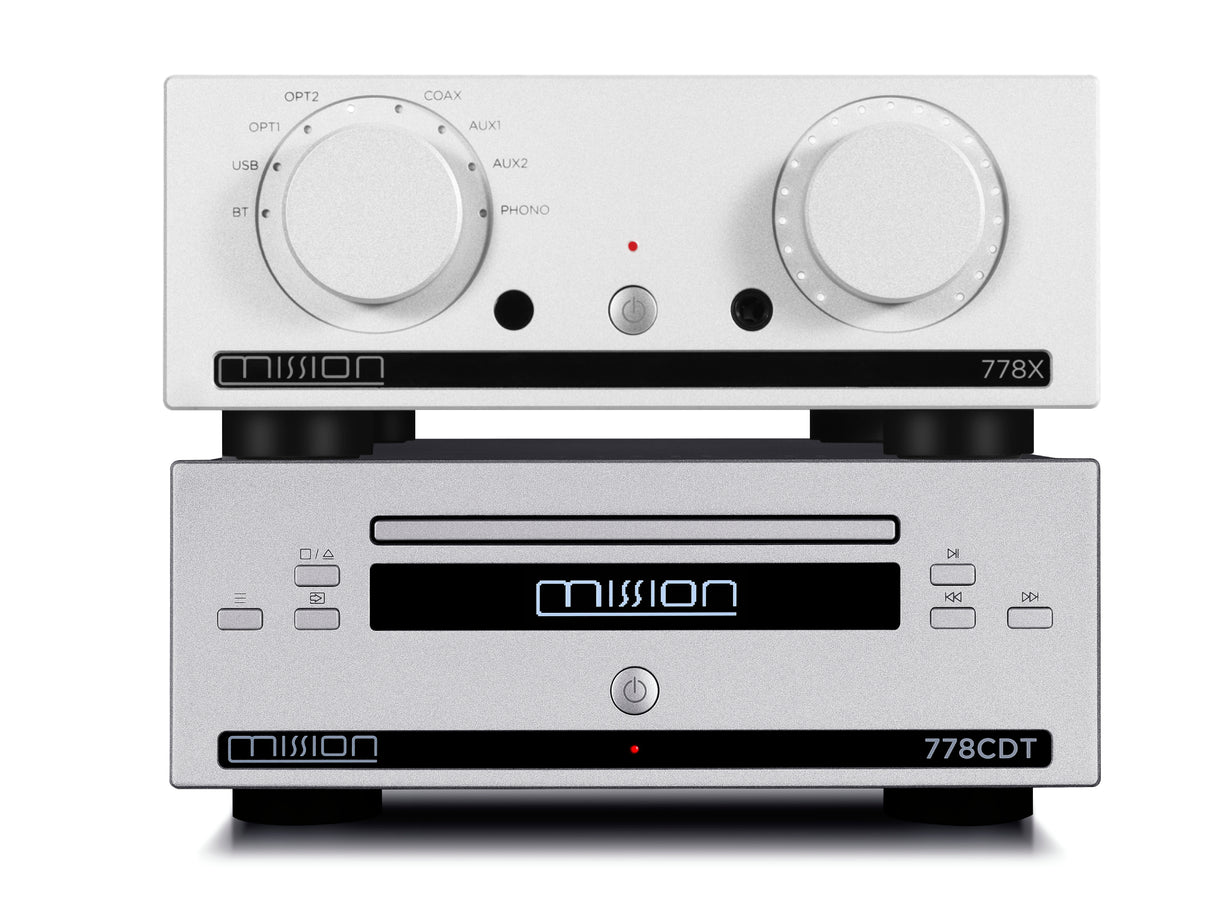

Mission 778X with 778CDT

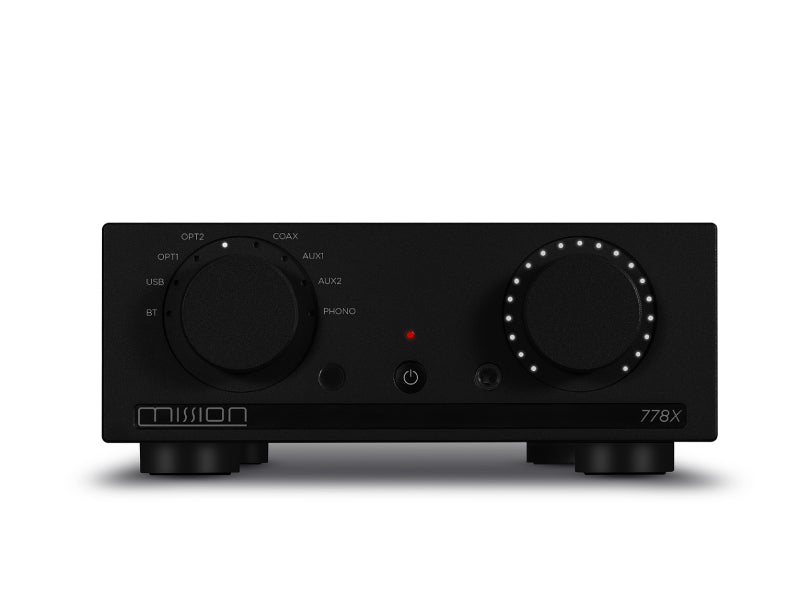

The Mission 778X integrated amplifier is a nod to Mission's original 778 launched way back in 1983. The 778X has much in common with the original, a compact, half-width design that delivers a sound that belies its diminutive footprint. Like the original the Mission 778x sports a useful range of inputs, its circuitry has been entirely redesigned to meet and exceed contemporary standards, the new amp is a great sonic match for Mission’s current range, just as the 778 was in its day.
The Mission 778X ’s all round performance is engaging, detailed and refined. Detail, timing and dynamics excel, regardless of source or medium. Designed for the modern-day music enthusiast with a nod to our heritage, the Mission 778X does not discriminate when it comes to expression and enjoyment of your music reproduction.
Perfect for Turntables
The phono stage is based around a JFET-based circuit with precise RIAA equalisation. It’s optimised for MM cartridges and as such, it’s a high-quality, low-noise input that eliminates any need for an additional phono pre-amp.
Bluetooth wireless connection
Complementing the typical RCA line inputs are digital and coax connection options and a built-in Bluetooth receiver with an aptX and AAC codec, meaning the 778X offers CD performance via Bluetooth wireless connection. The convenience of streaming music from smart devices, such as phones, tablets or PCs have never sounded so good!
High-performance DAC
That’s not all in terms of digital music facilitation. The 778X is also equipped with a high-performance ESS ES9018K2M Reference chip with ESS Technology’s 32-bit HyperStream architecture and Time Domain Jitter Eliminator. In the world of digital music files, this means the 778X offers class-leading, ultra-low noise digital audio file compatibility, with a sampling rate of up to 384kHz (PCM) and DSD256!
Headphone Amplifier
Equal in performance to standalone headphone amplifiers, beyond the price- class of this complete system, the design offers high-speed output signal transition thanks to a high slew rate. The result is a dynamic, detailed and engaging performance with all manner of headphone types.
778CDT CD Transport
The Mission 778X marked the brand’s return to integrated amplification after more than three decades, redefining expectations with its compact size, power, and musicality. Building on that success, the 778CDT applies the same philosophy to CD playback: a focused, uncompromising approach that strips away clutter and places music firmly at the centre of the experience.
Features
- Dedicated CD Transport Design
- Precision transport with advanced servo control
- Ultra-low jitter clocking
- Isolated power architecture
- Flexible digital outputs
- Multi-format disc support
- USB-HDD playback support
- Enhanced remote control
- Stackable heritage design
Mission Heritage And The 778 Series
Mission has long been recognised for products that exceed expectations, combining acoustic excellence, timeless design, and outstanding value. The 778CDT continues this tradition, carrying forward the Mission ethos with confidence. Styled to perfectly complement the 778X Integrated Amplifier and 778S Network Streamer, it completes the 778 Series as a dedicated CD transport designed for purity and seamless system integration.
Precision Engineering At The Core
At the heart of the 778CDT is a custom CD transport mechanism paired with a precision servo control system. This combination ensures stable disc rotation, accurate tracking, and robust error correction. A temperature-compensated crystal oscillator (TCXO) acts as the master clock, significantly reducing jitter and delivering a clean, stable SPDIF signal to the connected DAC.
Clean Signal Design And Digital Outputs
True to Mission’s design philosophy, unnecessary complexity is avoided. Dedicated low-noise power supplies isolate critical sections, including the transport, laser, decoder, and master clock, preventing cross-interference and preserving signal integrity. Digital output is provided via both coaxial and optical SPDIF, ensuring effortless compatibility with the 778X or any high-quality external DAC.
Digital Versatility And Musical Focus
Beyond CD playback, the 778CDT supports USB-HDD playback of high-resolution digital files, including FLAC, WAV, MP3, WMA, and APE. These files benefit from the same precision clocking and low-noise architecture as CDs. Together with the 778X and 778S, the 778CDT forms a compact, stackable hi-fi ecosystem dedicated to musical connection, emotional clarity, and timeless sound.
778X Integrated Amplifier Specifications
| Model: | 778X |
| General Description: | Digital-to-Analogue Converter, Stereo Amplifier |
| Design Philosophy and Core Technology: | • Integrated Amplifier (45 watts @8 ohms, 65 watts @4 ohms) • ESS Sabre32 ES9018K2M Reference Chip • Ultra-low Noise Digital Audio File Compability (384kHz PCM, DSD256) • Bluetooth 5.0 (aptX / AAC) Support • Dedicated High-performance, Low-noise MM Phono Stage • Headphone AMP With High-speed Output Signal Transition • USB Upgrade Support • Large Tractile Controls With LED Level Indicators |

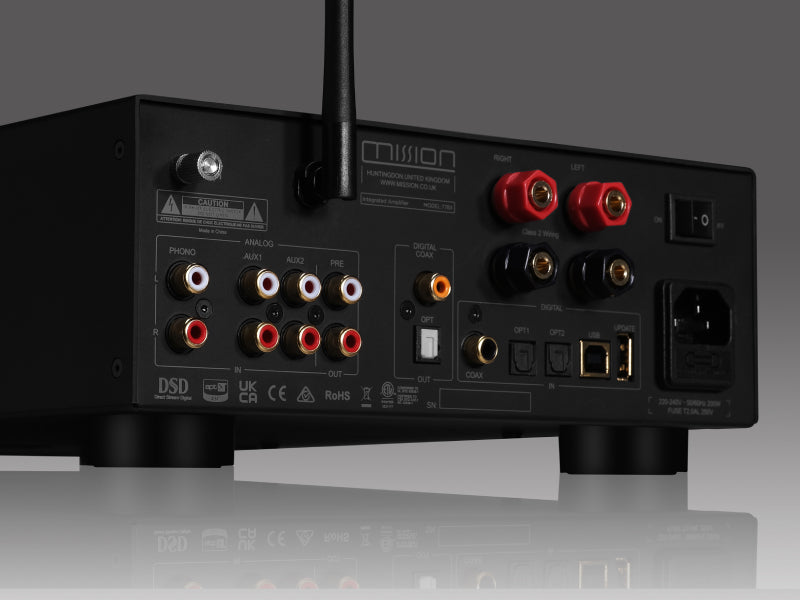

| Inputs: | 1 x Coaxial, 2 x Toslink Optical, 1 x PC USB, 1 x Bluetooth (aptX/AAC), 2 x AUX,1 x RCA (Phono MM) |
| Outputs: | 1 x Coaxial, 1 x Toslink Optical, 1 x RCA (PRE Out) |
| Sampling Frequency: | Optical / Coaxial: 44.1kHz-192kHz; PC USB:44.1kHz-384kHz(PCM) / DSD64, DSD128, DSD256 |
| Preamplifier Section: | |
| Gain: (max.) | +0dB (Line), +47dB (Phono MM) |
| Input Sensitivity: | 540mV (Line, Volume = 0dB); 2.5mV (Phone MM, Volume = 0dB) |
| Input Impedance: | 10K (AUX); 47K//100pF (Phono MM) |
| Total Harmonic Distortion: (THD) | <0.003% |
| Frequency Response: (ref. 1kHz) | 20Hz-20kHz (±0.1dB) |
| PRE Output Level: | 2.1Vrms (max.) |
| PRE Output SNR: | >110dB (A-weighted) |
| DAC: | |
| D to A Converter: | ESS Sabre32 ES9018K2M |
| Resolution: | 32-bit |
| Max. Sampling Frequency: | Optical/Coaxial: 192kHz; |
| USB: PCM 384kHz / 11.2896MHz (DSD256) | |
| Total Harmonic Distortion: (THD) | < 0.001% (1KHz @ 0dBFS) |
| Output level: (0dBFS, 1KHz) | 2.1Vrms |
| Power Amplifier Section: | |
| Gain: | +31dB |
| Rated Power Output: | 2x45W(@8ohms); 2 x 65W (@ 4 ohms) |
| Frequency Response: (ref. 1kHz) | 20Hz-20KHz (± 0.5dB) |
| Total Harmonic Distortion: (THD) | <0.005% (30W / 8 ohms) |
| Input Sensitivity: | 540mV (RCA AUX In); 2.5mV (Phono MM) |
| Signal-to-Noise Ratio: (SNR) | >108dB (ref. 45W, A-weighted) |
| Crosstalk @1K: | >80dB (ref.1W) |
| Standby Power Consumption: | <0.5W |
| Headphone Amplifier: | |
| Total Harmonic Distortion: (THD) | < 0.01% (1kHz, 50mW ) |
| Output Impedance: | 4.7 ohms |
| Load impedance: | 20-600 ohms |
| General: | |
| Dimensions: (mm) (W x H x D) | 236x98x380.6 |
| Carton Size: (mm) ( W X H X D) | 450x392x175 |
| Net Weight: | 6.3kg |
| Finish: | Black / Silver |
| Power requirements: (depending on region) | 220-240V ~ 50/60Hz; 100-120V ~ 50/60Hz |
778CDT CD Transport Specifications
| General Description: | CD Transport |
| Design Philosophy And Core Technology: | High-end CD mechanism with a precision optical system |
| USB Storage Device Audio Format: | WAV, MP3, WMA, AAC, FLAC, APE format playback |
| USB Storage Device File System: | Supports FAT16 / FAT32 / exFAT formats |
| Digital Output Amplitude: | 500 ±50 mVpp |
| Output Impedance: | 75 Ω |
| Frequency Response: | -0.01 dB (20 Hz–20 kHz, ref. 1 kHz) |
| Sampling Rate: | 44.1 kHz |
| Digital Output Interface: | 1 × Coaxial, 1 × Optical |
| Standby Power Consumption: | < 0.5 W |
| Power Requirements (According To Region): | 220–240 V ~ 50 / 60 Hz100–120 V ~ 50 / 60 Hz |
| Product Size W × H × D (Mm): | 236 × 96 × 357 |
| Carton Size W × H × D (Mm): | 470 × 161 × 514 |
| Net Weight: | 5.04 kg |
| Gross Weight: | 6.74 kg |
| Finish: | Silver / Black |
