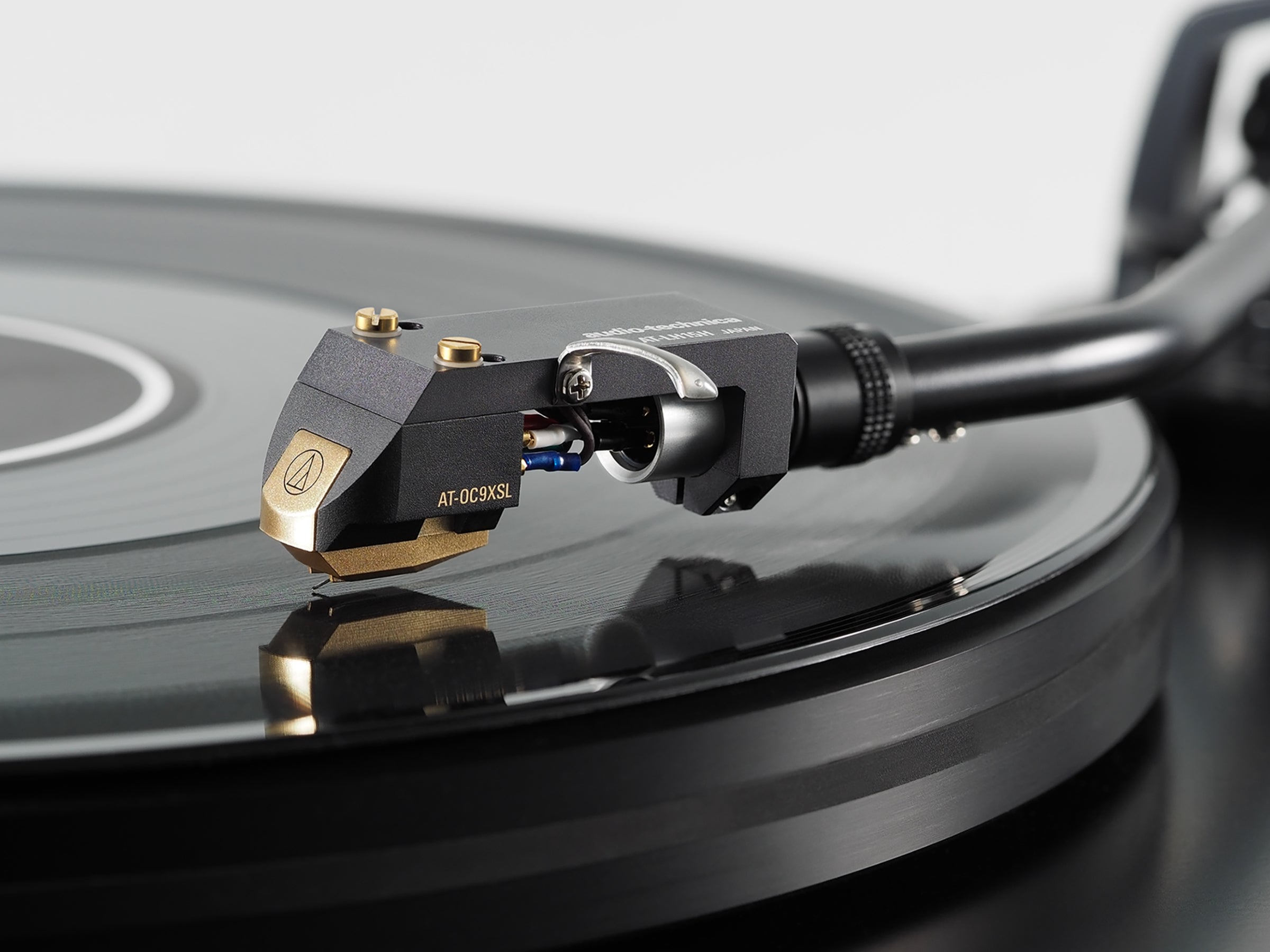

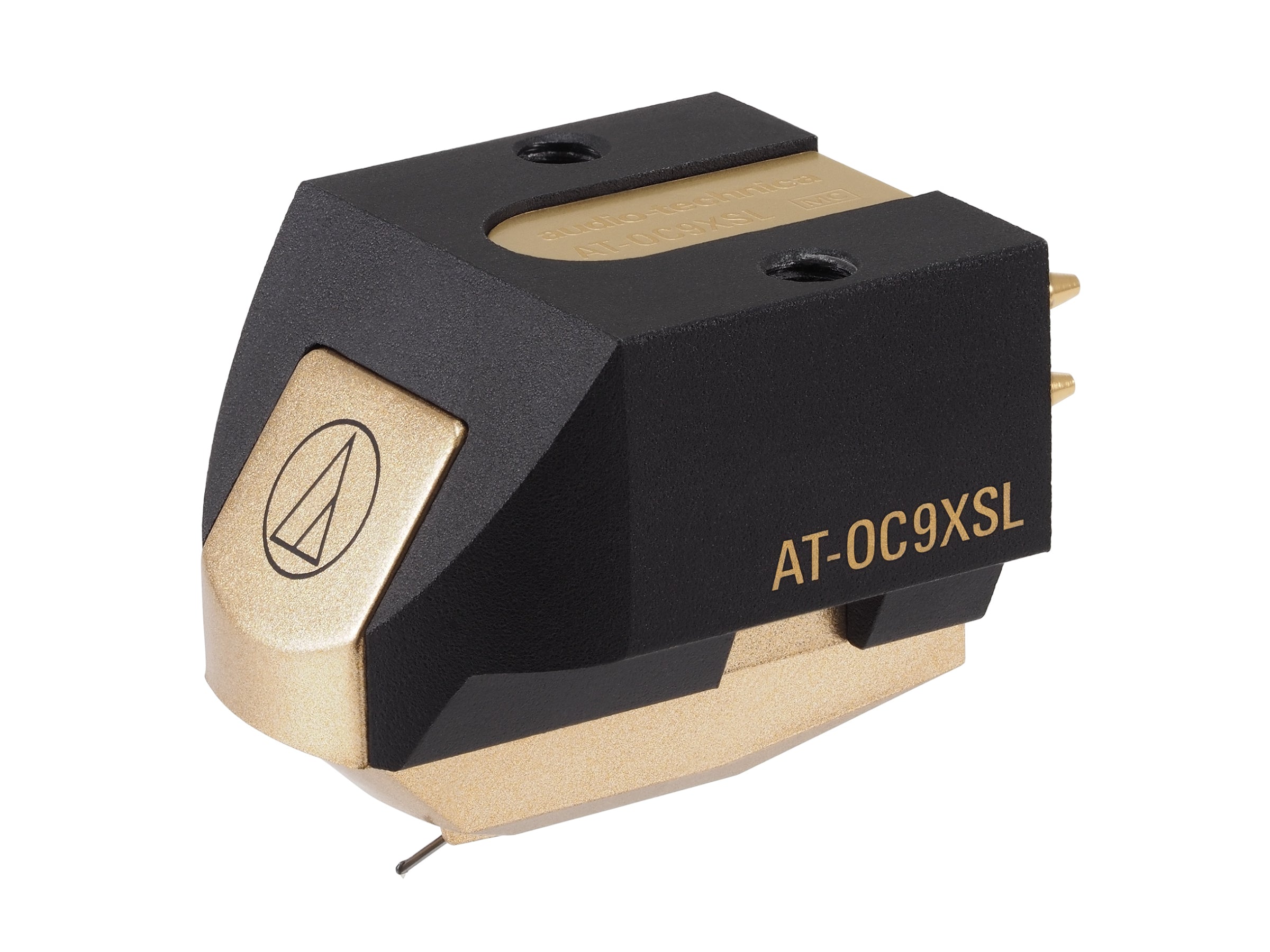

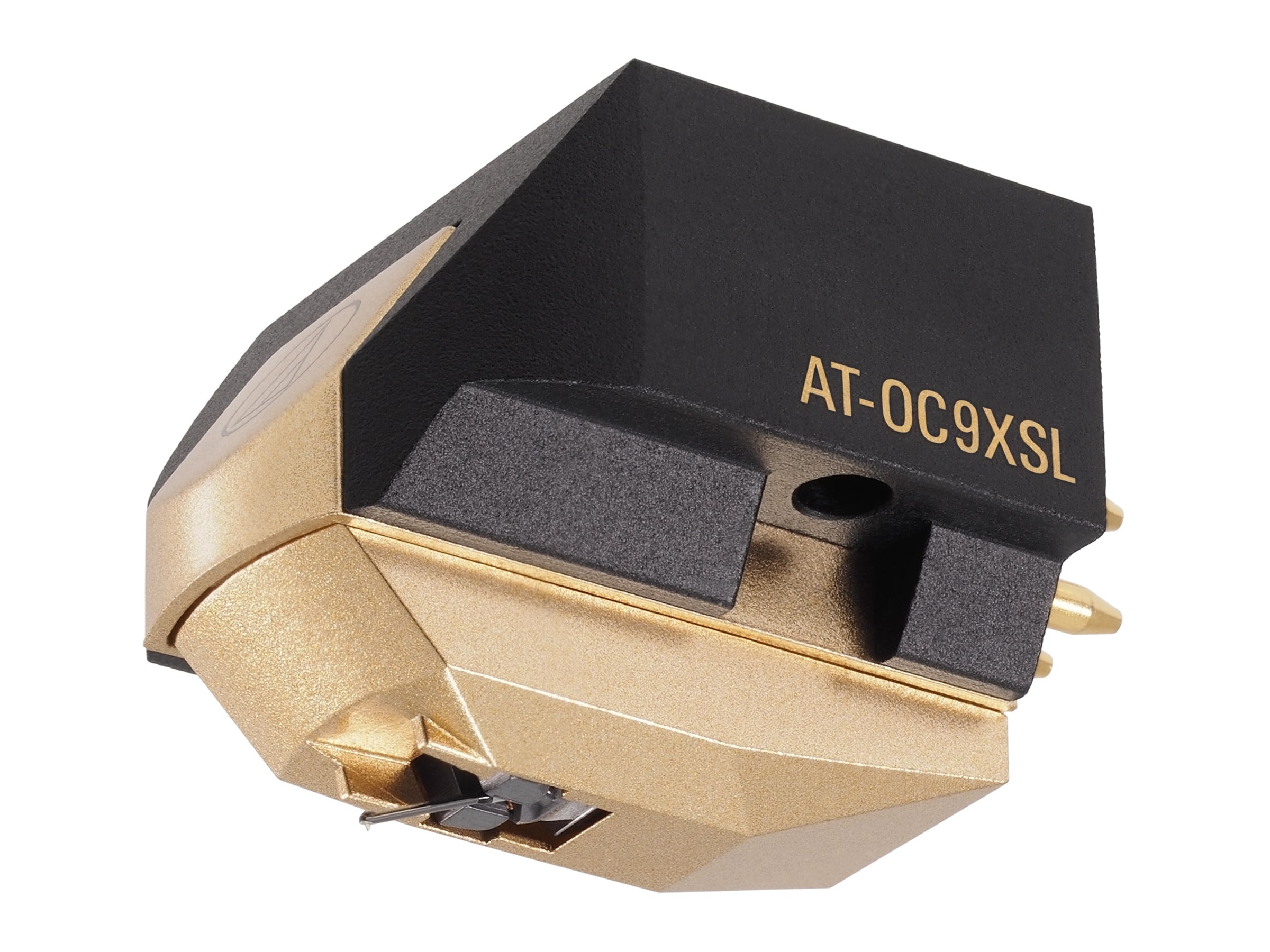

Audio Technica AT-OC9XSL Dual Moving Coil Cartridge
AT-OC9XSL
Dual moving coil stereo cartridge with Special Line Contact stylus.
For over 30 years, Audio-Technica's pioneering moving coil OC9 cartridge series has been esteemed by discerning vinyl enthusiasts and professional critics alike for its musical transparency, expressive sound, and precise construction. Featuring a Special Line Contact diamond profile, as seen in Audio-Technica's flagship ART1000, the Audio Technica AT-OC9XSL provides unparalleled sonic accuracy, delivering a sense of space and realism to instruments that few other configurations can match.
Features
- Nude Special Line Contact stylus and boron cantilever with accurate tracking ability and high transient response
- A neodymium magnet and permendur yoke provides dramatically increased magnetic energy
- Threaded inserts in the cartridge body enable the cartridge to be mounted on to the headshell or integral tonearm with just two screws – no nuts required
- Aluminium body minimizes unwanted vibration for reduced resonance and a superior audio reproduction
- Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve pure signal transfer
Special Line Contact Stylus
Special Line Contact diamond profile offers the ultimate in accurate sonic reproduction
Easy mounting
Threaded holes in the cartridge body enable the cartridge to be mounted on to the headshell, or integral tonearm, with just two screws M2.6 – no nuts or bolts required.
Aluminium Body
Aluminum body minimizes unwanted vibration for reduced resonance and superior audio reproduction
Made in Japan
Produced in the Audio-Technica Fukui factory in Japan under strict quality control for precise manufacturing.
Specifications
| Cartridge & Stylus | |
|---|---|
| Frequency Response: | 20 - 50,000 Hz |
| Channel Separation: | 28 dB (1 kHz) |
| Vertical Tracking Angle: | 20 degrees |
| Vertical Tracking Force: | 1.8 to 2.2 g (standard 2.0 g) |
| Stylus Construction: | Nude rectangular shank |
| Recommended Load Impedance: | Min 100 Ohms |
| Coil Impedance: | 12 Ohms (1 kHz) |
| DC Resistance: | 12 Ohms |
| Coil Inductance: | 25 μH (1 kHz) |
| Output Voltage: | 0.4 mV (@ 1 kHz, 5 cm/sec) |
| Output Channel Balance: | 0.5 dB (1 kHz) |
| Stylus Shape: | Special Line Contact |
| Cantilever: | 0.28 mm Ø nude boron |
| Static Compliance: | 22 x 10 – 6 cm / dyne |
| Dynamic Compliance: | 18 x 10 – 6 cm / dyne (100 Hz) |
| Mounting: | 1/2” centers / Threaded inserts |
| Cartridge Weight: | 7.6 g |
| Dimensions: | 17.3 (H) x 16.8 (W) x 25.7 (L) mm |
| Accessories Included: | 1 non magnetic screw driver 1 brush 2 washers 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm 1 plastic protector |
| Body Material: | Aluminium |
| Model: | AT-OC9XSL |
| Stylus Size: | 1.5 x 0.28 mil |
| Terminal Pins: | Brass |
| Wire Used for Coil: | PCOCC (Copper by Ohno Continuous Casting process.) |
