Pro-Ject 'Yellow Submarine' Turntable
Couldn't load pickup availability
Pro-Ject 'Yellow Submarine' Turntable
After successfully working with The Beatles for a series of turntables previously, Pro-Ject Audio Systems also chose to work with the band again to introduce their fifth - and most striking - Beatles record player.
Features
- Iconic Yellow Submarine Design
- Belt-Drive System
- Ortofon Concorde Sonar Cartridge
- Vibration-Absorbing Feet
- Glass Platter
- Rigid MDF Chassis
- Aluminum Tonearm
- Sapphire-Tonearm Bearing
- Gold-Plated Contacts
- Silicon Belt
- Handcrafted in Europe

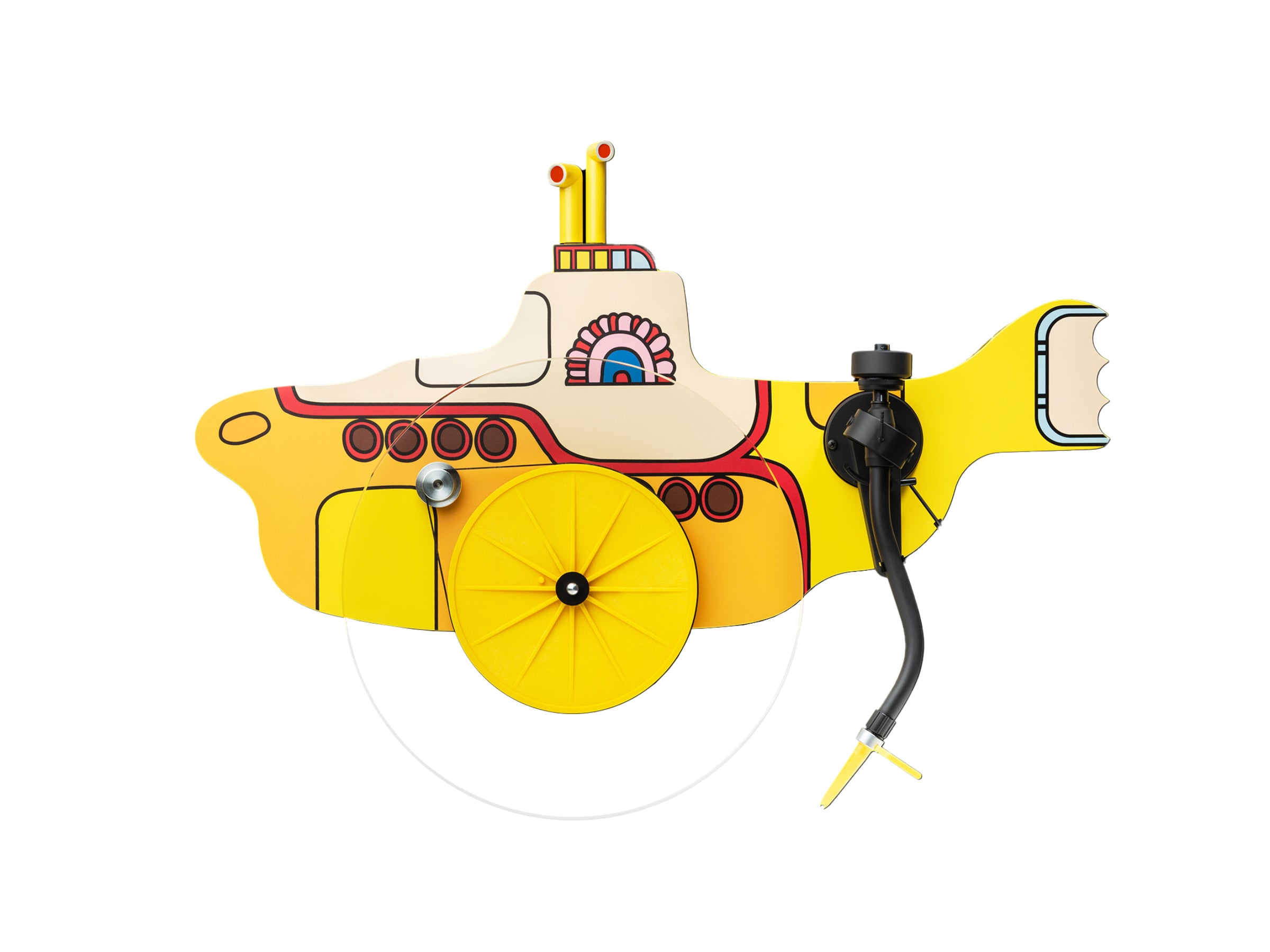

The Yellow Submarine turntable is a distinctive design, with a totally unique shape to match the Yellow Submarine itself. The addition of a glass platter ensures the whole turntable remains on view when not in use, and also adds a lively sonic character to the hi-fi quality sound.

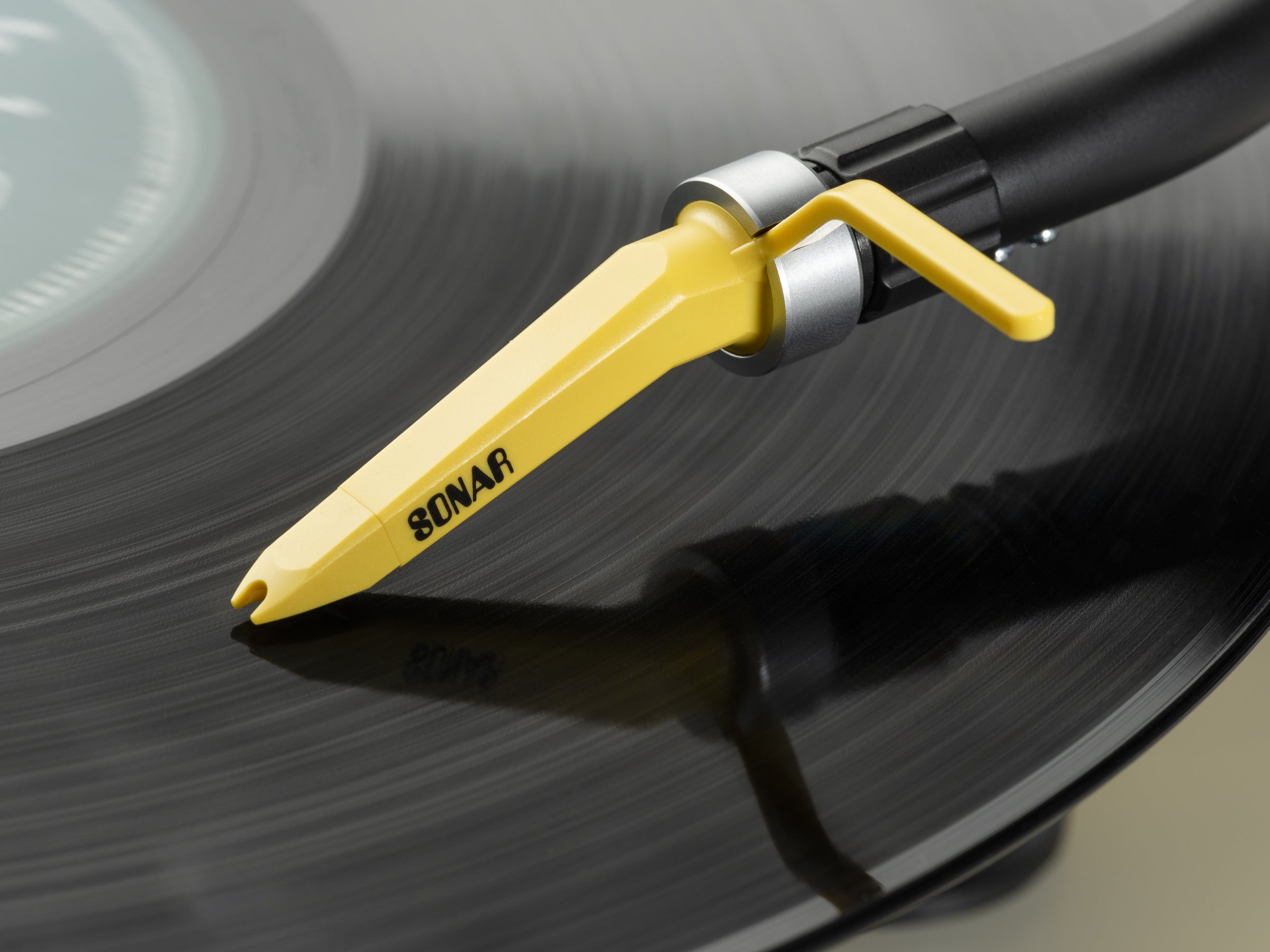

The supplied cartridge is a new Concorde design from cartridge pioneers Ortofon. Called Sonar, when the cartridge is mounted on the S-shaped aluminium tonearm the sound performance is engaging and enjoyable. Special decoupling feet make sure that the turntable is safely standing on its ground without worrying about vibrations.
Specifications
| Speed: | 33, 45 (manual speed change) |
| Principle: | Belt drive |
| Speed Variance: | 33: 0.60%, 45: 0.50% |
| Wow & Flutter: | 33: 0.19%, 45: 0.17% |
| Platter: | 300 mm glass with felt mat |
| Main Bearing: | Brass with teflon plate |
| Tonearm: | 8.6” aluminium |
| Effective Arm Length: | 218.5 mm |
| Output Voltage at 1000 Hz, 5cm/sec: | 5 mV |
| Frequency Response: | 20-20,000 Hz ± 1.5 dB |
| Stylus Type: | Spherical |
| Internal Inductance: | 450 mH |
| Recommended Load Resistance: | 47 kOhm |
| Recommended Load Capacitance: | 200-500 pF |
| Cartridge Weight: | 19g |
| Overhang: | 18.5 mm |
| Effective Tonearm Mass: | 6.0 g |
| Counterweight for Mass: | 2 - 5.0 g |
| Tracking Force, Recommended: | 1.75g (17.5mN) |
| Power Consumption: | 4.5 Watt max |
| Dimensions: | 500 x 120 x 400 mm (WxHxD) |
| Weight: | 4.5 kg net |
