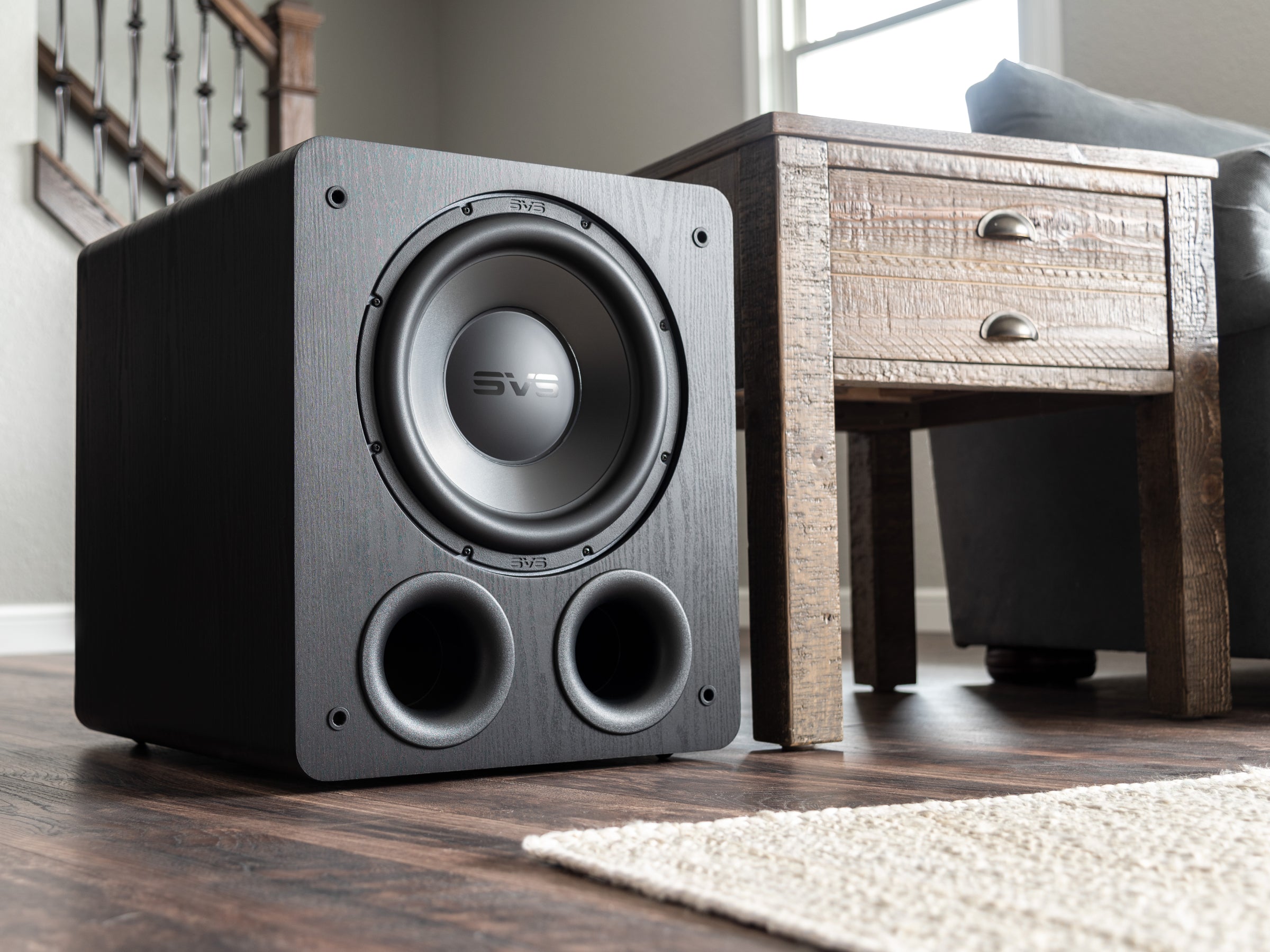

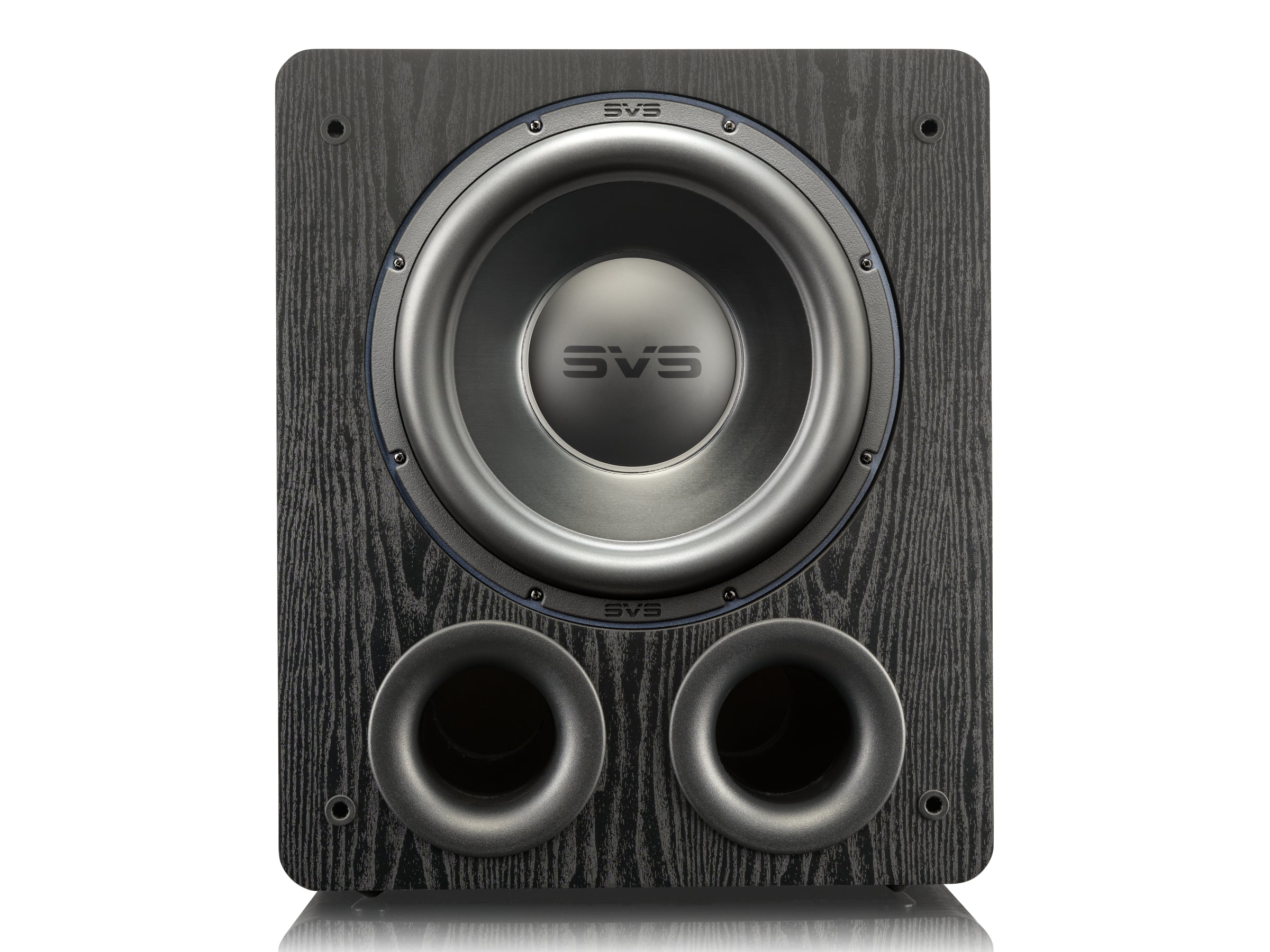

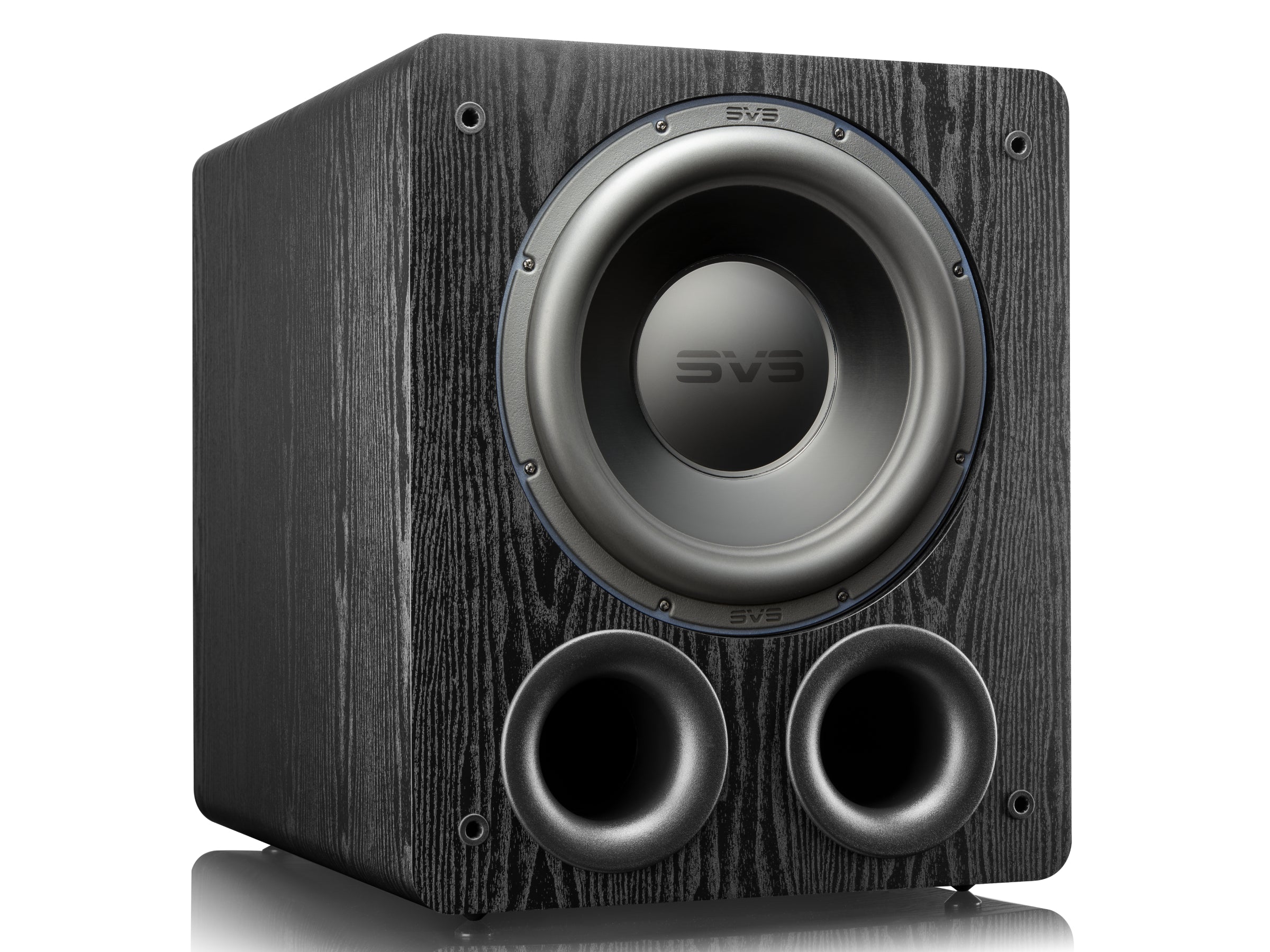

SVS PB-3000 R|Evolution Subwoofer
Breathtaking, room-pressurising output down to a staggering 16Hz with the control and refinement of a true reference subwoofer. PB-3000 R|Evolution delivers a transformative cinematic and musical experience with massive sonic impact you can feel and incredible detail resolution.
PB-3000 R|Evolution turns every musical and cinematic moment into an event. Built around an all-new 13-inch SVS high-excursion driver and 1,200-watt continuous MOSFET amplifier, the ported cabinet subwoofer delivers deep, tactile bass with extraordinary speed, control, and tonal accuracy. Explosive dynamics, ultra-low distortion, and effortless output energise your room with bass that hits harder, digs deeper, and stays clean while rising to the demands of any audio content.
Reference subwoofer performance
A subwoofer should not just be heard — it should be felt, lived, and remembered. The 3000 R|Evolution Series embodies that philosophy. Building on flagship SVS 17-Ultra R|Evolution Series technologies that raised the bar for performance, these models deliver unrivalled output, extension, and transient response with untraceable distortion.
3000 R|Evolution is the culmination of more than 20 years of SVS acoustic breakthroughs — engineering that elevates music, home theatre, and gaming into emotionally charged, high-impact experiences. These subwoofers do not just play bass; they unleash it with precision, musicality, and authority that captivates listeners and reshapes expectations.
PB-3000 R|Evolution combines the most sophisticated SVS subwoofer technology ever developed with trailblazing innovations to set a new standard for ported subwoofer performance in its class and beyond.
Breakthrough driver architecture
The beating heart of PB-3000 R|Evolution is an all-new high-excursion 13-inch driver with groundbreaking voice coil design engineered for immense, effortless output with surgical accuracy.
- Flat-edge split-wind voice coil maximises magnetic force at high excursion while maintaining ultra-low mass for responsiveness and efficiency, resulting in room-shaking output with unerring accuracy and a highly visceral experience
- Two-piece toroidal ferrite magnet overhung motor maintains precise linearity to drive the highest levels of excursion, SPL, and start/stop power for the deepest, most authoritative bass possible from a 13-inch driver
- Rigid 1100 pure aluminium cone is lightweight and neutral for convincing, distortion-free output, even at extreme levels
- Long-throw extreme-excursion SBR surround maintains ideal pistonic motion while enabling massive driver movement for clean, room-pressurising low-end performance
STA-1200D2 MOSFET amplifier
Conservatively rated at 1,200 watts continuous and 4,000+ watts peak power, the STA-1200D2 amplifier maximises the 13-inch driver’s full potential with effortless power and absolute control.
The pioneering design combines the efficiency of a Class D amplifier with the ability to move massive current through fully discrete MOSFETs for outstanding real-world subwoofer performance at all drive levels.
- High-current MOSFET output with Class D efficiency allows the amplifier to move massive amounts of current through the fully discrete MOSFETs, enabling the 13-inch driver to exceed reference levels with precision and control
- Performance-enhancing switch mode power supply (SMPS) maximises system performance and reliability under all operating conditions by monitoring amplifier and AC mains voltage/current alongside multiple temperature sensors
- Premium-grade 56-bit digital audio processing and premium DACs (Digital-to-Analog Converters) with more than 120dB signal-to-noise ratio provide greater headroom, lower noise, and flawless fidelity
- Balanced XLR 18kohm input supports pristine audiophile performance and long-distance cable runs, while remaining compatible with consumer and professional audio systems
The brains behind the brawn
Orchestrating the cutting-edge amplifier, motor, and driver ecosystem is the most sophisticated DSP ever deployed in a home audio subwoofer.
- Accurately shapes in-room frequency response with absolute precision for faithful signal reproduction
- Monitors every function of the amplifier to stabilise AC voltage delivery and maintain consistent peak output
- Multi-point thermal, voltage, and current monitoring systems ensure maximum output and efficiency
- Advanced digital audio processing and DACs with 120dB signal-to-noise ratio provide greater headroom, lower noise, and pristine fidelity
Smartphone control app
Convenient subwoofer tuning and control from the comfort of your favourite seat. Works via Bluetooth with Apple iOS, Google Android, and Amazon Fire platforms.
- Controls for volume, low-pass filter, phase, polarity, six parametric equalisers, room gain compensation, tuning modes, power management settings, and more
- Three memory presets save system settings matched to your listening preferences, including music, movies, and night mode
- Variable port tuning modes with included port plugs enable customised frequency response curves for Standard and Sealed modes, allowing tuning for maximum output or deep bass extension and transient speed
Braced ported cabinet design
Dual-ported cabinet delivers deep subterranean bass extension with room-energising output that fills even the largest home theatres.
- Rigid MDF front baffle and extensive internal bracing support the massive drive unit and ensure an acoustically inert environment
- Two high-flow 3.5-inch rounded ports enable massive airflow for greater dynamic headroom without any port noise
- Highly reinforced internal design and acoustic insulation eliminate all colouration and resonance from the cabinet, even at reference volume

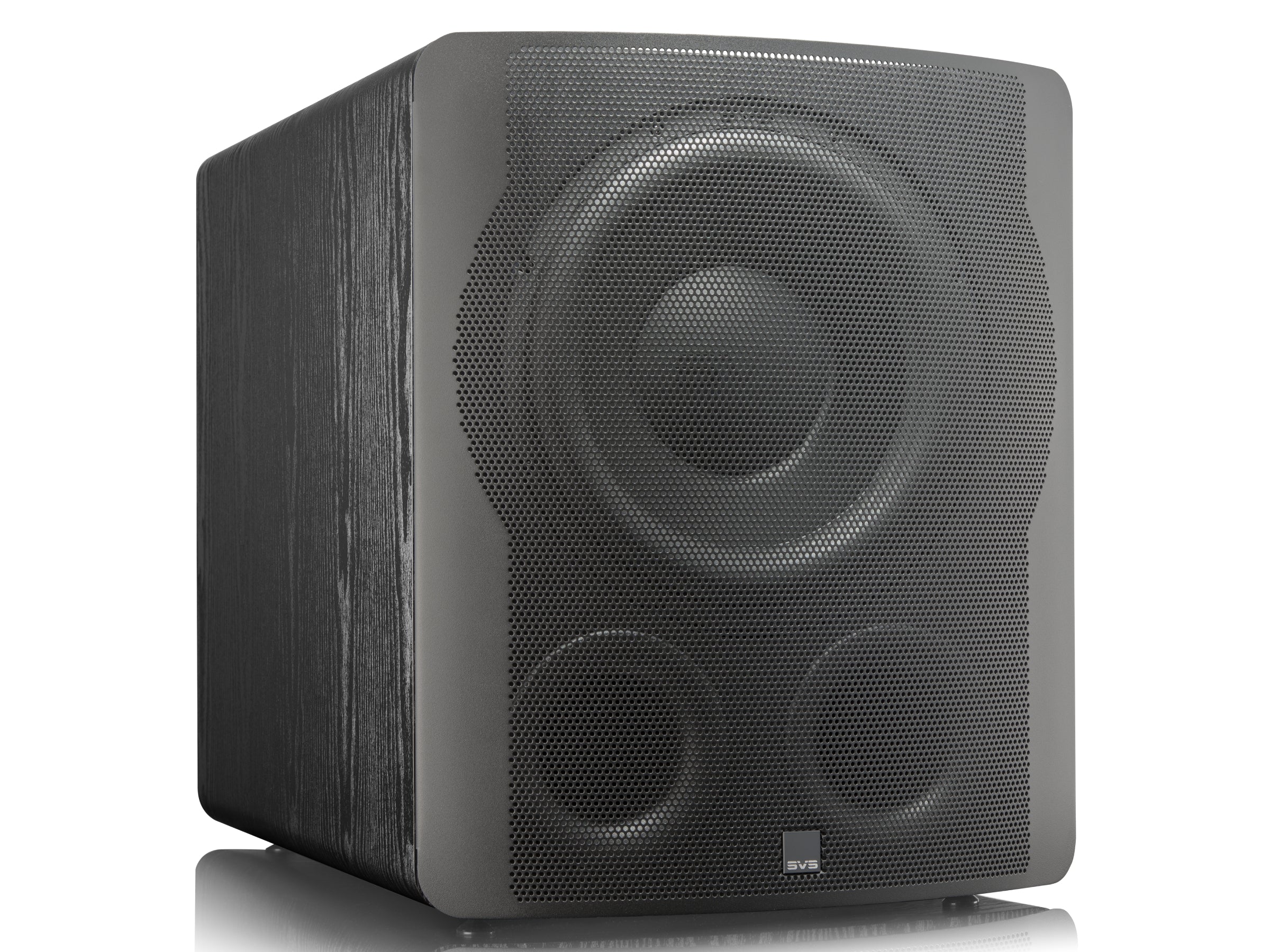

- Protective non-resonant extra-thick ABS grille frame with fabric mesh cover shields the driver while ensuring longevity
- Custom elastomer feet reduce noise artefacts within a room

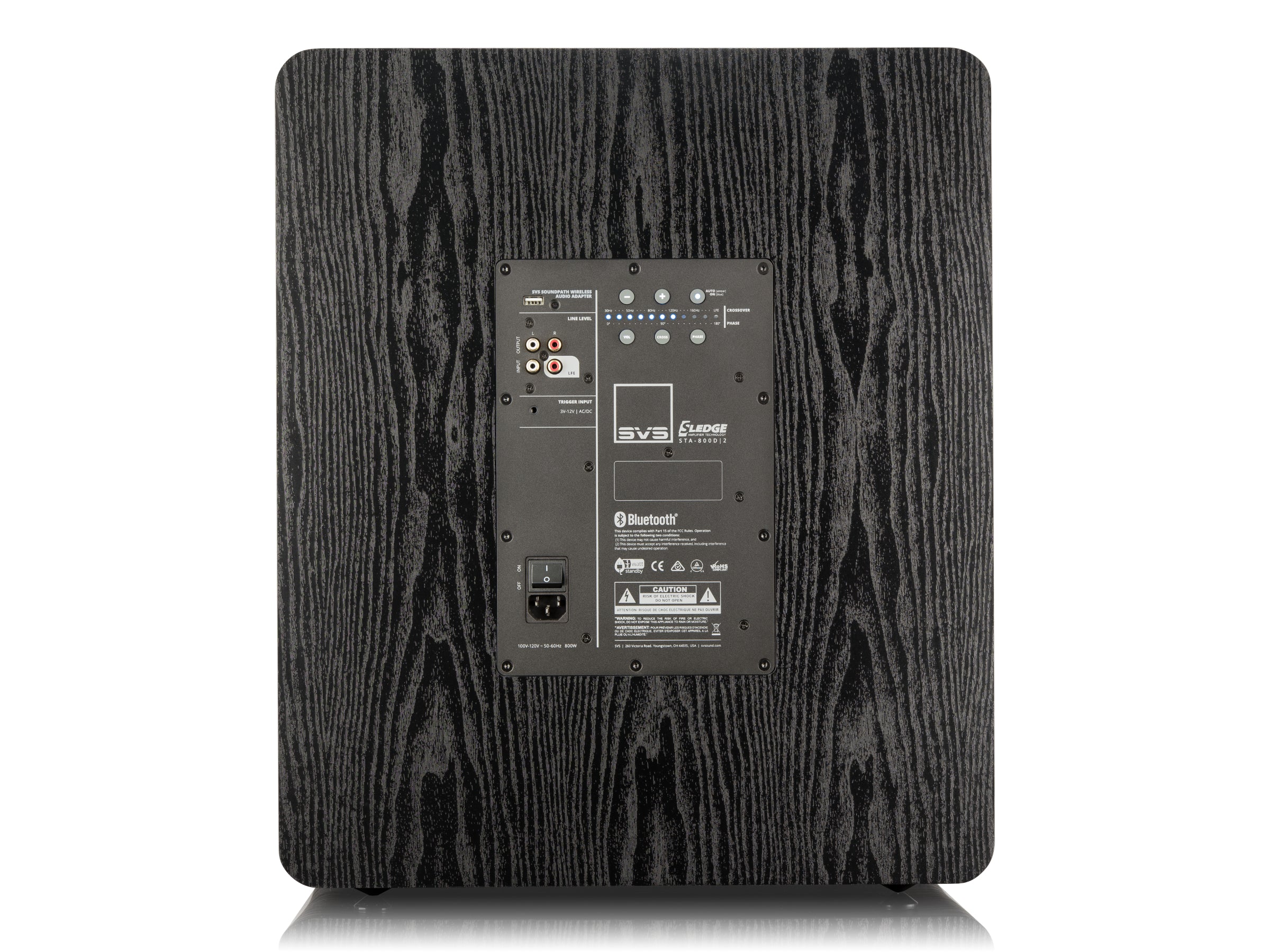

- Rear panel OLED and control interface provide fast and direct control of key features, including a convenient “Display Flip” function
Specifications
| Frequency Response / Acoustic Data: |
16Hz–235Hz ±3dB (standard mode – all ports open) 17Hz–270Hz ±3dB (sealed mode – all ports sealed) Expect 2–3Hz deeper extension in small to mid-sized rooms Roll-off slope specifically optimised to take maximum advantage of available room gain 2-metre ground plane away from reflective structures (quasi-anechoic) 20% to 60% lower acoustic THD+N in critical low-frequency bandwidth compared to previous generation |
| Subwoofer Specs: |
Premium Black Ash finish Front-firing 13-inch high-excursion driver Dual high-flow 3.5-inch ports Amplifier rear panel OLED and control interface provide fast and direct control of the most important features and include a convenient “Display Flip” function Protective non-resonant extra-thick ABS grille frame with fabric mesh cover shields driver to prevent damage while ensuring longevity Robust Medium Density Fibreboard (MDF) cabinet construction with internal bracing for resonance-free performance at highest drive levels Screw-in iso-elastomer feet reduce noise artefacts and improve stability Dimensions (with grille): 21.9in (557mm) H × 18.3in (465mm) W × 24.7in (626mm) D Dimensions (without grille): 21.9in (557mm) H × 18.3in (465mm) W × 23.5in (597mm) D Shipped dimensions: 26.6in (675mm) H × 24.4in (619mm) W × 29.1in (739mm) D Weight (unboxed): 85.1lb (38.6kg); shipped weight: 104.3lb (47.3kg) |
| Driver Specs: |
Proprietary 13-inch long-throw driver with high-precision tuned overhung motor configuration 24.1lb (10.5kg) woofer with 18.5lb (8.4kg) motor; 30.1mm Xmax, 72.9mm Xmech precision-aligned excursion SVS industry-leading flat-edge wound split-wind voice coil provides maximum magnetics at high excursion while reducing mass and improving overall driver efficiency, built around a premium-grade aluminium 2-inch former for maximum thermal conductivity Two massive dedicated toroidal Y30 ferrite magnets generate unparalleled magnetic force for the deepest and most authoritative bass possible High-density FEA-optimised powder-coated cast aluminium basket provides exceptional rigidity, tensile strength, and energy transference Two balanced 24-strand silver-plated Litz wire high-temperature leads woven through the 6.5-inch 2-ply Nomex composite linear spider provide pristine electrical connection from amplifier to voice coil Vented 13-inch 1100 aluminium cone ensures a light, rigid, and neutral radiating surface Precision-machined motor elements and narrow-tolerance suspension parts produce unmatched linearity at full excursion for exceptionally tight and fast output Oversized low-carbon T07A steel T-yoke and SPHC steel top plate provide superior cooling and improved magnetics 6063 aluminium shorting sleeve reduces gap induction and distortion while improving magnetic linearity Nickel-plated high-tension spring terminals Proprietary injection-moulded gasket and SBR extreme-excursion surround maintain ideal pistonic motion for pinpoint accuracy and control |
| Amplifier Specs: |
Massively powerful 1,200-watt continuous Class D design with over 4,000 watts of peak power 50% higher continuous power output than previous generation High-resolution 295MHz Analog Devices Audio DSP with double-precision 56-bit filtering and over five times the processing power of previous subwoofers Switch mode power supply (SMPS) employs dual discrete 65MHz PMUs working with DSP to monitor amplifier output voltage/current, AC mains voltage/current, and multiple temperature sensors for optimal performance and reliability DSP runs real-time power management algorithms monitoring power, driver excursion, and current thousands of times per second Advanced audiophile-grade 56-bit digital audio processing and premium DACs with more than 120dB signal-to-noise ratio provide greater headroom, lower noise, and flawless fidelity Discrete Class D amplifiers create effortless power from four 60A 200V MOSFETs with lower EMI and high efficiency All-new SMPS with high-efficiency resonant LLC ensures consistent regulated 160V rail voltage <0.05% THD+N at rated power, 70% to 90% lower than previous generation; new convective cooling plate design eliminates the need for external heatsinks Customer EQ and DSP limiter settings specifically for the 3000 R |
| SVS App Specs: |
Compatible with Apple iOS, Google Android, and Amazon Fire platforms SVS Subwoofer Control Smartphone app allows convenient and intuitive management of all subwoofer controls Analog Devices DSP supports volume, fully adjustable low-pass filter, phase, polarity, six PEQs, room gain compensation, tuning modes, power management settings, and more Includes three convenient memory presets for fast and easy global system adjustments Subwoofer Auto Room Equalisation (coming soon) will use your mobile device microphone or optional accessory microphone to optimise in-room performance Unique bidirectional feedback shows adjustments in real time on both app and subwoofer interface Easy-to-follow tutorial provides clear guidance for all functions |
| Included Accessories: |
Protective non-resonant extra-thick ABS grille frame with fabric mesh cover 2 foam port tuning plugs iso-elastomer feet; extra heavy-duty high-current 6ft power cord Quick Start Guide |
