Arcam SA45 + KEF R3 META + Cables
Couldn't load pickup availability
Arcam SA45 + KEF R3 META + Cables
The ARCAM SA45 is designed for dedicated music lovers who seek both power and precision in their listening experience. It integrates advanced technology to capture even the most delicate details in music, ensuring that subtleties, nuances, and excitement are preserved.
Expertly Crafted
Expertly crafted in Cambridge, UK, it builds on the legacy of the ARCAM A49 amplifier, featuring fully balanced digital and analogue audio paths, a new digital streaming platform, and a linear toroidal power supply for optimal performance.
Features
- All new, ultra High-Resolution Streaming Platform to deliver on sound quality and user experience.
- ARCAM Class G Amplification with 2x 180W of ultra-low distortion power.
- Balanced analogue and digital audio paths.
- MM & MC Phono inputs.
- HDMI eARC input.
- Dual Subwoofer outputs and Dirac Live Room Correction.
- High-resolution display for clealy visible album artwork and metadata.
- Supports Apple Airplay, Chromecast, Spotify Connect and Tidal Connect.
- Setup with ARCAM Radia App for presets, Internet Radio and Podcasts.
- Supports up to 32 bit / 768 kHz Hi-res audio.
- Roon Ready (after launch).
Hyperstream
The SA45 achieves exceptional sound quality through a new 6-layer digital audio and streaming platform. This design includes a ground plane that eliminates noise and interference, protecting sensitive audio components. The system also features ESS’s latest Hyperstream iV DAC in a balanced configuration, with advanced jitter elimination for pristine sound. The linear toroidal power supply further reduces noise, ensuring efficient performance, while a standby switching supply operates for peak efficiency.
Rich Class G Power
Drawing on decades of innovation, the SA45’s 5th generation Class G amplifier design delivers superior sound quality and dynamics. This amplifier is renowned for being more efficient than traditional Class amplifiers, with components and materials meticulously selected for uncompromised audio performance. This ensures that the SA45 produces dynamic and rich sound, perfect for any audiophile.
Beautiful Screen
The SA45 is equipped with a large 8.8″ high-resolution display, making it easy to view album artwork and metadata.
Your Music, Your Way
It supports a wide range of devices and streaming services, including Apple Airplay, Google Chromecast, Spotify Connect, Tidal Connect, and Roon. Easy to set up via Wi-Fi with the ARCAM Radia App, the system also offers compatibility with Amazon Music, Qobuz, and global internet radio. With Dirac Live Room Correction and subwoofer outputs, the SA45 is adaptable to any room and speaker configuration, ensuring an immersive audio experience.

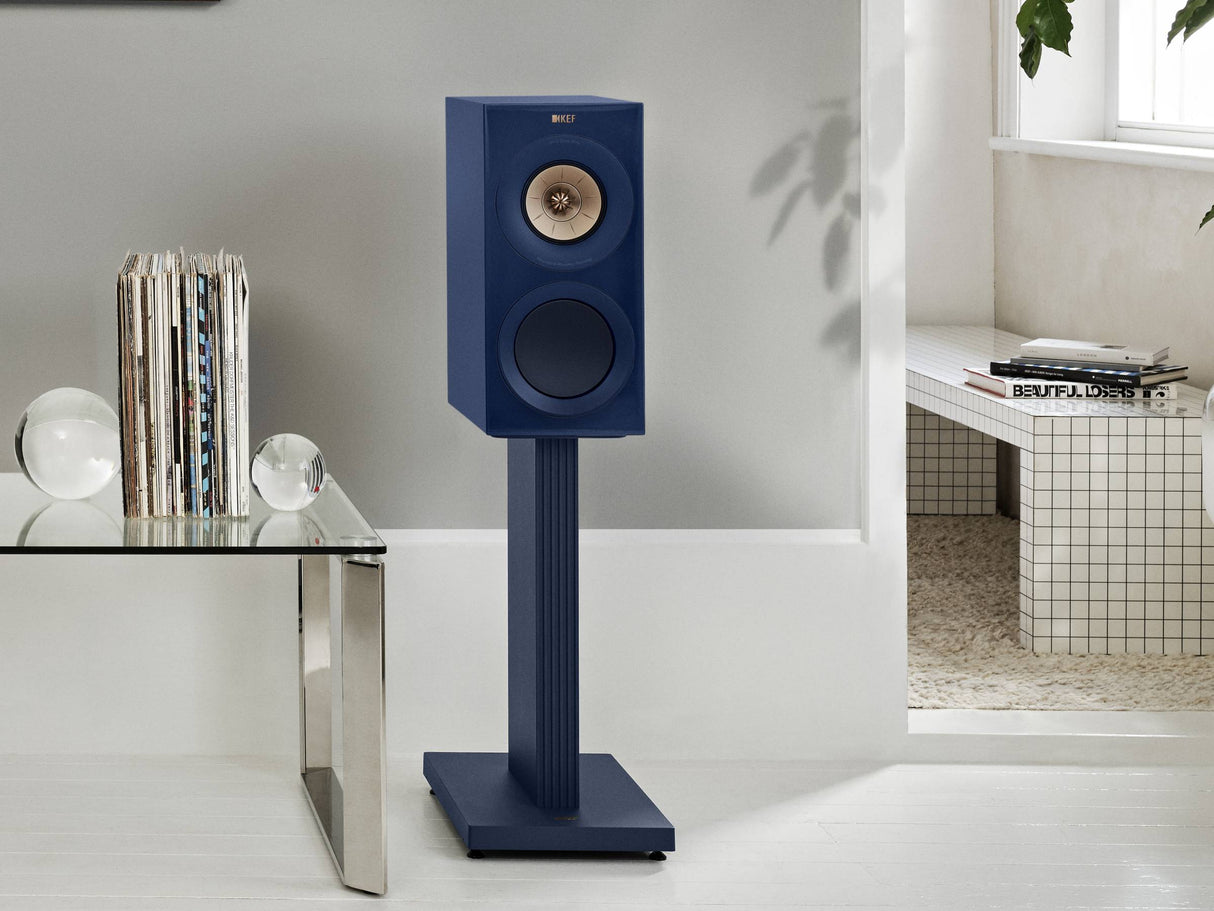

Superior KEF sound
A bespoke 12th generation Uni-Q driver array with MAT is found in all seven models of the R Series and delivers an incredibly detailed performance. It’s the result of decades of accumulated in-house knowledge and the application of cutting-edge simulation and analysis tools. The developments are many and all play a part in R Series’ exceptional performance.
The result is an exceptional seven-model range of loudspeakers, engineered to deliver with exquisite detail and incredible insight. Whether your taste lies with traditional two-channel HiFi, multi-channel home theatre or both, the R Series reveals levels of detail that must be heard to be believed.
Deep, agile bass
Bass is a vital element of performance, and the low-frequency drivers of R Series have been engineered with acute care and precision. They are built using a two-part structure, where a shallow concave aluminium skin sits atop a paper cone. This stiffness combined with the cone’s unique geometry reduces unwanted resonances and delivers the pistonic movement that makes these drivers time so well. The drivers’ magnet system creates a broad, uniform magnetic field, while the suspension reduces harmonic distortion for a clean, precise sound. The result is exceptionally deep and agile bass that reveals every last bit of detail and punch available in the deep.
SA45 Streaming Amplifier Specifications
| Continuous Power Output: | (0.5% THD), Per Channel |
| 2 Channels Driven, 20Hz—20kHz, 8Ω: | 180W |
| 2 Channels Driven, 1kHz, 4Ω: | 300W |
| Harmonic Distortion | 80% power, 8Ω at 1kHz: 0.002% |
| Analogue Inputs | |
| Number of Inputs: | 3x RCA pairs + 1 XLR pair |
| Phono Inputs: | MM and MC |
| Frequency Response: | 20Hz—20kHz ± 0.2dB |
| Signal/Noise Ratio: (A-wtd, ref. 50W, 1V input) | 106dB |
| Digital Inputs | |
| Supported Streaming Media: | FLAC, WAV (LPCM), AAC, ALAC, AIFF, DSD (up to 256), MP3, MP4, OGG, WMA |
| Supported Streaming Bit Depth: | 16, 24, 32 |
| Supported Streaming Sample Rates: (kHz) | Up to 384 kHz |
| Gapless Playback: | Yes |
| Digital Audio Inputs: | 1x HDMI eARC, 2x Coaxial (RCA), 2x Optical (Toslink) |
| Supported Digital Input Bit Depth: | 16, 24 |
| Supported Digital Input Sample: Rates (kHz) | Up to 192 kHz |
| Frequency Response: (Filter 1) | 20Hz—20kHz ± 0.2dB |
| Signal/Noise Ratio: (A-wtd, ref. 50W, 0dBFS) | 110dB |
| Wireless Specifications | |
| Bluetooth Profile 5.4: | A2DP Sink/Source, AVRCP, BLE, Snapdragon Sound, AAC, LE Audio, Auracast |
| Bluetooth Transmitter Frequency and Power: | 2,402 MHz to 2,480 MHz <13dBm |
| Wi-Fi Network: | IEEE 8002.11 a/b/g/n/ac/ax (2.4GHz/5GHz) |
| 2.4G Wi-Fi Transmitter Frequency Range and Power: | 2400-2483.5 MHz (USA 11 Channels, Europe and Others 13 Channels) <20dBm |
| 5G Wi-Fi Transmitter Frequency Range and Power: | 5150-5250 MHz <23dBm, 5250-5350 MHz & 5470-5725 MHz <20dBm, 5725-5850 MHz <14dBm |
| General | |
| Mains Voltage: | 100V or 110–120V or 220–240V, 50–60Hz |
| Power Consumption: (Maximum) | 1000W |
| Power Consumption: (Standby) | <0.5W |
| Dimensions W x D x H :(Including Speaker Terminals and feet) | 432 x 390 x 140mm |
| Weight: (Net) | 17 kg |
| Weight: (Packed) | 20 kg |
KEF R3 Speakers Specifications
| Design: | Three-way bass reflex |
| Drive Units: | Uni-Q Driver Array: HF: 25 mm (1 in.) vented aluminium dome with MAT MF: 125 mm (5 in.) aluminium cone Bass Unit: LF: 165 mm (6.5 in.) hybrid aluminium cone |
| Crossover Frequency: | 420 Hz, 2.3 kHz |
| Frequency Range: (-6dB) | 38 Hz - 50 kHz |
| Typical in-room Bass Response: (-6dB) | 30 Hz |
| Frequency Response: (±3dB) | 58 Hz - 28kHz |
| Harmonic Distortion: (90dB, 1m) | <1% 73 Hz and above <0.5% 90 Hz - 20 kHz |
| Maximum Output: | 110 dB |
| Amplifier Requirements: | 15 - 180W |
| Nominal Impedance: | 4 Ω (min. 3.2 Ω) |
| Sensitivity: (2.83V/1m) | 87 dB |
| Weight: | 12.4 kg (27.3 lbs) each |
| Dimension (H x W x D) with terminal: | 422 x 200 x 336 mm each |
| Finishes: | Black Gloss / White Gloss / Walnut / Indigo Gloss Special Edition |
