Atoll CD80 Signature
Tax included. Stock information
Pickup also available at Doug Brady HiFi (Warehouse)
Usually ready in 2-4 days
Atoll CD80 Signature
Black anodized brushed aluminum
Doug Brady HiFi (Warehouse)
Kingsway Studios - Warehouse
Kingsway North
Warrington WA1 3NU
United Kingdom

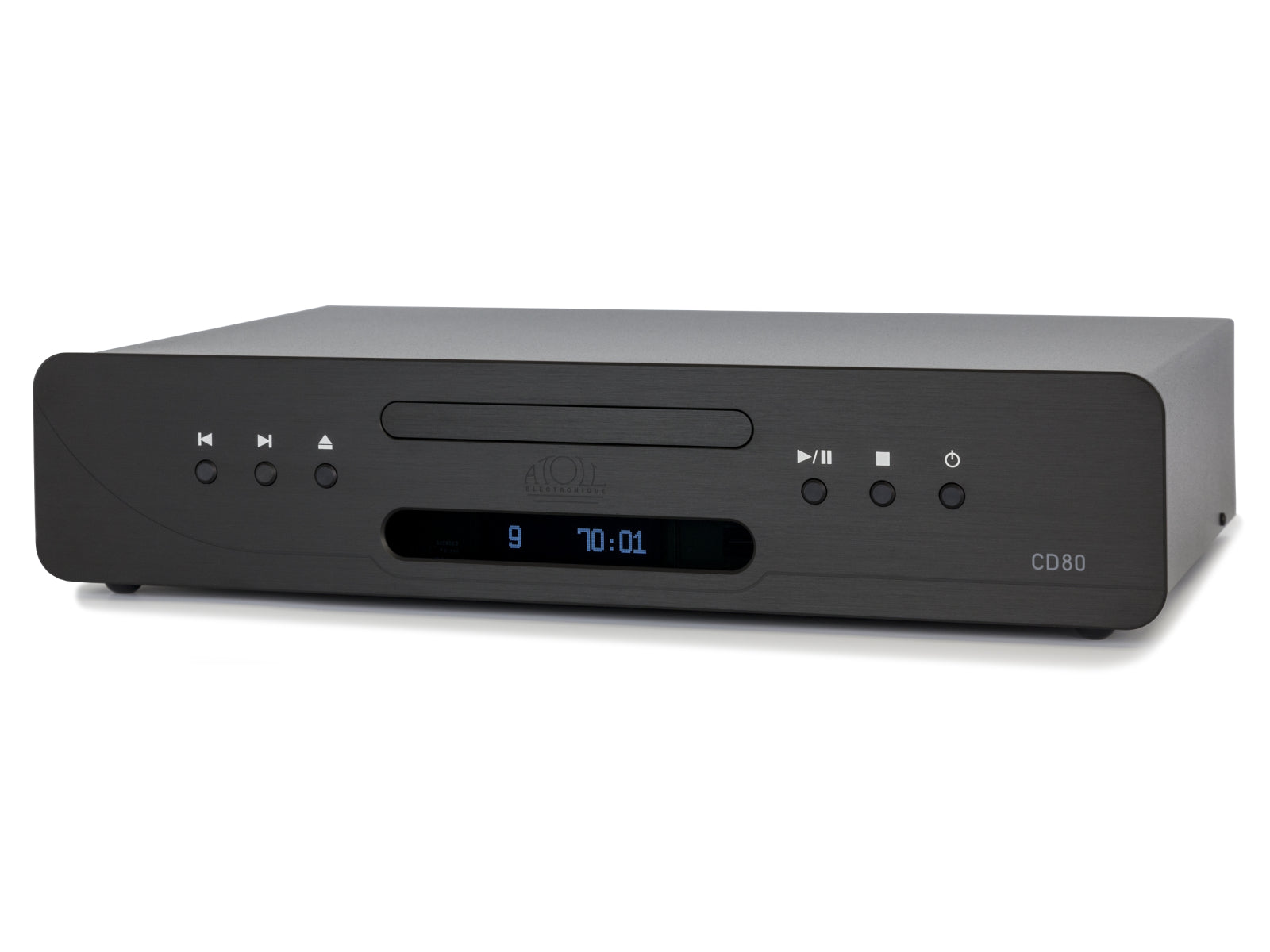

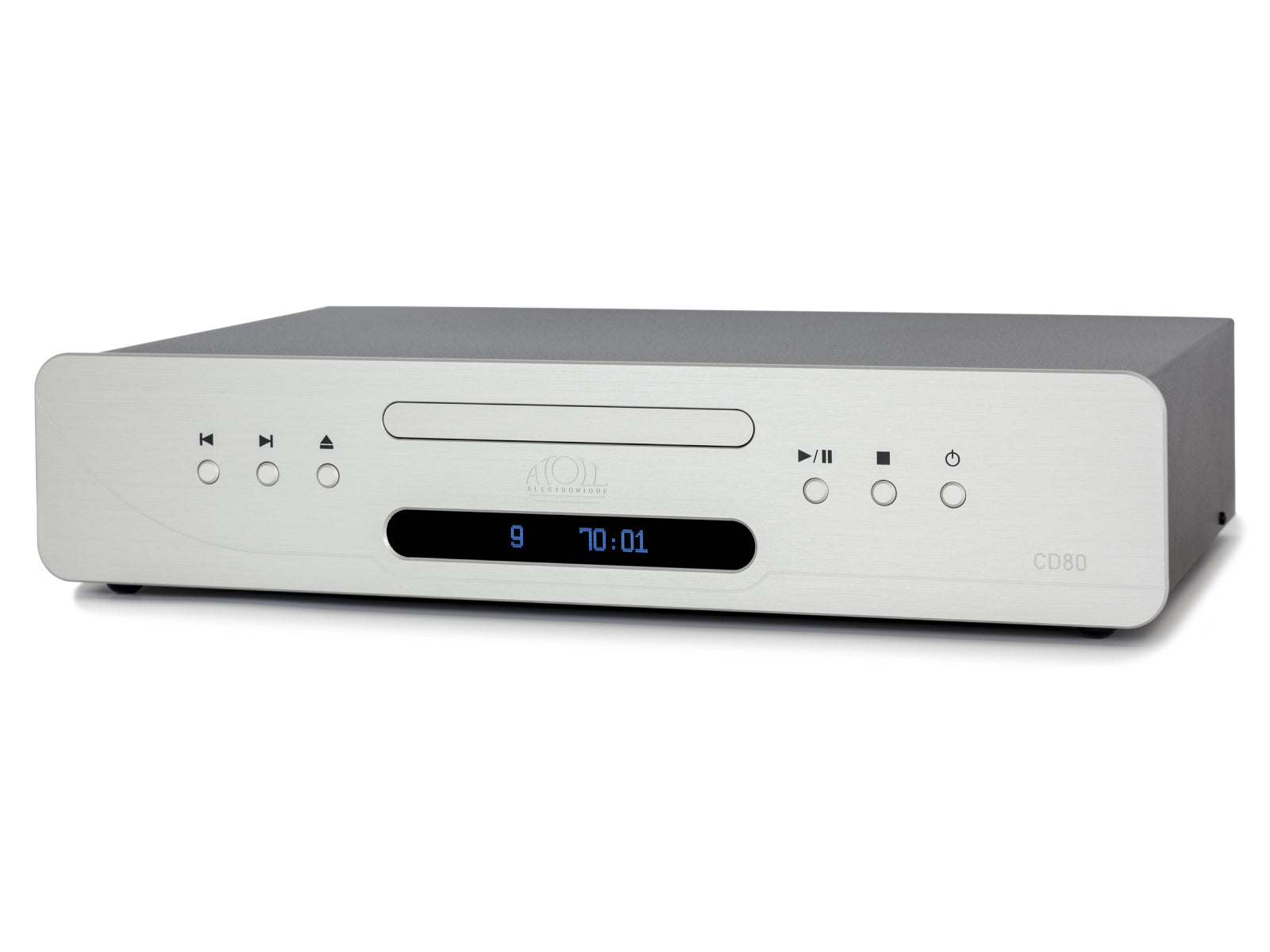

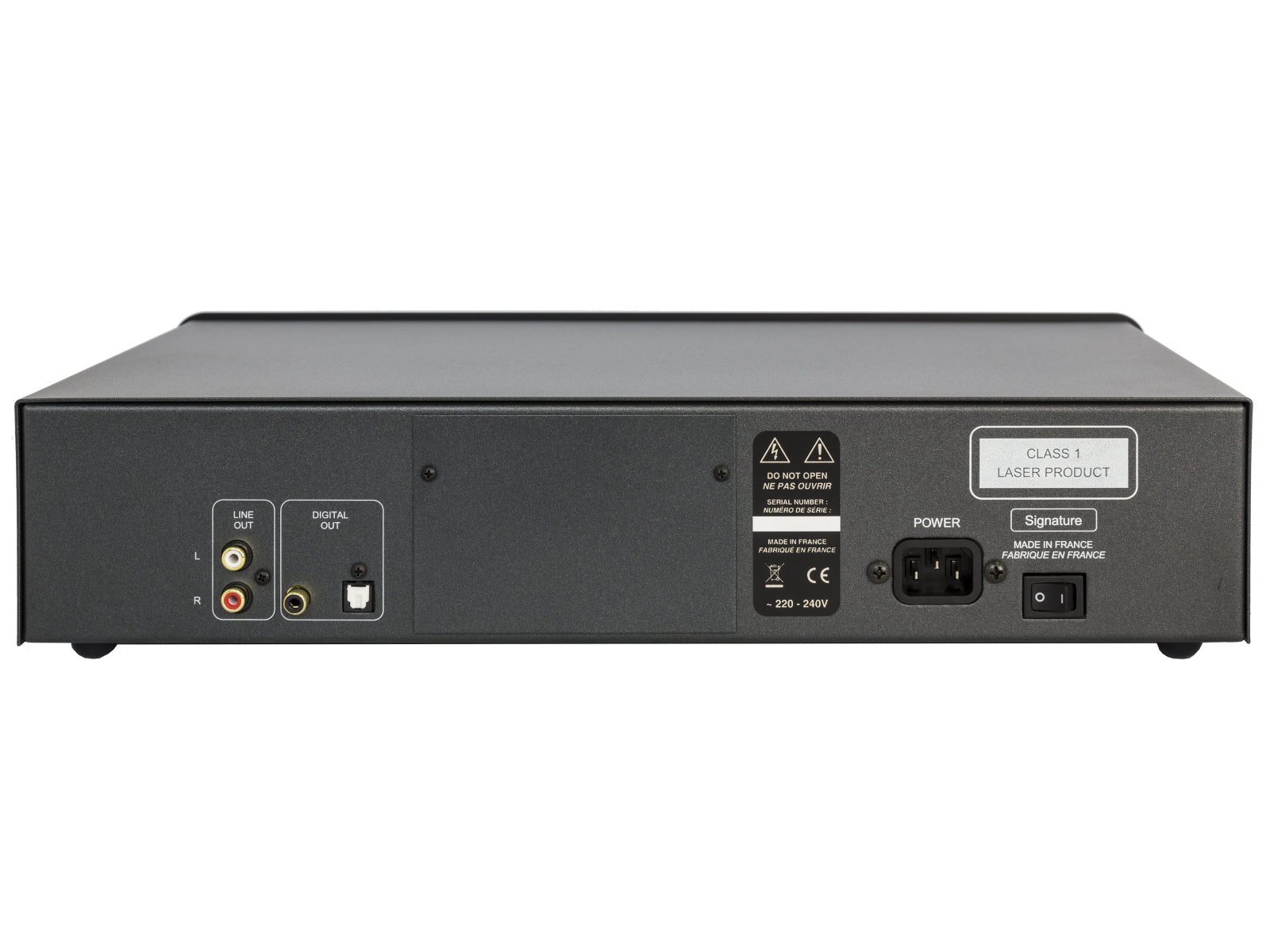

The Atoll CD80 Signature CD player comes in a new metal case with a superb 4mm brushed-aluminium front panel (silver or black)! Of course, this front panel takes the new design of Atoll products. The back panel provides an asymmetrical stereo analogue output, a digital output in S/PDIF coaxial format and a Toslink optical output.
- 4 mm brushed aluminium front.
- 8 regulated power supplies including a specific low-noise one for the converter.
- Separate 4,6 VA transformer for the audio stages.
- BURR-BROWN PCM1793 converter:
– 24 bits/192 kHz.
– Dynamic: 113 dB.
– Signal/Noise ratio: 113 dB. - Original TEAC central CD mechanics.
- Pure audio CD player compatible: CD, CD-R, CD-RW, MP3, WMA-AAC.
- Linear power supply for digital stages with a specific 30 VA transformer.
- Separate linear power supply for the audio stages.
- Double-sided circuit boards with nickel/gold finish.
- Low consumption OLED display.
- Reading the CD-Text.
- Class A biased discrete component differential audio output stages.

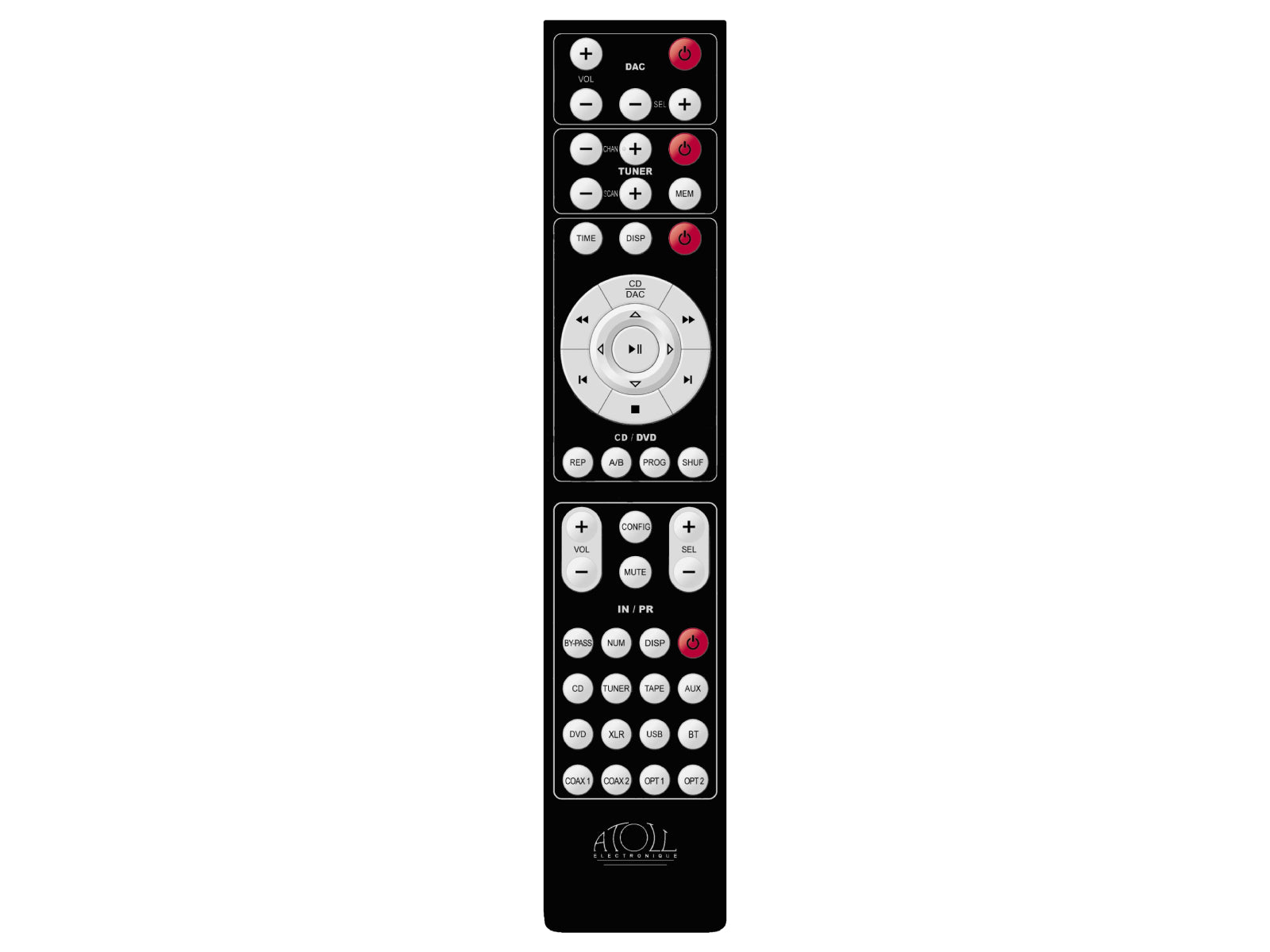

- ATOLL global remote control.
TECHNICAL DATA
Power supply: 30+4,6 VA
Total of capacitors: 12 892 µF
Output level: 2,5 Vrms
Output impedance: 5,6 Ω
Converter (D/A): PCM1793
Digital Output: Coaxial & Optical
Digital input: 24 bits / 192 kHz
USB input: 24 bits / 192 kHz
Signal/Noise ratio: 113 dB
Distortion at 1 kHz: 0,001%
Bandwidth: 5 Hz – 20 kHz
Rising time: 2,0 µs
Dimensions (mm): 440×280×95
Weight: 6 Kg
