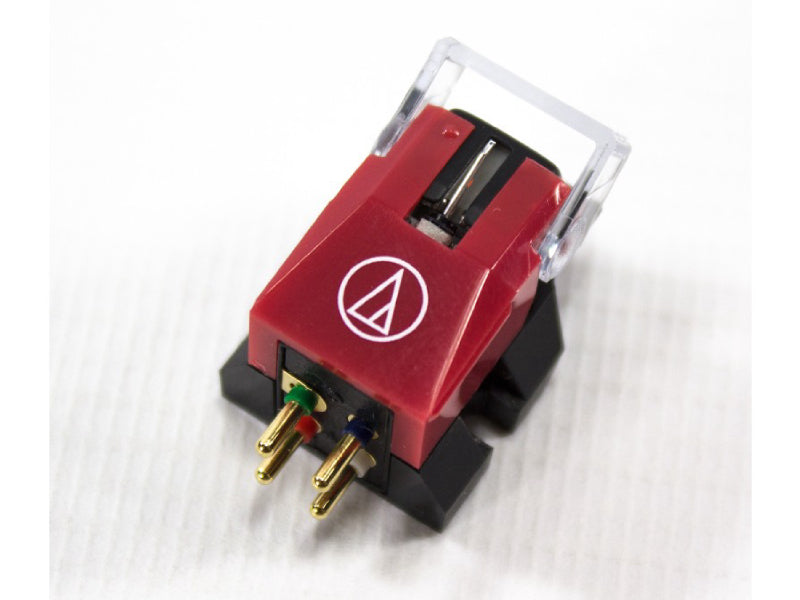

Audio Technica VM540ML Cartridge


Sale price£229.00

Tax included. Stock information

3 in stock

Pickup also available at Doug Brady HiFi

Usually ready in 1 hour

Audio Technica VM540ML Cartridge

Audio Technica VM540ML Cartridge

Doug Brady HiFi

Pickup also available, usually ready in 1 hour

Kingsway Studios
Kingsway North
Warrington WA1 3NU
United Kingdom

+441925828009
  • VM540ML

    Dual Moving Magnet Stereo Cartridge with MicroLine™ stylus

    • MicroLine™ profile diamond stylus
    • VM type dual magnet system
    • Para-toroidal coils improve generating efficiency
    • Aluminium tapered cantilever
    • Centre shield plate between stereo channels
    • Durable low resonance polymer housing

    Product Features

    • MicroLine® profile diamond stylus offers high frequency response with less wear and distortion than elliptical or conventional linear contact styli
    • VM type dual magnet design ensures outstanding channel separation, extended frequency response and superb tracking
    • Lightweight tapered aluminium cantilever allows for faithful reading of the record groove
    • Centre shield plate enables the effective separation of left and right channels, suppressing electrical crosstalk to below 40dB
    • Durable low resonance polymer housing

    Audio-Technica’s internationally-patented Dual Magnet design replicates the structure of the cutter head.

    Instead of using a single, large magnet, the two magnets are arranged in the shape of a "V". The two magnets are positioned precisely to match the positions of the left and right channels in the stereo groove walls. Consequently, the VM design ensures outstanding channel separation, extended frequency response and superb tracking.

    Para-toroidal generating system

    Para-toroidal coils improve generating efficiency and offers superb linearity, since leakage of magnetic flux in this continuous and unitised magnetic circuit is low. Permeability of the cores is also optimised through the use of laminated cores.

    Centre shield plate reduces crosstalk

    A permalloy centre shield plate enables the effective separation of left and right channels, suppressing electrical crosstalk to below 40dB. This is similar to the actual crosstalk value found in the grooves of the record itself.

    Specifications

    Type VM Type
    Mounting 1/2” centres
    Frequency Response 20 - 27,000Hz
    Channel Separation 28dB (1kHz)
    Output Channel Balance 1.0dB (1kHz)
    Output Voltage 4.0mV (1kHz, 5cm/sec.)
    Vertical Tracking Angle 23˚
    Vertical Tracking Force Range 1.8 – 2.2g (2.0g standard)
    Stylus Shape MicroLine®
    Stylus Size 0.12 x 2.2 mil
    Stylus Construction Nude Square Shank
    Cantilever Aluminium Tapered Pipe
    Coil Impedance 2,700Ω (1kHz)
    Static Compliance 40 x 10-6 cm/dyne
    Dynamic Compliance 10 x 10-6 cm/dyne (100Hz)
    Recommended Load Impedance 47,000Ω
    Recommended Load Capacitance 100 – 200pF
    Weight 6.4g
    Dimensions 17.3 (H) x 17.0 (W) x 28.2 (L) mm
    Replacement Stylus VMN40ML
    Accessories Included Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1, Lead wire set ×1
