Focal Sopra No1 is a 2-Way HIGH-END Bookshelf Loudspeaker.
Compact and powerful, Sopra N°1 is a concentration of technological innovation. It features 'NIC' magnetic circuit, 'TMD' surrounds for the midrange woofer and Infinite Horn Loading (IHL) of the tweeter. It is a true 'demonstrator', corroborating the contribution of the new technologies implemented on Sopra. First, the very low distortion gives it incredible clarity and very high definition combined with the spectacular spatialisation typical of bookshelf loudspeakers...
Beyond this attractive first impression, what's astonishing is the texture and smoothness of its sound. It provides a solid, 'fleshy' sound with full and articulated bass. Precious is by no means artificial, nor is the limited to the treble. The overall coherence and harmonic richness gives the listener a surprising understanding of the music.
Sopra clearly inaugurates a new era for the 'Premium High-End' by taking into account new performance criteria. Compact, modern, a pure design, character... all these are essential factors to ensure perfect integration into your interior.
It features Neutral Inductance Circuits "NIC", Tuned Mass Damping surrounds "TMD" for the midrange woofer, and Infinite Horn Loading "IHL" of the tweeter. It is a true demonstration of the contribution of the new technologies implemented on Sopra. Its special stand has been designed to ground interfering vibrations from the enclosure to the floor to avoid any colouration. Ideal for small rooms up to 270ft2 (25m2) and medium sized spaces up to 550ft2 (50m2). Providing high sensitivity and excellent power handling, Sopra N°1 is a true small monitor for the home
Made in France Sopra’s cabinet was designed in our cabinet-making facility in Bourbon-Lancy (Burgundy, France) using the same manufacturing process as for Utopia The 69mm sandwich-machined front panel uses the same principle as ‘Gamma Structure’ to provide inertia and damping. Its density gives it the inertia necessary to provide a stable mechanical reference for optimal definition. The inside of the cabinet has no parallel side panels, and small Helmholtz resonators have been added to the lower section to prevent vertical standing waves. We chose glass as the material for the base of the loudspeaker to provide floor coupling, using spikes, which enabled the fastest propagation time possible, thus eliminating all halo effects in the bass.
The Beryllium tweeter features an incredibly light and extremely rigid dome, that deliver a transparent and dynamic sound. Its main limitation comes from the compression of air in the cavity behind it. But the requirement for Sopra to be compact meant that as much of the cabinet as possible had to be used for the bass. We had to explore other options for loading the tweeter, which led us to come up with the IHL system. The "IHL" system enables to load the Beryllium tweeter respecting the compactness demand of the speaker. The rear wave of the tweeter is delicately and gradually absorbed to avoid any distortion. The treble definition is pushed to the maximum
Since the beginning, we have always had a great interest in the magnetic circuit, an essential aspect of a speaker drive unit. The precision and detail of audio reproduction depends on the stability of the magnetic field. NIC technology (Neutral Inductance Circuit) permits to control the magnetic field and finally enables to master it in order to limit distortion. It decreases the effects of distortion and give the sound a very high-definition and an unprecedented dynamic.

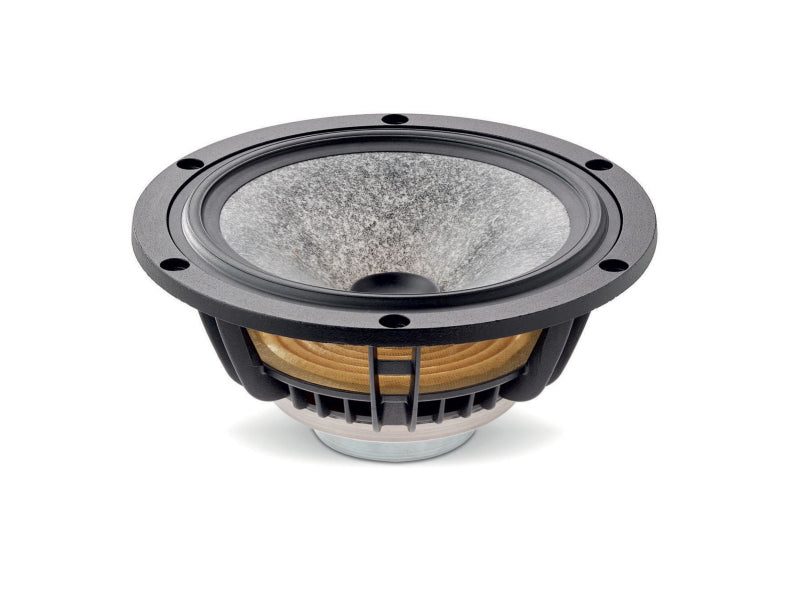

Our teams have revealed resonances which alter definition in the suspension which connects the cone to the basket. The solutions already known for increasing the damping properties of the suspension all result in an increase of the mass which consequently alters definition. The answer came from a technology used in earthquake-resistant skyscrapers and which is also used for the suspension on racing cars. "TMD" technology consists of optimising the suspension profile which controls the resonance in order to drastically reduce distortion and increase the definition of bass and midrange.
|FOCAL NO1 SPECIFICATIONS|
|Type||Two-way Bass-reflex bookshelf loudspeaker|
|Speakers||6 1/2 (16.5cm) "W" bass midrange with TMD suspension
NIC motor 1 1/16 (27mm) IHL Beryliliuminverted dome tweeter
|Frequency Response (±3dB)||45Hz - 40kHz|
|Low Frequency Point -6dB||41Hz|
|Nominal impedance||8 Ohms|
|Minimum Impedance||3.9 Ohms|
|Crossover Frequency||2 200Hz|
|Recommanded Amplifier Power||25 - 150W|
|Dimensions (H x W x D)||425 x 279 x 396 mm|
|Net Weight (unit)||41.89 lbs|
