LEAK

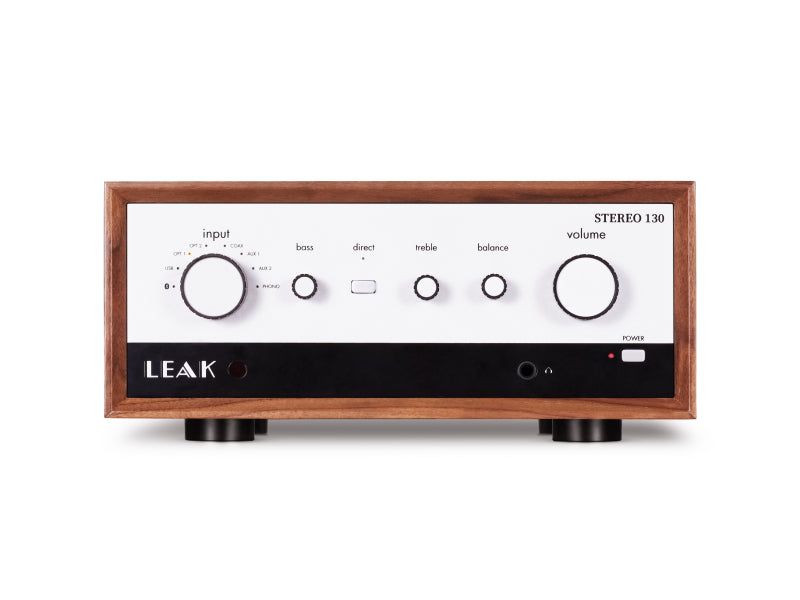

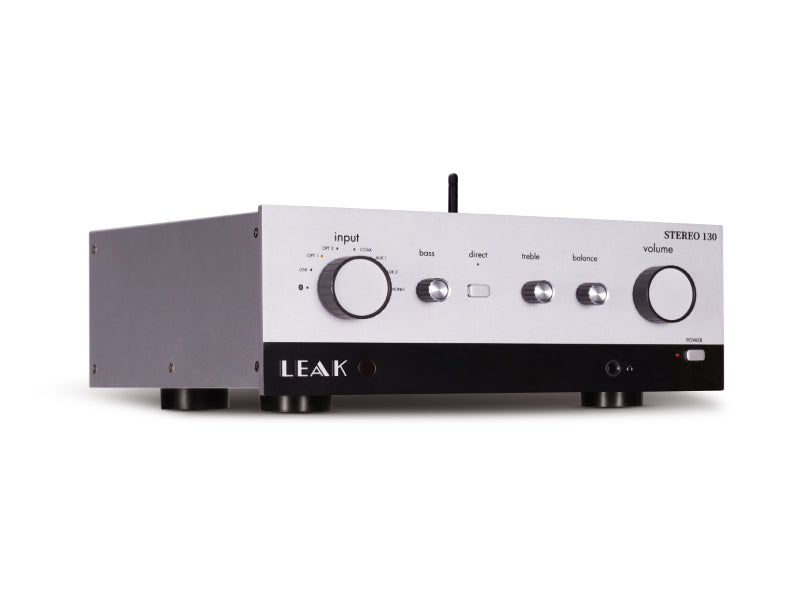

LEAK STEREO 130 Integrated Amplifier

£799
Finish:
Add CD Player?:
Add Speakers?:

The LEAK STEREO 130 was launched to celebrate to iconic LEAK Stereo 30 which was introduced in 1963. This transistor amplifier featured quasi-complementary germanium transistor output stage. Embracing a succession path from the illustrious valve amplification series, the STEREO 30 maintained the high-fidelity stereo performance synonymous with LEAK. The new Stereo 130 has a similar retro look and feel but with a fully modern high performance amplifier and all the up to date connectivity you will need, all housed within the classic LEAK styled case.

The LEAK STEREO 130 has a built-in Moving Magnet (MM) phono pre-amplifier which allows for direct connection to turntable record players. You can also stream music to the LEAK STEREO 130 from any Bluetooth device such as portable music players and smartphones via innovative built-in aptX and AAC codec. One can enjoy CD-quality audio over the Bluetooth wireless connection. To accommodate the modern-day music enthusiast fully, much effort has been made to ensure the LEAK STEREO 130 ’s digital circuitry delivers the level of quality one might expect of a high-performance standalone D/A converter, let alone an integrated amplifier solution.

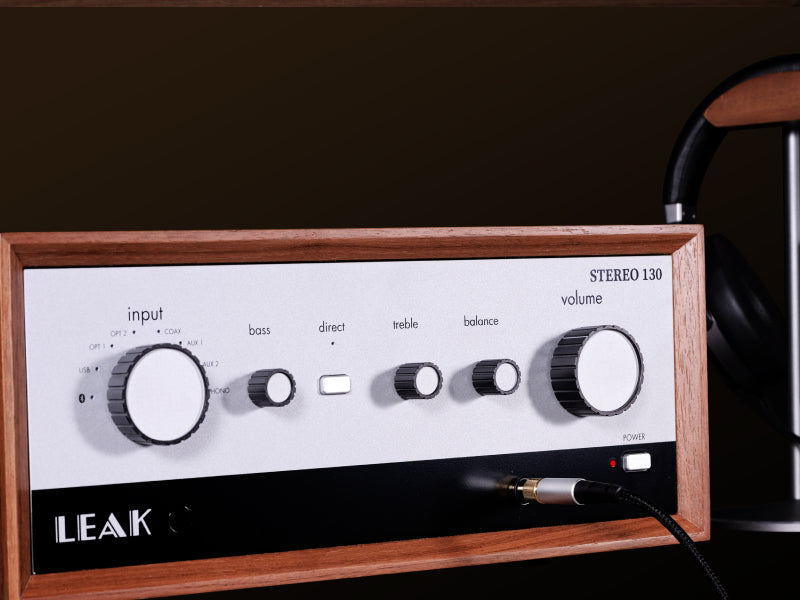

Headphone amplifier

The LEAK STEREO 130 uses a dedicated amplifier circuit with current-feedback technology for the headphones output. Equal in performance to standalone headphone amplifiers, beyond the price-class of this complete system, the design offers high-speed output signal transition thanks to a high slew rate. The result is a dynamic, detailed and engaging performance with all manner of headphone types.

DAC

Utilising the acclaimed ES9018 Sabre32 Reference chip with ESS Technology’s 32-bit HyperStream architecture and Time Domain Jitter Eliminator, the LEAK STEREO 130 offers ultra-low noise, high dynamic range of digital audio files with a sampling rate of up to 384kHz (PCM) and DSD256.

The Stereo 130’s innate musicality is hardly surprising given the hi-fi handiwork involved. At its core is a Class AB power amp that draws on many decades of amplifier design experience. A 200VA toroidal transformer is followed by 2x15000uF reservoir capacity, helping the amp to maintain firm control of the music whilst enabling excellent dynamic range.

In tasking the ES9018K2M Sabre32 Reference DAC chip to handle digital-to-analogue conversion, complemented by specially devised circuitry including op-amps selected for their synergy with the ES9018, LEAK has engineered excellent digital music playback quality. And to ensure the utmost detail and expression from every music source, the layout of the Stereo 130’s digital and analogue circuits has been carefully applied, with independent power supplies feeding all critical stages.

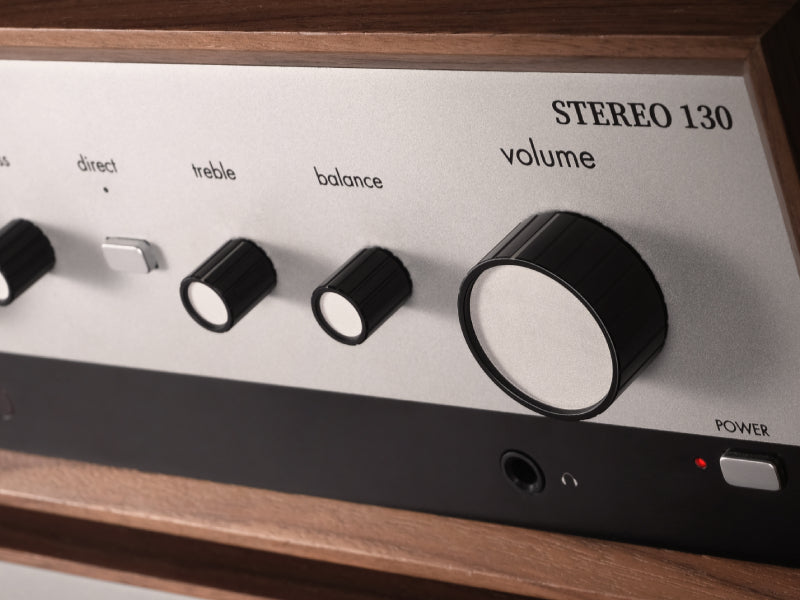

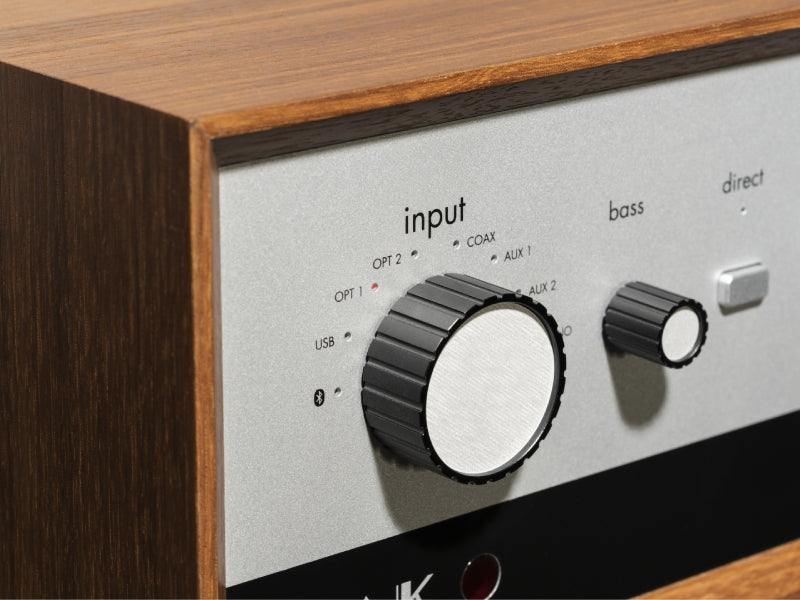

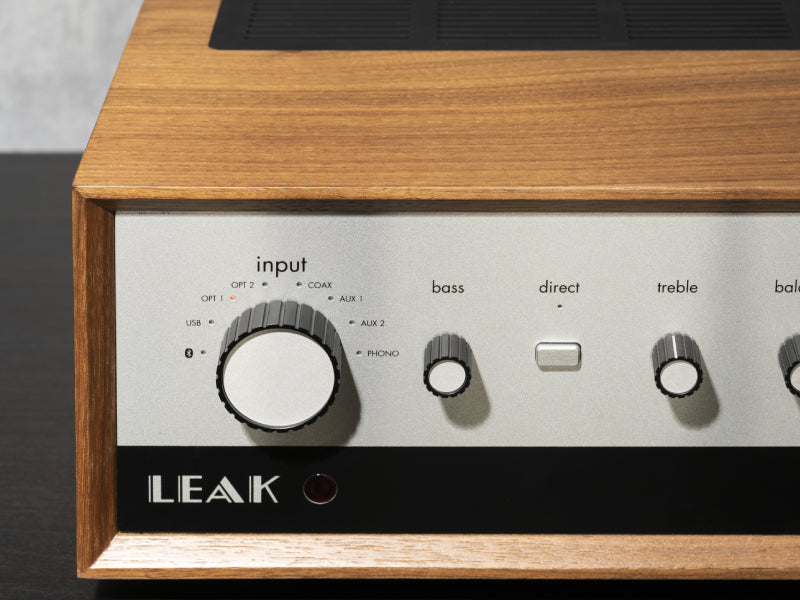

Bass and treble tone controls – a feature passed down from the original Stereo 30 – enable sound to be tailored to suit the varying characteristics of different analogue and digital sources. If preferred, these tone controls may be bypassed to deliver the shortest possible signal path to the precision analogue volume stage, which is controlled by a motorised ALPS potentiometer.

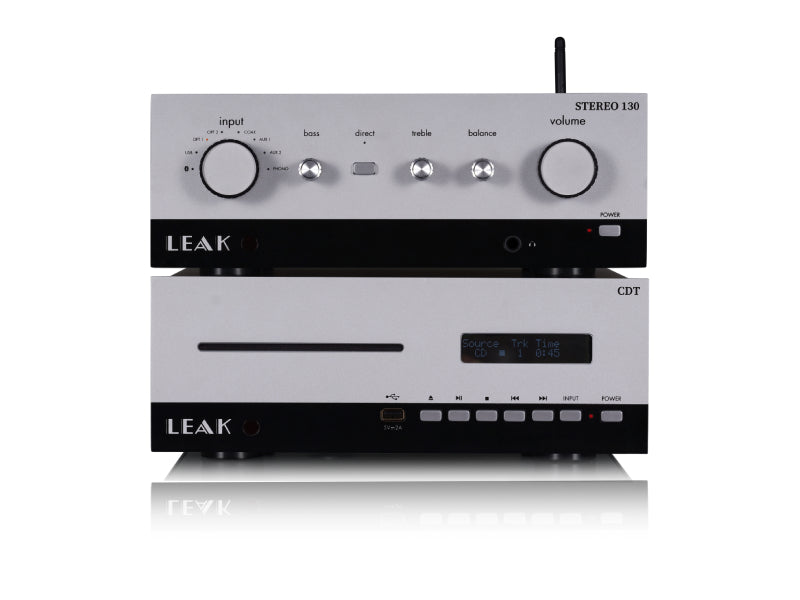

LEAK CD Player (optional)

The matching LEAK CD Player the LEAK CDT offers the highest available standard of sound reproduction from CD playback within this price class. It is also equipped with USB storage device playback functionality.

The premium CD mechanism uses read ahead buffering to reduce disc read errors and deliver the highest level of digital signal extraction from CD media.

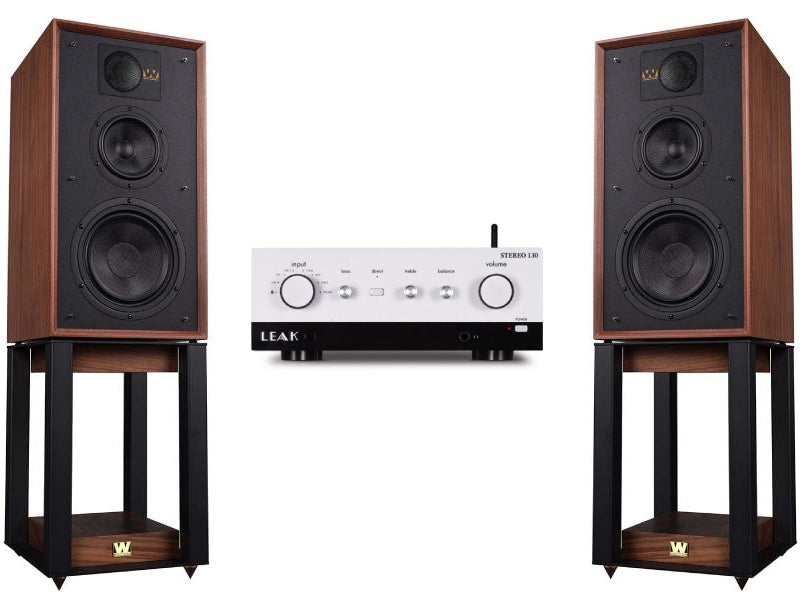

The leak Stereo 130 is recommended with Wharfedale Linton Speakers (optional extra)

A classic in every sense.. these new Wharfedale Linton Heritage speakers are simply stunning, with a design taken from the original Linton range for the mid 1960's updated and improved. The Wharfedale LINTON gives an open, detailed performance that just makes you smile every time you play them. These are one our favourite speakers from this year and our bundle with the Leak Stereo 130 offers an amazing sound with a great saving. The quality and craftsmanship of this system & speakers is incredible at this price.

LEAK 130 Specifications

D/A Converter ESS Sabre32 Reference ES9018K2M
Input Sampling Rates Optical, Coaxial: 44.1kHz~192kHz; USB: 44.1kHz~384kHz (PCM)/DSD64, DSD128, DSD256
Rated Output Power 2 x 45W (8ohm)/2x65W (4ohm)
Total Harmonic Distortion < 0.005% (30W, 8ohm)
Frequency Response 20Hz-20kHz (+/-0.5dB)
Input Sensitivity 480mV (RCA AUX IN); 4.1mV (phono MM)
Input Impedance 10Kohm (AUX) ; 47Kohm //100pF (phono MM)
Signal to Noise Ratio (S/N) ≥108dB (A-weighted, ref.45W)
Pre Output Level 4
Pre Output Total Harmonic Distortion (THD) < 0.003%
Pre Output Signal to Noise (S/N) >110dB (A-weighted)
Bluetooth Version
Profile A2DP
Codec aptX (priority), SBC

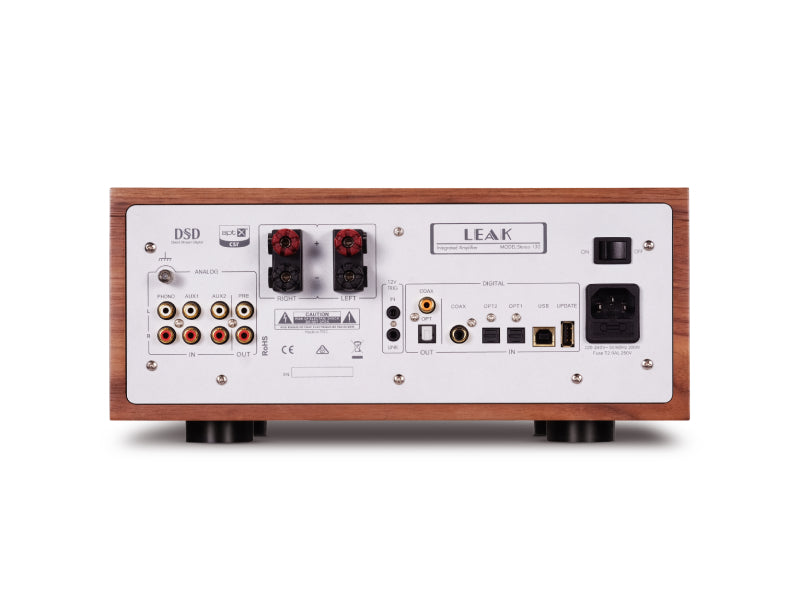

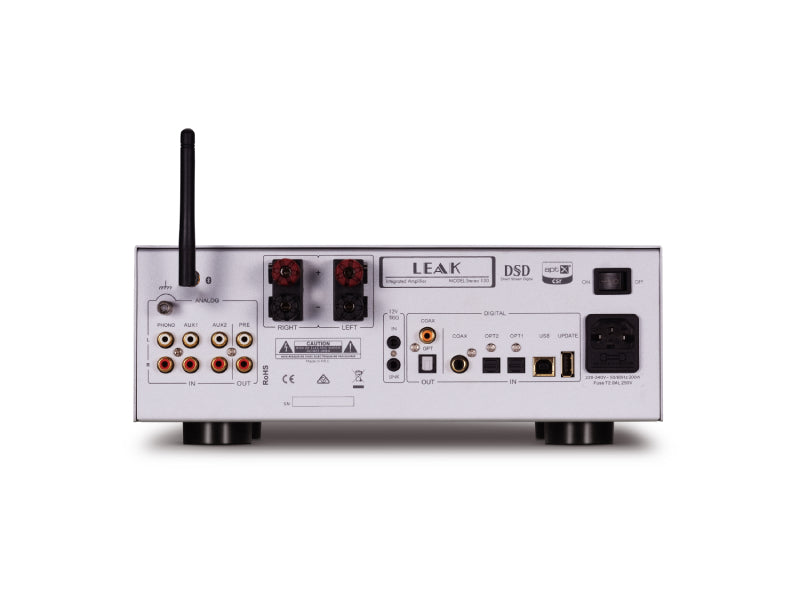

USB Input 1 x USB (B-type)
Digital Audio Inputs 2 x Optical TOSlink ,1 x RCA COAX
Digital Audio Outputs 1 x Optical TOSlink ,1 x RCA COAX

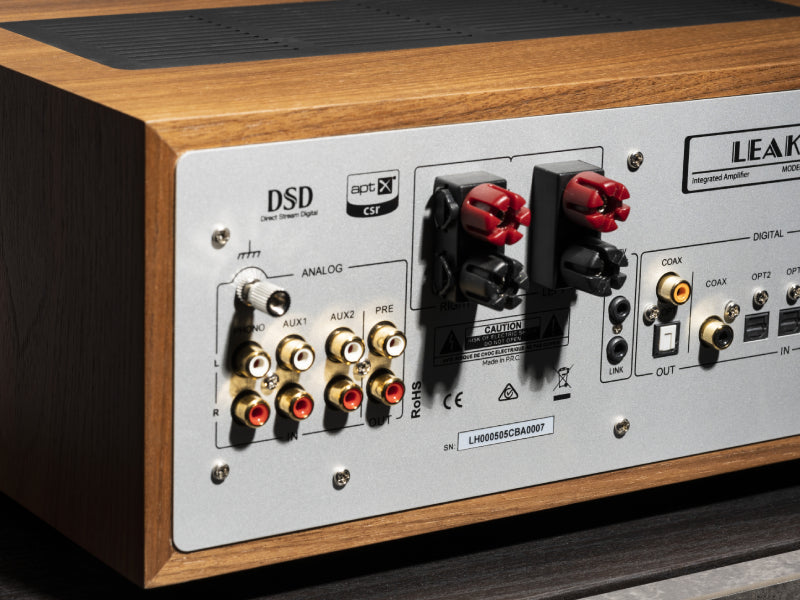

Analog Inputs 2 x RCA (AUX1, AUX2) ,1 x RCA (phono MM)
Analog Output 1 x RCA (PRE OUT)
Power Requirement (Depends on your area) 220-240V ~ 50/60Hz 100-120V ~ 50/60Hz
Dimensions W x H x D (mm) 302 x 118 x 270 (Metal) 326 x 146 x 276 (Wood)
Carton Size W x H x D (mm) 475 x 248 x 450
Net Weight 7.02kg (Silver)
8.30kg (Walnut)
Gross Weight 9.30kg (Silver)
10.60kg (Walnut)

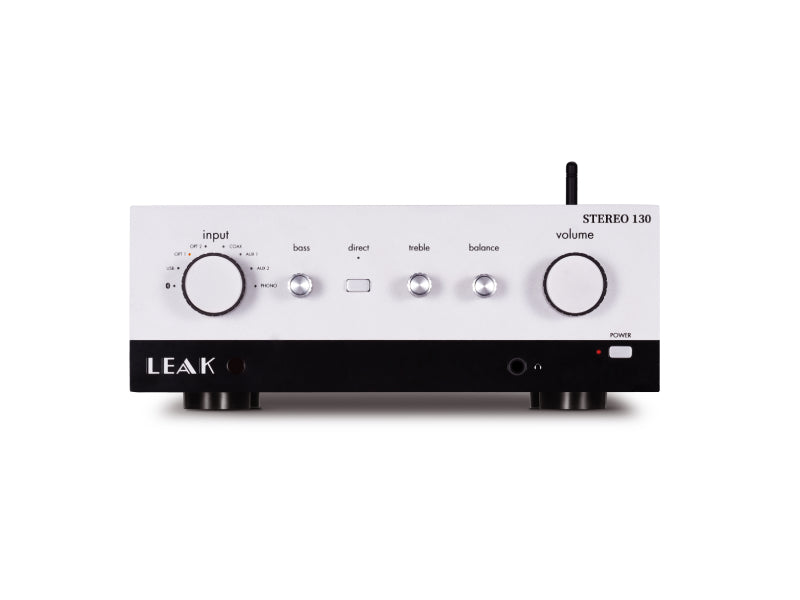

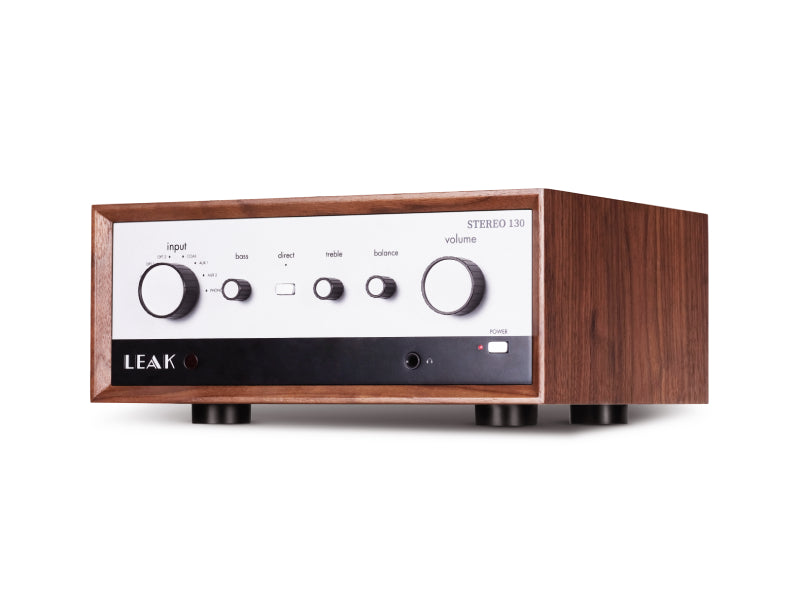

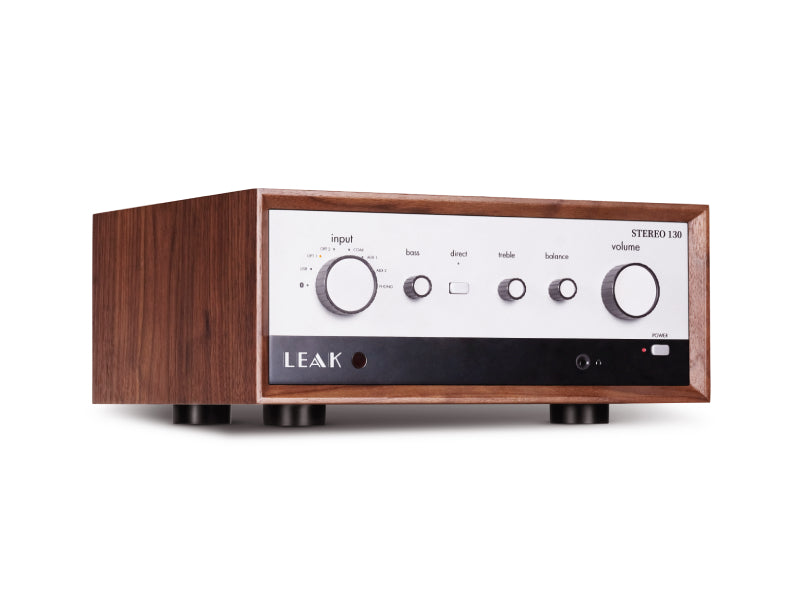

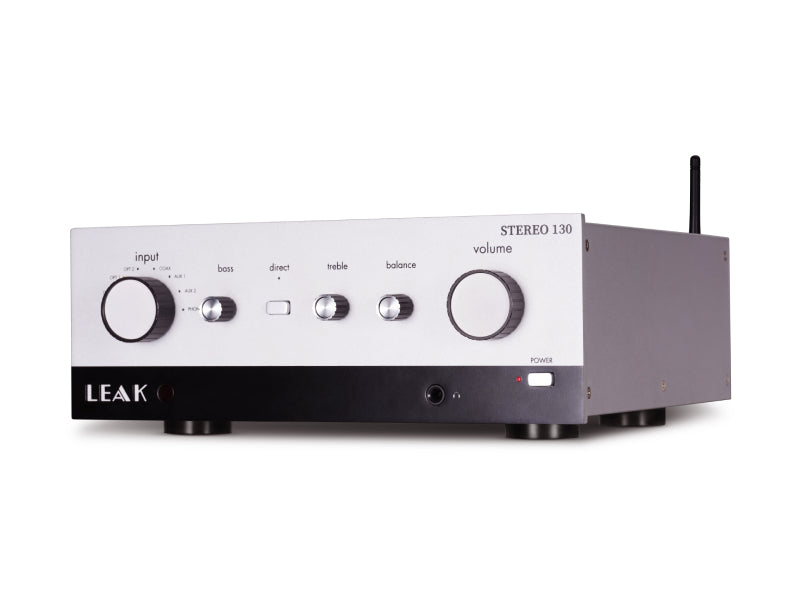

Finish Silver/Walnut
