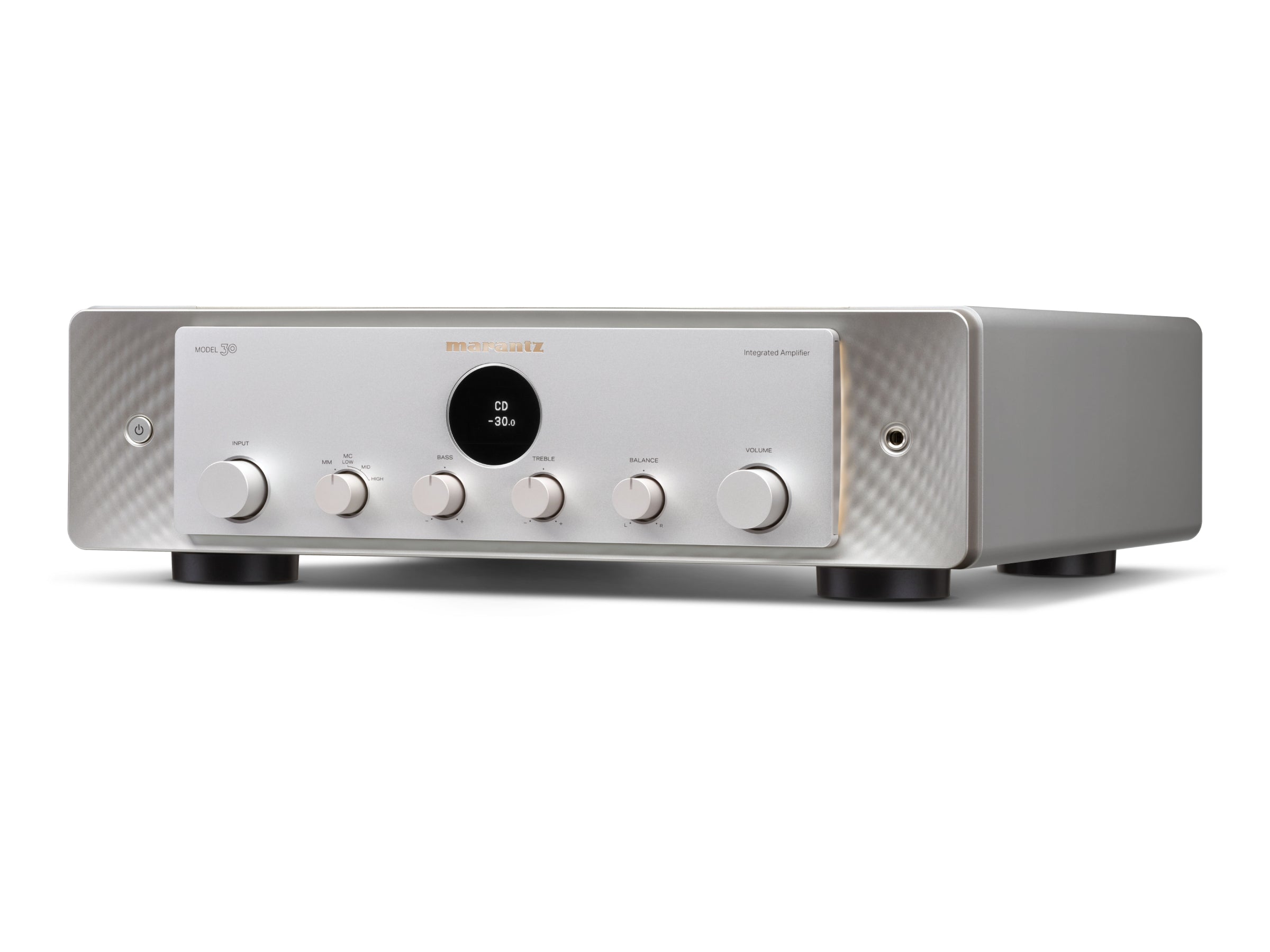

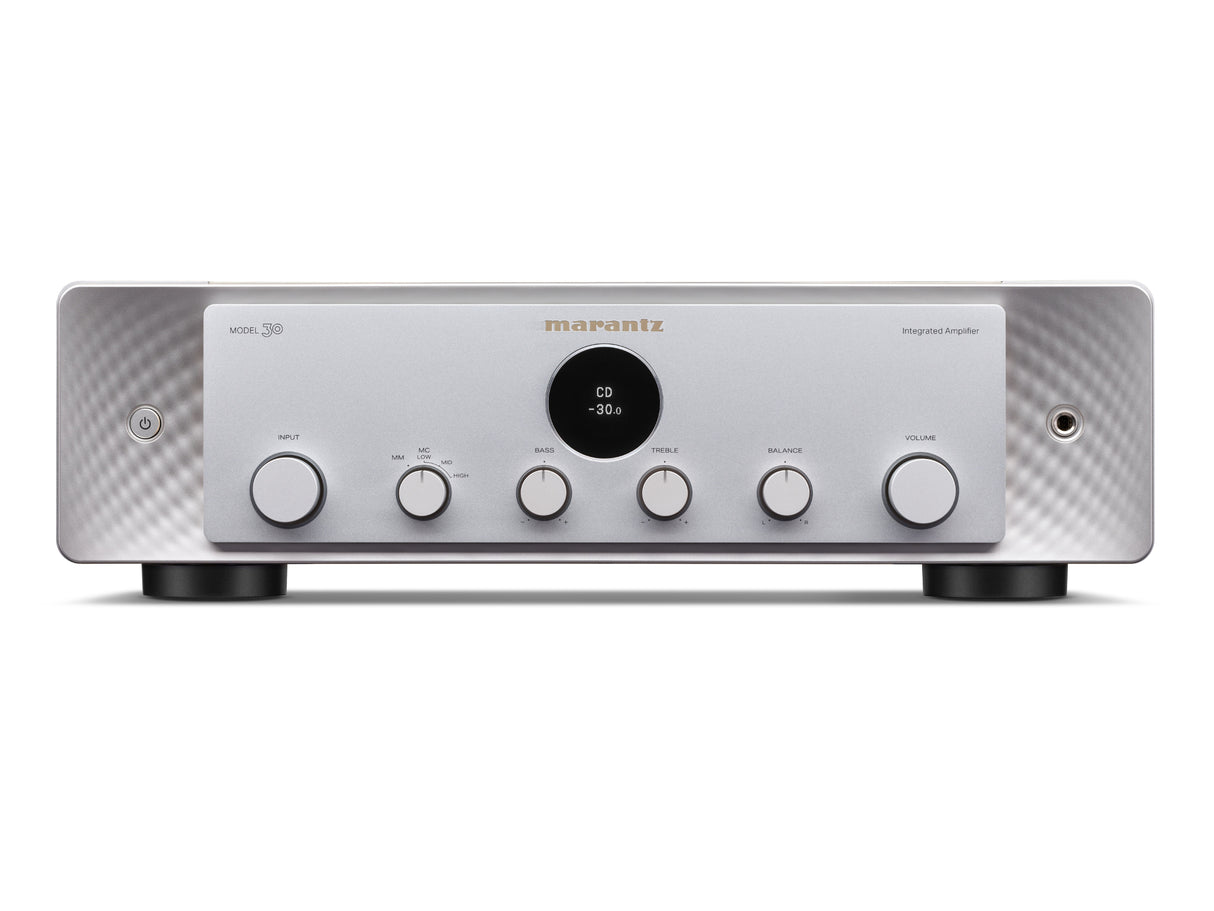

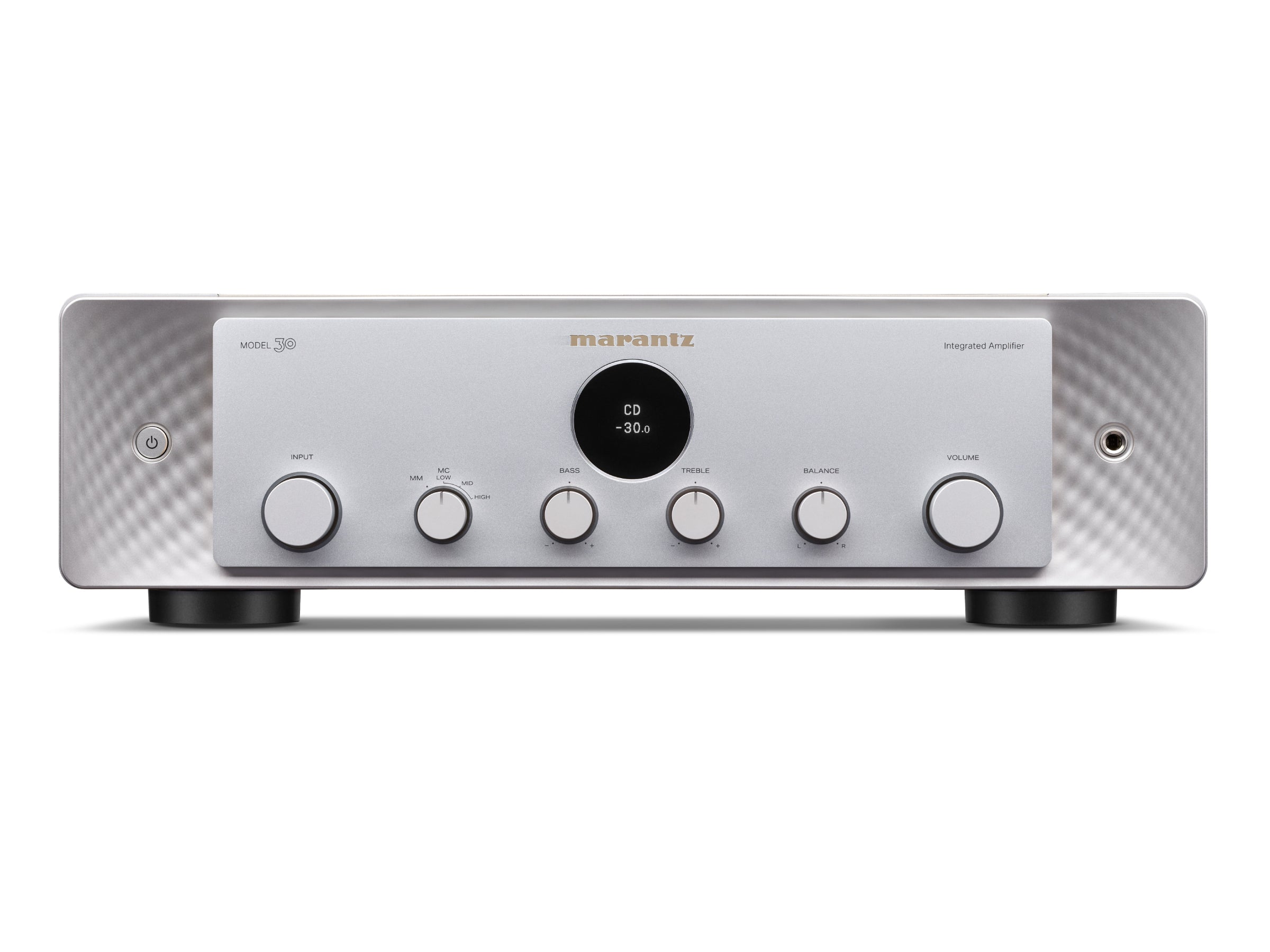

Marantz Model 30 Integrated Amplifier

£2,699.00

Brand Marantz

Get the most musical sound possible from this new beautiful, integrated amplifier. Exquisitely tuned by the Marantz Sound Master, the Marantz MODEL 30 integrated amplifier features a master-curated Marantz HDAM and a fully discrete design for luxurious Hi-Fi purity. Designed to last the test of time and make all your music unforgettable.

Key Features

• Integrated Amplifier tuned with passion by the Marantz Sound Master.

• Independent pre-amplifier and power amplifier section.

• Toroidal transformer feed power supply dedicated to pre-amplifier.

• Current feedback pre-amplifier design for clarity and details.

• Marantz HDAM technology for low noise and extended frequency range.

• Linear volume control with new electric volume system for best linearity.

• Switching mode power amplifier with dedicated SMPS power supply.

• Solid output of 100W + 100W (8ohm), 200W + 200W (4ohm) to drive any speaker.

• Amplifier design inherited from our flagship models.

• Flat frequency response independent to connected speaker load.

• MM/MC Phono input with selectable MC input resistance.

• Extra high quality, low resistant input terminals for CD and Phono.

• Marantz original high-quality/high-purity copper speaker terminals.

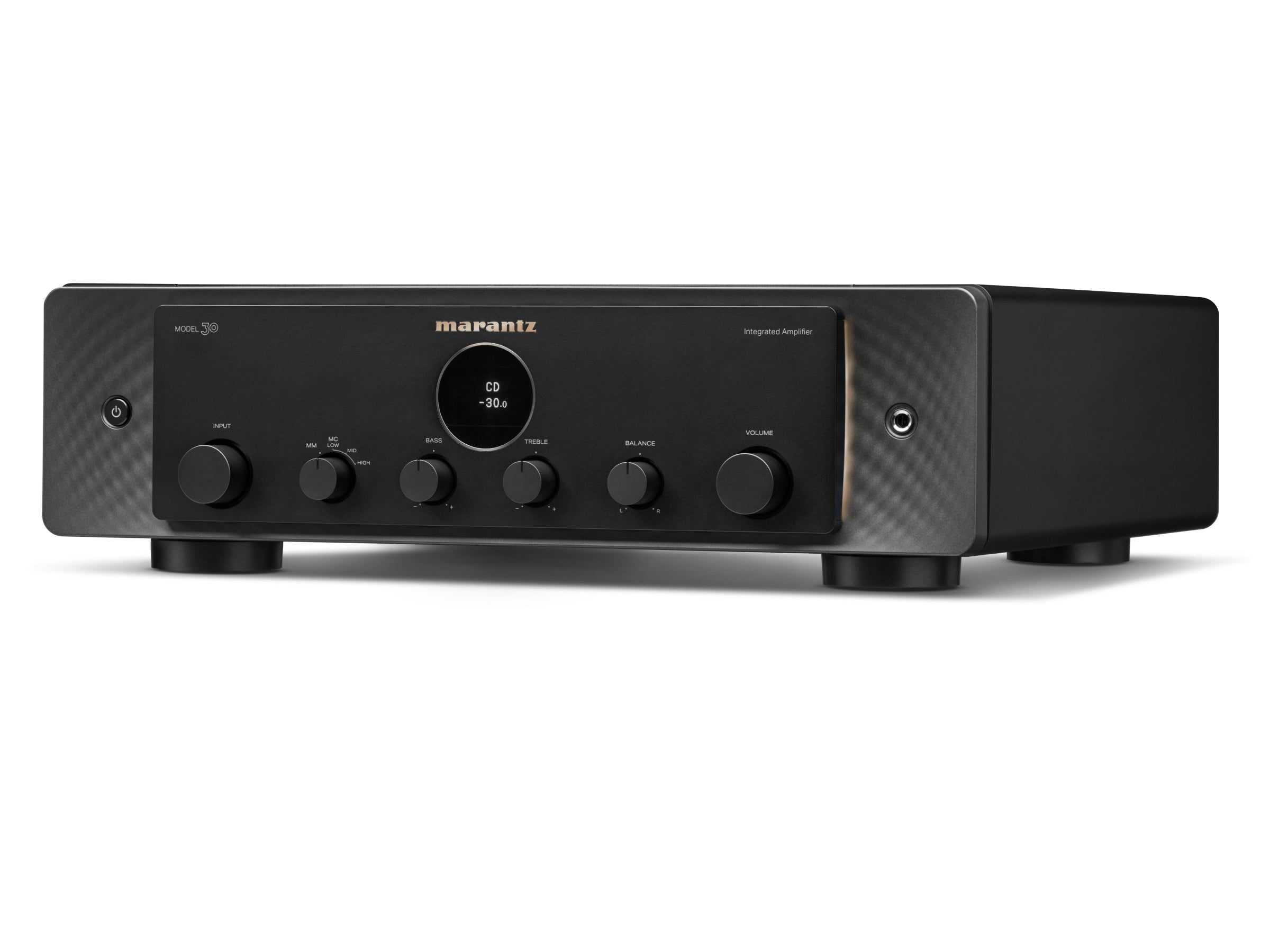

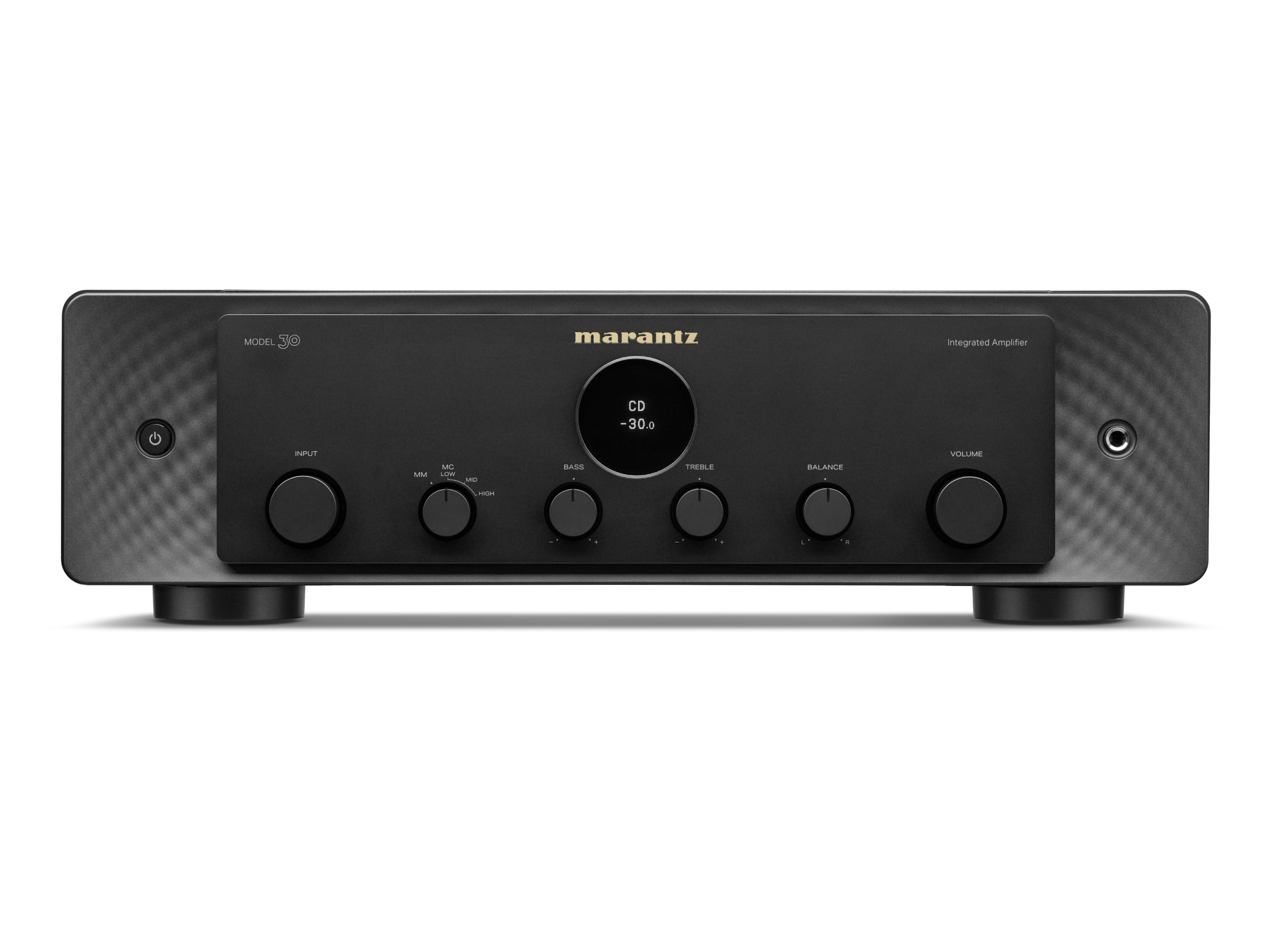

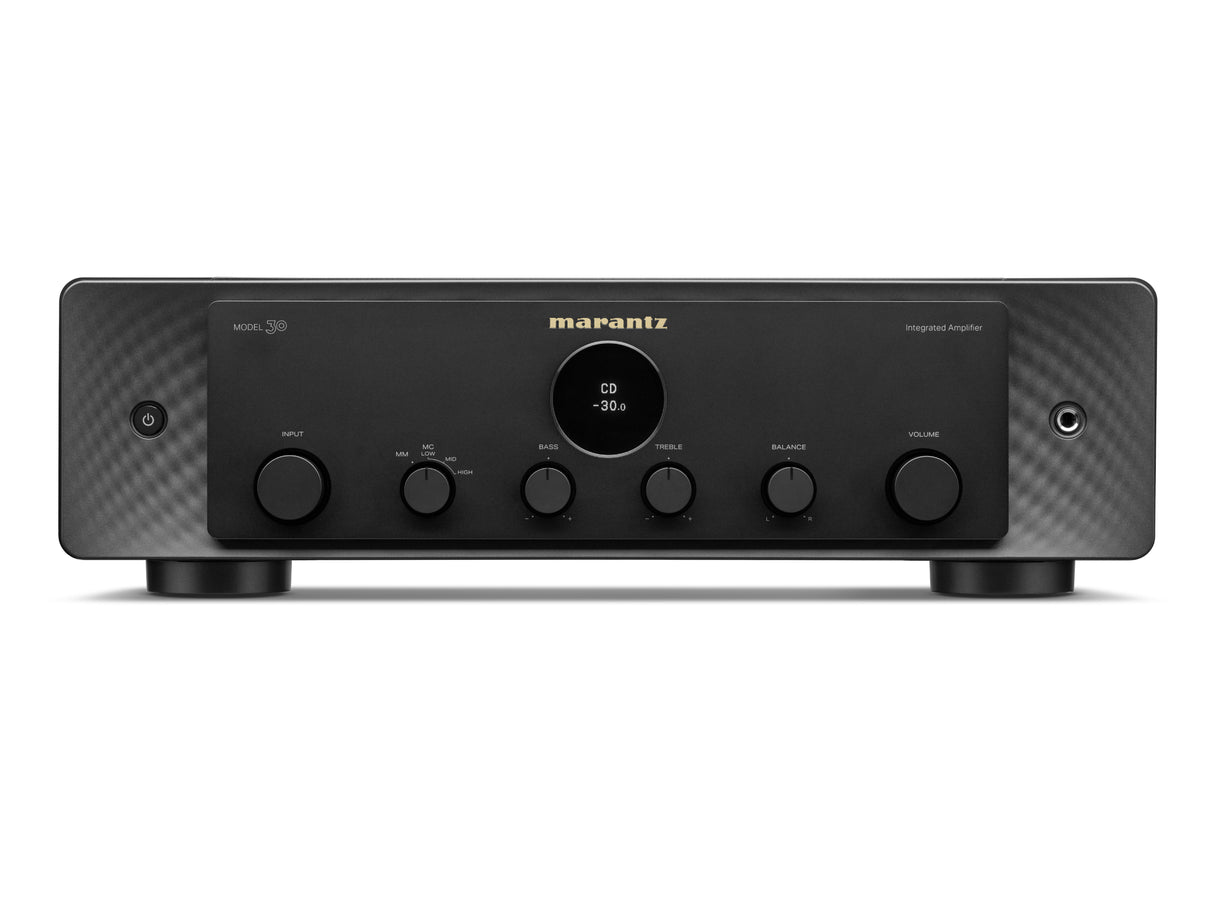

• Available in Black and Silver Gold

Technical Specifications

Features

Aluminium extrusion heat sink o (Separate)
Balance / Bass / Treble / Loudness o / o / o / -
Channels 2
Current Feedback Topology o
Customised Components o
Digital in: USB-B / optical / coaxial / USB-A - / - / - / -
HDAM version SA3, SA2
High Grade Audio Components o
Phono EQ: Standard / Marantz Musical / Marantz Musical Premium - / - / o
Power Transformer: Toroidal / El SMPS
Symmetric PCB Layout o

General

Auto power off o
Carton Maximum Dimensions (W x D x H) in mm 534 x 522 x 255
Carton Weight (inc. product) in kg 17.6
Detachable Power Cable o
Maximum Dimensions (W x D x H) in mm 443 x 431 x 130
Metal Front Panel o
Power Consumption in W 130
Remote Control RC002PMND
Standby Consumption in W 0.2
System Remote Function o
Weight in kg 14.8

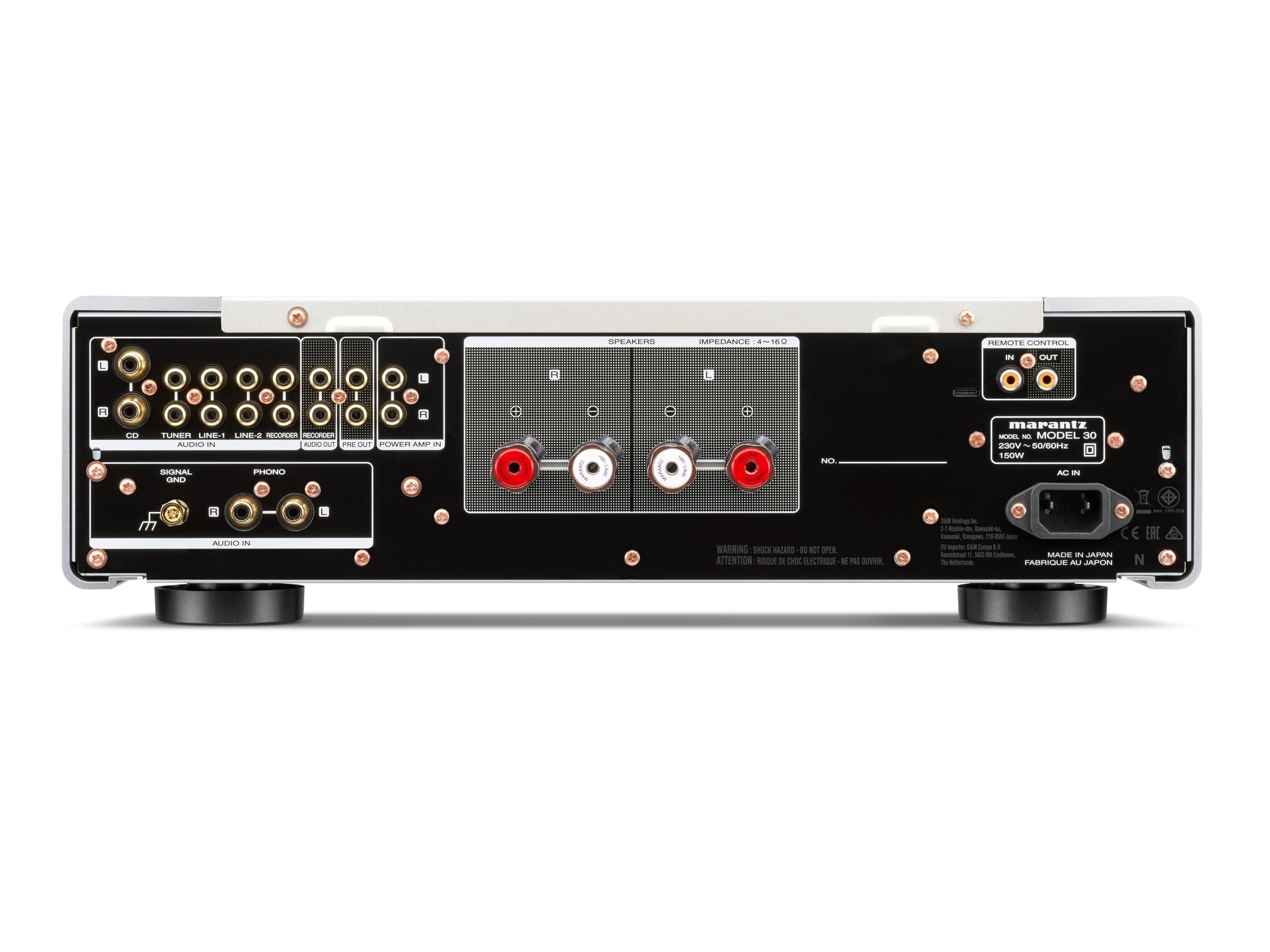

Inputs/Outputs

Audio Inputs 6
Audio Outputs 1
Balanced In / Out - / -
D-Bus o
Digital in: USB-B / optical / coaxial / USB-A - / - / - / -
Floating Control Bus (3.5 mm mono jack x 2) -
Gold Plated Cinch o
HDMI: inputs / outputs -
Headphone Gain Control (low / mid / high) -
Headphone Out o
Number of terminals 2
Phono Input: MM / MC o / o
Power Amp Direct IN o
Pre-out / Main-in o / -
Speaker A / B -
Speaker Terminals Marantz SPKT-100+

Others

5mm aluminium top plate -
BI-AMP and Multichannel option -
Double Layer Bottom Plate o
Input buffer amp (all inputs / CD only) - / -
Linear Drive Power Supply o (pre-amplifier stage)
Liniear volume control o
Low noise LCD display -
Low Noise OELD display o
Marantz Musical Digital Filtering -
Power Amp direct -
Shottky diodes o
Source Direct -
System block shielding: copper / metal / none o / - / -

Specifications

Damping Factor 500
Frequency Response 5 Hz - 50kHz
Input Sensitivity: Balanced High level -
Input Sensitivity: High level 220 mV / 13 kohm
Input Sensitivity: MC 250
Input Sensitivity: MM 2.3 mV / 39 kohm
Input Sensitivity: Power Amp Direct IN -
Power Output (8 / 4 Ohm RMS) 100 W / 200 W
Signal to Noise Ratio: High level 107 dB(2V input/Rated output)
Signal to Noise Ratio: MM / MC 88 / 75 dB
Signal to Noise Ratio: Power Amp Direct IN -
Total Harmonic Distortion 0.005%
