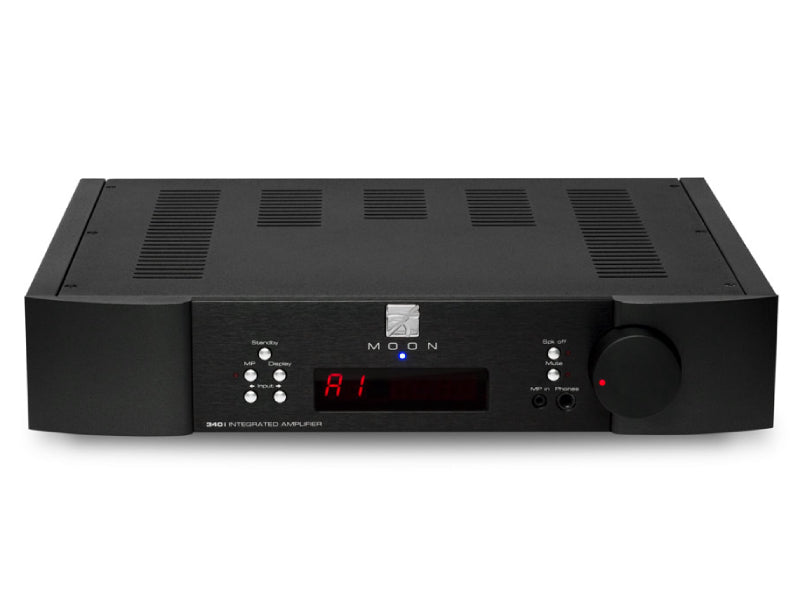

MOON 340i X Intergrated Amplifier
Endless possibilities… The MOON 340i X allows you to integrate your music system in distinctively new ways. It redefines the possibilities of what an integrated amplifier can be.
Loaded with numerous convenient features and unbeatable sonic performance, the 340i X provides for unprecedented flexibility. In addition, the 340i X flexibility is enhanced by a host of options which can be included at the time of purchase or added later on.
Combining high power, sonic finesse and superb flexibility, the 340i X will seduce you with its musical authority, as well as its rich, engaging and lifelike sound quality.
A high-performance and very versatile DAC is offered for connectivity to your latest devices such as a computer, DVD/Blu-Ray player or an iPod docking station. If you have a love for spinning your cherished collection of vinyl records, a fully-configurable MC/MM phono stage is also available.
Winner of 12 awards, the 340i X can easily be the centre piece of your music and entertainment system.
Featuring an options package, unheralded in the world of high-performance audio, which includes (1) an internal digital-to-analog converter (USB-2, S/PDIF & TosLink digital inputs), (2) an internal RIAA phono preamplifier (MM & MC) and (3) a balanced line-level input. All 3 of these options are available in any combination, either at the time of purchase or as a future upgrade.
The standard 340i X is £4100, with D3 and P options installed at factory (340i D3PX) is £4900 (this price reflects a discount when ordered this way, compared to adding the options separately).
The MOON 340i X combines almost 30 years of experience in the design and manufacturing of award winning products with numerous unique technologies found in many of Simaudio’s other components. The 340i X will be the heart and soul of your home-entertainent system for many many years … call it the birth of a legend.
Available in the following finish:
Black (standard)
Two-tone, black and silver
Silver (special order)
-
6 (six) line-level inputs including a front-mounted 1/8” mini-jack for personal media players.
-
1 (one) pair of balanced input (XLR).
-
Headphone output on 1/4” jack located on the front panel.
-
A massive oversized power supply using a custom toroidal transformer design.
-
“Class A” output to 5 watts for greater efficiency.
-
One audio input which functions as a “pass-through”, bypassing the gain stage to accommodate components like a home-theater processor, whose own volume control is used instead.
-
Precision matched proprietary MOON Bipolar output transistors for improved bass response and accurate sonic reproduction.
-
Output Power at 8Ω100 W per channel
-
Output Power at 4Ω200 W per channel
-
Input Sensitivity370mV - 3.0V RMS
-
Input Impedance11,000Ω
-
Gain37dB
-
Signal-to-noise Ratio110dB @ full power
-
Frequency response (full range)2Hz - 90kHz +0/-3dB
-
Crosstalk-88dB
-
THD (20Hz - 20kHz @ 1 W)0.015%
-
THD (20Hz - 20kHz @ 100 W)0.05%
-
Intermodulation distortion0.03%
-
Optional Digital InputsS/PDIF, USB, Optical
-
Maximum PCM Resolution32-bit / 384kHz
-
DSD sample ratesDSD64, DSD128 & DSD256
-
Shipping weight28 lb / 13 kg
-
Dimensions (width x height x depth)16.9 x 3.5 x 14.8 in
-
42.9 x 8.9 x 37.6 cm
