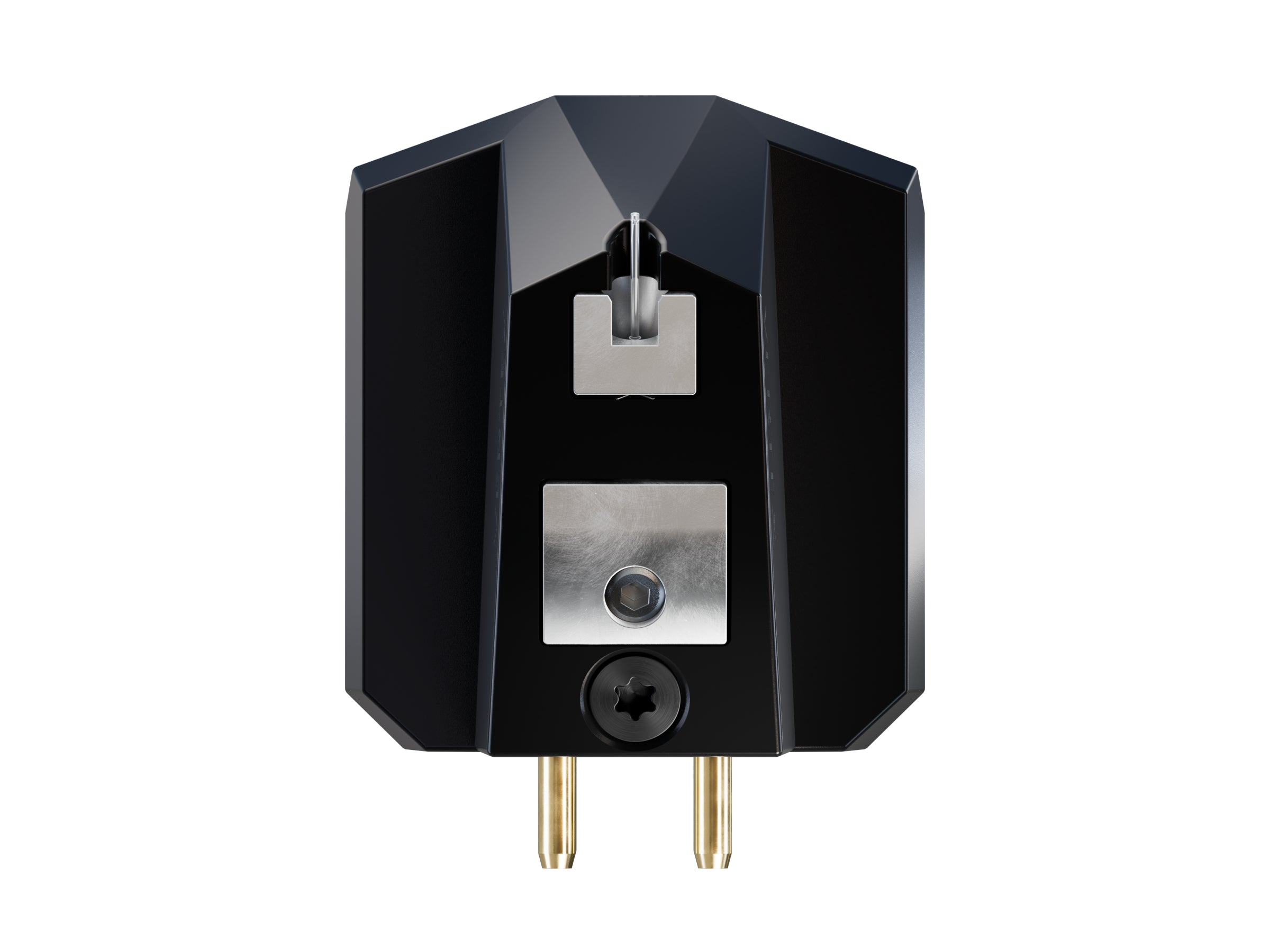

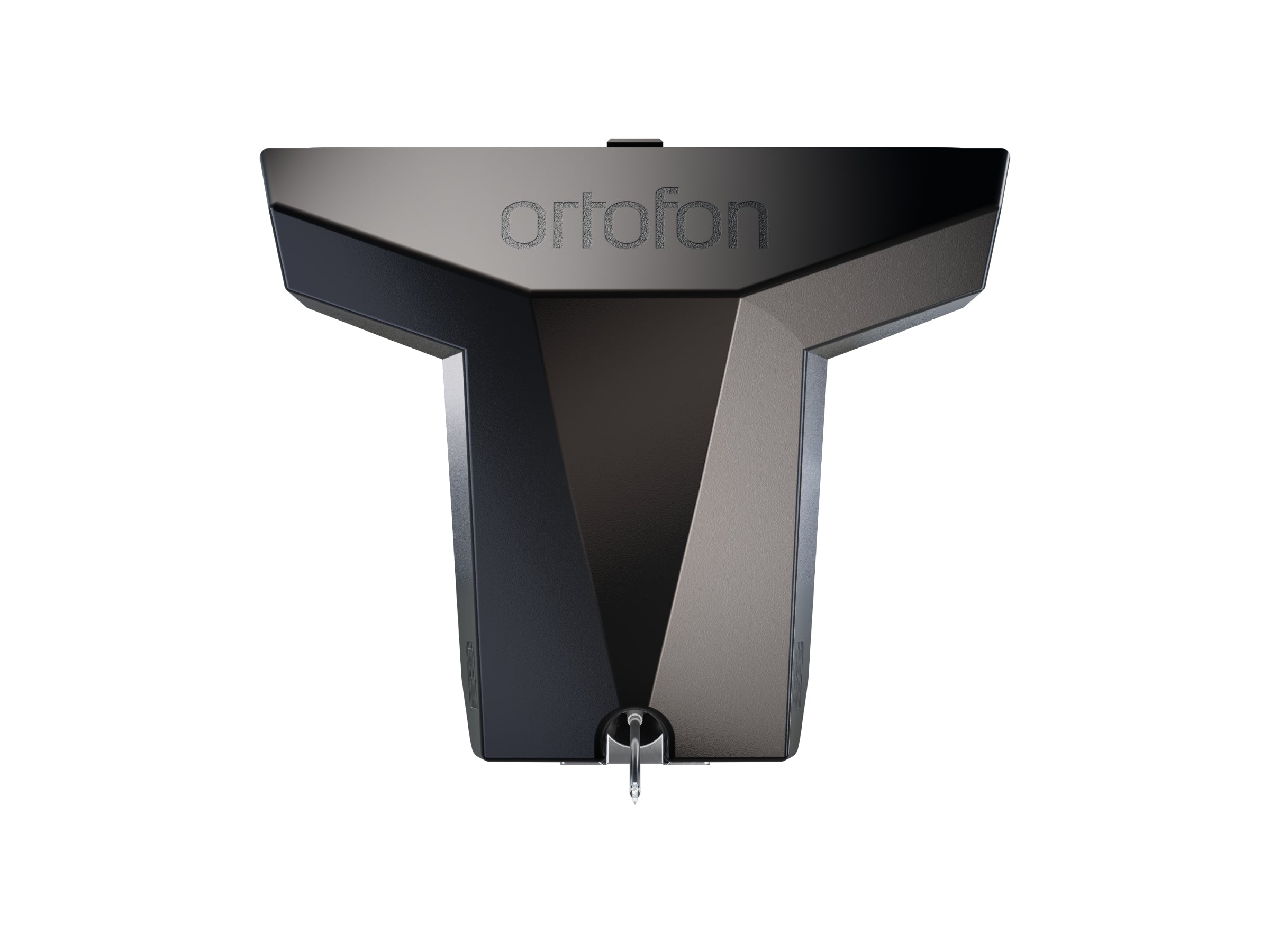

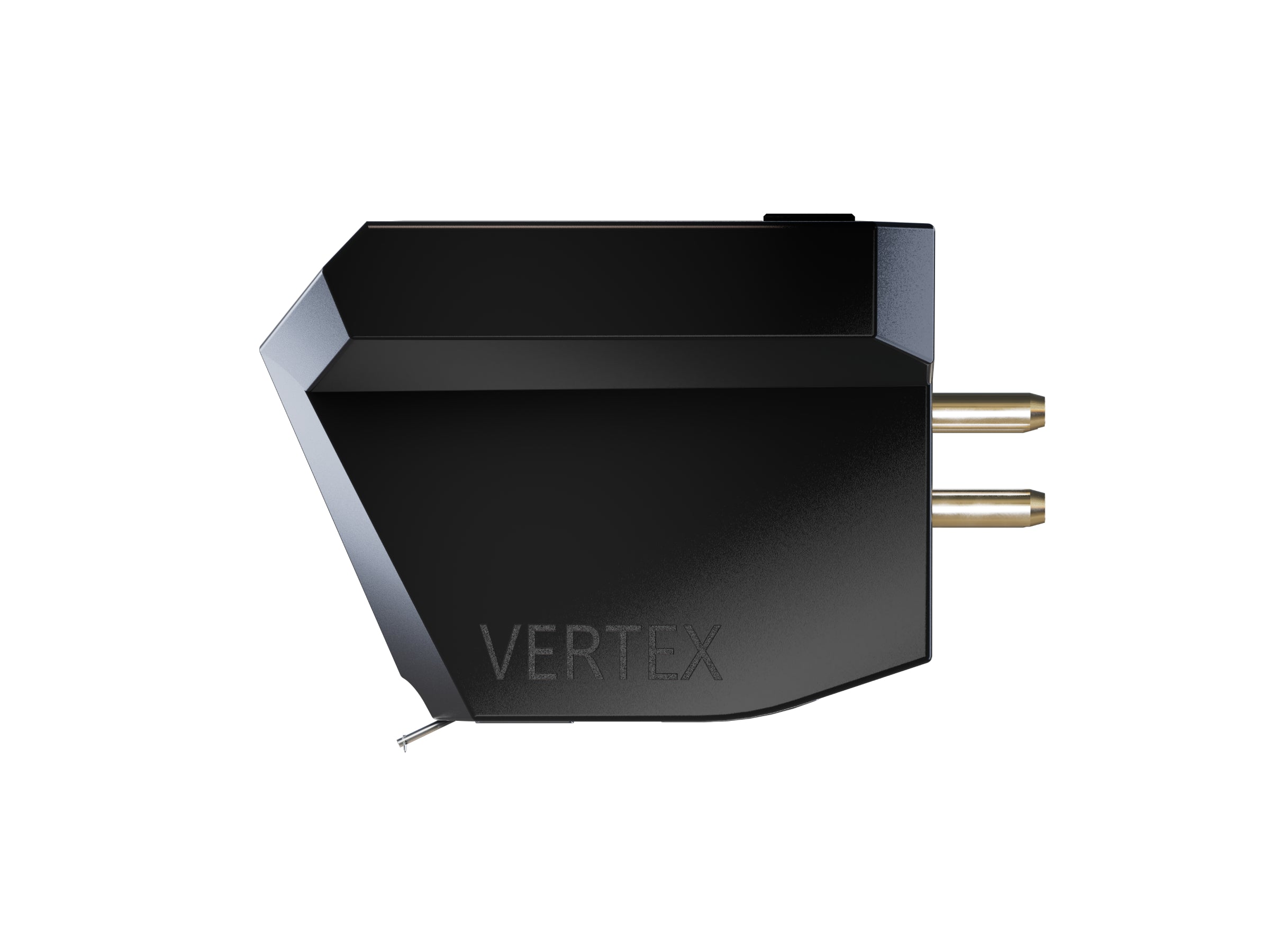

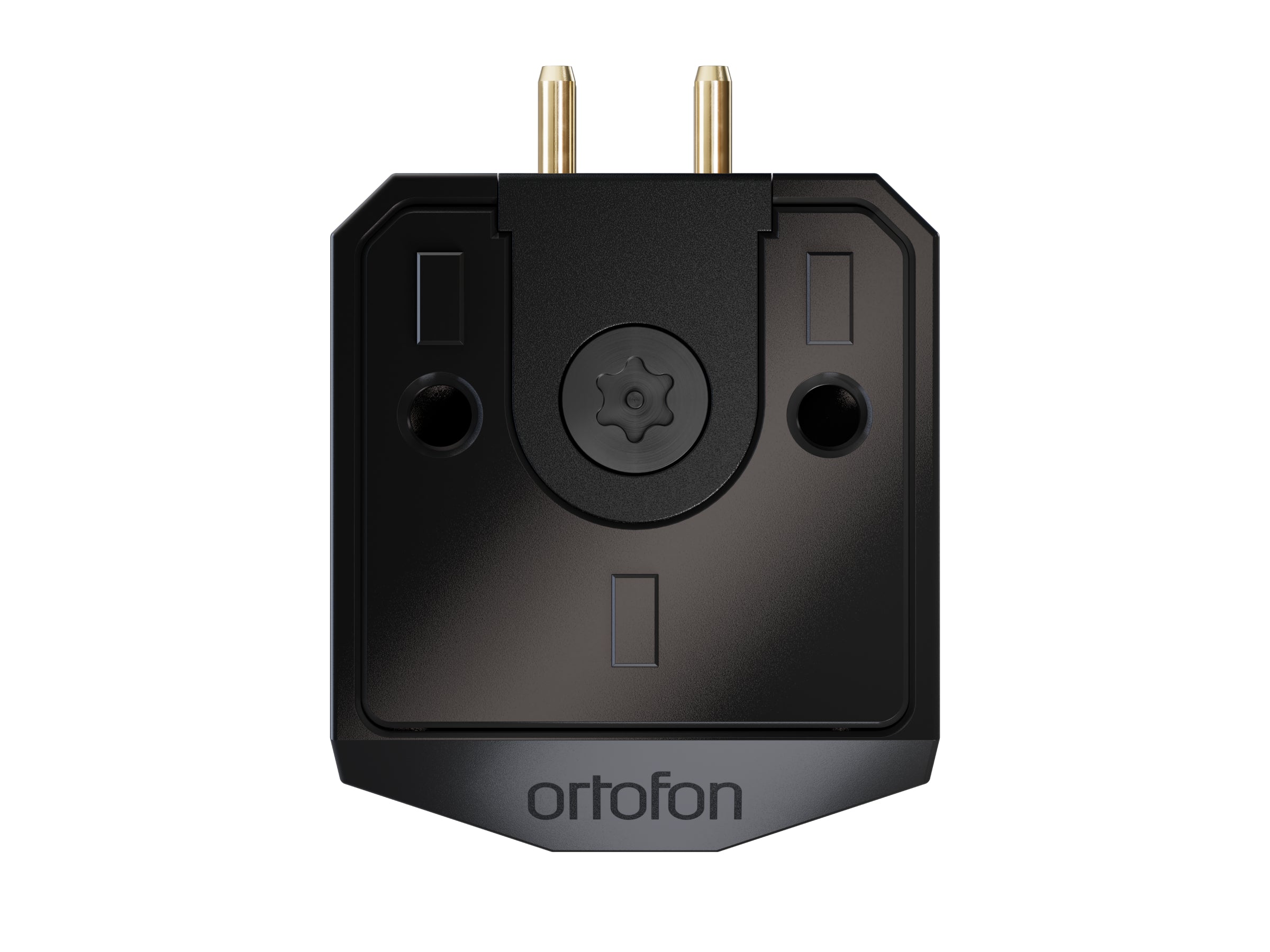

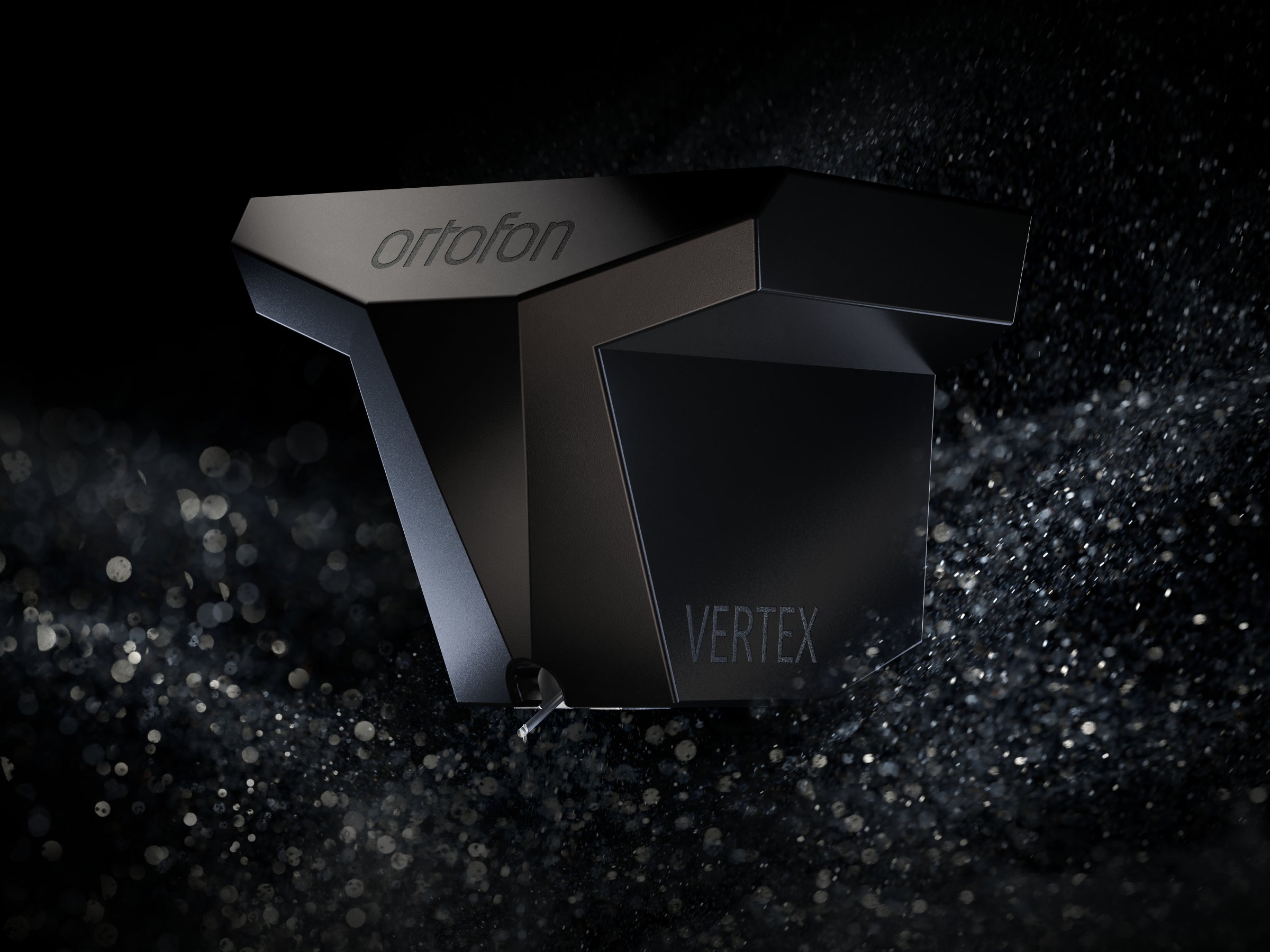

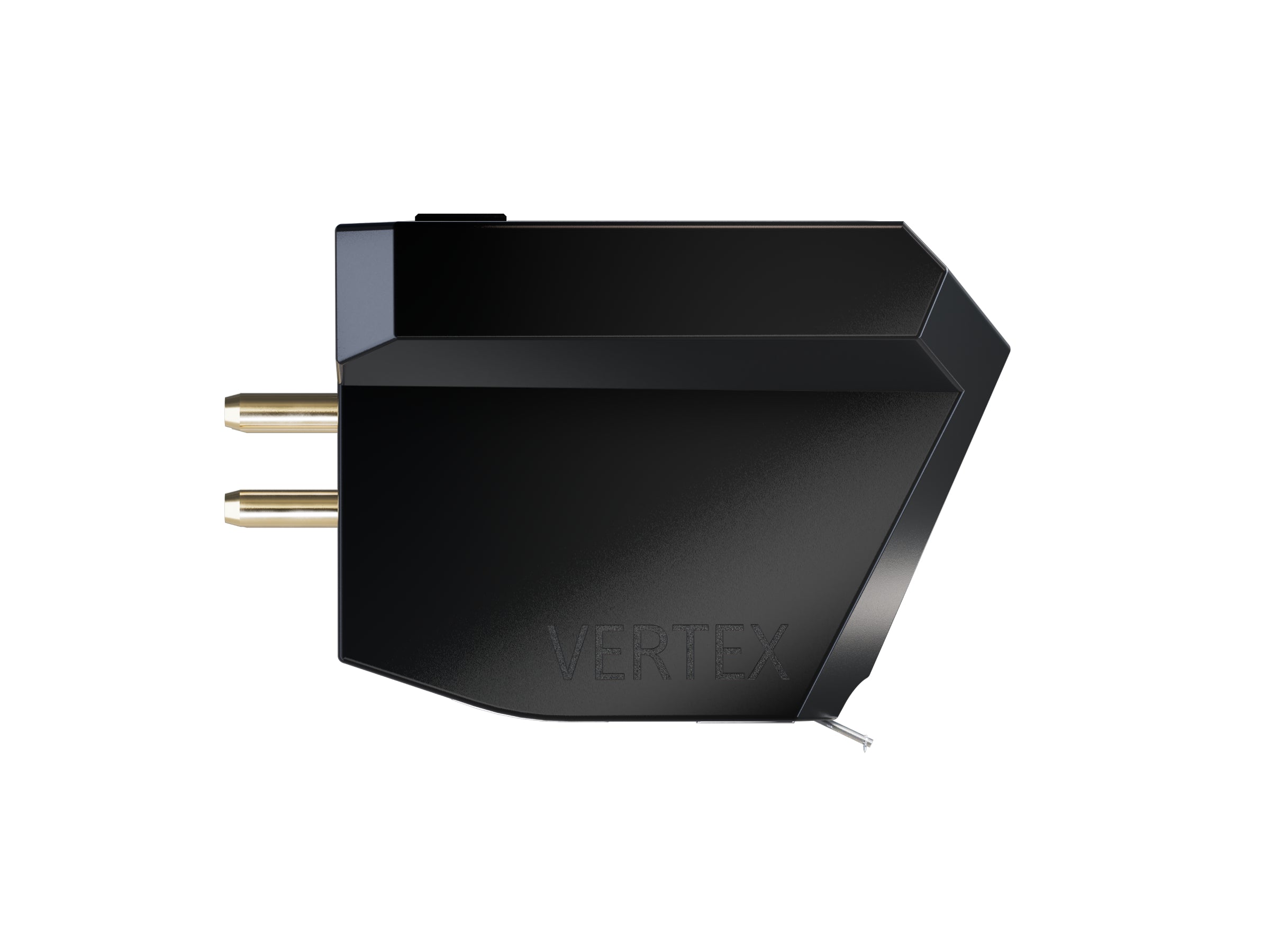

Ortofon MC Vertex Moving Coil Cartridge
MC Vertex is a reference moving coil cartridge with a precision line contact diamond, solid diamond cantilever and titanium body for transparent, high-resolution vinyl playback with stable tracking and low resonance.
Unified Design Approach

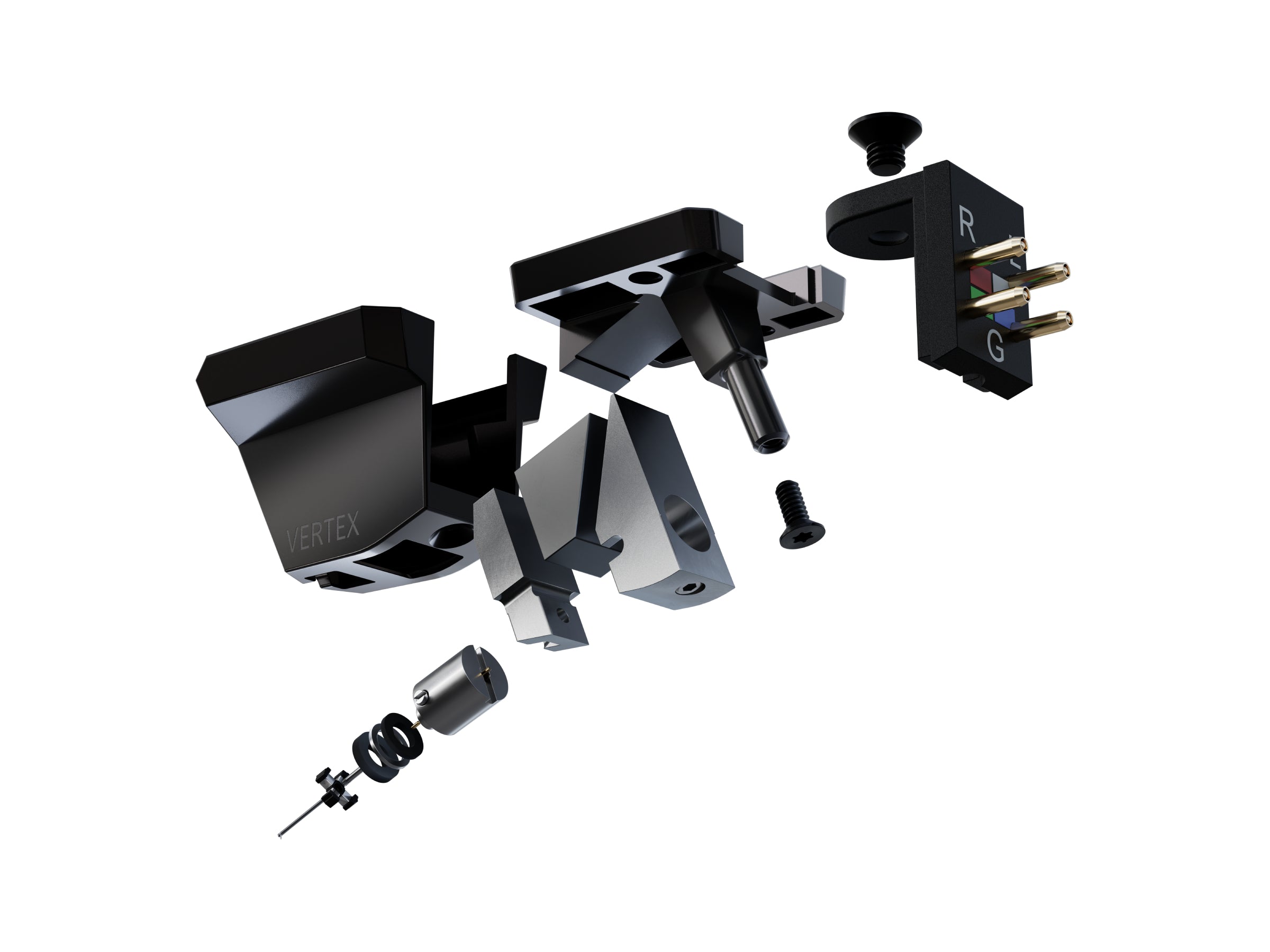

MC Vertex is designed as an integrated moving coil cartridge with a unified structure, combining materials, geometry and mechanical control for accurate groove tracing, stable signal generation, clean energy transfer and natural tonal balance.

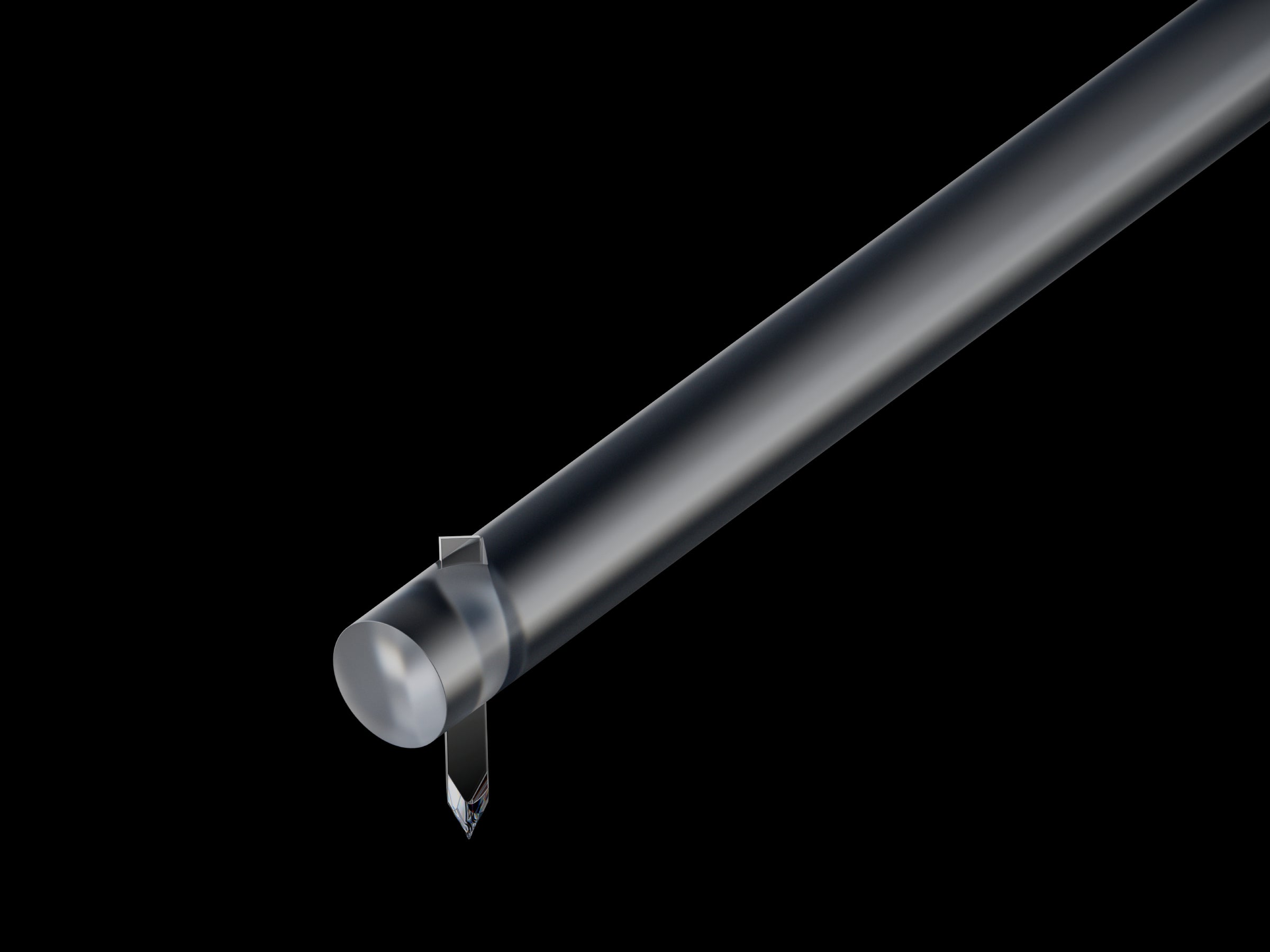

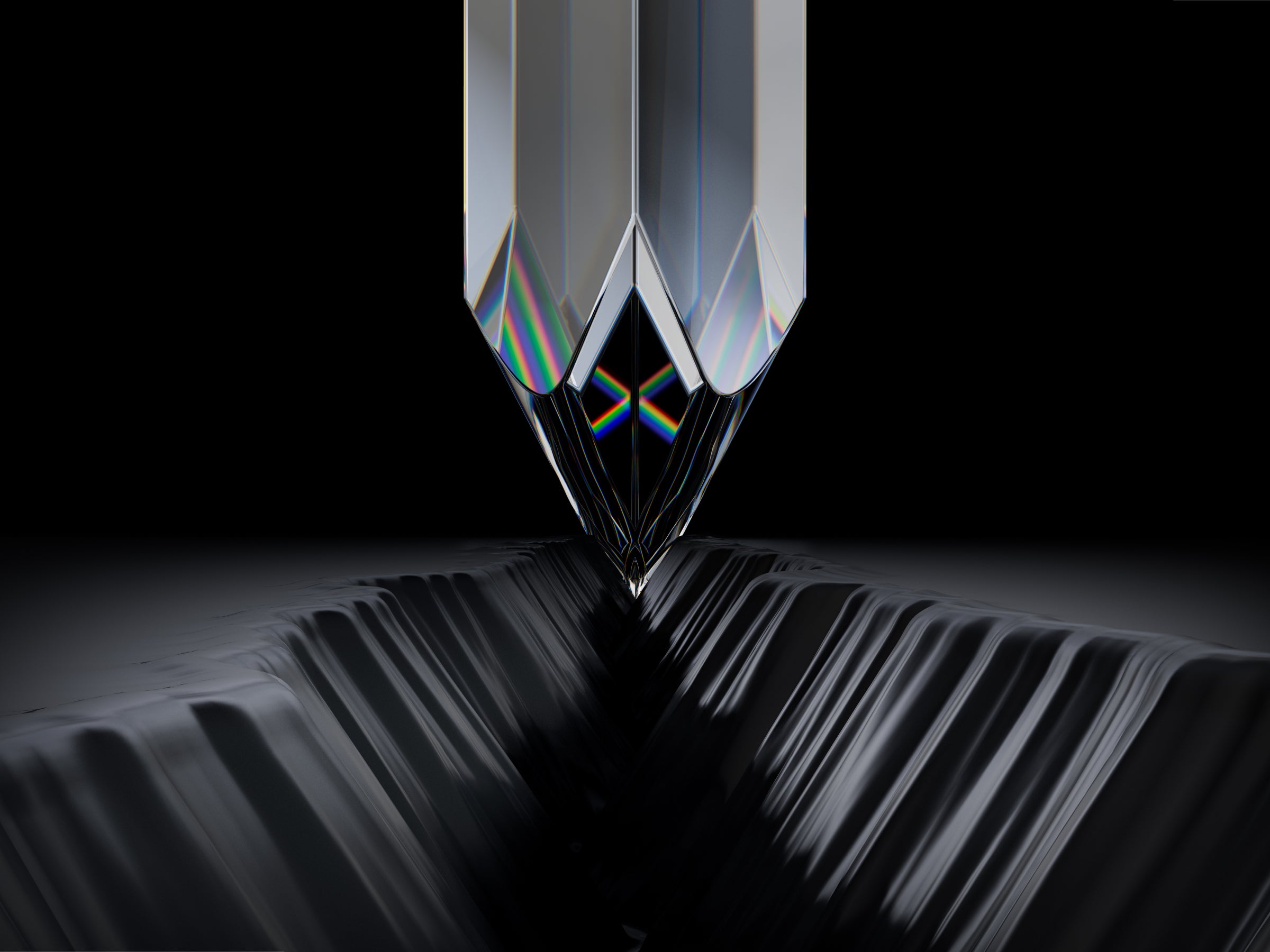

Diamond and Cantilever

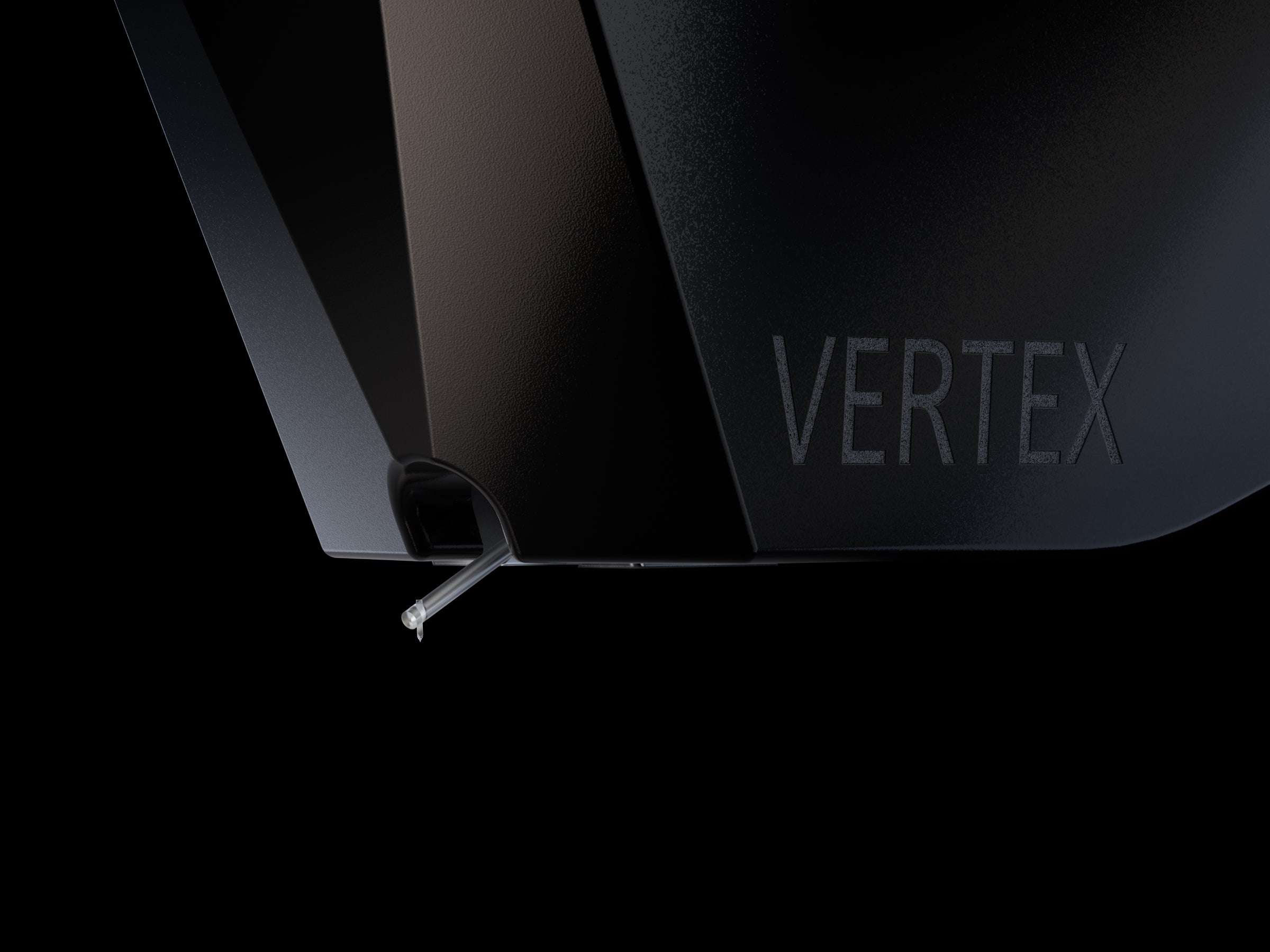

The Ortofon Vertex diamond uses an advanced line contact profile with a 4 µm scanning radius and 110 µm contact radius for precise groove contact, stable tracking and excellent detail retrieval, while the solid diamond cantilever provides a rigid, low-mass structure for fast, accurate energy transfer.

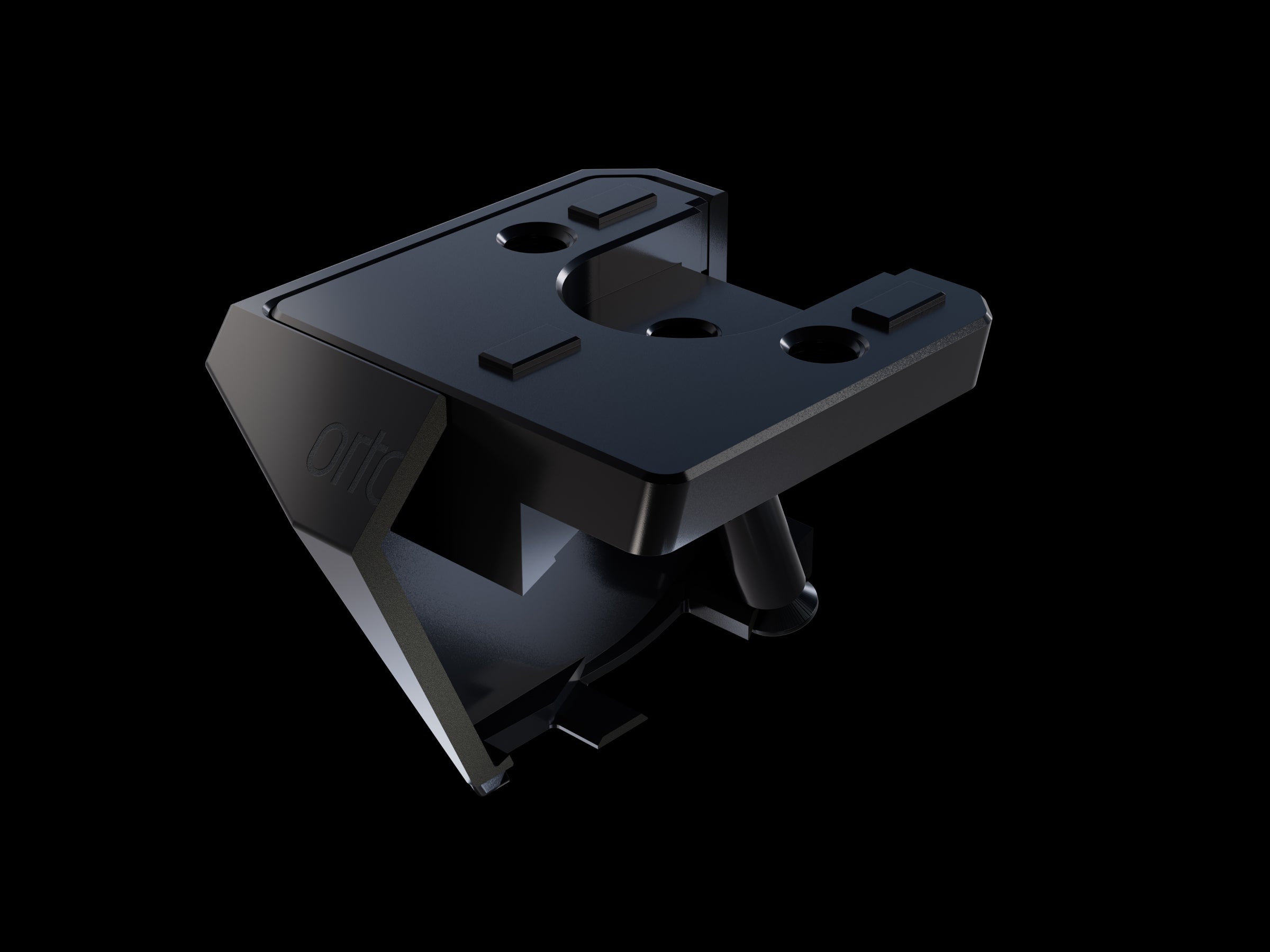

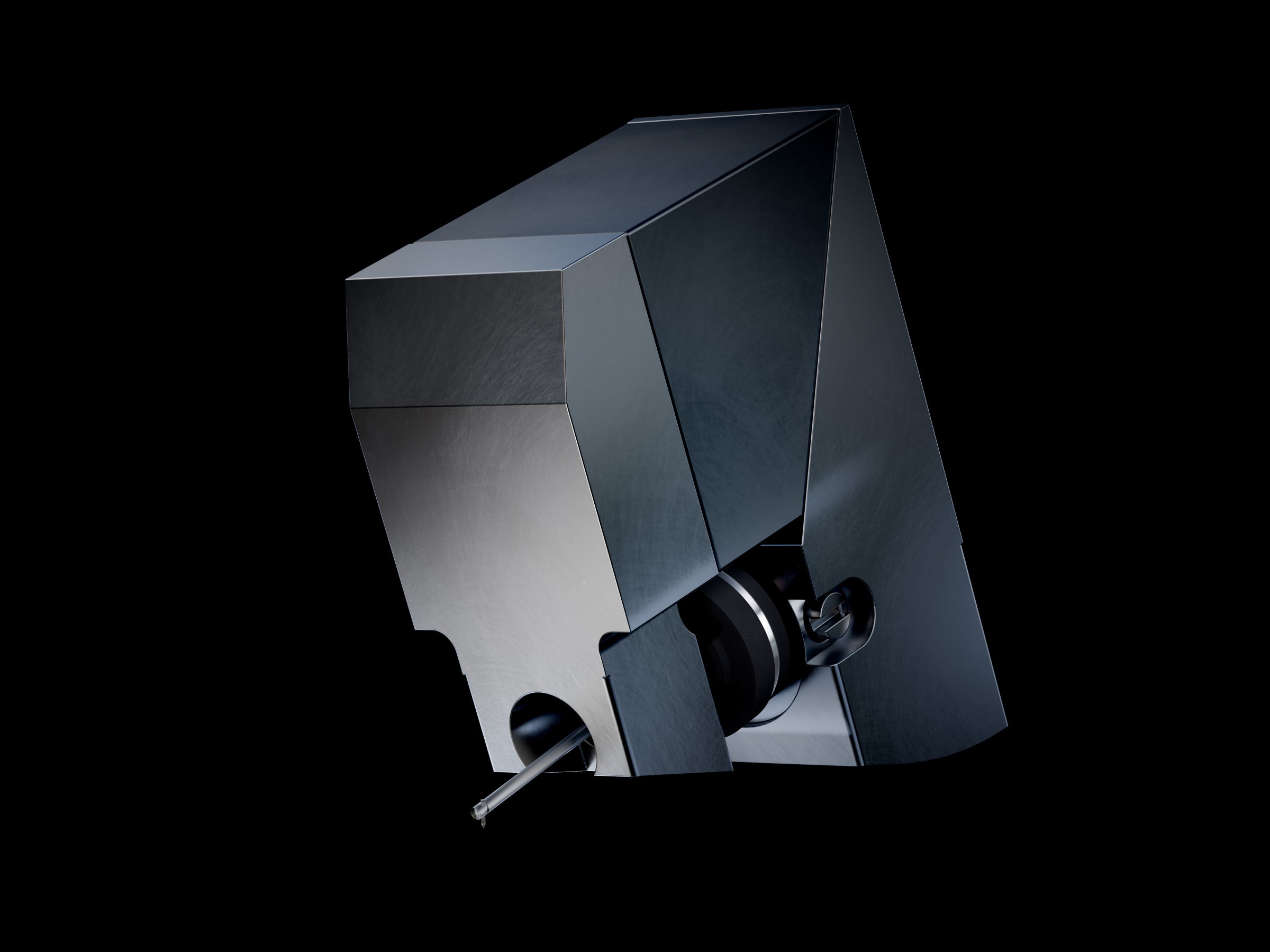

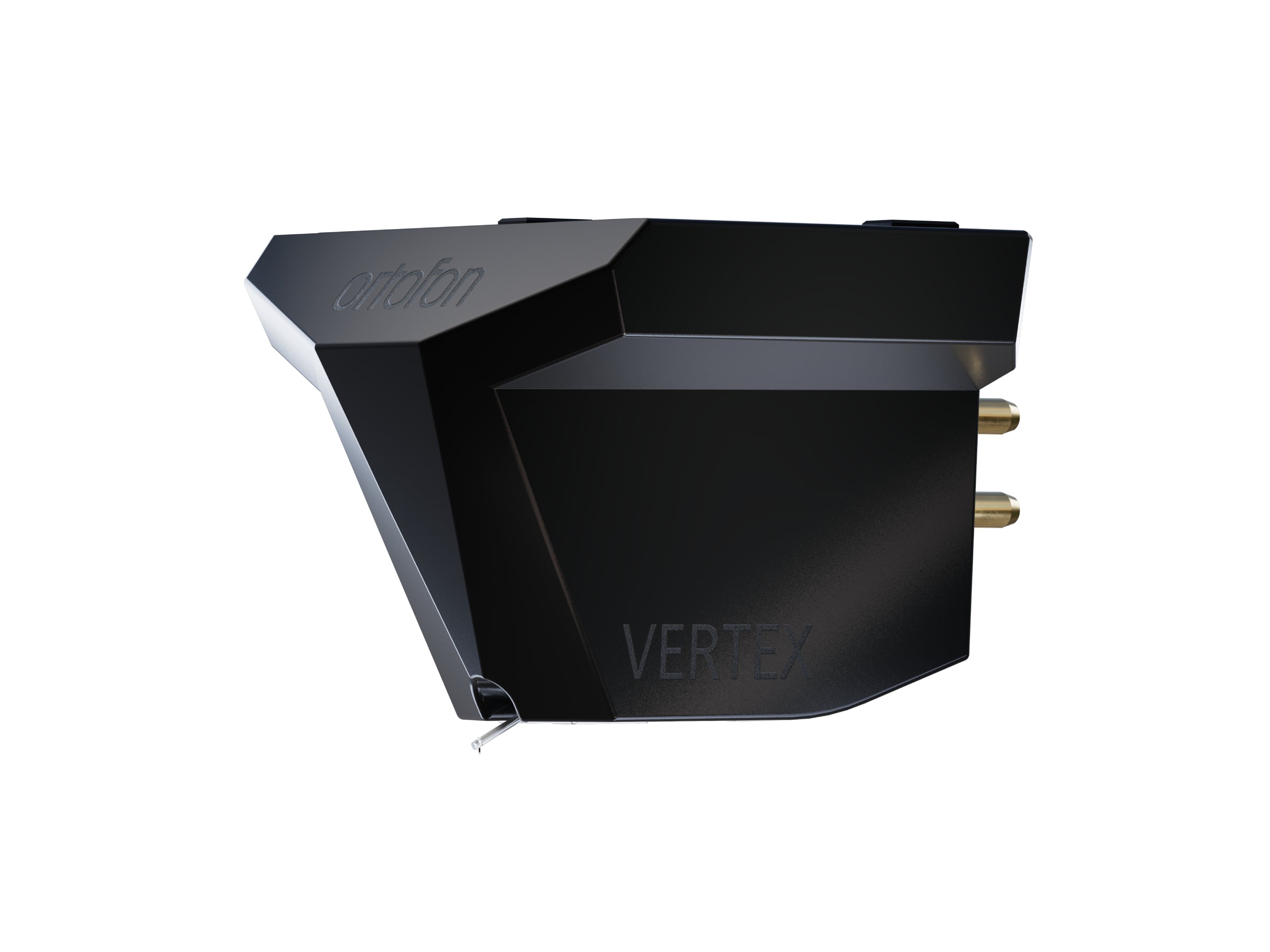

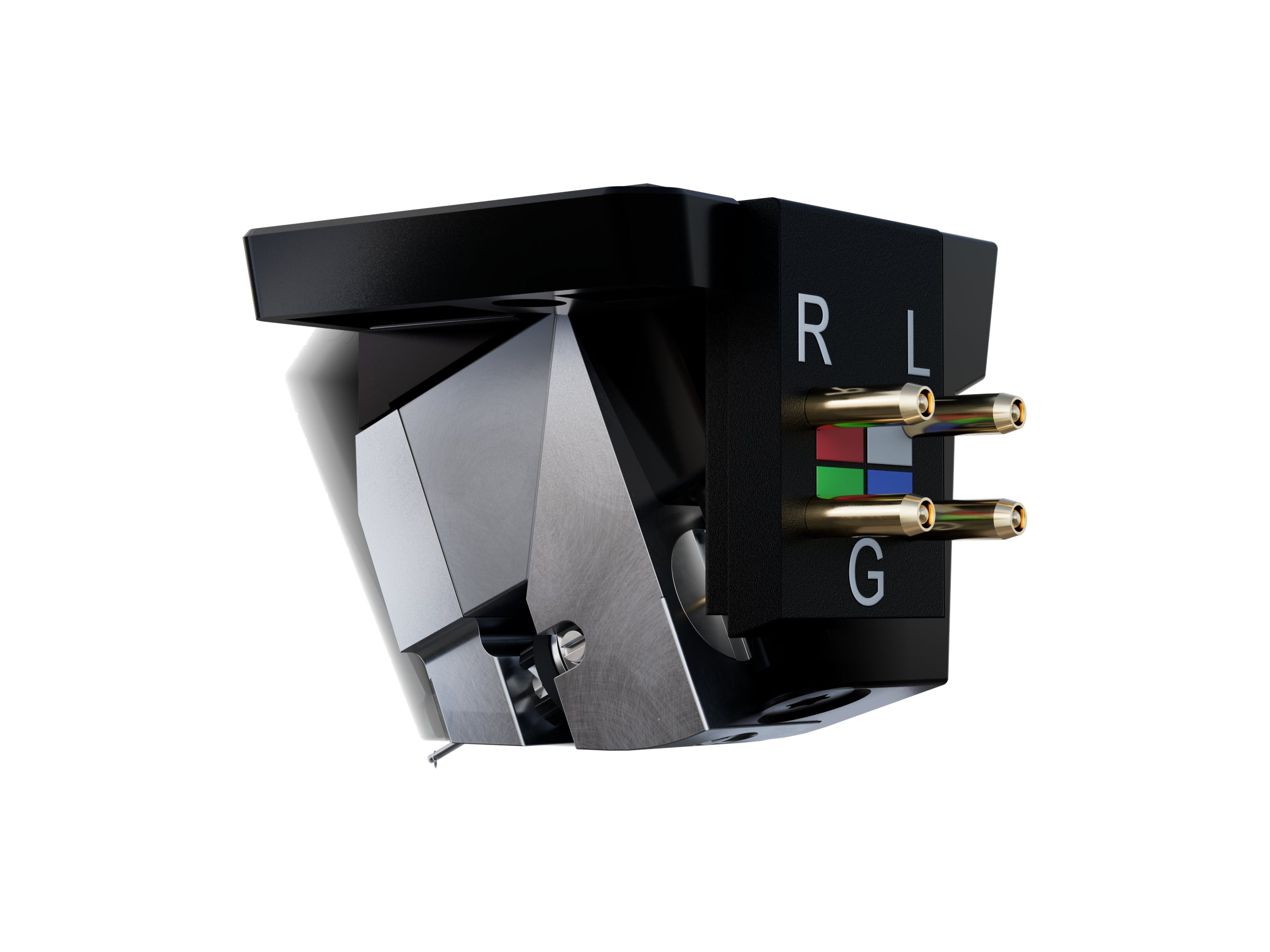

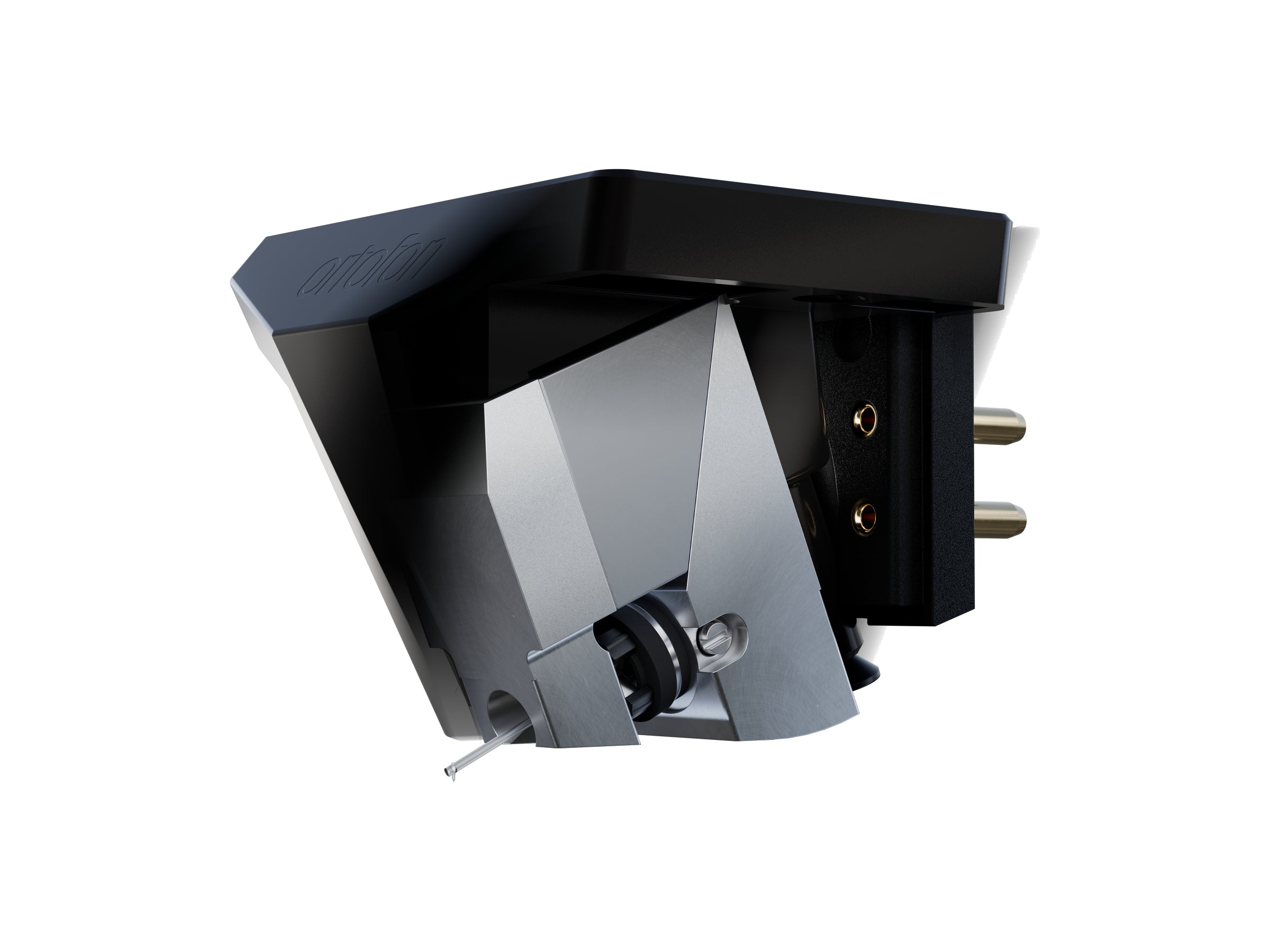

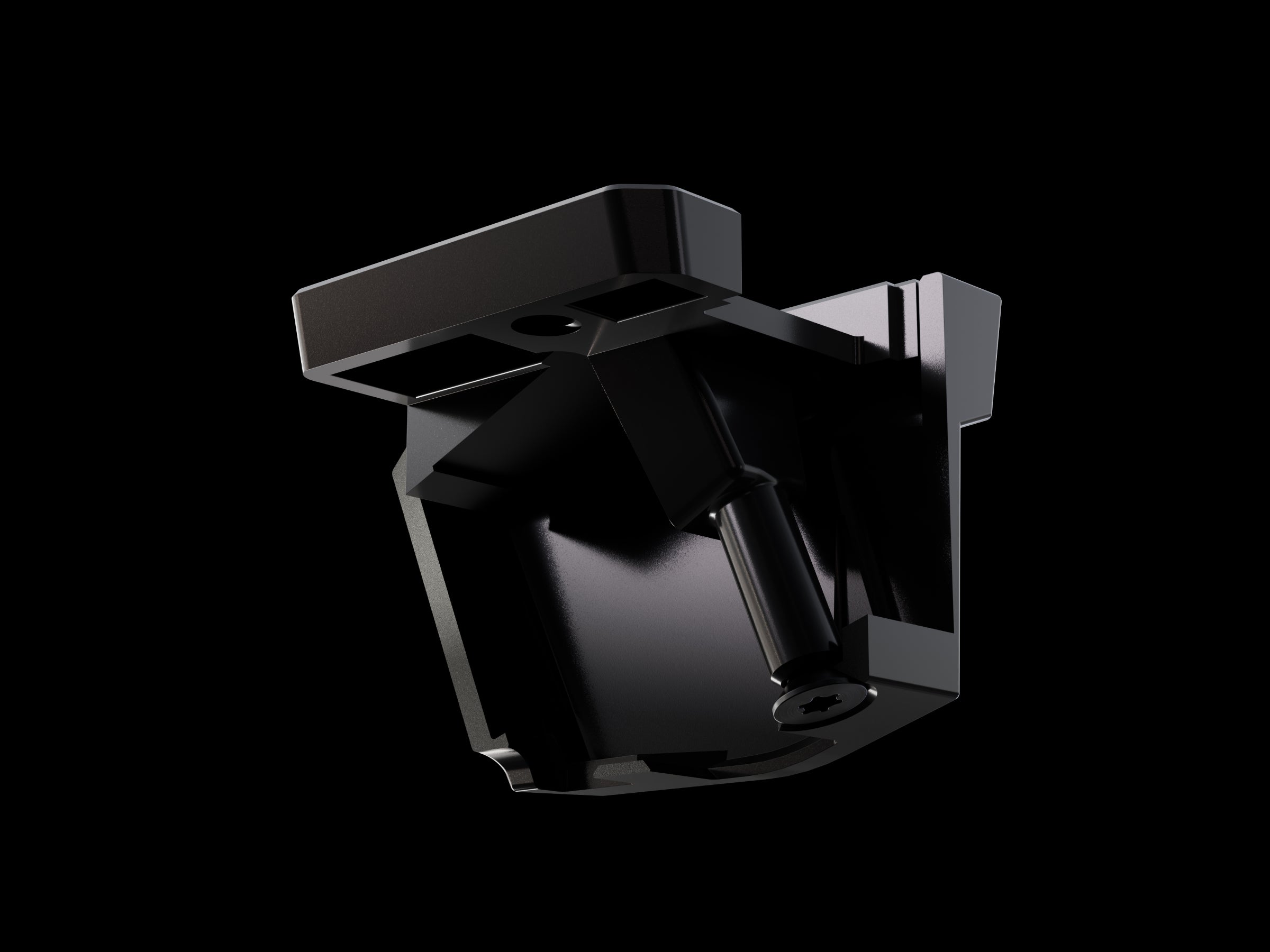

Titanium Body and Magnetic System

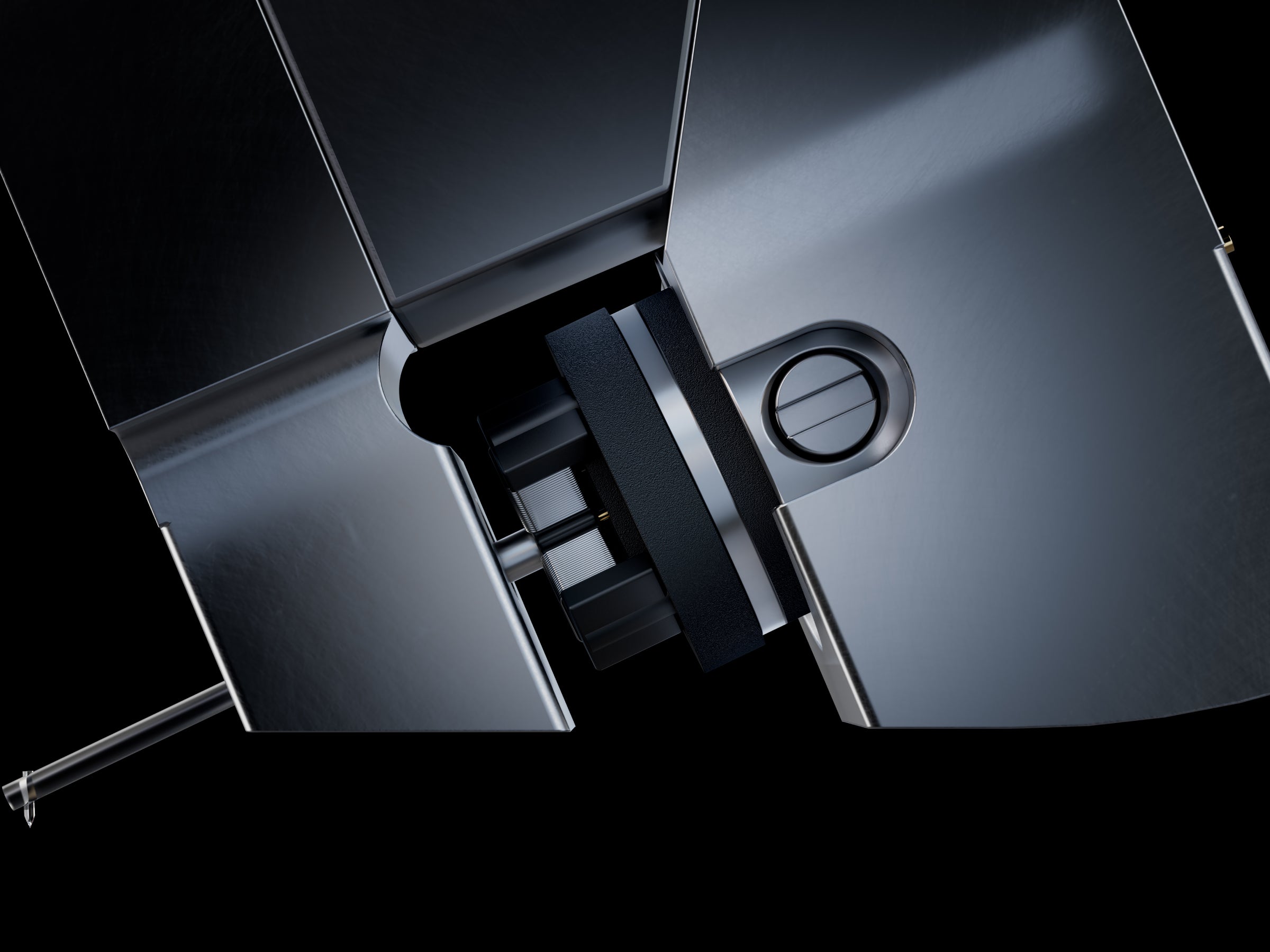

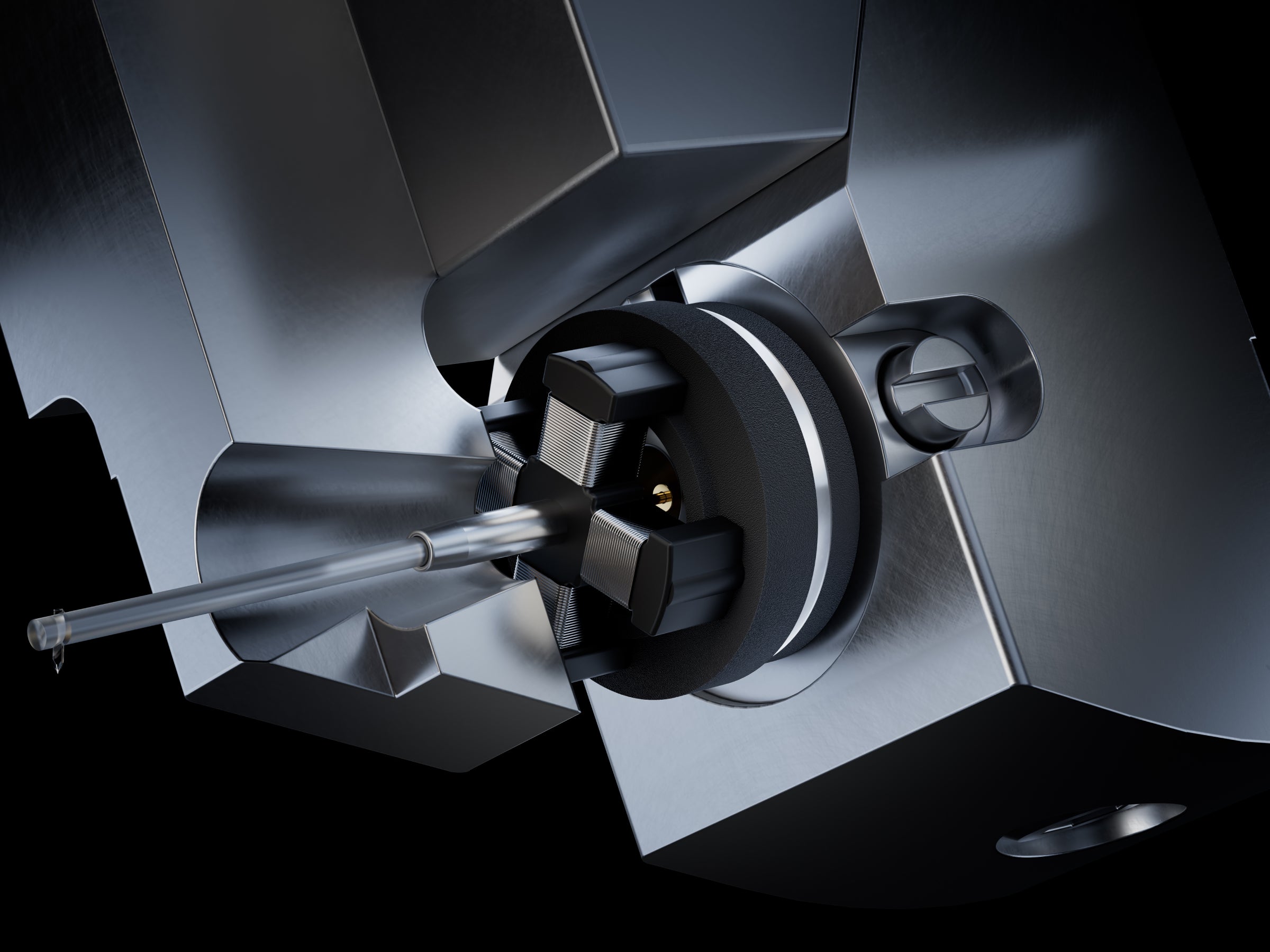

The titanium housing and internal core are made using Selective Laser Melting (SLM) for precise control of geometry, mass and damping, while a non-magnetic armature and high-purity silver coils support low moving mass, clean signal generation and fast transient response.
Damping and Performance
Ortofon’s Wide Range Damping system uses a platinum disc between proprietary rubber dampers to control resonance across the audible range, helping MC Vertex deliver transparent, high-resolution sound, precise imaging, stable playback and natural tonal balance.
Specifications
| Output Voltage (@ 1000Hz, 5cm/sec.): | 0.3 mV |
| Channel Balance (@ 1000Hz): | 0.1 dB |
| Channel Separation (@ 1000Hz): | 30 dB |
| Frequency Response: | ± 1 dB |
| Compliance, Dynamic, Lateral: | 9 μm |
| Stylus Type: | Vertex Diamond |
| Stylus Tip Radius (R/R): | 4 / 110 μm |
| Recommended Tracking Force: | 2.5 g |
| Tracking Angle: | 23° |
| Internal Impedance: | 19 Ω |
| Cantilever Material: | Diamond |
| Cartridge Body Material: | SLM Titanium |
| Coil Wire Material: | High-Purity Silver |
| Recommended Load Impedance: | > 100 Ω |
| Cartridge Weight: | 15 g |
