Quad QC Twenty Four P MM/MC Phono Stage (Opened box)
Couldn't load pickup availability
Quad QC Twenty Four P MM/MC Phono Stage (Opened box)

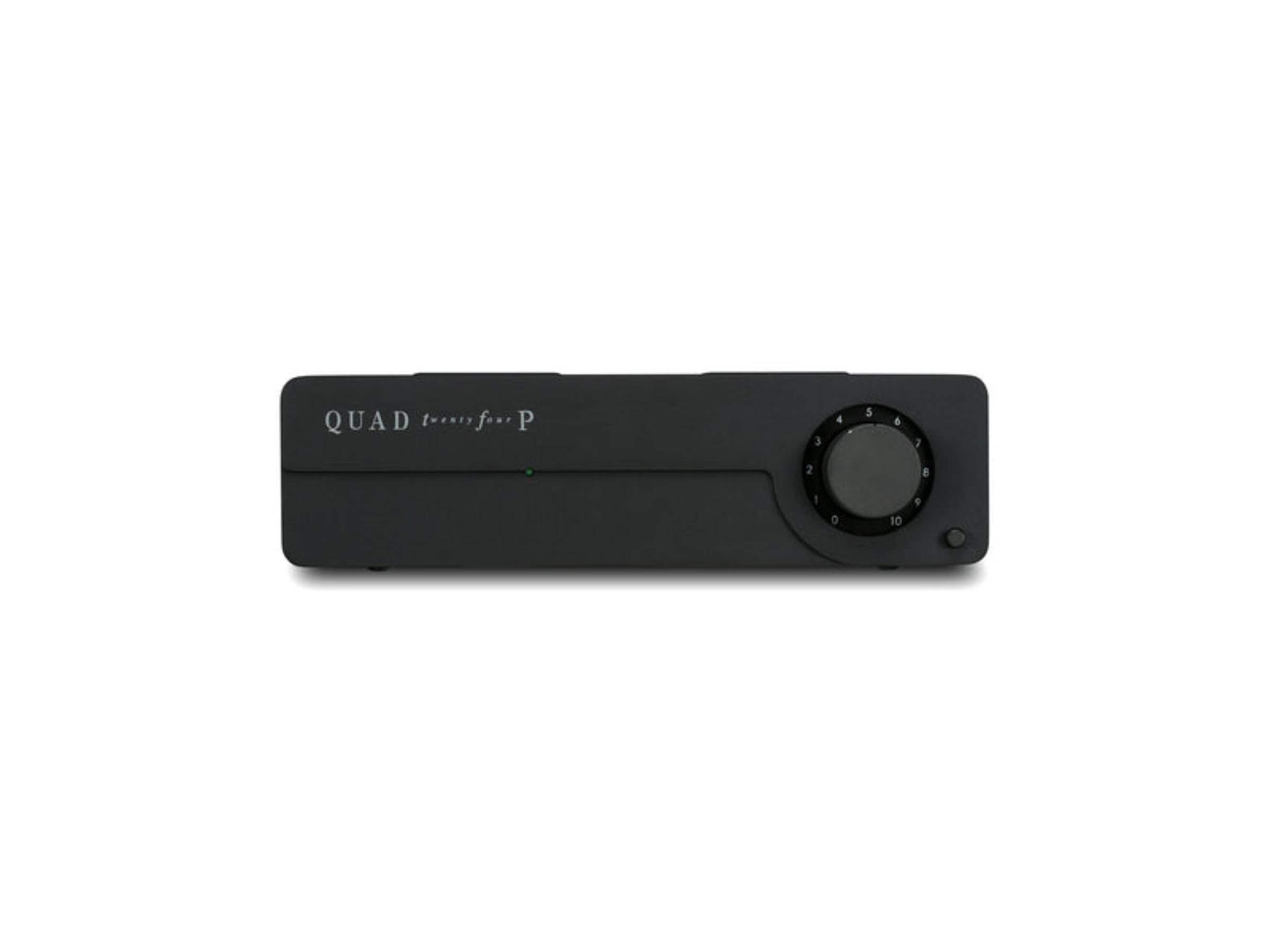

With the analogue purist in mind the Twenty Four P has a moving magnet / moving coil toggle switch and direct / variable level control over volumes for use with all kinds of amplification.
Unlike the power amplifiers, the QUAD pre amplifiers utilise a completely new design. Together with transformers designed by one of the world’s leading authorities and relay input switching the musical signal is preserved in its purest form – pursuant to the philosophy of the theoretical perfect amplifier which as Peter Walker himself stated, is ‘a straight wire with gain’.
Specifications
| Model: | QC Twenty Four P |
| Valve Complement: | 4 x 6111 |
| Total Harmonic Distortion: | <0.08% (A-weighted) |
| Frequency Response: (RIAA/IEC equalisation) | 20Hz - 20kHz (+/-0.5dB) |
| Hum and Noise: (mm position,input shorted) | Better than 60dB |
| Input Impedance: | |
| Moving Magnet: | 47k½ |
| Moving Coil: | 10½ |
| Stage Gain: | |
| High Sensitivity: | 1.3mV (MM)/130µV (MC) |
| Medium Sensitivity: | 2.6mV (MM) / 260µV (MC) |
| Low Sensitivity: | 5.2mV (MM) / 520µV (MC) |
| Nominal Output Level: (ref 5.2mV, MM, Low) | 1.0V |
| Inputs: | Selectable MM/MC cartridge |

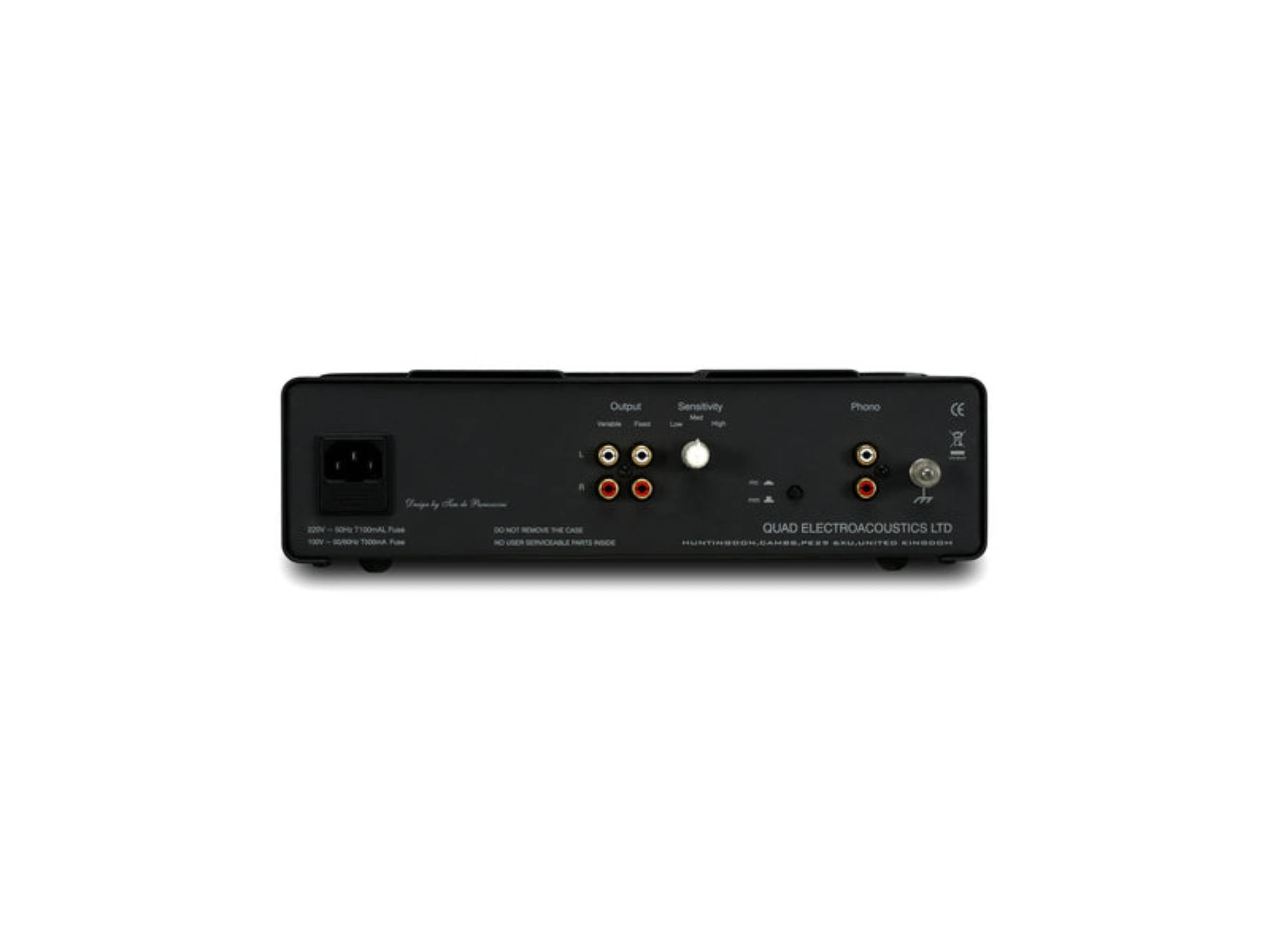

| Outputs: | 1 x Fixed line level, 1 x Variable line level |
| Power Consumption: | 15VA maximum |
| Dimensions: (H x W x D) | 90 x 220 x 300mm |
