Rega Brio Integrated Amplifier
Couldn't load pickup availability
Rega Brio Integrated Amplifier
The Brio Integrated Amplifier
The Brio has a completely new case to house its improved circuits and parts. It now sits in a fully aluminium two-part case which boosts the Brio’s heat sinking capabilities and improves on Rega’s already solid build quality and reliability. The new Brio has a cleverly integrated headphone socket specially designed to avoid interference with the audio circuit when not in use and as you would expect, a very high specification moving magnet phono stage is built in as standard...
Throughout the design process the Brio has been meticulously improved in every aspect, from the quality of materials to the manufacturing process, to make this new Brio a step ahead in Rega’s engineering and design for amplifiers.
Case Design
The sleek and minimal look was designed to bring elegance to Rega’s classic style but still harks back to the swooped features hidden away in Rega’s past amplifiers. Combining all these aspects makes this Brio case a unique standpoint amongst the competition.
Re-designed Circuit

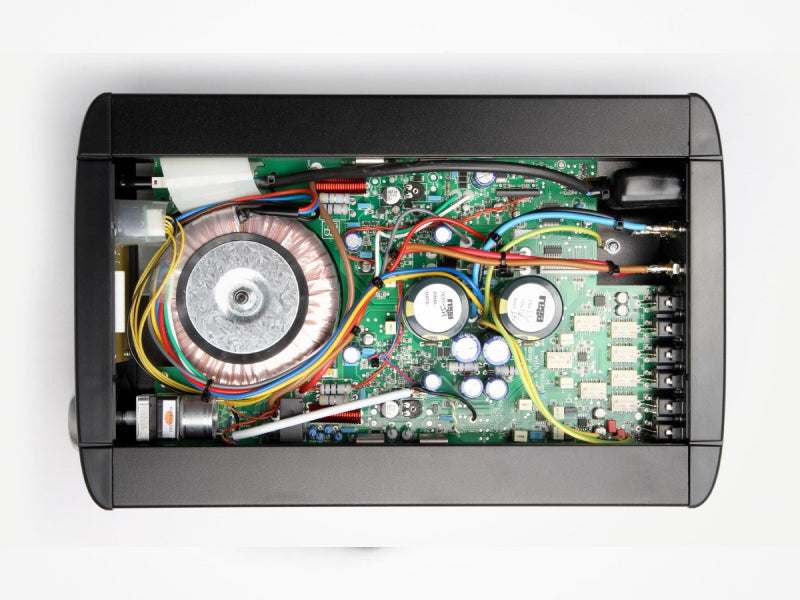

Key improvements have been made to the circuits. The PCB layout has been fully upgraded to handle higher specifications for all critical parts. A second raw power supply has been added to provide further isolation between output stage and the driver stage/line and phono amplifiers. This improves the isolation between high and low level signal stages of the amplifier. Higher specification MUSES operational amplifiers have been used in the line and phono amplifier.
Headphone Socket
For convenience, the Brio has the capability to drive standard hi-fi headphones from the internal amplifier. Adding a headphone socket was only possible by finding a way to reduce its impact on the main signal path so it doesn’t disrupt the overall sound quality. We have paid special attention to the switch that deactivates the main speakers.
Specifications
| Input Sensitivities: | Input 1 (Phono): Input sensitivity = 2.1mV at 47KΩ in parallel with 220pF. Maximum input level = 100mV. |
| Input 2-5 (Line): Input sensitivity = 210mV at 47kΩ. Maximum input level = 10.25V. | |
| Power Outputs: | At 230/115V Supply Voltage: |
| - 50W RMS both channels driven into 8Ω | |
| - 58W RMS one channel driven into 8Ω | |
| - 73W RMS both channels driven into 4Ω | |
| - 93W RMS one channel driven into 4Ω | |
| Note: Continued high-level use into 4Ω may cause the case to exceed 40°C above ambient temperature. | |
| Headphone Output: | - No load = 8V |
| - 32Ω = 1.8V | |
| - 54Ω = 2.6V | |
| - 300Ω = 5.9V | |
| - Source impedance = 109Ω | |
| Power Consumption: | 195W at 230V/220V/115V/100V into the rated load of 8Ω. |
| Record Output Level: | - Level (with rated input levels) = 210mV |
| - Output impedance = 470Ω | |
| Frequency Response: | Phono: 15Hz to 40KHz (-3dB), 27Hz to 20.5KHz (-1dB) |
| RIAA Accuracy: ±0.4dB (100Hz to 10KHz), typically better than ±0.3dB | |
| Line: 12Hz (-1dB) to 43KHz (-3dB) | |
| Remote Control: | Batteries included – 2 x AAA Alkaline. |
| Fuse Ratings: | - T2AL 250V for 230V/50Hz and 220V/60Hz |
| - T3.15AL 250V for 115V/60Hz and 100V/50/60Hz | |
| Dimensions: | 345mm (D, including volume control) x 216mm (W) x 78mm (H). |
| Weight: | 5.1kg |
