Name: Rotel RA-1592MKII Integrated Amplifier
Brand: Rotel
SKU: FR01269
Price: 2195.0 GBP
Availability: InStock

Rotel has just announced acoustic and performance upgrades to three of their award-winning integrated amplifier models in the 14 and 15 Series product lines. The upgrades include circuit design innovations and component level changes in key circuit locations, leveraging the design elements from the acclaimed Michi Series.

The Rotel RA-1592MKII comes with the acoustic upgrades and sonic improvements taken from the Michi engineering efforts that were 3 years in the making. The 1592MKII comes complete with source inputs including aptX and AAC high quality wireless Bluetooth streaming, MQA decoding and rendering via PC-USB, PCM PC-USB audio up to 32-bit/384kHz, Moving Magnet Phono Stage, Analog, Digital, XLR Balanced and front panel USB for iOS devices. As a Roon Tested product the RA-1592MKII ensures the best experience using Roon software so you can just enjoy the music.

Key features:

Certified Roon Tested
Supports MQA and MQA Studio
2 x 350 Watts of robust Class AB power, 4 Ohms
Moving Magnet Phono input for turntable connection
Wireless aptX™ and AAC Bluetooth
Premium 32-bit/384kHz Digital to Analog Converter

The RA-1592MKII Integrated Amplifier includes circuit design innovations, optimization of audio signal paths and updates to critical power supply components delivering a breathtaking performance with dynamic rhythm and timing.

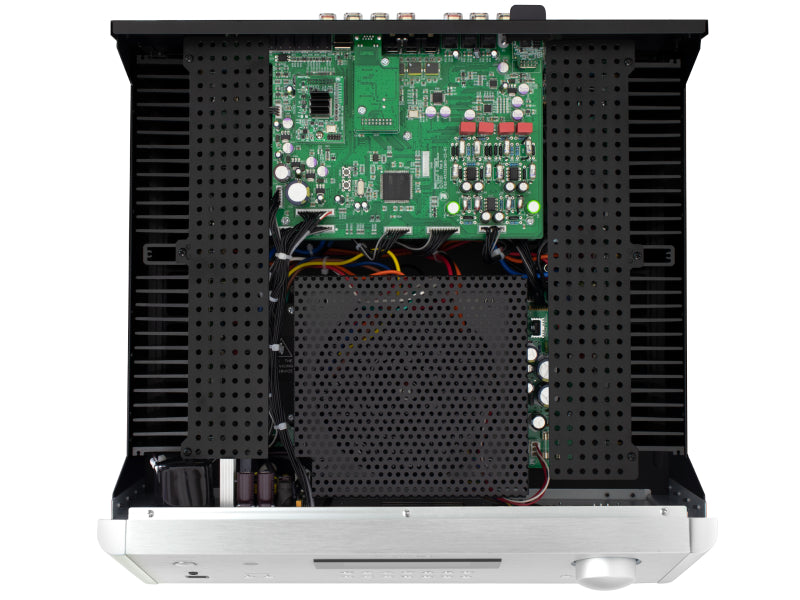

Utilizing Rotel’s best-in-class preamplifier topology and awardwinning power amplifier technology, the RA-1592MKII is a nocompromise, size-efficient, all-in-one integrated audio product. The RA-1592MKII delivers 200 Watts per channel into 8 ohms powered by Rotel’s in-house manufactured toroidal transformer feeding an array of slit-foil capacitors for rich, deep, controlled, bass energy.

The RA-1592MKII supports your favorite sources including Analog, XLR, Digital, aptX™ and AAC wireless Bluetooth, PC-USB supporting MQA and 32-bit/384kHz PCM, and Moving Magnet Phono stage. Digital to Analog conversion utilizes a Texas Instruments premium DAC with precisely tuned output filter circuits delivering unprecedented acoustic detail, wide sound stage and exacting positioning.

The RA-1592KII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music.

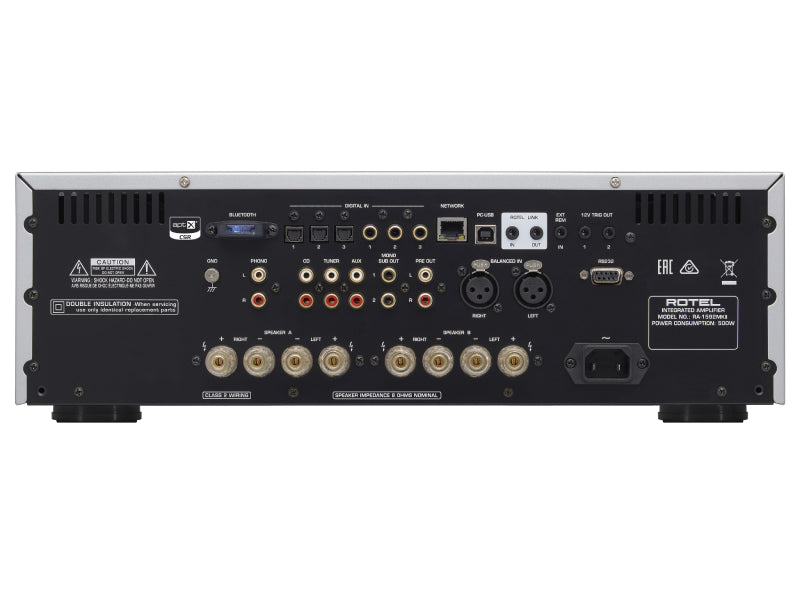

Selectable A-B speaker outputs, RS232, Ethernet and 12V triggers ensure seamless integration with control systems.

Specifications

MAXIMUM POWER OUTPUT

350W/Ch (4Ω)

CONTINUOUS POWER OUTPUT

200W/Ch (8Ω)

TOTAL HARMONIC DISTORTION

(THD)

<0.008%

FREQUENCY RESPONSE

Line Level Inputs:

10Hz - 100kHz, ±0.5dB

Digital Inputs:

10Hz - 90kHz, ±2dB

Phono Input:

20Hz - 20kHz, ±0.5dB

S/N RATIO (IHF "A" Weighted)

Line Level Inputs: 103dB

Digital Inputs: 102dB

Phono Input: 80dB

DIMENSIONS (W × H × D)

431 × 144 × 425mm
17" × 5.7" × 16"

FRONT PANEL HEIGHT

3U / 132.6mm (5.25")

POWER REQUIREMENTS

230V, 50Hz

POWER CONSUMPTION

500W

STANDBY POWER CONSUMPTION

<0.5W

NET WEIGHT

17.63kg (38.87lbs.)

BTU RATING

1239 BTU/h

INTERMODULATION DISTORTION

(60Hz:7kHz, 4:1)

<0.03%

DAMPING FACTOR

600

INPUT SENSITIVITY

Line Level Inputs (RCA): 340mV

Line Level Inputs (XLR): 540mV

Digital Inputs: 0 dBfs

Phono Input (MM): 5.2mV

INPUT IMPEDANCE

Line Level Inputs (RCA): 100kΩ

Line Level Inputs (XLR): 100kΩ

Digital Inputs: 75Ω

Phono Input (MM): 47kΩ

INPUT OVERLOAD

Line Level Inputs (RCA): 3.5V

Line Level Inputs (XLR): 5.5V

Phono Input: 52mV

PREOUT LEVEL

1.9V

OUTPUT IMPEDANCE

100Ω

COAX/OPTICAL DIGITAL INPUT SIGNALS

LPCM (Up to 24-bit/192kHz)

PC-USB

USB Audio Class 1 (up to 24-bit/192kHz)
USB Audio Class 2 (up to 32-bit/384kHz)

*Driver installation required

MQA and MQA Studio (up to 24-bit/384kHz )

Roon Tested
