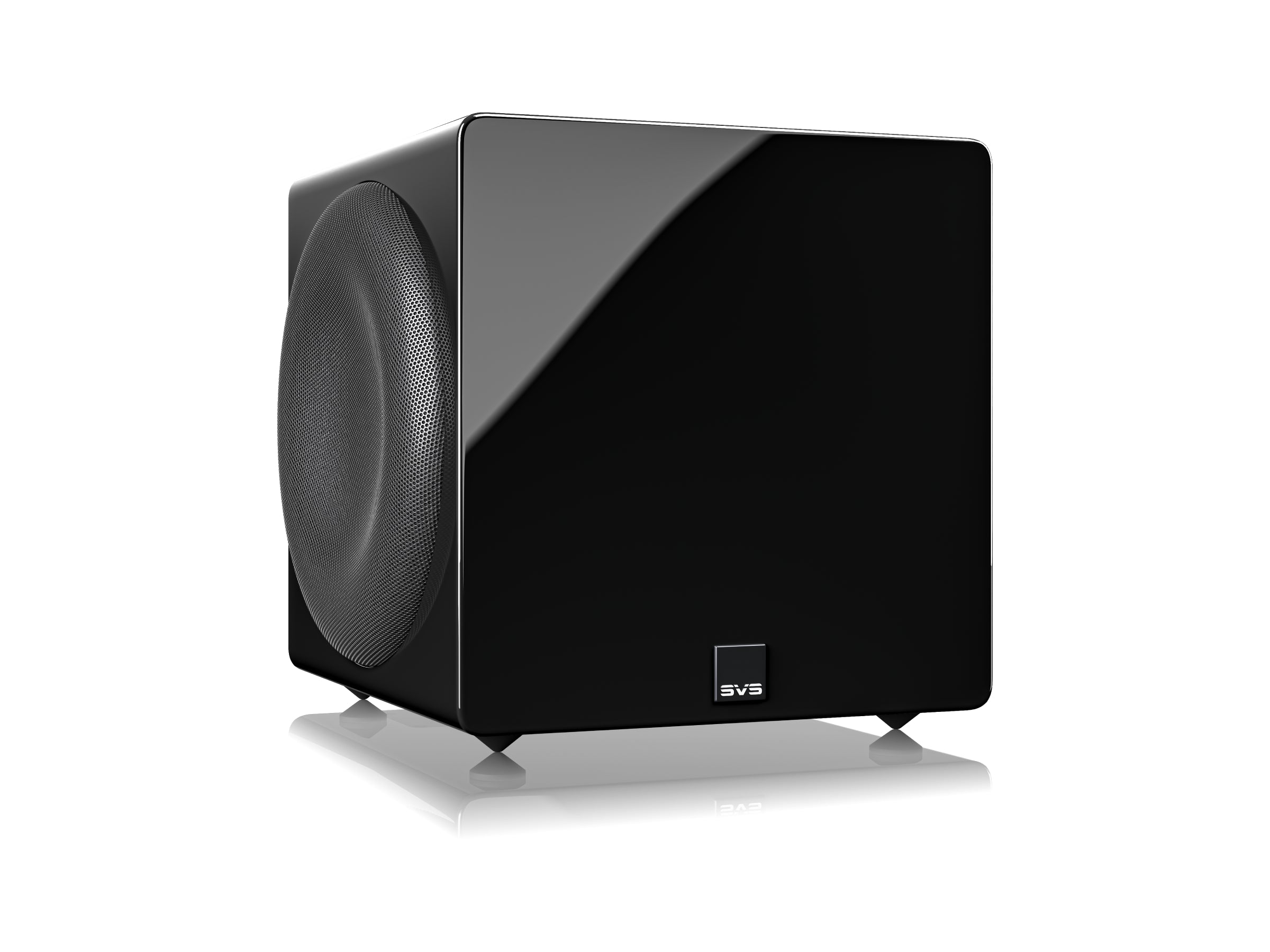

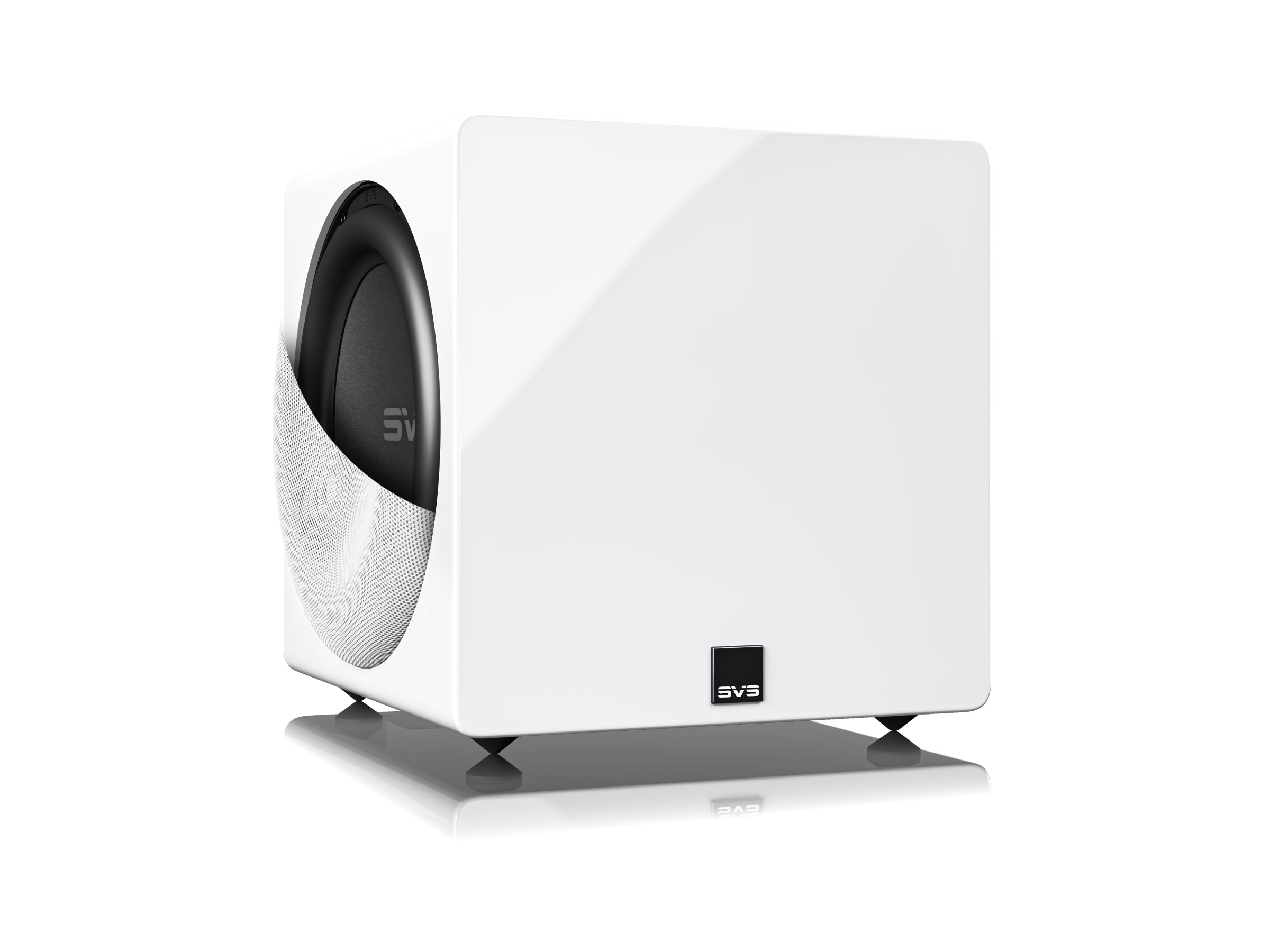

SVS SB-3000 Micro R|Evolution Subwoofer
The challenge of designing a truly compact subwoofer is balancing size with performance. Traditional micro designs sacrifice output, control, and musical accuracy in pursuit of a room-friendly enclosure, depriving users of a true subwoofer experience. The 3000 Micro R|Evolution is a revelation.
Drawing from the flagship SVS subwoofer platform, 3000 Micro R|Evolution represents a complete reimagining of compact subwoofer design by delivering infrasonic extension to 20Hz, stunning dynamic output, and musicality fit for the most demanding audiophiles. All from a handsomely compact 11-inch enclosure.
Owing to the advancements in driver, amplifier, and DSP technology, the 3000 Micro R|Evolution energizes a room with authority while preserving the nuance, texture, and tonal accuracy demanded by serious music listeners and home theater fans. When combined with advanced tuning and control features from the SVS Subwoofer Control app, it's an unrivaled subwoofer experience.
Micro
A subwoofer shouldn't just be heard, it should be felt, lived, and remembered. The 3000 Micro R|Evolution embodies that philosophy. Building on flagship SVS R|Evolution technologies that raised the bar for performance in every class, the smallest SVS subwoofer delivers an experience that surpasses much larger models, while maintaining a level of refinement fit for the most discerning listeners.
The culmination of 20+ years of SVS acoustic breakthroughs, 3000 Micro R|Evolution elevates music, home theater, and everything you listen to into emotionally charged, high-impact experiences. This compact subwoofer doesn't just play bass; it unleashes it with precision, musicality, and authority that captivates listeners and redefines expectations on every level.
3000 Micro R|Evolution combines the most sophisticated SVS subwoofer technology ever developed with trailblazing innovations to set a new standard for small subwoofer performance.
Dual Opposing Active 9-inch Drivers.
The beating heart of the 3000 Micro R|Evolution is a pair of active, side-firing 9-inch high-excursion drivers custom-built by the SVS design team to maximize output from a small enclosure. The drivers operate in perfect unison, acoustically and electrically in parallel to generate powerful, controlled low frequencies.
By firing in opposite directions, mechanical forces are canceled, creating a sonically inert cabinet and eliminating unwanted vibration, one of the biggest limitations of compact subwoofers. What you hear is pure sonic output without a trace of distortion
Each high-excursion active 9-inch driver employs a progressive inverted surround to ensure maximum linear displacement. This is imperative for moving massive amounts of air and generating sound pressure levels you can feel at the deepest frequencies from such a small enclosure.
- Advanced materials, precision motor design, and optimized suspension components ensure linearity and accuracy even at maximum excursion.
- Precisely tuned overhung motor configuration for unerring woofer control at all drive levels
- High-current 4-layer copper voice coil winding minimizes distortion and power compression, while providing effective heat dissipation and tuned magnetics for accuracy at high excursion.
- Powerful oversized Y30 ferrite motor system generates high-flux-density magnetic fields to drive room-filling sound pressure levels with pinpoint transient speed.
- Custom 9” baskets with FEA optimized powder-coated steel frames for maximum rigidity, thermal conductivity, and mechanical damping
R|Evolution Amplifier Platform
Conservatively rated at 1,200 watts continuous and 4,000+ watts peak power, the SVS R|Evolution amplifier maximises the full potential of the dual 9-inch active drivers with effortless power and absolute control.
The pioneering design combines the efficiency of a Class D amplifier with the ability to move massive current through fully discrete MOSFETs, delivering outstanding real-world subwoofer performance at all drive levels.
- High Current MOSFET Output with Class-D Efficiency allows the STA-1200D2 amplifier to move massive amounts of current through the fully discrete MOSFETs, enabling the dual active 9-inch drivers to fully maximise their potential with reference output while maintaining control and accuracy.
- Performance-Enhancing SVS Switch Mode Power Supply maximises system performance under all operating conditions by ensuring a consistent 160V rail voltage for the amplifier. Digital monitoring of the AC input mains voltage tunes the power supply for optimal performance in any environment.
- Premium-grade 56-bit digital audio processing and premium DACs (Digital-to-Analogue Converters) provide greater headroom, lower noise, and flawless fidelity.

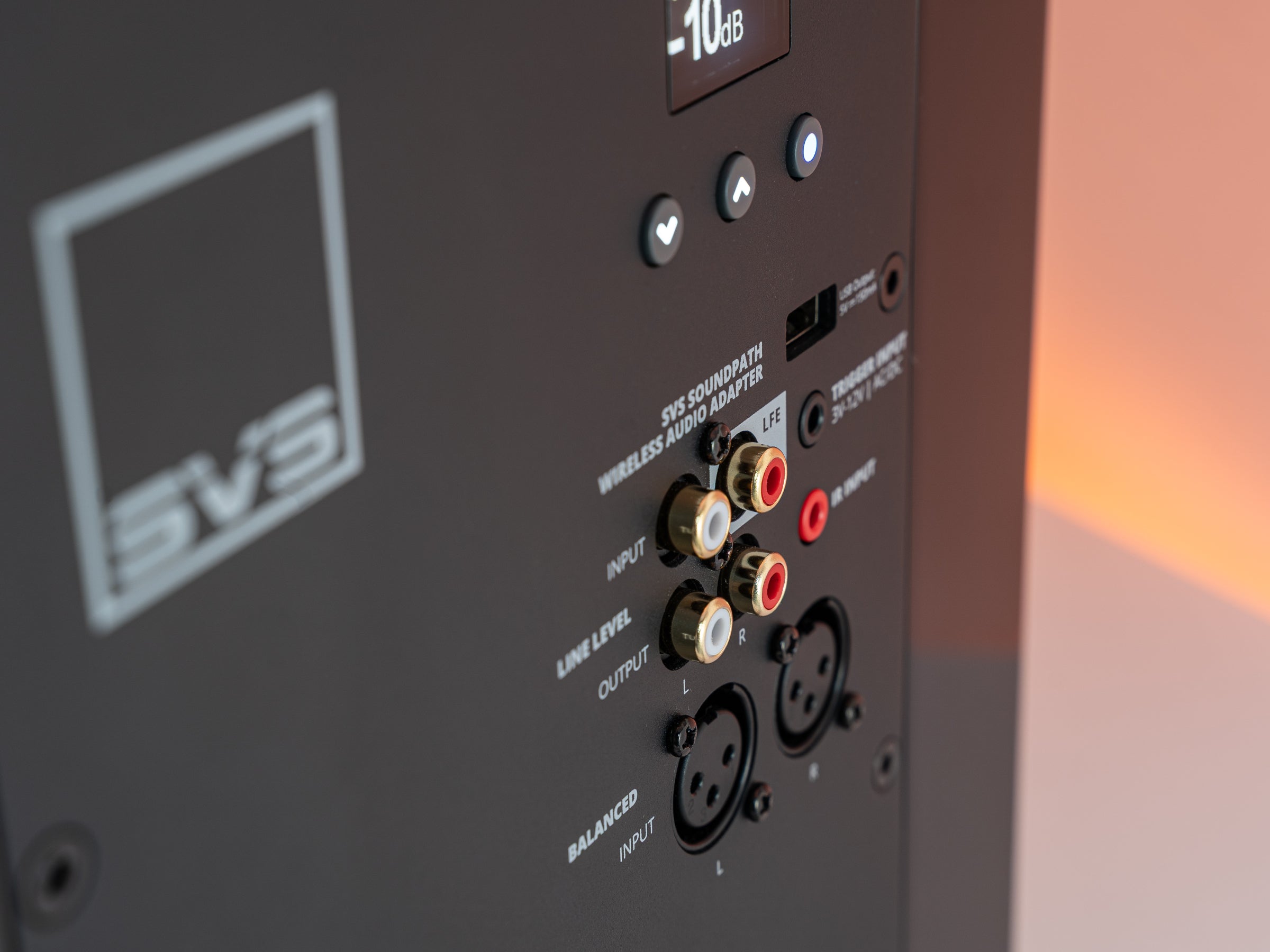

- Balanced XLR input for pristine audiophile performance and long-distance cable runs. Compatible with consumer and professional audio systems.
The Brains Behind the Brawn
Orchestrating the cutting-edge amplifier, motor, and driver ecosystem is the most powerful and sophisticated DSP ever deployed in a home audio subwoofer, with five times the processing power of previous generations.
DSP plays a role in all aspects of performance, user control, tuning, and in making the 3000 Micro R|Evolution subwoofer sound bigger than it is. SVS engineers painstakingly crafted an in-room frequency response curve that fully maximizes the potential of a room's boundaries to produce greater output and deeper bass extension without distortion or boominess.
- Accurately shapes in-room frequency response with absolute precision for faithful signal reproduction and acoustically tuned room gain.
- Monitors every function of the amplifier to stabilize AC voltage delivery to the power supply to maintain consistent peak output
- Multi-point thermal, voltage, and current monitoring systems ensure maximum output and efficiency
- Advanced digital audio processing and DACs (Digital-to-Analog Converters) with 120 dB Signal-to-Noise Ratio provide greater headroom, lower noise, and pristine fidelity
Smartphone Control App
Convenient subwoofer tuning and control from the comfort of your favourite seat. Works via Bluetooth with Apple iOS, Google Android, and Amazon Fire platforms.
- Controls for volume, low pass filter, phase, polarity, six parametric equalizers, room gain compensation, power management settings, and more.
- Three memory presets to save system settings matched to your listening preferences - music, movies, night mode, and more.
- SVS Auto Room EQ for optimal in-room performance.
Sealed Cabinet Design

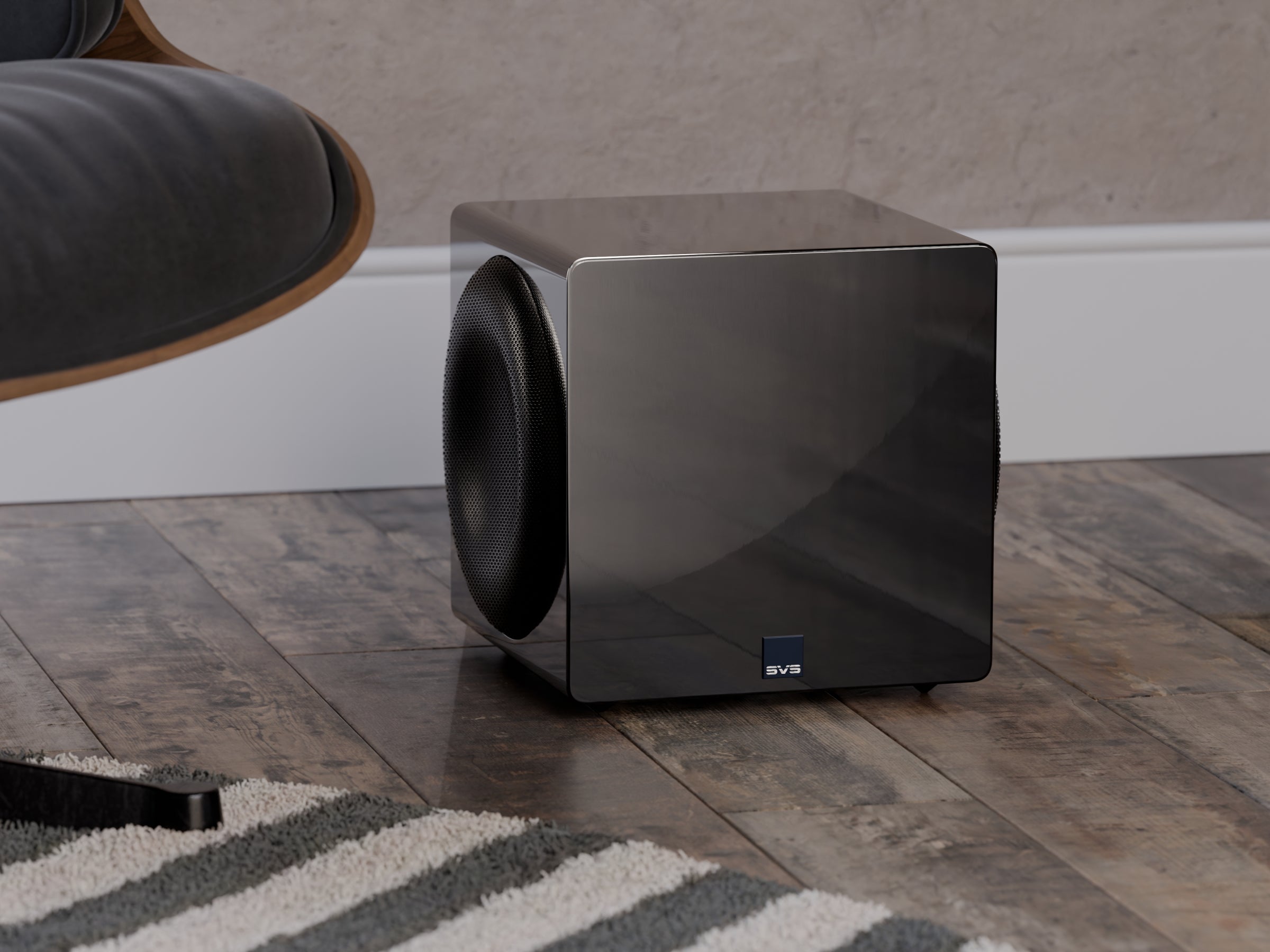

Handsomely styled to complement the finest home theater and HiFi systems yet compact enough to place out of sight. Acoustically optimized to render big sound from a small enclosure, the 3000 Micro R|Evolution sealed cabinet is rigidly braced and sonically inert for uncompromised performance.
- Rigid MDF front baffle and internal support massive drive unit and ensure an acoustically inert environment.
- Highly reinforced internal design and acoustic insulation eliminate all coloration or resonance from the cabinet at all playback levels

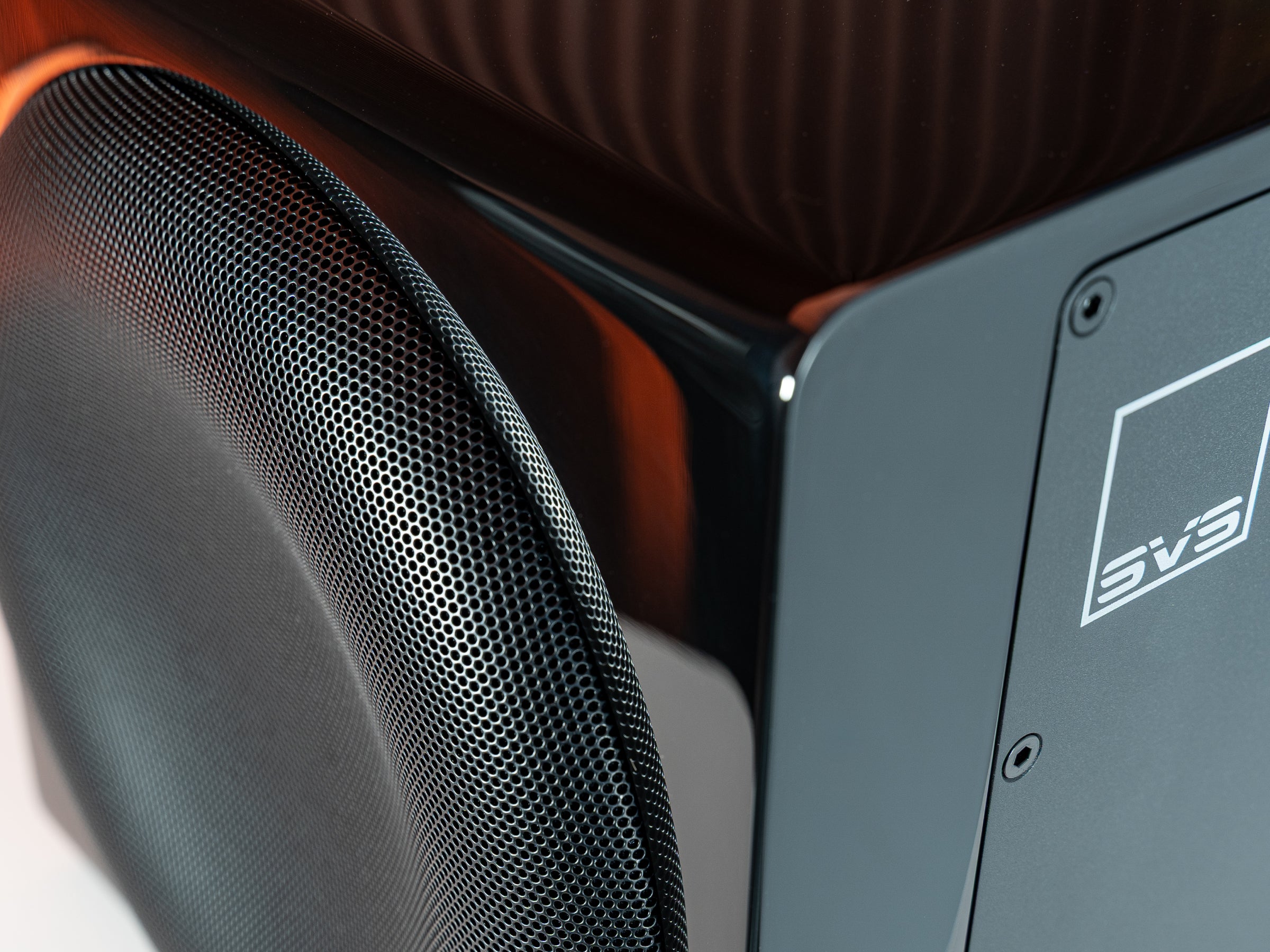

- Protective non-resonant perforated metal grilles shield drivers to prevent damage while ensuring longevity
- Custom elastomer feet reduce noise artifacts within a room.

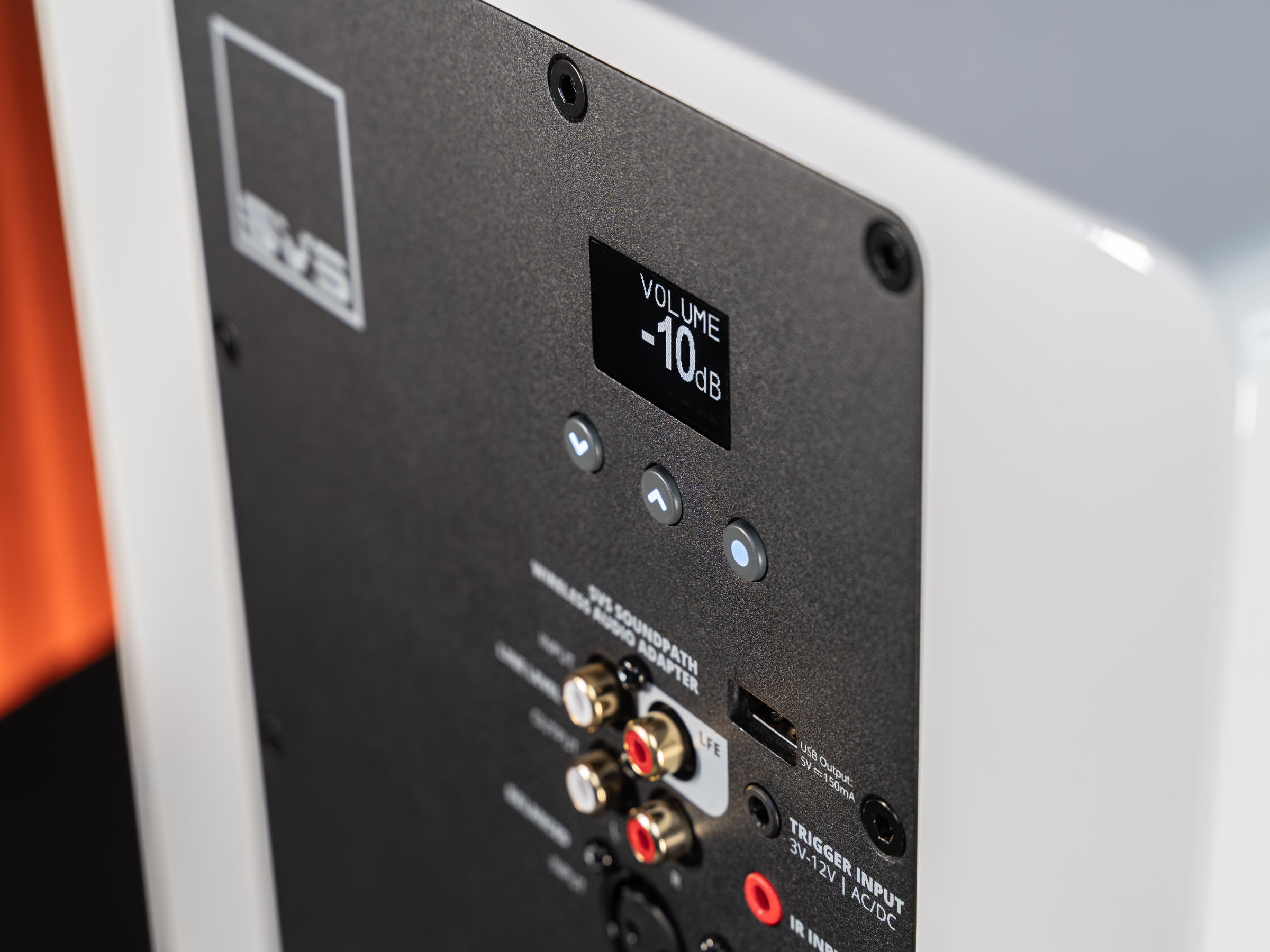

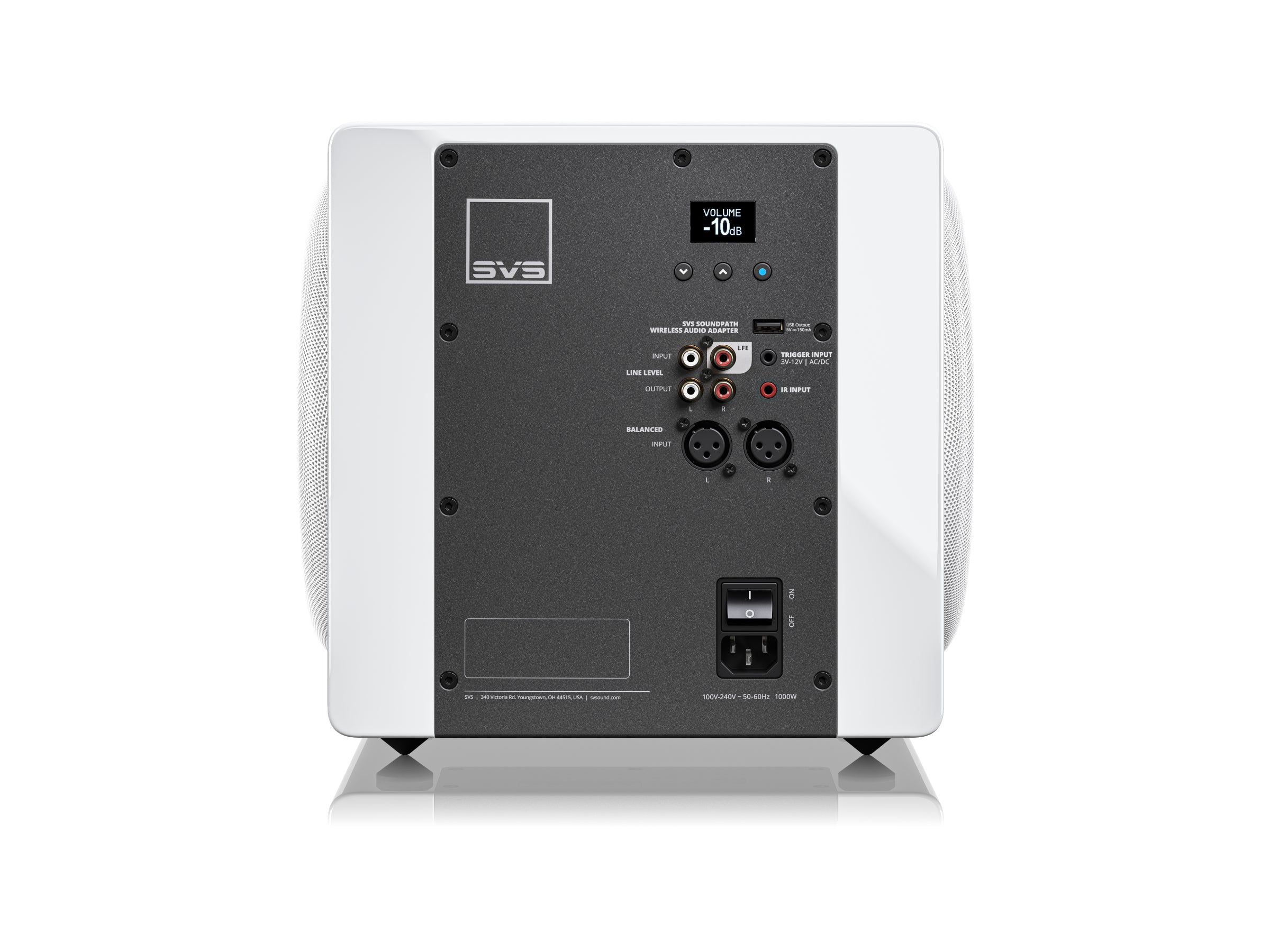

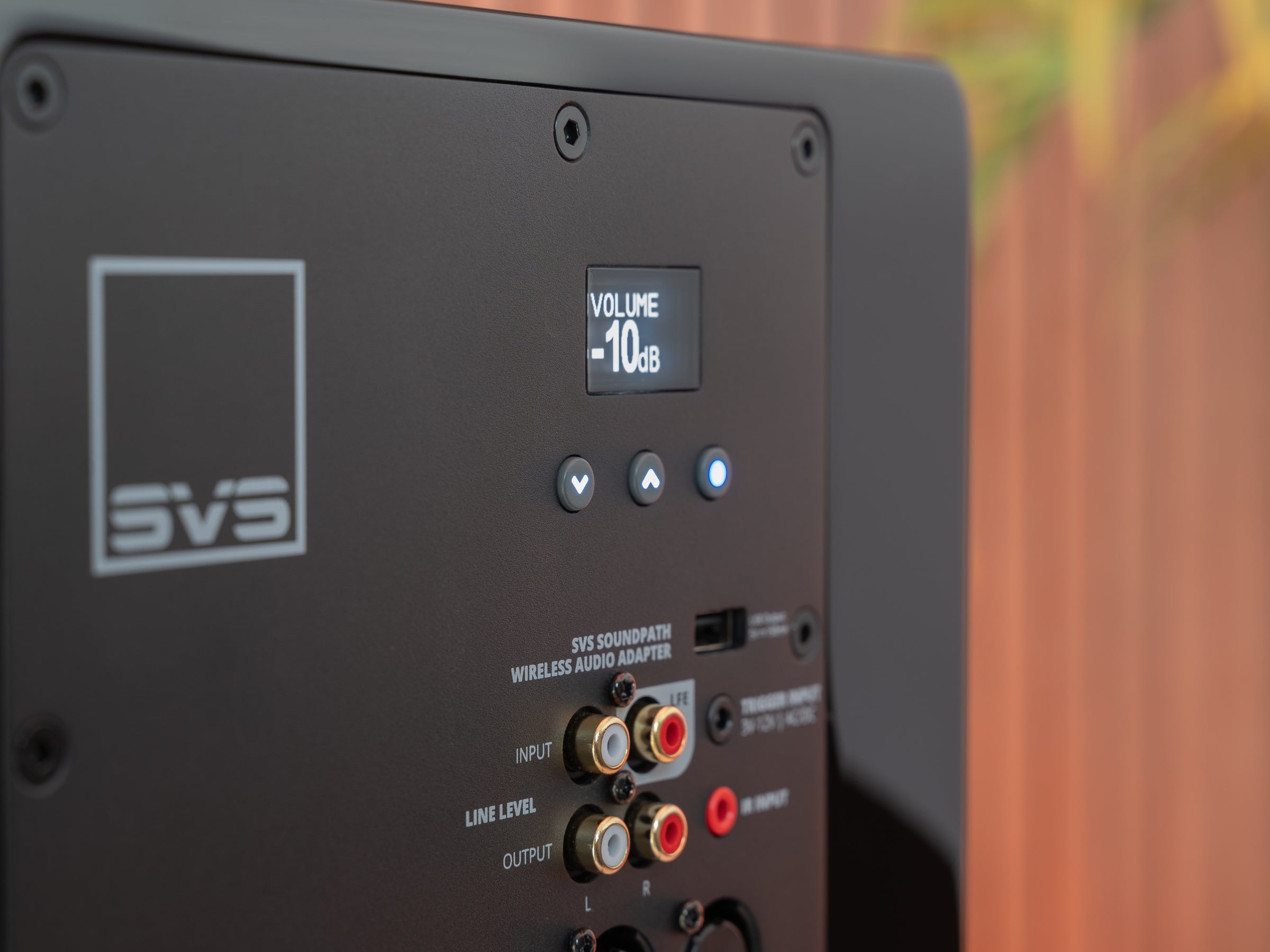

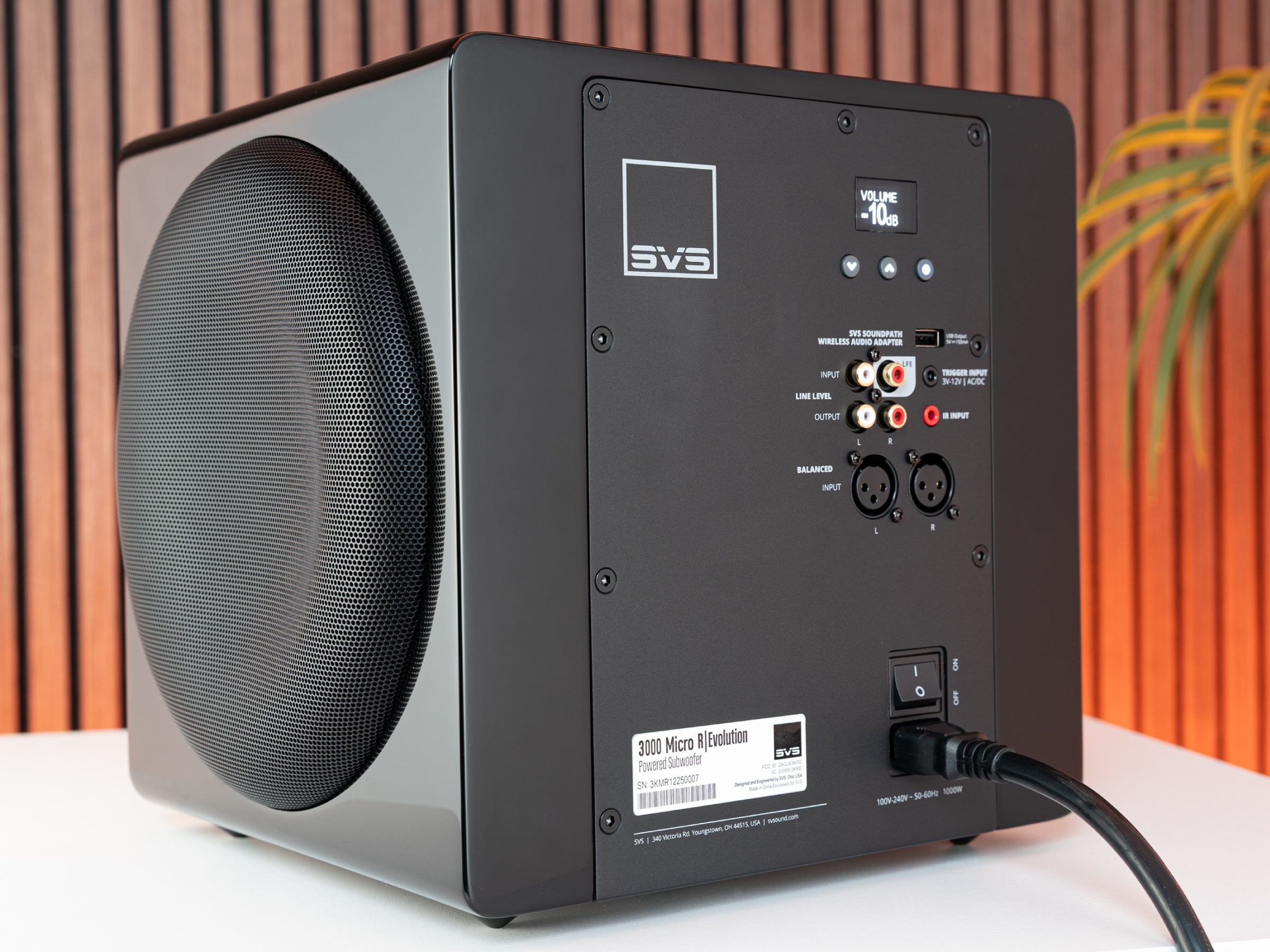

- Rear Panel OLED and Control Interface provide fast and direct control of the most important features. Includes a convenient “Display Flip” function.
Specifications
| Frequency Response / Acoustic Data: |
20Hz to 230Hz ±3dB Roll-off slope specifically optimised to take maximum advantage of available room gain2-metre ground plane away from reflective structures (quasi-anechoic) 20% to 60% lower acoustic THD+N in critical low-frequency bandwidth compared to previous generation Frequency response graph does not denote maximum output capability |
| Subwoofer Specs: |

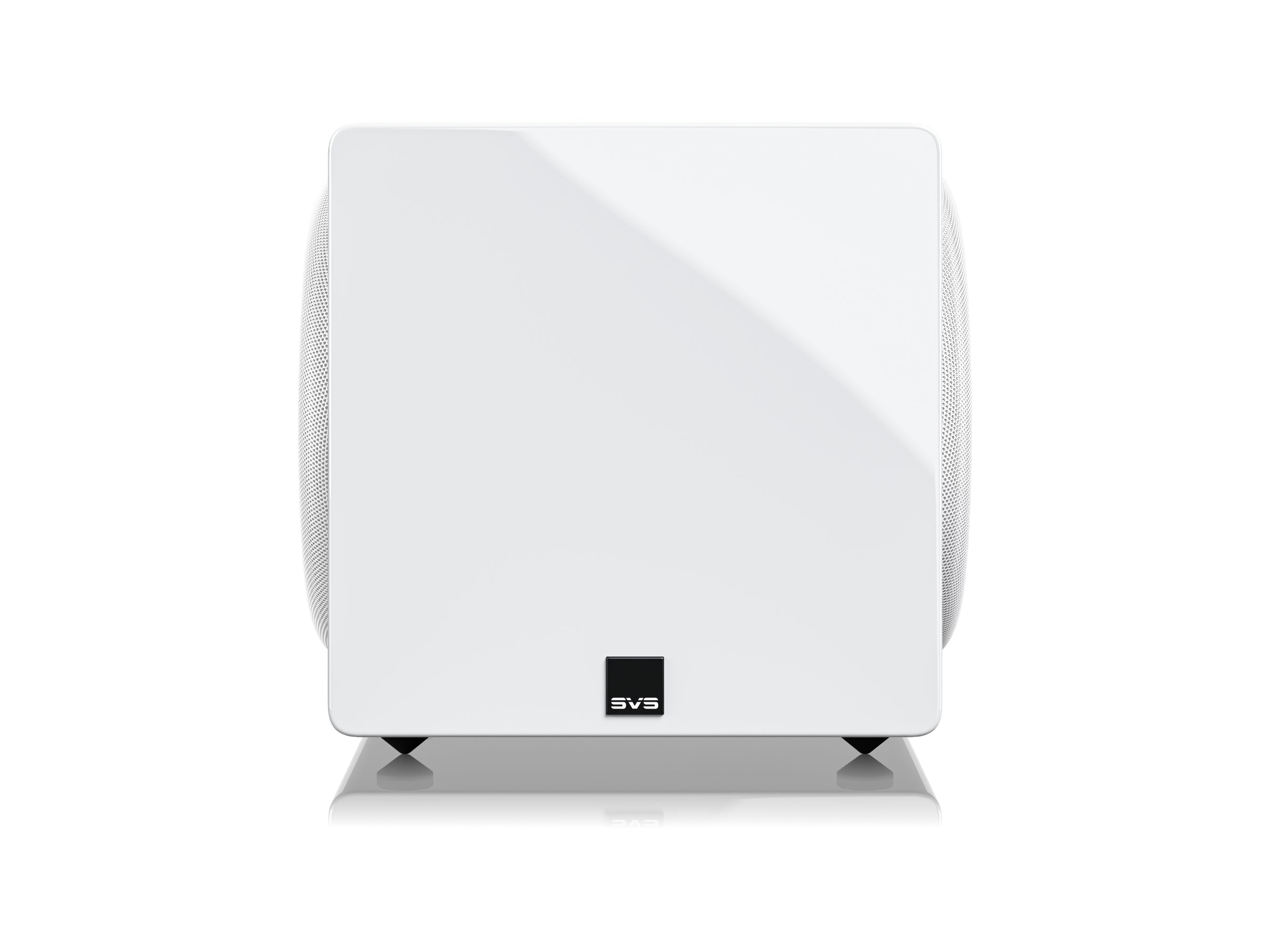

Dimensions (including grilles): 10.9” (278mm) H × 11.8” (298.8mm) W × 10.8” (273.6mm) DWeight: 22.5lbs (10.2kg) Packaged dimensions: 13.7” (349mm) H × 14.9” (379mm) W × 14.6” (370mm) D Packaged weight: 28.3lbs (12.8kg) Dual opposing side-firing 9-inch high-excursion active drivers acoustically and electrically in parallel Piano Gloss Black and Piano Gloss White finish options Amplifier rear panel OLED and control interface provide fast and direct control of the most important features and includes a convenient “Display Flip” function Protective non-resonant steel metal mesh grilles shield driver to prevent damage while ensuring longevity Robust Medium Density Fibreboard (MDF) cabinet construction with internal bracing for resonance-free performance at highest drive levels Screw-in Iso-elastomer feet reduce noise artefacts and improve stability |
| Driver Specs: |
Dual opposing 9-inch long-throw drivers electrically and mechanically in parallel for massive output and a sonically inert cabinet, with ultra-low system vibration even at maximum output levels Precisely tuned overhung motor configuration for exacting excursion and control27.3mm Xmax, 32.6mm Xmech precision-aligned excursion Custom 9-inch baskets with FEA-optimised powder-coated steel frames for maximum rigidity, thermal conductivity, and mechanical damping1100 aluminium single-piece cone and coupler provide excellent stiffness and a lightweight moving mass with optimised thermal conduction High-current 4-layer copper voice coil winding minimises distortion and power compression while providing effective heat dissipation and tuned magnetics for accuracy at high excursion High-temperature 3003-H18 aluminium former/bobbin Powerful oversized Y30 ferrite motor system generates high-flux-density magnetic fields to drive room-filling sound pressure levels with pinpoint transient speedPrecision-machined motor and narrow-tolerance suspension parts maintain control and linearity at full excursion Extreme oversized low-carbon 08AL steel T-yoke and top plate provide superior cooling and maximum magnetic circuit performance and efficiency6063 aluminium shorting ring reduces gap induction and distortion, enhances thermal conductivity, and improves magnetic linearity Proprietary injection-moulded NBR surround built for extreme excursion maintains ideal pistonic motion for pinpoint accuracy and control Dual balanced 24-strand silver-plated Litz wire high-temperature leads woven through the 5-inch composite linear spider provide a pristine electrical connection from the amplifier to the voice coil |
| Amplifier Specs: |
Massively powerful 1,200-watt continuous Class D design with over 4,000 watts of peak power 50% higher RMS power output than previous generation High-resolution 295MHz Analog Devices Audio DSP with double-precision 56-bit filtering and over 5× the processing power of previous subwoofers DSP runs real-time complex power management algorithms, monitoring real-time power, driver excursion, and current thousands of times per second Advanced audiophile-grade 56-bit digital audio processing and premium DACs with more than 120dB signal-to-noise ratio provide greater headroom, lower noise, and flawless fidelity Discrete Class D amplifiers create effortless power from four massive 60A 200V MOSFETs in full-bridge configuration capable of outputting over 100 Vrms across both drivers All-new digitally controlled Switch Mode Power Supply (SMPS) with high-efficiency low-EMI resonant LLC topology ensures a consistent regulated 160V rail voltage for the amplifier< 0.05% THD+N at rated power (70% to 90% lower than previous generation), ensuring exacting signal integrity at all drive levels Custom EQ and DSP limiter settings specifically for the 3000 Micro R|Evolution allow the subwoofer to pressurise a room with accurate, acoustically tuned bass Unbalanced RCA 10kohm input impedance (compatible with consumer and professional audio up to 4Vrms inputs) Balanced XLR 18kohm input impedance (compatible with consumer and professional audio up to 4Vrms / +14dBu inputs) OLED and control interface with easy access to the most important features USB provides power for the SVS Sound Path Wireless Audio Adapter (sold separately), eliminating the need for a cable runAuto/On and trigger options through app for maximum installation convenience (3.5mm trigger input 3–12V AC/DC)3.5mm IR input for easy integration with control systems Green 0.5-watt low standby power consumption RoHS-compliant, lead-free construction with worldwide safety certifications |
| SVS App Specs: |
Compatible with Apple iOS, Google Android, and Amazon Fire platforms Industry-leading SVS Subwoofer Control smartphone app allows convenient and intuitive management of all subwoofer controls Analog Devices DSP supports a comprehensive menu of functions including volume, fully adjustable low-pass filter, phase, polarity, six PEQs, room gain compensation, and power management settings Includes three convenient memory presets for fast and easy global system adjustments Subwoofer Auto Room Equalisation (Coming Soon) will use your mobile device’s built-in microphone, or an optional accessory microphone, to measure room acoustics and automatically calculate precision equalisation filters Unique bidirectional feedback shows adjustments in real time on both app and subwoofer interface Easy-to-follow tutorial provides clear guidance for all functions |
| Included Accessories: |
Dual protective non-resonant steel mesh grilles Isolating elastomer feet Heavy-duty, high-current 6-foot power cable Quick Start Guide |
