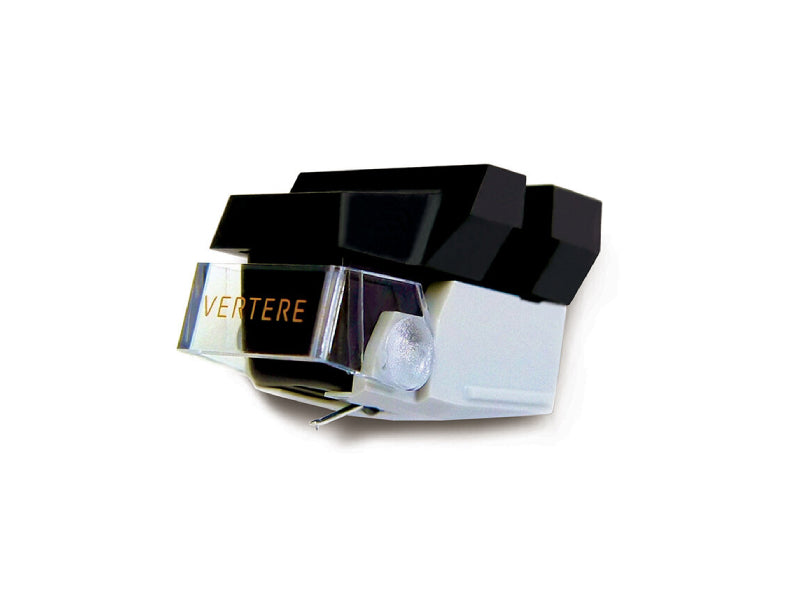

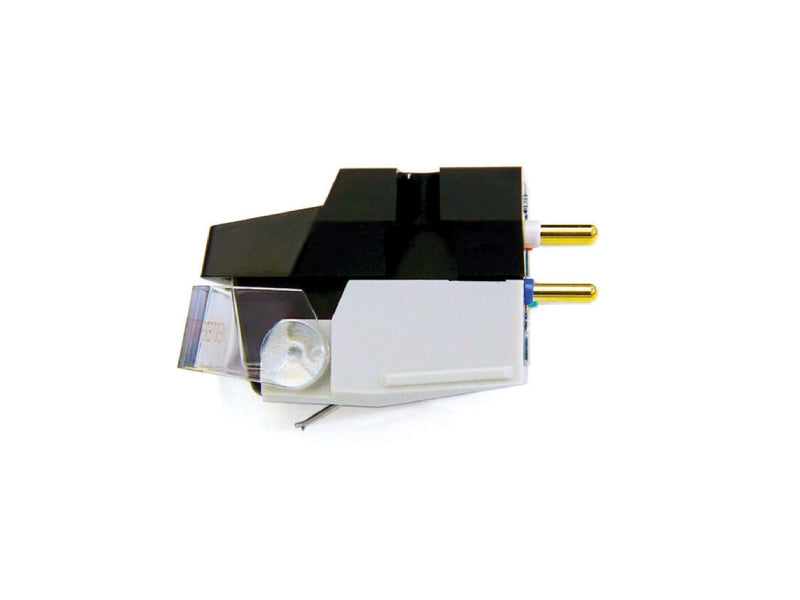

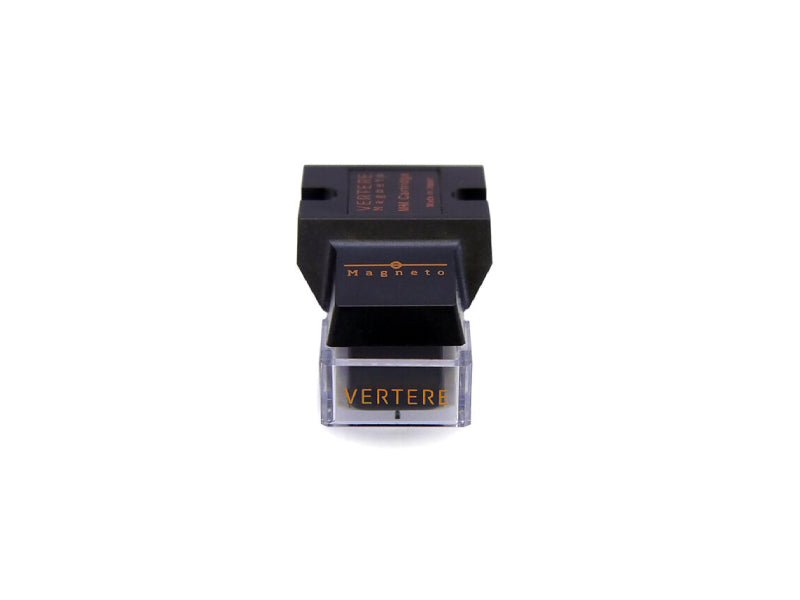

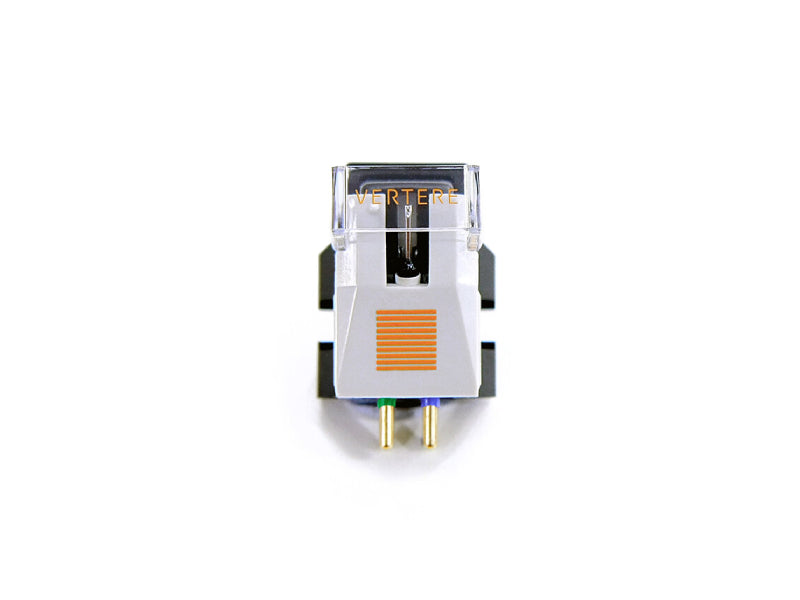

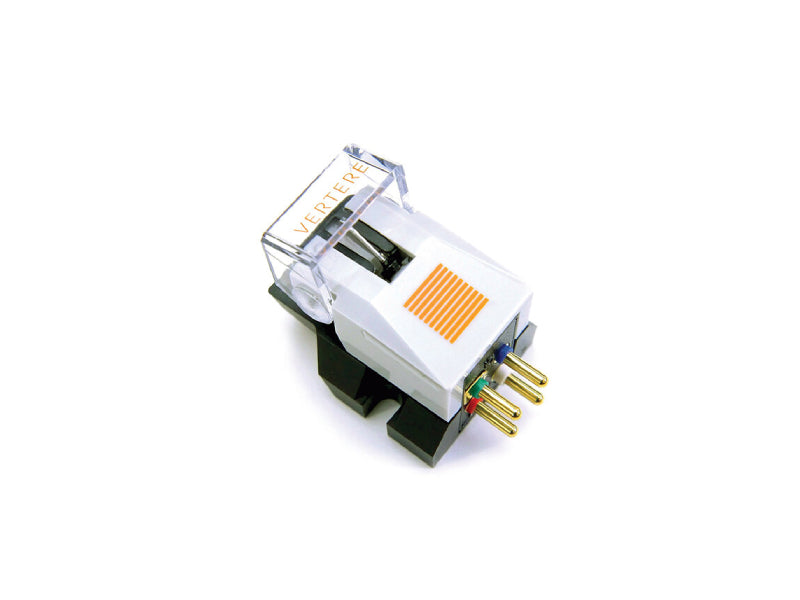

Vertere Magneto Moving Magnet Cartridge
Couldn't load pickup availability
Vertere Magneto Moving Magnet Cartridge
The Dual Magnet design replicates the structure of the cutter head.
A ‘V’ form two magnet design mimics the Left & Right channel sides of the record groove. This feature, with the permalloy centre shield plate, provides a higher frequency response with electrical crosstalk typically better than 40dB.
The Magneto utilises a finely finished Elliptical stylus to ensure outstanding tracking ability and super quiet tracing of the record groove. Use of laminated Para-toroidal coils with ‘V’ geometry of the magnets also gives rise to higher efficiency in generating the output signal.
The Magneto is an absolutely gem of a cartridge for any starter record playing system.

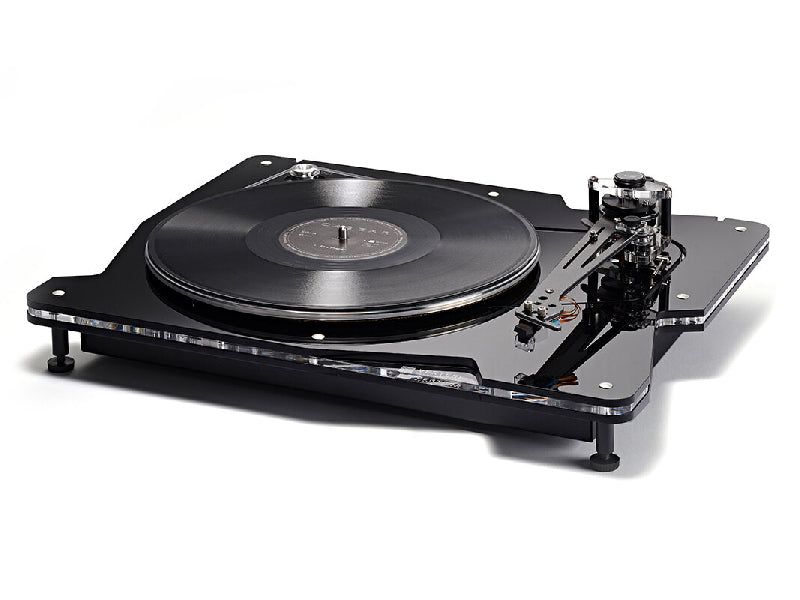

It is factory fitted to Vertere's DG-1 ‘Plug & Play’ Dynamic Groove record player package to provide you with an unparalleled musical performance.
Features
- Replaceable stylus
- Integrated stylus guard
- Stainless steel fixing bolts, washer & hex thumb nuts
- Easy alignment assist marking
Specifications
| Frequency Response: | 20 - 23,000Hz |
| Channel Separation: | 27dB (1kHz) |
| Output Channel Balance: | 1.5dB (1kHz) |
| Output Voltage: | 4.0mV (1kHz, 5cm/sec.) |
| Vertical Tracking Angle: | 23˚ |
| Vertical Tracking Force Range: | 1.8 – 2.2g (2.0g standard) |
| Stylus Shape: | Elliptical bonded |
| Stylus Size: | 0.3 x 0.7 mil |
| Stylus Construction: | Bonded round shank |
| Cantilever: | Aluminium tube |
| Coil Resistance: | 800Ω (DC) |
| Static Compliance: | 35 x 10⁻⁶ cm/dyne |
| Dynamic Compliance: | 8 x 10⁻⁶ cm/dyne (100Hz) |
| Recommended Load Impedance: | 47,000Ω |
| Recommended Load Capacitance: | 100 – 200pF |
| Weight: | 6.4g |
| Dimensions: | 17.3 (H) x 17.0 (W) x 28.2 (L) mm |
