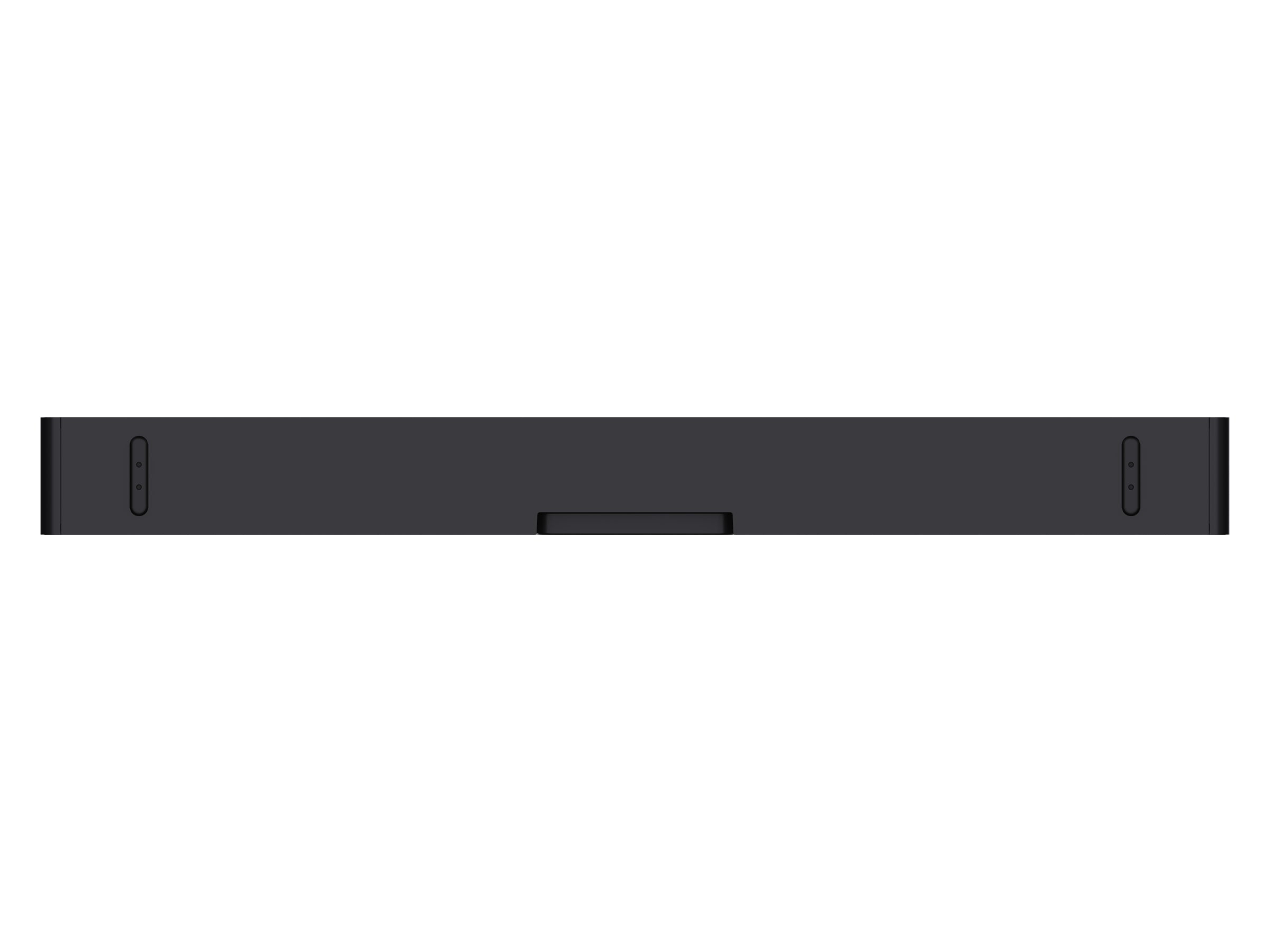

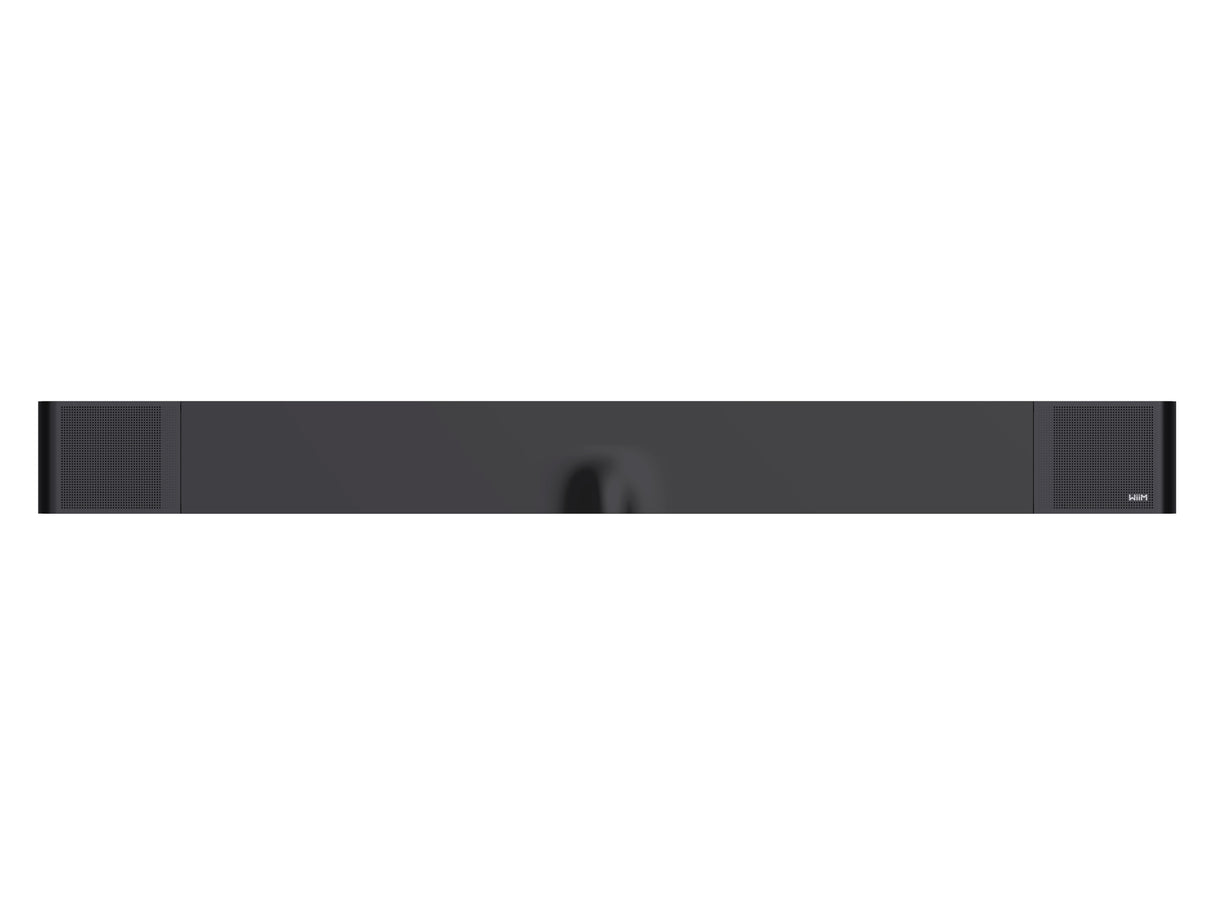

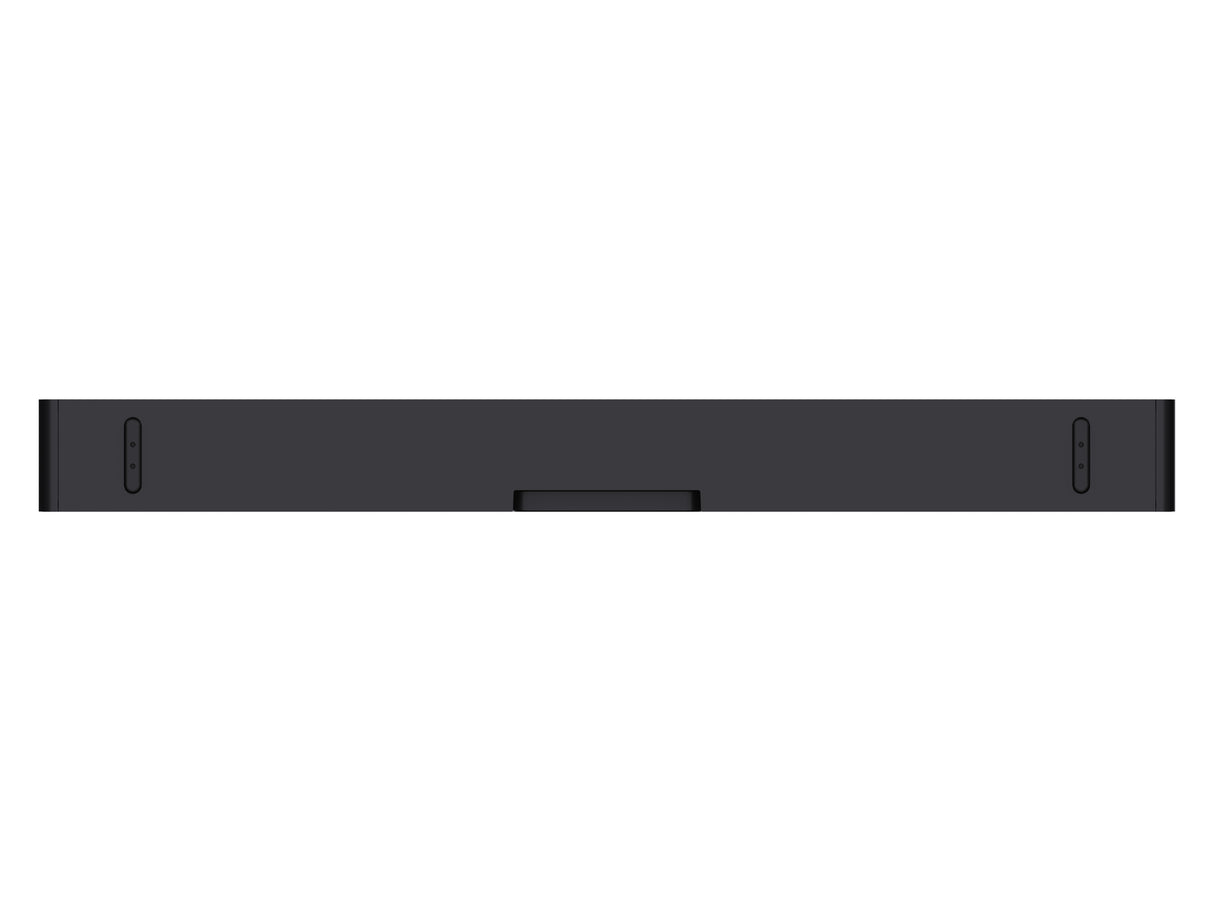

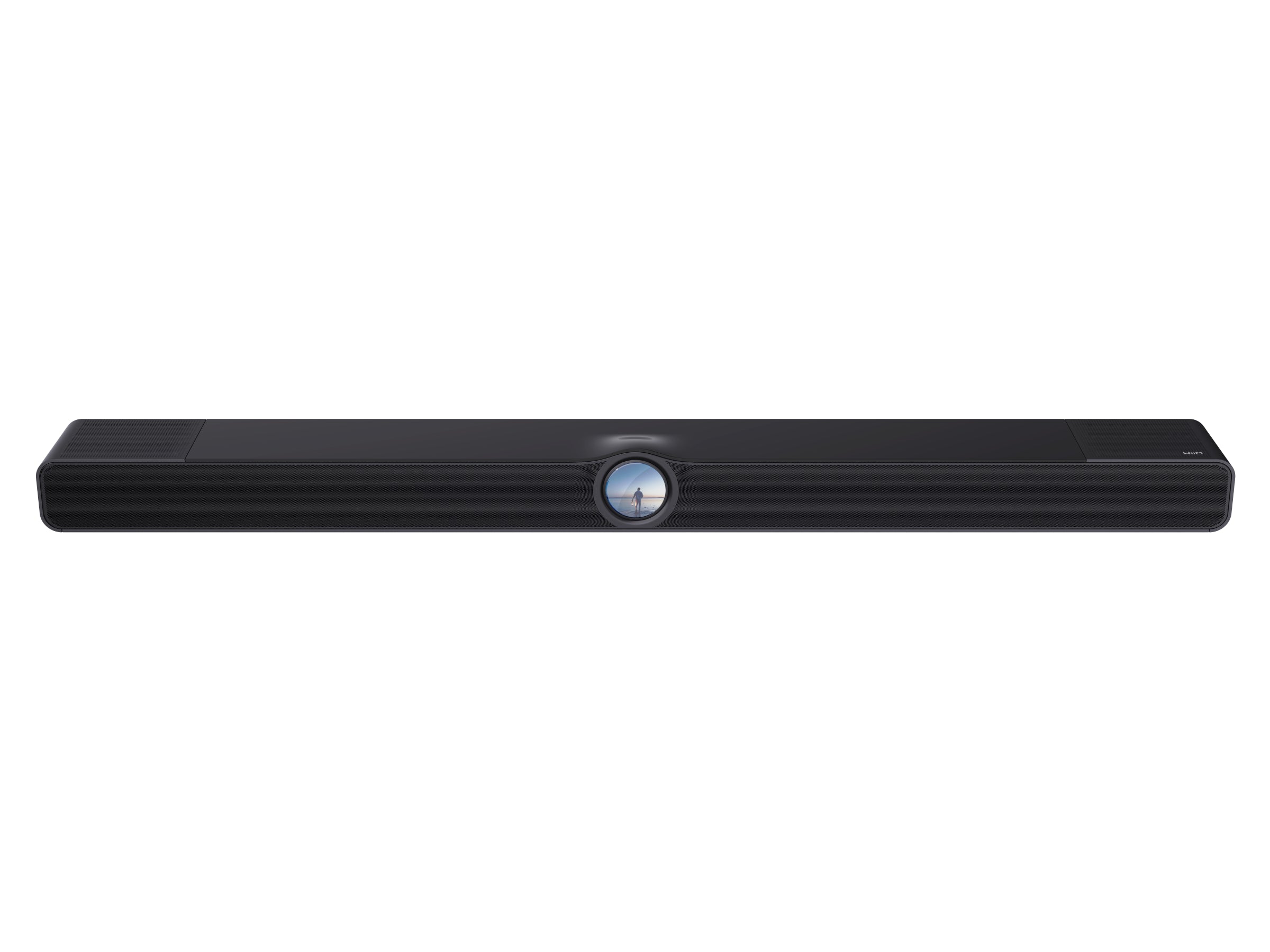

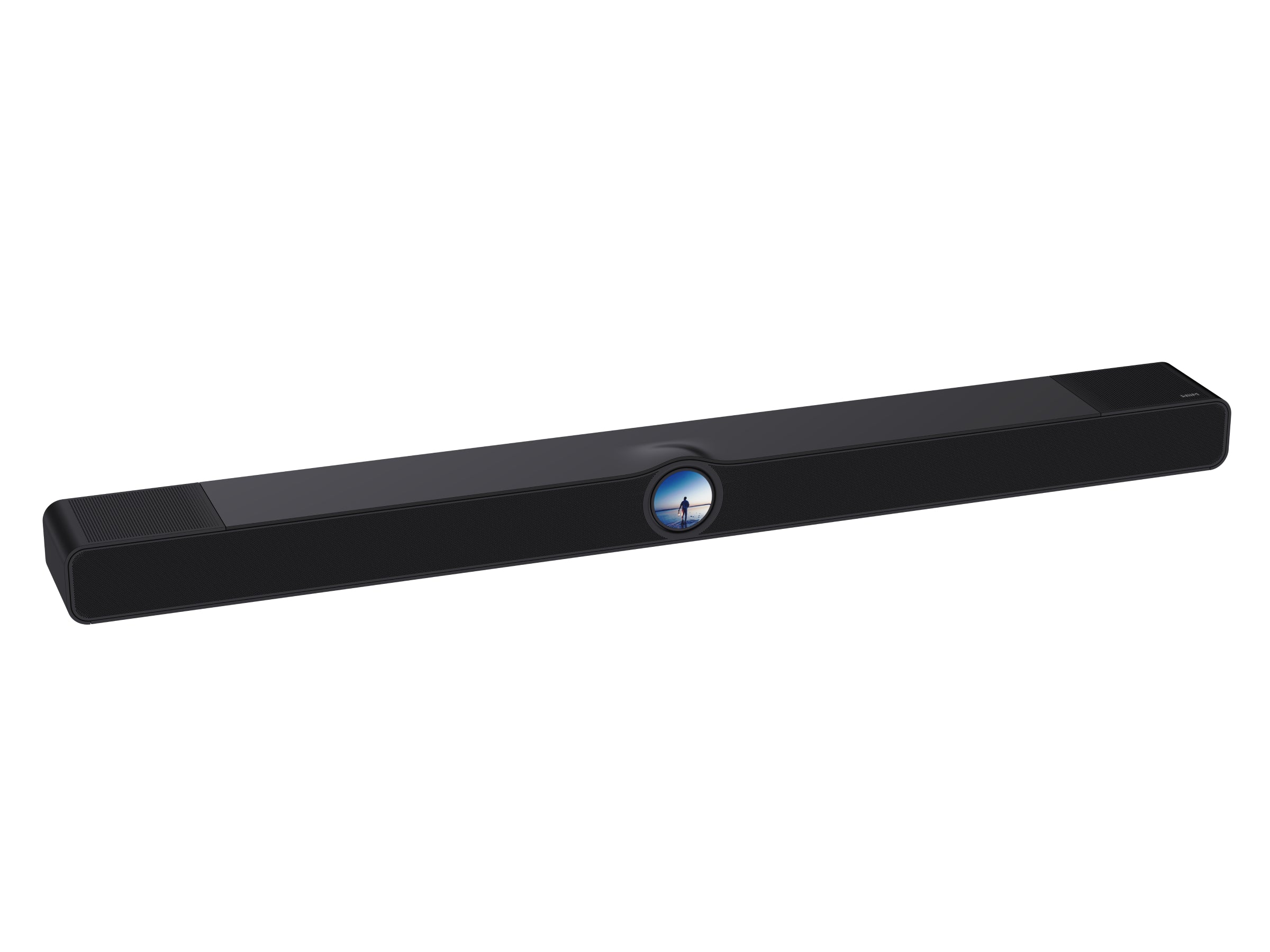

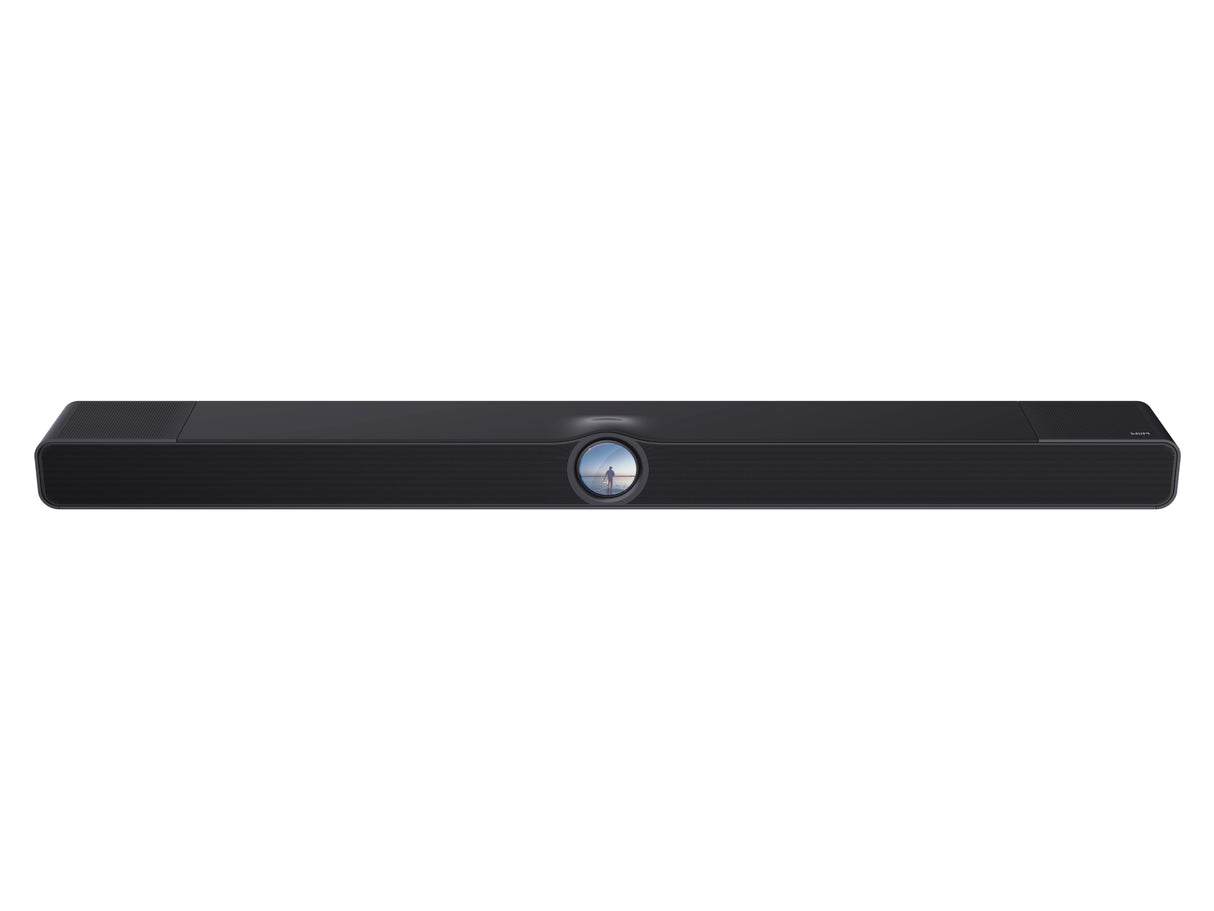

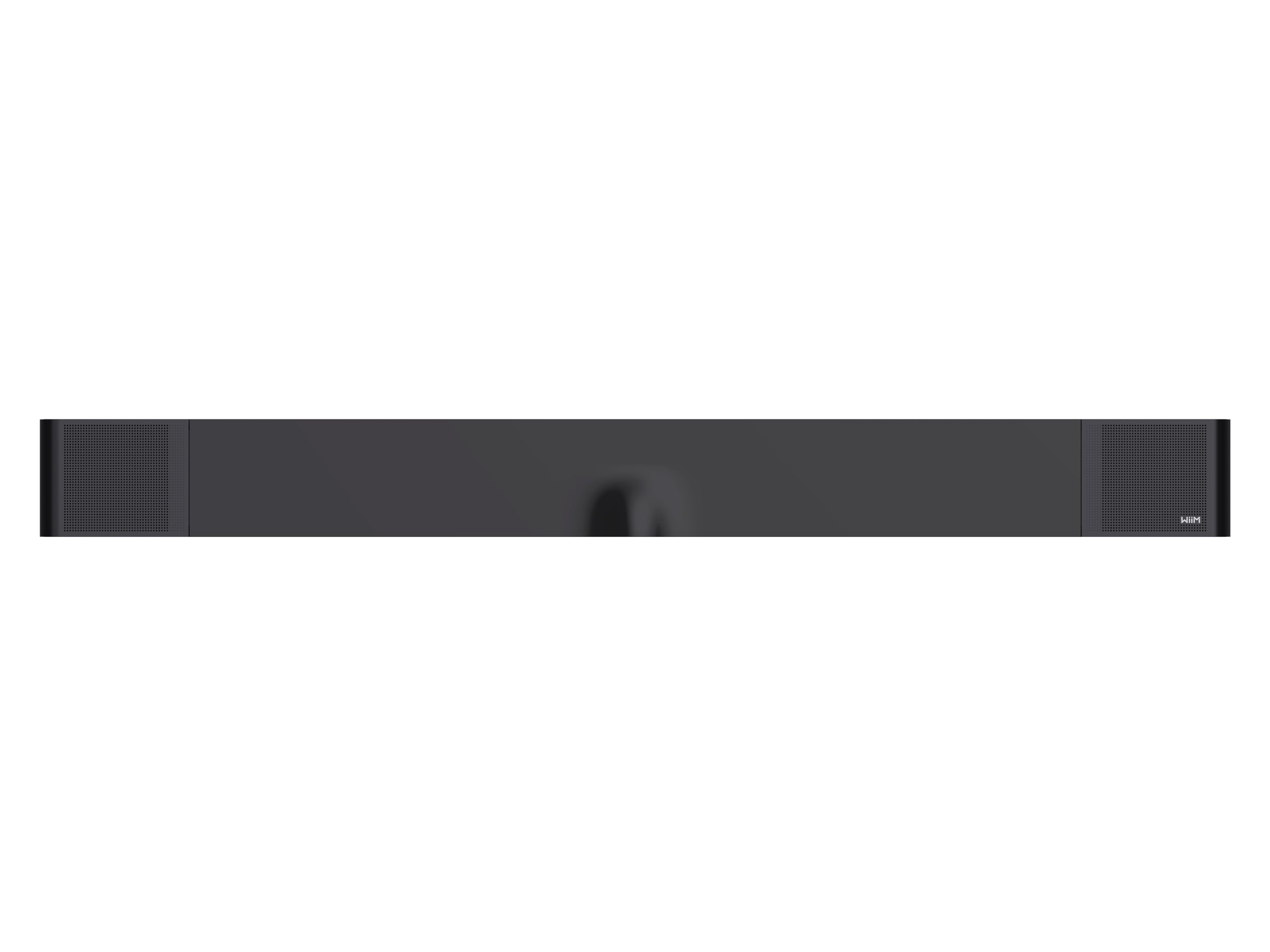

WiiM Bar Soundbar
Elevate your living room with audiophile-grade 3.0.2 Dolby Atmos® and DTS:X spatial audio. Manage playback, adjust EQ, and view stunning album art directly from a vibrant 2.1” touchscreen. Ready for more? Wirelessly pair with compatible WiiM devices to seamlessly expand this perfect foundation into your ultimate 5.1.2 home theatre.
WiiM Bar Fits Every Moment
Start a movie through HDMI eARC and feel sound rise above the screen. Switch to music and see album art glow from the soundbar. Group with other WiiM devices for synchronised whole-home listening, or build out your living room with wireless surrounds and subwoofer support when you're ready.
Control Without Friction
WiiM Bar gives you multiple ways to control your listening experience. Use the round touch display for quick playback, source selection, EQ, and Smart Presets. Open the WiiM Home App for streaming, grouping, routines, and deeper sound customisation. Use Alexa, Google Assistant, or the included Voice Remote for easy everyday control.
Your Music. Your Way.
Total freedom for your listening experience. Stream natively via Spotify and TIDAL Connect, or dive into the WiiM Home App to personalise your sound, sync multi-room audio, and browse all your services in one elegant place.
Take Full Control with the WiiM Bar Voice Remote
The WiiM Bar Voice Remote is crafted with a sleek body, rechargeable battery, and intuitive Push-to-Talk Alexa functionality, plus smart presets and dedicated playback buttons for a seamless and intuitive experience.
Built for Cinema. Tuned for Music.
Behind the sleek form is a serious acoustic system: three front mid-woofers, three front tweeters, two top full-range height drivers, and four passive radiators. Together, they support a wide soundstage, clear vocals, height effects, and stronger bass performance from a single soundbar.
Built for Modern Home Theatre
Connect through HDMI eARC and enjoy support for LPCM, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus (DD+), AC3, DTS, and DTS:X. Stream over Wi-Fi 6E or Ethernet, connect through Bluetooth 5.4, or use optical, line-in, USB Audio In/Out, and USB Host for flexible playback.
The Freedom of WiiM Streaming
Stream from the WiiM Home App or connect through Google Cast Audio, Spotify Connect, TIDAL Connect, Qobuz Connect, Amazon Music Cast, DLNA/UPnP, Qplay 3.0, LMS, and Roon.
Specifications
| Product Name: | WiiM Bar |
| Model Name: | WiiM Bar |
| Model Number: | BAR001 |
| Product Type: | Display-first smart soundbar |
| Tagline: | See the Sound. Build the Theatre. |
| Channel Layout: | 3.0.2 |
| Expandable Home Theatre: | Expandable to 5.1.2 with compatible WiiM surround and subwoofer devices |
| Primary Use Cases: | TV, movies, music streaming, gaming, whole-home audio, scalable home theatre |
| Control Options: | Touch display, WiiM Home App, voice control and WiiM Bar Remote |
| Acoustic System: | 8-driver acoustic system with 4 passive radiators |
| Front Mid-Woofers: | 3 × 110 × 52 mm mid-woofers |
| Front Tweeters: | 3 × 52 × 52 mm tweeters |
| Top Height Drivers: | 2 × 52 × 52 mm full-range drivers |
| Passive Radiators: | 4 × 115 × 50 mm passive radiators (2 front, 2 rear) |
| Max System Power: | 135 W |
| Native Channel Layout: | 3.0.2 |
| Height Effects: | Top-firing height channels |
| Supported Audio Formats: | LPCM, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus (DD+), AC3, DTS and DTS:X |
| Dolby Atmos Support: | Yes, via supported content and compatible input setup |
| DTS:X Support: | Yes |
| HDMI Home Theatre Connection: | HDMI eARC |
| Native Configuration: | 3.0.2 Dolby Atmos and DTS:X soundbar |
| Expandable Configuration: | Up to 5.1.2 with compatible WiiM surround and subwoofer devices |
| Surround Expansion: | Wireless surround support with compatible WiiM devices |
| Subwoofer Expansion: | Wireless subwoofer support with compatible WiiM devices |
| Room Correction: | RoomFit™ auto-correction |
| Dialogue Enhancement: | Clear Voice and AI Dialog Enhancement |
| Night Listening: | Night Mode |
| Sound Modes: | Movie Mode, Music Mode, Voice Enhance Mode and Night Mode |
| Preset EQ: | 24 preset EQ settings |
| Graphic EQ: | 10-band Graphic EQ |
| Parametric EQ: | 10-band Parametric EQ, where supported in the WiiM Home App |
| Per-Source EQ: | Supported via WiiM Home App, where available |
| App Customisation: | Sound modes, EQ, RoomFit™, input settings, grouping and device preferences |
| Display: | Glass-covered 2.1-inch hi-res full-colour round LCD touch screen |
| Display Type: | Round touch display |
| Display Content: | Album art, track information, time, EQ, Smart Presets, Recently Played, clock faces, dynamic wallpapers and album art standby |
| Playback Controls: | Play, pause, skip and like |
| Source Controls: | Source selection from the display |
| EQ Controls: | Quick EQ access on the device; deeper EQ control in the WiiM Home App |
| Smart Presets: | One-tap access to favourite preset routines and content |
| Recently Played: | Access to recently played playlists, stations and shows |
| Personalisation: | Multiple clock faces, dynamic wallpapers and album art standby |
| Proximity-Lit Capacitive Buttons: | Volume +, Volume –, Play/Pause and Source Switch |
| Status LED: | RGB+W status LED |
| App Control: | WiiM Home App |
| Voice Control: | Alexa and Google Assistant |
| Remote: | WiiM Bar Remote |
| Remote Controls: | Playback, volume, source switching, sound modes, mute/unmute, standby and voice control where available |
| On-Device Control: | 2.1-inch round touch display and proximity-lit capacitive buttons |
| Setup Control: | WiiM Home App via Wi-Fi or Ethernet |
| Ecosystem Control: | Manage streaming, grouping, EQ, presets and compatible WiiM devices from the WiiM Home App |
| HDMI: | HDMI eARC |
| Optical: | Optical In |
| Analogue Input: | Line In |
| Ethernet: | 10/100 Mbps Ethernet |
| USB: | USB Host for storage, USB Audio Input and Output |
| Wi-Fi: | Wi-Fi 6E |
| Wi-Fi Bands: | 2.4 GHz, 5 GHz and 6 GHz |
| Wi-Fi Standard: | 802.11 b/g/n/ax |
| Bluetooth: | Bluetooth 5.4 |
| Bluetooth Profiles: | BLE, A2DP Rx/Tx, AVRCP and HID |
| LE Audio: | Supported via software update |
| Bluetooth Input: | Stream from compatible phones, tablets, TVs and laptops |
| Bluetooth Output: | Output to compatible Bluetooth speakers, headphones or earphones, where supported |
| Wired Network Behaviour: | Ethernet available for a stable wired network connection |
| Streaming App: | WiiM Home App |
| In-App Streaming: | Stream 20+ music services through the WiiM Home App |
| Casting And Streaming Protocols: | Google Cast Audio / Chromecast Audio, Spotify Connect, TIDAL Connect, Qobuz Connect, Amazon Music Cast, DLNA/UPnP, Qplay 3.0, LMS and Roon |
| Example Music Services: | Spotify, Amazon Music, YouTube Music, TIDAL, Qobuz, Deezer, TuneIn, SoundCloud, Pandora, iHeartRadio, vTuner, Napster, SoundMachine, KKBOX and Soundtrack Your Brand |
| AirPlay 2: | Not supported |
| Network Playback: | Wi-Fi, Ethernet, DLNA/UPnP and WiiM Home App |
| Direct App Control: | Supported with compatible services such as Spotify Connect, TIDAL Connect, Qobuz Connect and Google Cast Audio |
| WiiM Multi-Room Audio: | Group WiiM Bar with compatible WiiM devices for synchronised multi-room listening |
| Compatible WiiM Ecosystem: | Designed to integrate with WiiM Amp, WiiM Ultra, WiiM Pro, WiiM Mini and WiiM Edition speakers for multi-room music grouping |
| Home Theatre Expansion: | Expand from 3.0.2 to up to 5.1.2 with compatible WiiM surround and subwoofer devices |
| Surround Setup: | Use compatible WiiM devices as wireless surround channels |
| Subwoofer Setup: | Add compatible WiiM subwoofer support for deeper bass |
| Other Multi-Room Options: | Alexa multi-room and Google Cast multi-room, where supported |
| Physical Input Multi-Room: | For Line In, Optical In, HDMI eARC or Bluetooth as multi-room sources, use a WiiM device group |
| USB Function: | USB Host for storage |
| Media Library: | Access a personal media library from connected USB storage |
| Media Server: | Can act as a media server for other WiiM and DLNA devices on the same network |
| Supported Storage Examples: | USB drive or compatible external storage |
| Supported File Systems: | FAT32, NTFS and EXT4, where supported |
| Playback Control: | Browse and control USB media through the WiiM Home App |
| Dimensions: | 1060 × 105 × 74 mm |
| Height Without Foot: | 70 mm |
| Weight: | 5 kg (11.02 lb) |
| Placement: | TV console or wall mount |
| Wall Mounting: | Wall brackets included |
| Display Location: | Front-facing 2.1-inch round touch display |
| On-Device Controls: | Top-panel capacitive controls and front touch display |
| Status Light: | RGB+W LED status indicator |
| Power Input: | 100–240 V AC |
| Frequency: | 50/60 Hz |
| Power Cable: | Included |
| What's Included: | WiiM Bar, WiiM Bar Remote, User Guide, Power Cable, HDMI Cable, Optical Cable, and 2 × wall brackets with screws |
